Used Tool Clamping Machine for sale (67,714)

Condition: good (used), Spare part for grinding machine, angle grinder, lathe tool grinder, tap and die grinder, milling cutter grinder, surface grinder, drill grinder -Clamping angle: for tool grinding machine -Type: unfortunately without a type designation Ppsdpfxjkahkcs Aqlew -Details: see photos -Dimensions: 150/150/H215 mm -Weight: 8.2 kg

Condition: excellent (used), Year of construction: 2019, Emuge PGU 9500 E MACHINE FOR CLAMPING SYSTEM PGR Psdpfx Asv Iybroqlopw

Condition: used, Year of construction: 2021, turning diameter over bed 0800 mm Ppjdey Nd Siepfx Aqlow turning diameter over slide rest 500 mm turning length 4000 mm spindle bore 105 mm spindle turning speed range 5,4 - 720 U/min workpiece weight 2500 kg bed width 600 mm spindle bore 105 mm longitudinal feeds: 0,05- 24,3 mm/U cross feed 0,05 - 12,15 mm/U rapid traverse 4 m/min main drive 11 kW total power requirement 14 kW weight of the machine ca. 8 t dimensions of the machine ca. 6,5 x 2,5 x 2 m With 4 position tool holder, face plate with safety cover, steady rest and DRO.

Condition: new, functionality: fully functional, travel distance X-axis: 510 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 300 mm, 📝 Description & Additional Technical Parameters Product Description: The VTX-5 is part of the Tongtai VTX Series of compact CNC vertical tapping / milling centers. It is designed to combine high speed, rigidity, and precision in a relatively small footprint. It uses a direct-drive spindle to improve tapping accuracy and reduce maintenance compared to belt-driven designs. Roller guideways (linear rails) are used to ensure smooth, rigid motion. Tool changing is relatively fast, and the structure is optimized for stability and precision under moderate loads. Technical Parameters: Ppedpfx Aoxni Iqsqlew Table size: 600x400mm Strokes on X/Y/Z: 510/400/300mm Maxim loading capacity on the table: 250kgs Rapid traverse on X/Y/Z: 60/60/60 m/min Machine size (Width x Depth x Height): 1.700x2.600x2.700mm Machine weight: 2.850kgs Siemens controller model 828D with Shopmill and 10,4inch LCD Spindle speed 12.000 rpm direct driven Spindle motor 5,8kW Tool shank BBT-30 4th axis rotary table diameter 170mm and tailstock CTS ( coolant through spindle) 20bar Chip Conveyor chain type Price is EXW (Stock Europe), Include loaded on truck. Transport, installation, commissioning, training, and yearly service contracts are available upon request for an additional fee. Installation and training is always done by our high qualified Service team in 3 locations in Europe. Netherlands, Germany, Romania.

Condition: as good as new (ex-display), functionality: fully functional, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 830 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, workpiece height (max.): 1,000 mm, workpiece diameter (max.): 500 mm, workpiece weight (max.): 500 kg, 📄 Product Description The Tongtai SH-5000P is a high-speed, high-rigidity horizontal machining center designed for efficient machining of aluminum and light metal workpieces. Ppjdpfoxnizdjx Aqlew It features a compact structure, three-point support bed, high rapid traverse speed, and optional APC (Automatic Pallet Changer). The built-in spindle provides high speed and precision, ideal for automotive and general manufacturing industries. ⚙️ Technical Parameters Strokes on X/Y/Z: 730/730/830mm B axis rotary table: 0,001º indexing table Rapid traverse on X/Y/Z: 60/60/60 m/min Acceleration (X/Y/Z): 9.8 m/s Spindle Speed: 15,000 rpm. Tool Capacity: 60 pieces (upgraded from standard 40). Chip-to-Chip Time: 3.6 s (at 1,800 rpm). Pallet Dimensions: 500 x 500 mm. Max. Workpiece Height: 1,000 mm. Max. Rotation Diameter: 500 mm. Max. Table Load: 500 kg. Automatic Pallet Changer (APC): Included, with a 7 s changeover time. Machine size (Width x Depth x Height): 5,840 x 2,290 x 2,892 mm Machine weight: 12,400 kg. CNC Control: Siemens Sinumerik 840 D with 15" Display and Shopmill interface Internal Cooling: CTS (Coolant Through Spindle) at 70 Bar. Peripheral Equipment: Includes a Disc-type Oil Skimmer and an Oil Mist Collector. Energy Efficiency: Equipped with energy-efficient drives. Price is EXW (Stock Europe), Include loaded on truck. Transport, installation, commissioning, training, and yearly service contracts are available upon request for an additional fee. Installation and training is always done by our high qualified Service team in 3 locations in Europe. Netherlands, Germany, Romania.

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, machine/vehicle number: 11876, travel distance X-axis: 1,524 mm, travel distance Y-axis: 596 mm, travel distance Z-axis: 584 mm, quill travel distance: 127 mm, quill diameter: 105 mm, spindle speed (max.): 5,000 rpm, spindle speed (min.): 40 rpm, table width: 355 mm, overall weight: 3,750 kg, table load: 850 kg, XYZ SMX 5000 CNC Bed Type Milling Machine Model: SMX 5000 Ppedsznkkaopfx Aqljw S/No.: 11876 Year: 2013 Control: ProtoTrak SMX Table Size: 1930 x 355mm Travels (X,Y,Z axis): 1524 x 596 x 584 Quill Diameter: 105mm Max. Quill Travel: 127mm Spindle Taper: 40 ISO Spindle Speed Range: 40 – 5000 RPM Spindle Motor Power: 7.5 HP Max. workpiece weight: 850 kgs

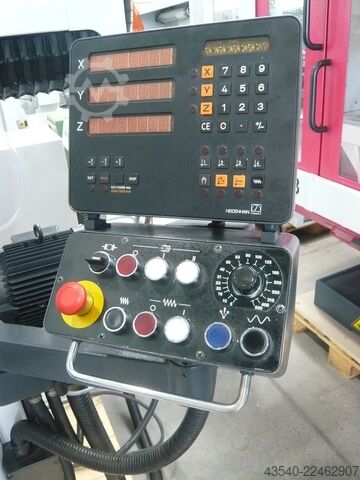

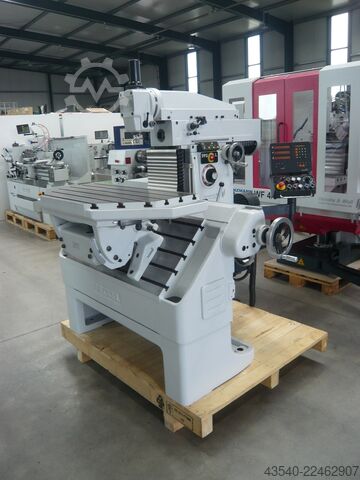

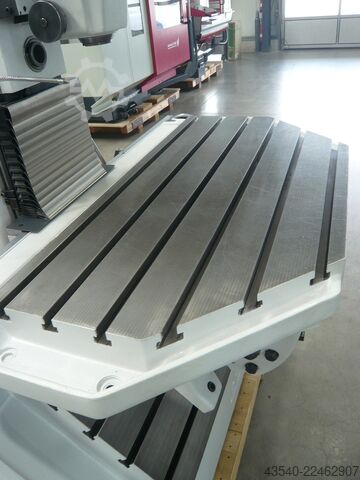

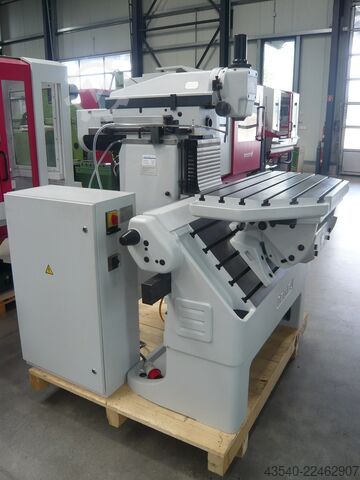

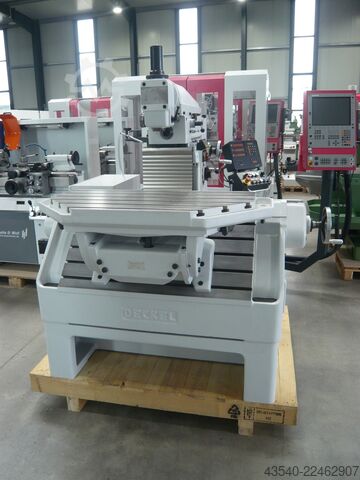

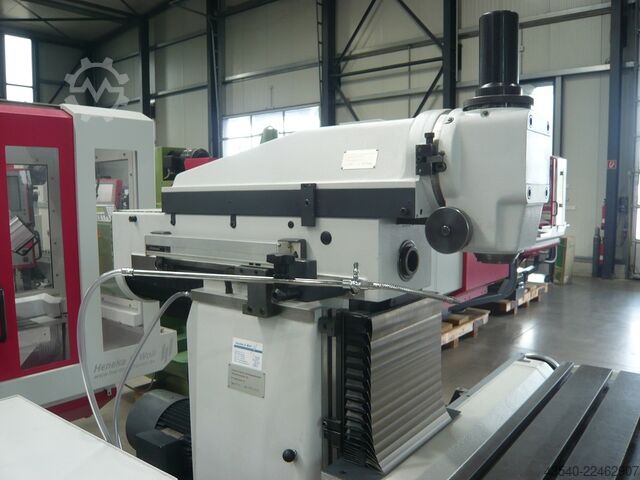

Condition: excellent (used), Year of construction: 1980, functionality: fully functional, Universal milling machine Deckel FP3L with 3-axis Active TNC 113 - Digital display Heidenhain, point-to-point control, stepless feed Technical data: >> Year of manufacture 1980, machine no. 2302-2430 >> 3 axes, digital active display TNC 113 >> Swivel-tilt table (clamping area 1000 mm x 520 mm) >> Speed: 25 - 2500 rpm >> Feed and rapid traverse in 3 axes >> Feed from 5 to 500 mm/min, stepless >> Rapid traverse 1500 mm/min in all feed directions >> Drive power: 2 / 4 KW >> Travels X/Y/Z: 800/300/400 mm (Y travel can be adjusted by an additional 200 mm) >> Equipment: Vertical & horizontal spindle >> Vertical and horizontal quill, extendable - SK-40 >> Collet system S20x2 >> Weight approx. 2500 kg Accessories and equipment: >> 3-axis active digital display Heidenhain >> Coolant system About the machine: Offered is a Deckel FP3L universal milling machine in very good condition. The vertical head can be moved by 200 mm to enable an even larger working area. Even at maximum speeds, the milling machine runs smoothly. A central pump ensures lubrication of the various axes. The special feature of this machine type is its basic design; it is a machine with a slanted table bed. The movements are assigned to the spindle and thus to the tool. The accuracy is therefore very high, as different workpiece weights have no influence on the axis movements. Mechanically and electrically inspected. In this newer FP3L model, the feed can be adjusted steplessly in three axes; the machine also has a rapid traverse for each axis. A major advantage is the active 3-axis digital display. With this Heidenhain point-to-point control, you can enter dimensions that the machine will automatically move to. Take advantage of the opportunity to inspect and test the Deckel on-site while it is powered. Psdpfx Aqszquq Nslopw For an additional charge, the machine can be delivered with CE conformity.

Condition: used, PARPAS Type AU engraving tool grinding machine Manufacturer's No. 854/36 Year of manufacture 1971 Grinding wheel diameter 100 mm Grinding spindle speed approx. 3500 rpm Motor power approx. 0.55 kW Mains connection 380 volts, 50 Hz Psdpfx Aodzp T Tjqljpw - Collet chuck (DECKEL system with S20x2) - Collet chuck Ø 15.0 mm - Diamond grinding wheel dresser for the face of the grinding wheel Space requirement L x W x H 700 x 350 x 450 mm Weight approx. 80 kg good condition

Condition: not inspected (used), Year of construction: 1986, feed length X-axis: 580 mm, feed length Y-axis: 400 mm, feed length Z-axis: 450 mm, spindle speed (max.): 2,500 rpm, Grunding Contour 2 Pjdpsy E N Dvsfx Aqlopw table 800x460 mm travel 580x400x450 mm max spindle speed 2500 rpm spindle taper 40

Condition: used, machine/vehicle number: 2806-0743, x-travel:800 mm y-travel:550 mm z-travel:500 mm table surface area:(B x T )1000x550 mm spindle turning speed - stepless:0 - 5000 U/min feed speeds - directly programable:2- 6000 mm/min rapid traverse:6,0 m/min quill stroke:80mm mm Tool bore:SK40 total power requirement:12 kW weight of the machine ca.:3,9 t Ppedpfx Aocxxngeqlew dimensions of the machine ca.:(LxBxH) 2200x2800x2400 mmxmmxmm Deckel FP5 NC Universal Milling Machines - CNC - Swivelable left or right) 90 ° & Tilting Vertical Spilndle Head - Rigid Fixed Table: 1100 x 550 mm (Max. Load 450 kg) - High RPM on Both vertical and Horizontal Spindles - Powerful 9,0 kw AC drives for Main Spindle - Equipped with Electronic handwheel and handheld rapid travel attachement - Dialog 4 - 3D Path Control System. - Seperate Power cabin, Chip tray

Condition: used, machine/vehicle number: 420285, x-travel:1120 mm y-travel:420 mm z-travel:620 mm spindle taper:SK 40 Ppjdpfecxxm Iox Aqljw spindle speeds:30-2000 1/min table dimension - longitudinal:1600 mm table dimension - cross:400 mm

Condition: good (used), Tools , drills will come without tool cabinet . Tool trolley with toolholders will come. Psdpfx Aezd D N Ijqljpw

Condition: used, Swing bending machine with additional segmented upper tool, gooseneck rail. Swing bending press brake FASTI type 2095-25-2.5, serial no. 94 295 004, year of manufacture 1994. Working length 2540 mm, max. sheet thickness 2.5 mm, upper beam stroke 380 mm, bending beam motor power 2.2 kW, power supply 400 Volt, 50 Hz. - NC control FASTImatic FM100 - one-piece sharp rail 135° - additional segmented upper tool, gooseneck rail - controlled backgauge - continuous stop rail - controlled bending angle via control - electric foot switches. Weight 3000 kg. In good condition. Ppodpfx Aqsttc Uajlew

Condition: used, 2-station notching machine and folding machine EUROMAC type Multi 220/6R Press brake, press brake, notching machine Serial no. M11941298 Year of manufacture 1998 Cutting capacity 6 mm steel at 45 kg/mm2 4 mm for stainless steel Station I (notching) Notching angle 60° to 140° (with special blade from 30° to 140°) Knife length 220 mm Table size 950 x 640 - Manual angle adjustment via hand wheels - Notching angle with built-in blade set from 60° to 140 - Hydraulic clamping of the upper and lower knives - Automatic cutting gap adjustment - sheet hold-down device - Scaled measuring tapes embedded in the table - stop rails with angle adjustment - Operation via foot switch Station II (die bending device) Pressure force 18 ton Table size 950 x 340 Working height 1100 mm Podpfjmck Ryjx Aqljpw - stepless lifting speed - Infinitely adjustable stroke limiter - Stroke adjustment up to 30 mm working stroke - Reversible prism with 4x 90° prisms, length = 415 mm - 90° upper tool, length = 415 mm Motor power 4 kW Mains connection 400 Volt, 50 Hz Space requirement L x W x H 1150 x 1050 x 1460 mm Weight approx. 1000 kg good condition

Year of construction: 1996, condition: ready for operation (used), Offered is a WALTER 5-axis CNC tool grinding machine for the production and resharpening of rotationally symmetrical cutting tools such as drills, milling cutters, reamers and special tools. Travels X/Y/Z: 400mm/250mm/580mm, C-axis swivel range: +/-200°, A axis: 360°, rapid traverse X/Y/Z: max. 15m/min, linear axis resolution: 0.0001mm, center height range: 130mm-165mm, max. workpiece diameter: 190mm, workpiece mounting: ISO 50, spindle motor power: 4.4kW, grinding spindle speed: 6000rpm, spindle diameter: 70mm, max. grinding wheel diameter: 200mm, control: WALTER HMC 400. Overall dimensions X/Y/Z: approx. 1420mm/2010mm/2150mm, weight: approx. 3100kg. An on-site inspection is possible. Psdpfx Aqjzpa Scolopw

Condition: ready for operation (used), Year of construction: 1984, Immediately available from training center: MAHO Tool Milling Machine Model MH 600 Year of manufacture: 1984 Ppodpfxsznhyle Aqljw Table: 700 x 400 mm Travel X/Y/Z: 500/400/400 mm Speeds: 40 – 2500 rpm SK 40 Spindle stroke: 80 mm Coolant system Drive: 4 kW Feeds: 8 – 400 mm/rev Head swivels 90/90 degrees Weight: 1900 kg Price: EUR 2,250.-- plus VAT, ex location.

Condition: ready for operation (used), Year of construction: 1995, Available immediately ex location: CNC tool milling machine Deckel, type FP 5–80, year of manufacture 1995, CNC control Dialog 12, universal table 750 x 520 mm. Travels X/Y/Z: 800/550/500 mm. Drive power: 9 kW. Quill stroke: 80 mm. Electronic handwheel. Spindle speeds: 32–5000 rpm. Feeds: 0–6000 mm/min. Weight: 4.5 t. Price: EUR 2,750 plus VAT, ex location. Ppodpfxeznhxhj Aqlsw

Condition: used, Universal Milling Machine DECKEL Type FP 1 Universal milling machine Machine No. 2101 – Year of manufacture: 1979 Manual travel X: 300 mm, Y: 160 mm, Z: 330 mm Table size: 600 x 210 mm Spindle taper: SK 40 – S20x2 Spindle speed: 40–2000 rpm, 16 steps Feed X and Y axes: 5 to 500 mm/min Rapid traverse: 1200 mm/min Motor power: 1.5 and 1.9 kW, pole-changeable Electrical connection: 380 Volt, 50 Hz - Stepless feed in X and Z axes - Spindle speed via 2 motor speeds and 8 gear steps - Quill movement at the vertical milling head: 60 mm - Vertical milling head can be swiveled and extended horizontally by 100 mm Psdpfxjr U St Uj Aqljpw - Fixed angle table 600 x 210 mm - Coolant system integrated in the machine base - Standalone control cabinet - Original chip tray for mounting on the machine base - Electrical schematic available Required space (L x W x H): 1350 x 1100 x 1700 mm Weight: 770 kg Good condition

Condition: used, Univ. Schwenk-Tilting-Rotary Table DECKEL Universal tool and milling machine mounting table, suitable for FP 2L, FP 3L or FP 4L No. 2314 Year of manufacture: approx. 1975 Pedjd E A I Nspfx Aqlspw Clamping surface: 1000 x 520 mm - 6 clamping slots, 16 mm, spacing 90 mm - Clamping plate can be rotated horizontally to the right and left up to 45 degrees, with a scale - Can be tilted +/- 15 degrees from/towards the machine - Can be swiveled +/- 15 degrees - Swiveling table, tilting table, angular table Permissible load max. 1000 kg Weight: 400 kg Good condition

Condition: used, Universal Tool Milling Machine MAHO Type MH 800 P with digital readout and HEIDENHAIN TNC 121 contouring control . 80983 Year of manufacture: 1982 Pedpfsv Amryox Aqlspw Machine overhauled by MMD in 2008, subsequently used only occasionally in the workshop of an electronics company. Travel X: 700 mm, Y: 450 mm, Z: 500 mm Table size: 1050 x 627 mm Spindle taper: ISO 40 Spindle speed: 40–2000 rpm, 18 steps Feed X, Z-axis: 10–500 mm/min, stepless Feed Y-axis: 5–250 mm/min, stepless Rapid traverse X, Z-axis: 1.4 m/min Rapid traverse Y-axis: 0.7 m/min Quill vertical travel: 100 mm Quill feed, vertical: 0.02 / 0.03 / 0.05 / 0.08 / 0.12 / 0.2 mm/rev Quill horizontal travel: 100 mm Spindle drive: 5.5 kW Power supply: 380 Volt, 50 Hz, 10 kW - NC contouring control HEIDENHAIN TNC 121 - Vertical milling head with automatic quill feed 0.02–0.2 mm/rev (6 steps) - Hydro-mechanical tool clamping - Coolant system integrated in the machine base - Universal rotary table, 360° rotatable, tilts and swivels 30°, 225 mm cross adjustment - Rotary table with direct indexing 72 x 5° and indirect indexing via index plate 1:120 = 1 rev = 3° - Swiveling control panel - Central lubrication - Operating manual - Machine mounted on steel plate L x W x H 1400 x 1000 x 50 mm = 550 kg Space requirements L x W x H 2650 x 2000 x 2450 mm Weight: 3700 kg + 550 kg steel plate Total weight: 4250 kg (actual) Very good condition

Condition: used, CNC Milling Machine DECKEL Type FP 3 A Tool-tool milling machine with handwheels, also for conventional operation Serial No. 2206 - Built in 1982 GRUNDIG CNC 2101 CNC control system Travel paths X: 490 mm, Y: 300 mm, Z: 340 mm Table size 705 x 425 mm Spindle mount SK 40 Quill stroke 100 mm Spindle speed 25 - 2500 rpm, 21 steps Feed rate 5 - 500 mm/min, continuously variable Rapid traverse speed 1200 mm/min Podpfx Aqsv R E Rdelepw Spindle motor power: 2/4 kW, pole-changing Power supply: 380 V, 50 Hz - GRUNDIG CNC 2101 CNC control system - Mechanical handwheels for all three axes - Universal tilt-and-turn table - Vertical milling head tilts and is manually adjustable by 200 mm - Hydro-mechanical tool clamping - Coolant system in the machine base - Protective enclosure at the front and sides with three hinged doors - Control cabinet adjacent (L x W = 600 x 430 mm) Space requirement: L x W x H: 1900 x 1700 x 1950 mm Weight: 1700 kg (machine 1540 kg + electrical cabinet 160 kg) Very good condition

Condition: used, Univ. universal milling machine DECKEL, Type FP 1 Machine No. 28317, Year of manufacture approx. 1960 Podpjiy Ekvjfx Aqlopw Travel distances: X: 245 mm, Y: 150 mm, Z: 340 mm Table size: 600 x 210 mm Spindle mount, horizontal: MK 4 - S20 x 2 Spindle speed, vertical: 95-1900 rpm, 12 steps Spindle speed, horizontal: 60-1200 rpm, 12 steps Motor power: 0.8 and 1.1 kW, pole-changing Power connection: 380 Volt, 50 Hz - Spindle speed controlled via 2 motor speeds and 6 gear stages - Feed in the X and Z axes - Coolant system with mechanical pump in the machine base - Quill travel on the vertical milling head: 60 mm - Vertical milling head swivels +/- 90° - Metal substructure made of angle iron with machine feet Space requirement L x W x H: 1100 x 900 x 1650 mm Weight: 650 kg Good condition

Condition: used, Table unit from a DROOP & REIN portal milling machine Clamping plate with T-slots made of cast steel gray cast iron Table unit with clamping plate and very solid guideway Table clamping surface 5500 x 2000 mm Travel of the table clamping plate approx. 3100 mm Table height 1050 mm Table load: max. 20 tons Ball screw: Ø 100 mm Thread pitch: 20 mm (single-start) - Processing table guided very stably on the bed - Metal telescopic guideway cover - comes from a DROOP & REIN portal milling machine - Longitudinal table movement via ball screw and SIEMENS servo motor - Clamping surface with 11 T-slots 28 mm - Drive via SIEMENS 1FT6134-6AB71-1AG2 servo motor with IC200448S/R encoder (RN 000 B25) Total length 9500 mm Width 2000 mm Podpfothuzpox Aqljpw Overall height 1050 mm dead weight 28 ton. good condition

Condition: used, Univ. universal tool milling machine DECKEL, Type FP 1 Machine No. 51265, Year of manufacture approx. 1967 Travel distances X: 300 mm, Y: 150 mm, Z: 340 mm Table size 600 x 200 mm Spindle mounting SK 40 - S20 x 2 Spindle speed 40-2000 rpm, 16 speeds Motor power 1.0 and 1.6 kW, pole-changing Mains connection 380 volts, 50 Hz Ppjdpfxsghtvae Aqlew - Feed in the X and Z axes - Spindle speed via 2 motor speeds and 8 gear stages - Quill movement on the vertical milling head 60 mm - Swivel, rotary, and tilting angle table - Coolant pump in the machine base - Adjacent control cabinet Space required L x W x H 1100 x 1100 x 1600 mm Weight 690 kg Good condition

Condition: used, CNC Tool Milling Machine MIKRON Type WF 40C/3M with Heidenhain TNC 310 CNC path control Machine No. 440911 Year approx. 1985, overhauled and control retrofit in 11/2000 Travel distances X: 600 mm Y: 600 mm Z: 460 mm Table size 900 x 550 mm Spindle taper ISO 40 Distance spindle nose - table max. 520 mm Spindle speed 31.5 - 3150 rpm, 21 steps Feed rate 1 - 2000 mm/min. Rapid traverse speed X and Y = 5000 mm/min; Z = 4000 mm/min Quill stroke 100 mm Main spindle drive 4 and 5 kW Power connection 400 Volt, 50 Hz, 10.5 kW, 25 Amp. - CNC path control Heidenhain TNC 310, NC software: 286140 07, PLC software: MIKR1 - Spindle speed via 21 gear steps - Vertical milling head swivels left and right - Hydro-mechanical tool clamping vertical and horizontal - Central lubrication - Electronic handwheel - 62,815 operating hours shown - Control cabinet permanently attached to the machine rear - Coolant system integrated in the machine base - Swiveling operator panel - Electrical diagram, control manual available Space requirement L x W x H 2300 x 2000 x 2150 mm Weight 2900 kg Ppodjw A Af Ispfx Aqlew Good condition
