Used Trumpf Trumabend V130 for sale (503)

Condition: excellent (used), Year of construction: 2002, Operating hours: 49,336 h Press force: 1,300 kN Stroke: 365 mm Ledoyyyc Sspfx Akyerk Operating pressure: 340 bar Overrun time: 58 ms Safety distance: 93 mm

Condition: good (used), Year of construction: 2000, functionality: fully functional, CNC press brake, 6 axes - Pressing force: 1,300 kN - Bending length: 3,060 mm - Number of axes: 6 programmable (X1, X2, R1, R2, Z1, Z2) - Y-axis rapid traverse: 200 mm/s - Y-axis working speed: 11 mm/s - Y-axis return: 135 mm/s - Travel speeds: X - 500 mm/s, R - 300 mm/s, Z - 1,000 mm/s - X-axis travel: 600 mm - Max. back gauge range X: 860 mm - R-axis travel: 250 mm - Y-axis stroke: 365 mm - Installation height: 535 mm - Y-axis tilt: ±10 mm - Bending length: 3,060 mm Lredpfx Akex S H Uxoysk - Clear distance between uprights: 2,690 mm - Throat depth: 410 mm - Table width: 120 mm - Working height: 1,050 mm - Oil capacity: 250 l Dimensions: Width: 3,640 mm, Depth: 2,210 mm, Height: 2,885 mm Weight: 12,950 kg The machine can be inspected under power!

Condition: used, Year of construction: 2001, TRUMPF - TRUMABEND V130 - years 2001 and 2003 - 2 machines with bending help - 100 t Lrsdpfx Akjyl Izrjyek - table 3000 mm - 1st machine is running with bending help (year 2001) - including some tools - have video too of 1st machine - 2nd machine has dismantled backgauge motor, but available (year 2003)

Condition: excellent (used), Year of construction: 1999, Technical Data: Working length: 3050 mm Distance between uprights: 2690 mm Pressing force: 130 t CNC control: DELEM Adjustable backgauge Controlled axes: Z1 / Z2; X; R CNC-controlled crowning Installation height: 535 mm Stroke: 365 mm Throat depth: 410 mm Hydraulic tool clamping top and bottom Ram position measuring system with spring-back compensation via glass scales Program-controlled lower tool shifting (I-axis) for 2 positions Motor power: 12.5 kW Ledpfx Aow Tcncekysrk Number of backgauge fingers: 2 CE mark Dimensions (L x W x H): approx. 3800 x 2350 x 3150 mm Weight: approx. 14 tonnes Condition: Good condition The seller is not liable for typing or data transmission errors. The machine's appearance, technical condition and wear correspond to its age; used machines are sold without any warranty.

Condition: excellent (used), Year of construction: 2000, Technical specifications: Lrsdowimvwopfx Akyjk Working length: 3050 mm Distance between columns: 2690 mm Press force: 130 t CNC control: DELEM DA65 2 D graphic Adjustable backgauge Controlled axes: Y1 / Y2; X; R; I CNC table bending compensation: Wila Moducrown Hydr. Tool clamping at the top and bottom Pneumatic tool shifting Number of bending aids: 2 Installation height: 535 mm Stroke: 220 mm Thrust: 410 mm Motor power: 12.5 kW CE mark Dimensions (length x width x height): approx. 3800 x 2350 x 3150 mm Weight: approx. 14 tons Accessories: 1 set of standard tools Condition: Good condition, tools in mint condition The seller is not liable for typographical or data transmission errors. The machine's appearance, technology, and wear are consistent with its age; used machines are sold without any warranty.

Condition: ready for operation (used), Year of construction: 2000, machine/vehicle number: 885669, functionality: fully functional, stroke length: 365 mm, throat depth: 410 mm, clearance between the columns: 2,800 mm, working width: 3,050 mm, bending force (max.): 130 t, TECHNICAL DETAILS Pressing force: 130.0 t Working area Working width: max. 3,050 mm Max. stroke: 365 mm Throat depth: 410 mm Distance between columns: 2,800 mm Number of axes: 6 Control Control: CNC Control type: Delem DA65 Controlled axes: Y1-Y2 + X-R-Z1-Z2 + I + crowning MACHINE DETAILS Dimensions and Weight Overall length: 3,500 mm Overall width: 2,200 mm Overall height: 2,400 mm Weight: 11,000 kg Lredpfx Akow Dqckjyok EQUIPMENT WILA hydraulic clamping Angle measurement system Documentation CE marking

Condition: used, Year of construction: 2001, pressure 130 t chamfer lenght 3060 mm distance between columns 2690 mm column arm 410 mm stroke 365 mm Lrodoyn R Hvepfx Akyok dayligth 535 mm ajustment speed 200 mm/sec working feed 1.0 - 10.0 mm/sec return speed 135 mm/sec table width 120 mm table height 1050 mm tiltable up to +/- 10.0 mm Number of working hours ca. 31.800 h compressed air 5.0 - 7.0 bar oil volume 250 l operating pressure 340 bar voltage 400 V total power requirement 23.0 KVA weight of the machine ca. 12950 kg range L-W-H 3660 x 2310 x 2900 mm Equipment: - CNC electro-hydraulic folding/die bending press - DELEM CNC control - swiveling front left * High-resolution graphic screen * Clear, concise menus in the operator's language * Large tools and products library * Graphical 2D programming * automatic bending sequence calculation and collision detection * EMERGENCY stop button at the front - CNC axis adjustment: * Y1 - Y2 - X - R axis CNC crowning * Manual adjustment of the 2x stop fingers, from the front (Z axes) - CNC electro-motorized table crowning - CNC electro-pneumatic die displacement (I axis) - WILA / TRUMPF upper tool clamping - hydraulic - WILA / TRUMPF lower tool clamping - hydraulic - 2x front, robust support arms - movable - 1x freely movable 2-hand/foot control - 1x free-moving foot switch - Lateral safety device (hinged doors) - rear safety device (sliding doors) - original operating instructions ( french )

Condition: used, Year of construction: 1996, pressure 130 t chamfer lenght 3060 mm distance between columns 2690 mm column arm 410 mm stroke 215 mm dayligth 385 mm ajustment speed 200 mm/sec working feed 1-10 mm/sec return speed 135 mm/sec table width 120 mm table height 1050 mm tiltable up to +/- 10 mm Number of working hours 53.820 h compressed air 5.0 - 7.0 bar oil volume 250 l Ledpoxabqbefx Akyjrk operating pressure 340 bar voltage 400 V total power requirement 16.0 KVA weight of the machine ca. 11250 kg range L-W-H 3640 x 2210 x 2375 mm - in checked condition - machine video - ?v=23IbxRaZ2KA Equipment: - CNC electro-hydraulic press brake - including DELEM CNC control model DA 65 * swiveling control panel, front left * 2D graphic programming & product display * tool & program library * including new TFT-LCD industrial monitor - CNC controlled axes: Y1 + Y2 / X / R - CNC electro-motor / controlled back stop (X axis) - CNC electro-motor / controlled height adjustment (R axis) - manual adjustment of the 2x stop fingers, from the front (Z axes) - manual adjustment of the die displacement, from the front (I axis) - WILA manual table crowning, including analog value display - TRUMPF hydraulic upper tool clamp - TRUMPF manual lower tool clamp - 1x freely movable 2 hand / foot control - Safety device at the rear (sliding door) - Safety device at the side (swinging door) - Original operating instructions + CE declaration + circuit diagram

Condition: used, Year of construction: 1997, pressure 130 t chamfer lenght 3060 mm distance between columns 2690 mm column arm 410 mm stroke 365 mm dayligth 535 mm ajustment speed 200 mm/sec working feed 1.0 - 10.0 mm/sec return speed 135 mm/sec table width 120 mm table height 1050 mm tiltable up to +/- 10.0 mm Number of working hours ca. 31.800 h compressed air 5.0 - 7.0 bar oil volume 250 l operating pressure 340 bar voltage 400 V total power requirement 23.0 KVA weight of the machine ca. 12950 kg range L-W-H 3660 x 2310 x 2900 mm Machine in a well-maintained condition (!!) with only approx. 31.800 operating hours Lrjdpfx Akexacfmjysk - in checked condition - machine video - ?v=PBV-MDtZnlE Equipment: - CNC electro-hydraulic press brake - DELEM CNC control model DA 65 * swiveling control panel, front left * 2D graphic programming & product display * Tool & program library * USB keyboard and mouse interface - CNC controlled axes: Y1 + Y2 / X1 + X2 / R1 + R2 / Z1 + Z2 / I axis - CNC controlled back stop (X1 + X2 axis) - CNC controlled height adjustment of the back stop (R1 + R2 axis) - CNC controlled adjustment of the stop fingers (Z1 + Z2 axis) - CNC controlled, pneumatic die displacement (I axis) - CNC WILA electro-motoric table crowning - TRUMPF hydraulic upper tool clamping - TRUMPF manuel Lower tool clamp - 1x freely movable 2-hand / foot control - Safety device at the rear (sliding door) - Safety device at the side (swinging door) - Original operating instructions + spare parts list

Condition: good (used), Year of construction: 1997, machine/vehicle number: 885258, Offer 25514 Technical Data: - Max. working length: 3060 mm - Frame opening: 2690 mm - Max. pressing force: 1300 kN - Max. distance table/ram: 535 mm - Throat depth: 410 mm Lredpfx Aox Ew Dqekyjk - Ram stroke: 215 mm - Stroke speeds: - Downward idle speed: max. 200 mm/sec - Upward speed: 135 mm/sec - Pressing speed (downward): 1 to 11 mm/sec - Total drive power: 18 kW - Pneumatic connection: 6 bar - Required space: approx. W 3800 x H 2700 x D 2400 mm - Weight: approx. 11,500 kg Features: - 6-axis CNC control system DELEM - Two-hand control panel with foot pedal - Crowning system - CNC-controlled backgauge with height adjustment 5 - 860 mm - Hydraulic upper and lower tool clamping - Pneumatically assisted die table shifting

Condition: good (used), Year of construction: 2005, Used 2-meter CNC press brake from Trumpf Lrsdpey Dpufsfx Akysk Model: TrumaBend V85s Capacity: 2050 x 85 tons Control: Delem DA69 Axes: Y1, Y2, X, R, Z1 and Z2 Hydraulic WILA upper and lower clamping Year of manufacture: 2005

Condition: good (used), Year of construction: 2005, functionality: fully functional, Press force 400 t Bending length 4050 mm Distance between uprights 3550 mm Control unit: CYBELEC ModEva 10 S Total power requirement 47 kW Machine weight approx. 30,400 kg Space requirements approx. 6000x3000x3450 mm Accessories/Equipment: Lodpfx Aoy Ew E Iekyork - 2 bending aids in front of the machine - 2 backgauge fingers - Light curtain in front of the machine - CYBELEC ModEva 10 S control - Parking spot on the right for bending aid - Die shifting - Tool holder - Crowning - Pneumatic tool shifting - Foot switch - Side safety doors - Controlled axes: Y1 - Y2 - R - Z1 - Z2

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, Press force: 85 t Bending length: 2750 mm Upright width: 2260 mm Total power requirement: 17 kW Lrodoyvhzujpfx Akysk Machine weight approx.: 8,300 kg Space requirements approx.: 3800 x 2300 x 2400 mm Accessories/Equipment: - 2 support arms in front of the machine - 2 backgauge fingers - Light barrier in front of the machine - Safety guard at the sides and rear of the machine - Die shift - 6-axis backgauge - Trumpf TASC 6000 control - Wila tool holder - Operating hours: 75,000 h

Condition: good (used), Year of construction: 2001, functionality: fully functional, Hydraulic press brake Make: TRUMPF Model: TrumaBend V85S Year of manufacture: 2001 Technical specifications Manufacturer: Trumpf Model: TrumaBend V85 S Year: 2001 Ljdpfx Aoy Dr Ibskyork Pressing force: 85 t Bending length: 2550 mm Throat depth: 420 mm Stroke: 215 mm Dimensions: L 3.1 x W 1.80 (plus 0.5 m support arms) x H 2.40 m Weight: 8.8 t Equipment - Controlled axes: Y1, Y2, X, R, Z1, Z2 - 2 movable support arms - CNC-controlled crowning - Hydraulic upper tool clamping system (Trumpf system) - Pneumatic die shifting - Delem 2D graphical control - Tool package: Upper tool, straight, H 140 mm, R 1 28°, L 2500 mm, segmented Lower tool V8/86°, H 100 mm, L = 2500 mm, segmented All specifications without guarantee. A demonstration is possible at any time in our showroom.

Condition: used, Year of construction: 1991, Technical details: pressure: 2000 t chamfer lenght: 4100 mm control: - distance between columns: 3200 mm stroke max.: 250 mm total power requirement: 22 kW operating pressure: max. 280 bar table width: 200 mm Lodpfxsy Alw Hj Akyork stroke speed - idle stroke upwards: 100 mm/s stroke speed - idle stroke downwards: 100 mm/s weight of the machine ca.: 18.000 t dimensions of machine: 5,0 x 2,7 x 3,0 m

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, Pressure: 225 t Lsdpfoyz S Ngsx Akysrk Bending length: 4050 mm Control: DA 69 TW Oil capacity: 400 l Total power requirement: 17 kW Machine weight approx.: 18,100 kg Dimensions: 5700 x 2610 x 3300 mm

Condition: ready for operation (used), Year of construction: 1998, pressure 85.0 t chamfer lenght 2050 mm distance between columns 1750 mm Lrodpfxoxaa Urs Akysk column arm 410 mm stroke 365 mm dayligth 535 mm ajustment speed 200 mm/sec working feed 1.0 - 10.0 mm/sec return speed 135 mm/sec back stop - adjustable max. 600 mm table width 120 mm work height max. 1050 mm Number of working hours 28.500 h oil volume 200 l operating pressure 340 bar total power requirement 14.0 kVA weight of the machine ca. 9050 kg range L-W-H 2680 x 2100 x 2885 mm with increased installation height / piston stroke very well maintained condition (!!) with only approx. 28.500 operating hours - in checked condition - machine video - ?v=ZuwyPKJSYLw Equipment: - CNC electro-hydraulic press brake - including DELEM CNC control * swiveling control panel at the front left - CNC controlled axes: Y1 - Y2 - X - R - Z1 - Z2 - I + CNC crowning - CNC electro-motorized back stop (X axis) - CNC electro-motorized height adjustment of the back stop (R axis) - CNC electro-motorized adjustment of the stop fingers (Z axes) - CNC pneumatic die displacement (I axis) - CNC motorized table crowning - WILA electro-hydraulic upper tool clamping - WILA electro-hydraulic Lower tool clamp - 1x freely movable 2-hand / foot control - 2x front, stable support arms including "sliding system" - side protective device (swinging doors) - rear protective device (swinging doors) - bending tool storage cabinet (right front, side) - original operating instructions + circuit diagram etc. further technical data: - feed speed X axis .. 500 mm/sec. - feed speed R axis .. 300 mm/sec. - feed speed Z axis .. 1000 mm/sec. - travel range X axis .. max. 600 mm - travel range R axis .. max. 250 mm

Condition: excellent (used), Year of construction: 2002, Operating hours: 38,516 h Press force: 500 kN Stroke: 215 mm Lsdpfx Aeyyybbjkyerk Operating pressure: 290 bar Overrun time: 48 ms Safety distance: 77 mm

Condition: excellent (used), functionality: fully functional, controller manufacturer: Delem, bending force (max.): 170 t, control type: CNC control, number of axes: 4, type of crowning: CNC-controlled, Equipment: CE marking, foot remote control, lower tooling, safety light barrier, upper tooling, Used Trumpf Trumabend V170 CNC Hydraulic Press Brake For Sale Subcategory: Press Brakes Tonnage: 170Ton Manufacturer: Trumpf Model: V170 Trumabend Condition: Used Trumabend DA65 2D CNC Controls 4 Axis machine, complete with i axis 2 Axis CNC Back Gauges R and X Axis complete with 4 fingers on the back stop CNC Ram Control Y1, Y2 Lsdpfx Aox R Ul Ajkysrk CNC Bed Crowning Die Shift (iaxis) Pedestal Controls Electric Foot Switch Safety Light Guards

Condition: good (used), Year of construction: 2001, functionality: fully functional, working width: 3,000 mm, control type: CNC control, Hydraulic 6-Axis CNC Press Brake Manufacturer: TRUMPF Model: Truma Bend V 230 Year of manufacture: 2001 Control: CNC Graphic Press force: 230 tons Bending length: 3060 mm Installation height, max. distance between lower edge of punch and upper edge of die holder: 535 mm Ram tilting: +/- 10 mm Clear gap between uprights: 2690 mm Throat depth: 410 mm Table width: 200 mm Working height with 100 mm usable tool height: 1050 mm Speeds: 200 mm/sec Y-Axis: Rapid traverse / Working stroke / Return Ljdpfoyw Ubwjx Akysrk X-Axis: 500 mm/sec R-Axis: 300 mm/sec Accuracy1 * Axis positioning deviation: Y-Axis: 0.01 mm X-Axis: 0.04 mm R-Axis: 0.08 mm Stroke Range / Backgauge travel: Y-Axis stroke: 365 mm X-Axis travel: 600 mm Max. backgauge range in X: 860 mm R-Axis travel: 250 mm Control: DA 65 Standard features Additional equipment Connected load: 38.5 kVA Electrical connection approx. Pneumatic connection: 6-7 bar Dimensions and weight: 3660 x 2310 mm (L x W) Required footprint (Length x Width) Height: 3059 mm Weight (approx.): 18,210 kg Equipment: Crowning via control Bending aids via control Backgauge via control

Condition: used, Year of construction: 2000, machine/vehicle number: 883512, Dimensions: 257 cm width x 220 cm depth x 242 cm height Weight: 7,900 kg Max. pressing force: 850 kN (85 tonnes) Max. bending length: 2,050 mm Ledpeylh Sqjfx Akyork Distance between uprights: 1,750 mm X-axis travel: 600 mm Max. stroke: 215 mm Controlled axes: X, Y, R, I Control system: Delem Equipment: 4 stops Condition: R-axis has correction error. R-axis reaches bottom end switch, must be manually raised (needs new referencing). Y-axis (pressure beam) sinks at an angle. Crowning: wedge-type crowning The machine is operational and in good overall condition.

Condition: used, Year of construction: 1994, machine/vehicle number: 883050, functionality: fully functional, Dimensions: 257 cm width x 220 cm depth x 242 cm height Weight: 8,320 kg Max. pressing force: 850 kN (85 tons) Max. bending length: 2,050 mm Distance between uprights: 1,750 mm X-axis travel: 600 mm Stroke height: 220 mm Controlled axes: X, Y, R, I Control system: Delem Lsdpfx Asylh N Nskyjrk Equipment: 6 backgauges Condition: Technically sound, except for oil leakage Crowning: wedge-type crowning The machine is operational and in good overall condition.

Condition: used, Year of construction: 2001, functionality: fully functional, operating hours: 38,990 h, Hydraulic Press Brake Manufacturer: TRUMPF Model: TrumaBend V170 Year: 2001 Technical Details Manufacturer: TRUMPF Model: TrumaBend V170 Year of manufacture: 2001 Operating hours: 38,990 h Pressing force: 170 t Bending length: 4080 mm Stroke: 365 mm Frame gap: 3680 mm Table width: 200 mm Throat depth: 410 mm Rapid traverse: 200 mm/s Working speed: 1 – 11 mm/s Return speed: 135 mm/s Connected load: 21.4 kVA Oil capacity: 350 l Lsdpeyvqiusfx Akysrk Dimensions (approx.): L 4.70 x W 2.40 x H 2.98 m Weight: 18 t Features • DA 2D graphic control • Hydraulic upper and lower tool clamping • Hydraulic WILA tool system • CNC-controlled crowning • Controlled axes: X, R, Y1, Y2 • 4 movable backgauge fingers, pneumatically clamped • Upper tool: 60°/R4, H 195mm, L = 3,850mm, segmented • Lower tool: V16/30°, R 1.6, H 100mm, L = 3,550mm, segmented • Lower tool: V40/80°, R 5, H 100mm, L = 3,100mm, segmented All information without guarantee. A powered demonstration is possible at any time in our showroom.

Condition: used, Year of construction: 1992, pressure 125 t chamfer lenght 3000 mm distance between columns . mm Control CNC Lrodpfoyqvc Ijx Akyjk type DA 65 R stroke 200 mm safety distance 136 mm rapid traverse - down 100 mm/sec rapid traverse - up 92 mm/sec working feed 1-10 mm/sec weight of the machine ca. 13 t The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

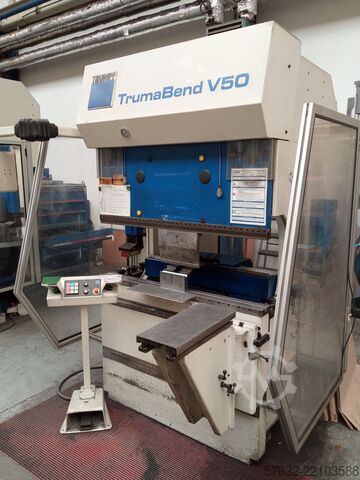

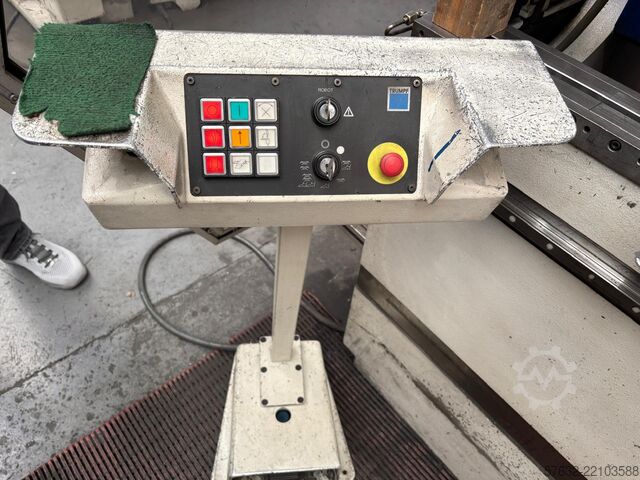

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, stroke length: 215 mm, controller manufacturer: Delem, working width: 1,280 mm, bending force (max.): 50 t, control type: CNC control, number of axes: 4, Equipment: CE marking, foot remote control, Used Trumpf Trumabend V 50 Hydraulic cnc 50ton x 1.2metre Press Brake For Sale Brand: Trumpf Type/Model: Trumabend V50 Year:2000 Trumabend V 50 Technical details Capacity: 50ton x 1.2metre: Full bed length: 1280 mm CNC Brand: Delem Total axis: 4 Y1, Y2, X and R Axis Ledpox Nip Hefx Akysrk
