Used Weeke Bmg 111 Venture 108 for sale (3,483)

Condition: good (used), Year of construction: 2013, functionality: fully functional, For sale is a used WEEKE BMG 111 / Venture 108M CNC machine from the HOMAG Group. Year of manufacture: 2013 Ijdpfozc Du Ajx Aicoba Max. processing size: 3130 x 1550 mm Swivel processing possible Laser positioning for vacuum cups Drilling head with nut saw C-axis Tool positions: 8 + 8 WoodWOP 6.1 The machine is sold without tools and without attachments; these will remain with the customer for the new machine. Currently still in production. Available from mid-July 2026. In good condition. Please feel free to contact us if you have any questions.

Condition: excellent (used), C.N.C. WORKING CENTER (POINT TO POINT) 4 axis Goose-neck type Numerical Control Power Control - Software woodWOP Safety cabin (enclosure) of the working head Working table with pods and rails- No. 6 Support rails Front emergency carpets LASER system on X-axe for the rails positioning and on Y-axe for the vacuum pods positioning Automatic Tools Changing System No. 2 Tools storage plates W8 (No. 8 rear spaces) + (No. 8 lateral spaces) Max. useful working area (X - Y - Z) mm 3130 x 1250 (1550) x 100 (150) No. 2 Working areas - 1 x Vacuum pump (capacity 70 m3/h) Motorized carpet to evacuate chips and wastes Ijdpfx Aeyxn Tisiceba Separate electric and command cabinet Total installed power A 32 WORKING GROUPS (TOP): No. 12 Independent vertical boring spindles (High Speed 7500) No. 6 Independent horizontal boring spindles (No.4 in X-axe + No. 2 in Y-axe) Drilling head motor-power (Kw) 2,3 Circular Grooving Saw (tiltable 0°- 90°) diam. (mm) 125 (N1 X-Y 90°) No. 1 Vertical electro-spindle: HSK63 (KW 9) OPTIONAL: Drilling Group with No. 4 horizontal boring spindles (Crosshead) PROFESSIONAL BARCODE READING SYSTEM

Condition: used, Year of construction: 2004, number of axes: 4, controller model: POWERCONTROL PC85, working width: 1,220 mm, milling spindle speed (max.): 24,000 rpm, working length: 3,250 mm, TECHNICAL DETAILS Working area X-axis: 3,250 mm Working area Y-axis: 1,220 mm Number of working areas: 2 Table system: Pod-and-rail table Ibedozmtl Rjpfx Aicja Number of vacuum pod holders: 6 Number of controlled axes: 4 Number of drilling units: 1 Number of milling spindles: 1 Number of grooving units: 1 Drilling unit Position: top Vertical drilling spindles: 12 Horizontal drilling spindles in X-direction: 4 Horizontal drilling spindles in Y-direction: 2 Total number of drilling spindles: 18 Milling spindle Position: top Controlled axes: 4 Motor power: 12 kW Speed: 24,000 rpm Cooling: Liquid cooling Tool change: automatic Grooving unit Position: top Design: fixed, for producing grooves in the X-direction Maximum tool diameter: 100 mm Motor power: 2.2 kW Speed: 7,500 rpm Number of tool change stations: 16 Tool magazine on the machining head: 8 slots Tool magazine on the rear of the machine: 8 slots MACHINE DETAILS Control system: POWERCONTROL PC85 Programming software: WOODWOP 5 Main spindle power: 12 kW Total connected power: 22 kW Vacuum pump capacity: 100 m³/h EQUIPMENT CE marking Pod-and-rail work table 6 vacuum pod holders Vacuum pump Automatic tool changer 2 tool magazines, each with 8 slots Protective device for machining units with safety sensors Front safety mats Liquid cooling of the milling spindle The machine is sold and delivered in its actual and legal condition ("as is, where is") based on photo documentation and technical/commercial documents with descriptive character. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing and use of the machine at the destination. External reference: 7716

Condition: ready for operation (used), Year of construction: 2002, travel distance X-axis: 3,860 mm, travel distance Y-axis: 1,793 mm, travel distance Z-axis: 185 mm, number of axes: 3, overall weight: 4,300 kg, spindle motor power: 17,000 W, spindle speed (max.): 24,000 rpm, This 3-axis Weeke CE OPTIMAT BHC VENTURE 3 was manufactured in 2002. It features a powerful 17 kW main motor and a maximum spindle speed of 24,000 rpm. The working field measures 3250 × 1250 × 1215 mm, with a rapid traverse speed of 100/50/20 m/min. Ideal for diverse CNC woodworking tasks, it also requires 7 bar of compressed air and has a dust extraction capacity of 3170 m³/h. Contact us for more information about this machine. • Electrical power: 400 V · 50 Hz · 3~+N · 17.5 kW · 35 A · 24 V • Milling spindle: 1 unit Iodpfx Aszugvfeicsba • Working field (X/Y/Z): 3250 × 1250 × 1215 mm • Rapid traverse speed (X/Y/Z): 100 / 50 / 20 m/min • Routing area: 3595 × 1378 × 125 mm • Alternative operation area: 1450 mm • Two-field operation area: 1100 mm • Compressed air required: 7 bar • Dust extraction (minimum): 3170 m³/h

Condition: used, Year of construction: 2004, functionality: fully functional, CNC machining centre Homag Weeke Optimat BHC Venture 3, year 2004 for sale! Iedpfxex Ey H Io Aiceba

Condition: excellent (used), Year of construction: 2008, used CNC machining center Manufacturer: Weeke Type: Venture 1 Year of manufacture: 2008 Iodpfjzp E Hljx Aicoba Machine with console table, 6 supports adjustable in the X-axis, 2 vacuum cups per console, vacuum pump Busch 76 m³/h vacuum connection for templates laser pointer for indicating the position of the vacuum cups Working area X: 200 – 3250 mm Working area Y: 70 – 1050 mm Working area Z: 12 – 100 mm 18 vertical drilling spindles 6 horizontal drilling spindles, 4 of which are in the X-axis and 2 in the Y-axis. Nut saw in X/Y direction, swiveling by 90° Milling spindle 9 kW up to 24000 rpm, with 6-position tool changer at the rear Control system POWERCONTROL PC 85T with TFT 17″, WoodWop 5.0 incl. MDE and production list software Delivery includes only the tools and HSK collets shown in the pictures!

Condition: used, machine/vehicle number: 008166, X axis working area: 4250 mm Ijdpfx Aieyy U S Iecsba Y axis working area: 1250 mm Working Table: Pod and Rail Main Electrospindle power: 9 KW Number of controlled axes: 4 axes Total number of drilling spindles: 25 Total number of tool changer positions: 14

Condition: used, Year of construction: 2004, power: 17.5 kW (23.79 HP), input voltage: 400 V, input frequency: 50 Hz, travel distance X-axis: 3,860 mm, travel distance Y-axis: 1,822 mm, travel distance Z-axis: 185 mm, workpiece length (max.): 3,250 mm, workpiece width (max.): 1,250 mm, workpiece height (max.): 125 mm, number of axes: 4, number of slots in tool magazine: 8, total height: 2,300 mm, total length: 5,830 mm, total width: 4,100 mm, overall weight: 4,300 kg, Equipment: CE marking, Weeke BHC Venture 3 Description (Despite our great care all changes, mistakes in technical data, prices and all information is subject to (typing) errors. No guarantee on printed data! Availability subject to prior sales). (Trotz größter Sorgfalt bleiben Änderungen, Irrtümer bei technischen Daten, Preisen und allen Angaben (Tipp-)Fehler vorbehalten. Keine Gewähr auf gedruckte Daten! Verfügbarkeit vorbehaltlich Zwischenverkauf). Prices excl. advertisement cost MachineSeeker / Preise exkl. Inserierungskosten MaschinenSucher Ibedpozdyhgefx Aicoa Best woodworkingmachines from the Netherlands Holland Die besten holzbearbeitungsmaschinen aus die Niederlande De beste gebruikte machines uit Nederland

Condition: excellent (used), Year of construction: 2023, functionality: fully functional, 3-Axis Electrospindle Vertical drilling heads: 12 Horizontal drilling heads (X-axis): 4 Horizontal drilling heads (Y-axis): 2 Grooving blade Circular tool changer with 8 positions Linear tool changer with 10 positions Worktable with 6 rows Software: WoodWop8 Chip conveyor belt 2 Vacuum pumps Only 2853 operating hours Ibedpfxezt T Ave Aicoa Available January 2027

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, Working range X: 4200 mm Working range Y: 1550 mm Working range Z: 260 mm Iedpsytyidsfx Aiceba 10kW, 5-axis DRIVE5CS electro-spindle, HSK63F connection Number of vertical drilling heads: 12 Number of horizontal drilling heads X: 4 Number of horizontal drilling heads Y: 2 90-degree grooving saw unit 15-position tool changer 8-position tool changer at the rear of the machine Work table with 8 rows of supports Chip conveyor 2 vacuum pumps Power Touch control Software: woodWOP 7.1, WoodWop Office Professional New 5-axis electro-spindle motor (21,645 Euros according to invoice) to be installed on November 27, 2025! Includes suction cups and 8 PowerClamp clamping devices for frames. Available mid-October 2026.

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, input voltage: 400 V, input current: 44 A, input frequency: 50 Hz, number of slots in tool magazine: 23, total length: 10,000 mm, total width: 4,100 mm, Equipment: CE marking, documentation/manual, HOMAG BMG 311 Venture 316 XXL – 5-Axis CNC Machining Centre Lightly used and maintained in excellent condition, this HOMAG BMG 311 Venture 316 XXL is almost like new. The machine is equipped with a powerful 5-axis machining unit, 23-position tool changer, multiple vertical and horizontal drilling heads, grooving saw blade, and extensive routing and drilling capabilities. It is suitable for complex furniture, cabinet, door, panel, and solid-wood machining applications. Thanks to its versatile configuration, the machine can perform routing, drilling, sawing, grooving, and angled machining operations in a single setup. Ibedpfxszp Ih Eo Aicja A highly capable and well-equipped CNC machining centre with very low operating hours, ready for immediate production.

Condition: used, Year of construction: 2014, No. 01 Homag Weeke machining center Mod. BMG 111/45/12/K Usable working area with electrospindle 4500 x 1550 mm Usable working area with all units 4500 x 1250 mm Boring head with 12 vertical spindles and 4 + 2 horizontal spindles, saw unit 0/90 Electrospindle 9 kW 12 Hp HSK, rotation speed from 1250 to 24000 rpm 4th axis for aggregate rotation 8-position circular tool changer 8-position lateral tool changer Lateral pick-up tool changer Ibedpfx Aeyarwtsicsa Special FLEX 5 HIGH PERFORMANCE unit for drilling, milling, cutting Automatic tilt adjustment 0 – 100 degrees Chip conveyor discharge to the right 8 Schmalz work tables, 16 suction cups Suction cup positioning laser 2 vacuum pumps POWERTOUCH control system Woodwop dxf import Teleservicenet assistance CE compliant Year 2014

Condition: excellent (used), Year of construction: 2013, operating hours: 3,000 h, 5-axis CNC portal machine; Console table with 6 movable consoles, each with 2 suction cups, side and longitudinal stops, LED position display for vacuum suction cups Venture 316 Future Package 10 extraction rails, Power-Clamp connection, vacuum connection for templates WORKPIECE PARAMETERS: – Maximum workpiece length: All units, single operation: 3300 mm; pendulum operation: max. 1740 mm Tool diameter 25 mm: single operation: 3475 mm; pendulum operation: max. 1915 mm – Workpiece width: Front stop: 950 mm all units / 1050 mm with tool diameter 25 mm Rear stop: up to 1400 mm / 1550 mm – Workpiece thickness: – Max. 250 mm including clamping devices – Up to max. 60 mm with standard clamps SAFETY AND PROTECTIVE EQUIPMENT: EC-compliant; Safety enclosure on the right with door Left and rear: wall installation! Equipment: 10 kW Drive5C spindle and 14-position tool changer (carousel) + 9-position linear changer (side mounted) Drilling head with 16 spindles (V12/H4/S0/90°) DRIVE5C+ interface for aggregates Tool length measuring probe Software for position measurement and CNC coordinate rotation Tool transfer station Coolant tank for processing spindle Vacuum pump 300/360 m3/h Powerclamp pneumatic package Control system: POWERCONTROL PC85 with POWERTOUCH system; IPC POWERPACK Operator terminal for program start; camera system with tablet PC Ibodsy E Npfepfx Aicea WOODWOP CAD/CAM standard interface Documentation and control texts: German Delivery includes only the tools and HSK tool holders shown in the images!

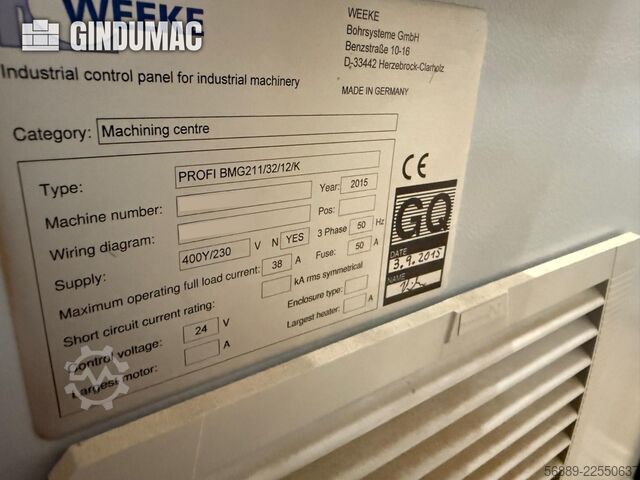

Condition: ready for operation (used), Year of construction: 2015, operating hours: 1,455 h, number of axes: 4, number of slots in tool magazine: 14, table length: 3,250 mm, spindle motor power: 12,000 W, spindle speed (max.): 24,000 rpm, This 4-axis Weeke PROFI BMG211/32/12/K was manufactured in 2015. It operates on a supply voltage of 400 V / 230 V and is designed for 3-phase power with a maximum operating full load current of 38 A. If you are looking to get high-quality CNC wood machining capabilities, consider the Weeke PROFI BMG211/32/12/K machine we have for sale. Contact us for further details. • X/Y-Axis Speed: 70 m/min • Z-Axis Speed: 20 m/min • Table Length X: 3250 mm Ibodezuhdqspfx Aicoa • Usable Table Length Y: 1150 mm • Workpiece Clearance: 1250 mm • Optional Usable Table Length Y: 1400 mm • Optional Workpiece Clearance: 1600 mm • Table Thickness Z: 125 mm • Workpiece Clearance Height: 225 mm • Workpiece Supports: 6 • Vacuum Fields: 2 • Vacuum Generator Capacity: 70/84 m³/h at 50/60 Hz • Vacuum Cups: 12 × 114 × 160 × 100 mm • Additional Vacuum Cups: 2 × 125 × 75 × 100 mm • Pneumatic Side Stops: 2 • Pneumatic Longitudinal Stops: 6 • Manual Folding Stops: 4 • HPL Positioning Aids: 4 • Laser Vacuum Cup Positioning: Yes • Laser Type: Crosshair Projection • Main Usage: 1455 h • Secondary Usage: 743 h • Occupancy: 8586 h Spindle / Drilling / Tooling • Main Spindle: F1-HSK63-12 kW • Spindle Speed: 1250–24000 rpm • Spindle Power: Up to 10/12 kW • Spindle Interface: HSK63 • Spindle Cooling: Air-Cooled • Spindle Lubrication: Permanently Greased • C-Axis: 360° Interpolating Axis • Vertical Drilling Unit: V12 High Speed 7500 • Vertical Drilling Speed: 1500–7500 rpm • Vertical Drilling Power: 2.3 kW • Vertical Drilling Depth: Max. 38 mm • Vertical Drilling Depth with Special Drill: Max. 55 mm • Maximum Vertical Drill Diameter: 35 mm • Vertical Drill Holder: Ø10 mm • Vertical Spindle Pitch: 32 mm • Horizontal Drilling Unit: H4X/2Y • Horizontal Drilling Spindles: 6 • Horizontal Spindle Arrangement: 4 in X / 2 in Y • Horizontal Drilling Speed: 1500–7500 rpm • Horizontal Drilling Depth: Max. 38 mm • Maximum Horizontal Drill Diameter: 20 mm • Grooving Saw Unit: N1 X-Y 90° • Grooving Saw Swivel Range: 90° • Grooving Saw Cutting Depth: 30 mm • Grooving Saw Diameter: 125 mm • Grooving Saw Blade Thickness: Max. 5 mm • Grooving Saw Speed: 1500–7500 rpm • Tool Magazine: W14 • Tool Magazine Capacity: 14 Tools • Tool Interface: HSK63 • Maximum Tool Weight: 6 kg • Maximum Tool Diameter with Full Magazine: 130 mm • Maximum Tool Diameter with Free Adjacent Positions: 260 mm • Tool Change Time: Approx. 12–18 s FLEX5+ / Control / Equipment • HP FLEX5+ Aggregate: Sawing / Milling / Drilling • FLEX5+ Milling Swivel Range: 0–100° • FLEX5+ Drilling Swivel Range: 0–100° • FLEX5+ Sawing Swivel Range: 0–90° • FLEX5+ Maximum Milling Tool Diameter: 20 mm • FLEX5+ Maximum Drilling Tool Diameter: 10 mm • FLEX5+ Maximum Sawing Speed: 15000 rpm • FLEX5+ Tool Interface: WFC40-25 • Control System: HOMAG Group powerTouch • CNC Control: powerControl PC86 • Display: 21.5" Full HD Multitouch • Processor: Intel Core 2 Duo • Hard Drive: Min. 160 GB SATA • Ethernet: 10/100 Mbit RJ45 • Operating System: Windows 7 Professional • Software: woodWOP • Automatic Tool Changer Loading Aid: Yes • TeleserviceNet: Yes • Electrical Supply: 400 V • Frequency: 50/60 Hz • Ambient Temperature: +10°C to +40°C • CE Safety Equipment: Yes • Supply Voltage: 400 V / 230 V • Phase: 3 Phase • Frequency: 50 Hz • Maximum Operating Full Load Current: 38 A • Fuse Rating: 50 A • Control Voltage: 24 V • CE Marking

Condition: ready for operation (used), Heidenhain UEC 111 ID 1081002-01 The costs cover only the repair analysis of your component, which you can send to us. After inspecting your component, you will receive a quotation with the actual repair costs. Once you approve the repair, the analysis costs will be waived. As part of the repair, your component will be fully overhauled and will come with a 3-month warranty from us. Ibsdpfjy Nq Iqjx Aicea

Condition: good (used), Year of construction: 2014, machine/vehicle number: 0-201-76-6720, functionality: fully functional, travel distance X-axis: 6,000 mm, travel distance Y-axis: 1,550 mm, travel distance Z-axis: 270 mm, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, BMG311 VENTURE316XXL 6m machine 10 consoles 6 stops at the rear 6 stops at the front Vacuum system 2 x 90/108 m³/h (50/60 Hz) LED position display system 5-axis main spindle 10 kW Drive5C Ibjdsxw H Tcspfx Aicsa Programming 5-axis spindle with WoodWop 18-position disc changer below Drilling head with 21 spindles: V17/H4/S0/90° Safety barrier on the left Viewing element barrier on the right VENT.+BMG+B200/300 Chip conveyor on the right PowerClamp pneumatic package for K+AP table Performance pack for Drive5C 9-position linear changer for BMG311 without FLEX5 Measuring probe for tool changer Visualization of vibrations on machining spindle collisionControl Barcode reader package VENTURE for 1D codes HOMAG GROUP control system PowerTouch WoodWop CAD plugin WoodWop CAM plugin Professional Machine WoodMotion

Condition: used, machine/vehicle number: 007665, Position 1: Automatic Drilling Machine WEEKE-BST 503 + BST 507 Ibsdpfx Aowuz Dgsicja Position 2: Automatic Drilling Machine WEEKE-BST 503 + BST 507

Condition: used, machine/vehicle number: 006488, X axis working area: 2500 mm Y axis working area: 850 mm Main Electrospindle power: 5 KW Number of controlled axes: 3 axes Ibodpfjwuclxox Aicea Total number of drilling spindles: 11

Condition: used, machine/vehicle number: 005796, X axis working area: 3700 mm Y axis working area: 1550 mm Main Electrospindle power: 9 KW Number of controlled axes: 3 axes Total number of drilling spindles: 10 Total number of tool changer positions: 8 Ibjdpfx Aishwi U Tecoa

Condition: used, machine/vehicle number: 008014, Max. panel length: 1250 mm Ibjdewuz S Dspfx Aicoa Lateral horizontal groups: yes

Condition: used, machine/vehicle number: 007400, Max. panel width: 800 mm Max. panel length: 1250 mm No of injectors: 1 Positioning of Units by NC: yes Lateral horizontal groups: yes Ibjdet Hmt Iepfx Aicoa

Condition: used, machine/vehicle number: 007564, X axis working area: 3700 mm Y axis working area: 1550 mm Working Table: Flat table Main Electrospindle power: 10 KW Ibsdpfoum H Ekox Aicoa Number of controlled axes: 3 axes Total number of drilling spindles: 12 Total number of tool changer positions: 13

Condition: used, Year of construction: 2014, Drilling and dowel insertion machine Manufacturer: Weeke Type: OPTIMAT ABD150 Ijdpfx Aiszuyn Iecoba Year of manufacture: 2014 Technical data Note: The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.

Condition: used, machine/vehicle number: 007734, X axis working area: 3050 mm Y axis working area: 850 mm Ibjdpfxew Idb Ho Aicja Main Electrospindle power: 5 KW Total number of drilling spindles: 19

Year of construction: 2007, condition: ready for operation (used), This HOMAG WEEKE industrial production line was manufactured in 2007. It features a comprehensive setup for high-volume panel processing and edge-banding, including automatic loading systems, a central roller conveyor, multiple edge-banding modules, and a portal manipulator for stacking. Ideal for streamlined wood production, ensuring efficient handling and precision. Consider the opportunity to buy this HOMAG WEEKE industrial production line. Contact us for more information about this machine. • Core processing machines: • HOMAG Optimat KFL 525 • Units: pre-milling, gluing, trimming, radius units, scrapers, polishing • HOMAG control with touchscreen/keyboard • Sensors for board thickness and edge material detection • Large blue safety windows • HOMAG Optimat KFL 526 • Continuing trimming and polishing stations • Manual service access with lift-up covers • Controls & electrics: • HOMAG electrical cabinet with main switch • PLC, fuses, control boards, voltage/current meters • Safety control panels (stop, reset, feed, emergency stop) • Condition: • Complete, physically connected line • Normal operational wear; no major damage visible Ibodpozuhbijfx Aicsa • Full set of professional edge-banding aggregates installed Additional equipment • 2× Automatic loading systems: WEEKE OPTIMAT BST 500 D (2007) • Ser. no. 0–251–04–2756 (34 kW, 80 A) and 0–251–04–2755 (25 kW, 63 A) • Overhead gantry with vacuum lifting cups, automatic material alignment • Heavy-duty roller conveyor section • Transport/transfer system: HOMAG OPTIMAT TDL 310/25/12 (2007) • Ser. no. 0–205–10–1698 • Wide roller conveyor with safety guards • Cross-transfer and sorting sections • Integrated measuring and positioning units • Portal manipulator (stacker/unloader) • Overhead vacuum pick-and-place unit (orange) • Linear guiding with chain drive, dedicated motor drive • Automatic lifting and stacking of finished panels • Extraction/filtration • Strong industrial dust extraction along full line (yellow flexible hoses + metallic ducts) • Safety guarding • Complete set of safety guards across the line
