Heavy-duty truck

MAN MAN 8x4 Hydro mit F1150 inkl Jib und Winde Korb

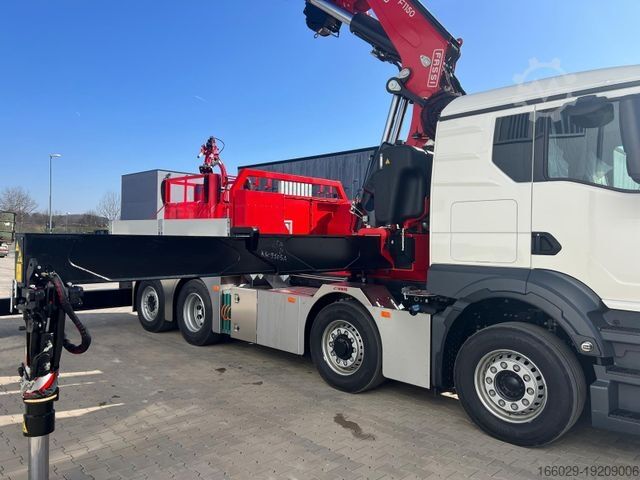

MAN 8x4 Hydrodrive with F1150 Fassi Loader Crane

Vehicle Description for: TGS 35.520 8x2H-6 BL CH

Removable flatbed, Jost fifth wheel coupling, fully clad V2A

Trade tonnage: 35 t
2,980 mm main wheelbase
1,795 mm wheelbase between front axles
1,350 mm wheelbase between rear axle and trailing axle
Side-mounted exhaust silencer, right side
Ground outlet exhaust
2 batteries, 12V, 210 Ah, Super Longlife (AGM), maintenance-free, for increased electrical requirements
390 l fuel tank capacity, left side
35 l AdBlue tank capacity, right side
Air compressor, 1 cylinder, 360 cc, with economy system
Pneumatically controlled air supply system
Air tanks, steel
Electronic Braking System (EBS)
Anti-lock Braking System (ABS)
Full emergency braking assistant
Disc brakes on front axle
Disc brakes on second front axle
Disc brakes on rear axle
Disc brakes on trailing axle
Emergency brake signal, hazard warning activation
LED side marker lights
MAN D2676 LFAX diesel engine, 382 kW (520 hp) power, 2,650 Nm torque, Euro 6e
Heated fuel filter, suitable for fuels up to cleanliness class 25
Pre-fuel filter with oil/water separator, with water sensor, heated (mixing valve)


F1150RA.2.28 L616 Winch + 2-man basket (available on request at extra cost)
Iiedpfxswmh Hrs Afpjh

Endless slewing range
All hydraulic cylinders are double-acting
Piston rods hard-chromed
Double knuckle joint system with PROLINK (over-stretchable knuckle boom up to 12°)
Electronic overload shutdown with FX900
FASSI stability control FSC incl. LMB II
Emergency stop and visual alarm (90% and 100%)
Pressure-limiting and load-holding valves
XF system (Extra Fast) + XP system (Extra Power) + FL system (Full Lift)
RCH or RCS FASSI radio remote control with linear levers and display of pressure values (in bar and %) and 90% + 100% warning on display
Danfoss D900 valve block with 4 control valves mounted on the crane column
Emergency operation for crane control
High-pressure filter supplied plumbed
Separate hydraulic tank (260l) with filter and oil cooler mounted on the crane base
Hydraulic outriggers, extendable both sides hydraulically, support width 8.84m
Outrigger control via radio with proportional valve block
IMC system (Integral Machine Control) and ADC (Automatic Dynamic Control) = load-dependent speed control
Standard color RAL 3020 traffic red – all cylinders painted black
Load hook and mounting brackets (short/500mm)
Transport position: folded crosswise to direction of travel
Note: Observe board voltage / 12V or 24V, standard 24V

FASSI Stability Control FSC-S/II 1
IE742 terminal box
Low-profile subframe
180° hydraulically tiltable outrigger legs, both sides
Control system for additional function (winch/xhe-dynamic)
Control system for 2 additional functions with 2 hose guidance systems / xhe-dynamic

Preparation for variable displacement pump (LS)
Work light operable via display (1 b/w function)
1 LED work light mounted on knuckle boom
LED for 2 outrigger legs, not mounted (crane)
LED for 2 outrigger legs, not mounted (additional outrigger supports)
GR.15 electrical rotary distributor with 15 slip rings
FUNK-V7-RCS
V7 RCS radio remote control
Fassi radio remote control V7S:
Available with 6 or 8 functions with linear levers or joysticks.
V7S with 4.3" color display / 24bit - 480 x 272 px, with 8 push buttons
Engine start/stop, RPM +/-, 6 x ON/OFF functions, 10m cable and various operating speed controls, incl. second battery, charger, neck and waist belt
