Special purpose truck

MAN MAN LE 15.280 METZ DLK 23-12 L32 CAN Drehleiter

MAN LE 15.280 with METZ DLK 23-12 L32 CAN aerial ladder, in ready-to-use condition.
----Equipment of the base vehicle:

* Air conditioning
* Suspension type: leaf spring/leaf spring
* Wheelbase 4575 mm
* Permissible total weight 15 t
* Automatic transmission ZF 5 HP 590 with retarder
* Fuel tank 125l, right side
* Adjustable steering wheel
* Axle ratio i = 4.62
* Differential lock in rear axle
* Medium-length cab
* Driver's comfort seat with lumbar support - Manufacturer: GRAMMER
* Co-driver's seat Manufacturer: GRAMMER
* Exhaust pipe for fire department
* Quick-start system
* Anti-lock braking system (ABS)
* Traction control system
* Disc brake for front axle
* Armrests on both doors
* Additional high and low beam headlights

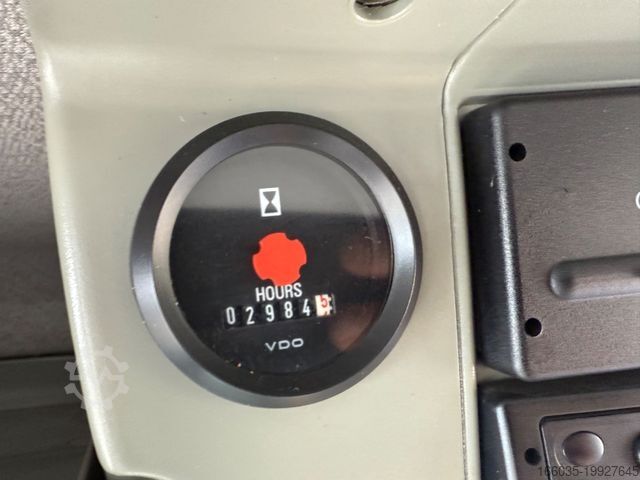

* Hour meter
* Cruise control
* Radio MAN CD 24V
* Stabilizers front and rear axle
* Headrests for driver and co-driver
* Cab rear wall with 2 narrow windows, left and right
* Heated and electrically adjustable rearview mirror
* Wide-angle mirror, left and right, heated
* Curb mirror, right, heated and electrically adjustable
Psdpfx Anoxafw Sopspu
* Electric windows, left and right
* 4-wheel parking brake
* Tire chains on the rear axle

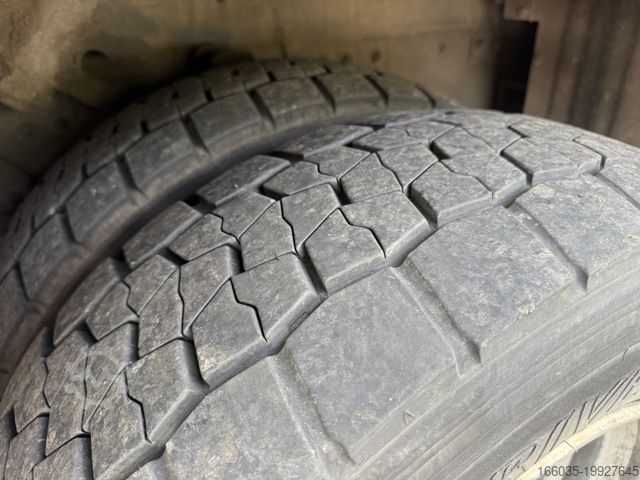

* Winter tires Conti Scandinavia

Equipment of the aerial ladder superstructure:

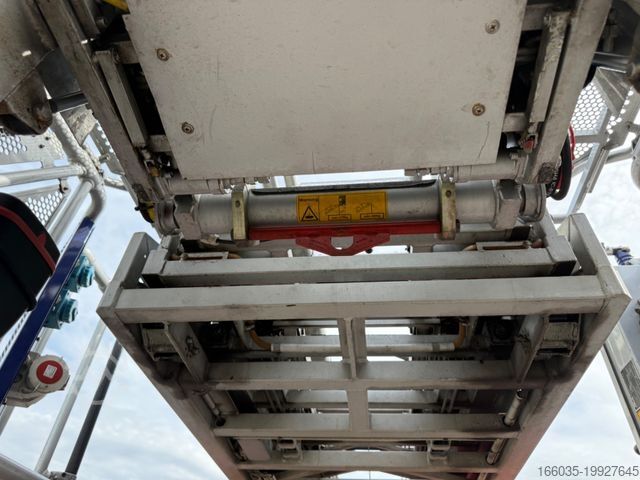

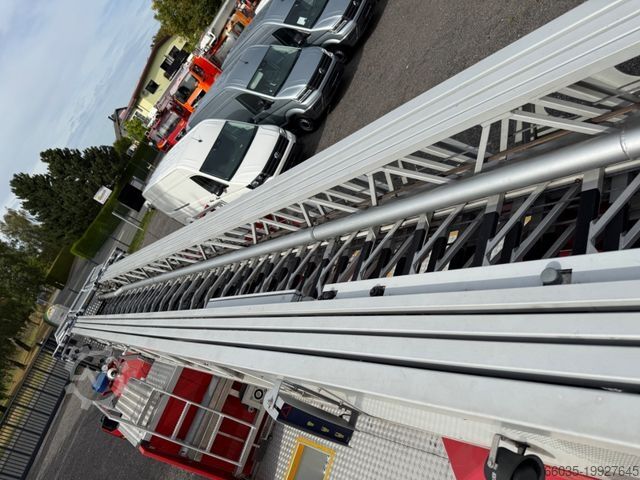

* Superstructure: Metz aerial ladder DLK 23-12 L32 CAN with rescue platform (rescue height approx. 30.75m) Max. swiveling angle: 75 degrees, Max. platform load capacity: 270kg, Nominal rescue height: 23m, Nominal outreach: 12m, Outrigger support: horizontal-vertical, Outrigger width variable between 2,400mm and 4,500mm

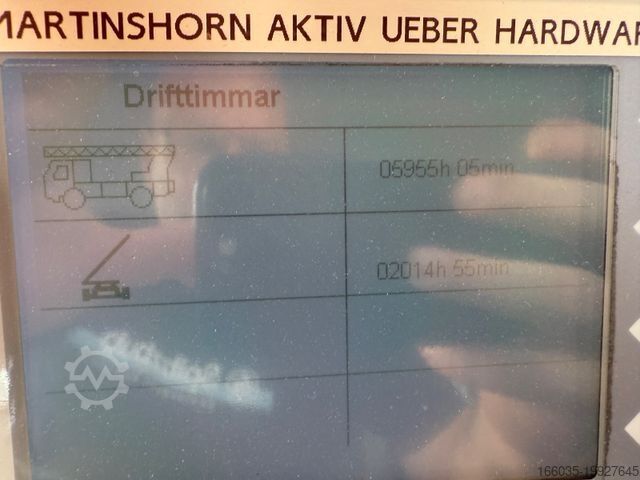

* 2014.9 operating hours
* LED spotlights on the ladder for area lighting
* Special warning light system
* Front warning lights
* Original Martin horn system (4-funnel).
* Stretcher storage for accommodating a DIN stretcher, including conversion for accommodating a rescue litter, load capacity up to 150 kg
* Fixed 230V power supply to the rescue platform, 2 Schuko sockets in the rescue platform
* Fixed water supply in the upper part of the ladder with valve and B-Storz couplings
* 3 securing points in the rescue platform for securing the crew
* Load ring on the lower ladder, loadable up to 4000kg
* Load ring on the boom segment (between ladder tip and rescue platform) for attaching a rappelling device, 270kg/400kg payload
* LED ambient lighting on the undercarriage
* XXL platform on the turntable for accommodating a DIN generator, ventilation unit, traffic cones, spare canister, rescue litter, and extension pipe
* LED floodlight bar on the lower ladder, approx. 8282 lumens
* 2 x adjustable LED spotlights at the end of the lower ladder, 2880 lumens each, operable from the main control panel
* LED spotlights left and right on the rescue platform, 1800 lumens each
* 2 LED floodlight bars on swivel arms, left and right on the rescue platform, 3105 lumens each (as a replacement for 1000 watt halogen spotlights)
* Complete service booklet available, all maintenance performed annually

----Immediately ready-to-use vehicle in well-maintained condition, inside and out! Non-smoking vehicle!

Your contact person for this vehicle:
----
Daniel Seidler
Tel:
Mobile: also WhatsApp
Email:

Subject to changes, prior sale and errors!

The listing was translated automatically. Translation errors are possible.
