Wire drawing machine

MARIO FRIGERIO RT 750

Condition: excellent (used), Year of construction: 1995, Combination Unit: Manufacturer: GSG Feeder: Type: 840.02-027 Crusher Descaler: Type: 663.02-017 Wire Range: Ø5.5-16mm For wire rod with approx. 40-60 daN/mm² strength Crushing and Bending Rollers: Carbide Inserts Adjustment with 0.37 kW - 1.15 A gear motor Brush Drive with 0.25 kW gear motor, n=293 rpm Connection Voltage: 380-420 V 50 Hz Dry Coating Unit: Type: BSG/T Filling: Calcium Stearate (e.g., Traxit Type: D S 51 E) Stearate Consumption: approx. 350 g per t of wire Drawing Speed: max. 15 m/s Electrical Power: 2x 0.55 kW gear motors Cassette: 2 slots (supplied with 1x roller block + 1x cassette) Type: PKG/T (TS) Cleaned rolled wire Wire strength approx. 40–60 daN/mm² Wire range max. inlet diameter 9.5mm, finished diameter 3.5–8.5mm Roll dimensions min. Ø115mm, max. Ø125mm, Bore diameter Ø82mm, width 15–25mm Cooling pin diameter 25mm Cooling water consumption approx. 600 l/h Drawing machine: Manufacturer: Koch Type: KHZ 5000 Year of manufacture: 1993 Serial number: 13.821 Number of draws: 1 draw per block Drawing drum: Ø700mm Tensile force: mechanical 5000 N Wire material: mild steel wires Run-in strength: approx. 40 – 45 daN/mm² Maximum drawing range: Inlet diameter 5.0 – 8.5mm Cross-section reduction: 20 x 25% (mechanical gradation) Drawing speed: up to max. 7.0 m/s Brake: Twiflex, type: MRB Kdedpfsr Nfvmjx Aaasw Drive: AC motor/frequency converter, Siemens PN=110 kW, n=1485 rpm Spooler: Manufacturer: Koch Type: KHS 1250 Year of manufacture: 1993 Factory No.: 13741 Wire diameter: 5 – 8.5 mm Strength: approx. 55 – 70 daN/mm² Winding speed: V=7 m/s, adapted to the drawing machine Filling weight: approx. 3000 kg Spool drive motor: Three-phase motor with external fan Type: 1 PQ 6253 – 6 AA 70- Z A 15 + K 20 + C 14 + H 46 P=37 kW, n=1000-2000 rpm, IP54, design B3 Laying drive motor: 66-671U, 1.5 kW, 170 V, 9.8 A, 1680 rpm, IP 44, B5-200 With Attached tachometer generator TG 20, 20 V / 1000 rpm With attached spur gear SK 32, i=57.53, design B6 Hydraulics: Hydraulic excavator type: H13 AK Pneumatics: Twiflex disc brake type: MRB Pneumatic cylinder type: SPWG 28032-25mm stroke Dimensions: 3100 x 3000 x 1700 mm (L x W x H) without counterweight

Condition: used, functionality: fully functional, machine/vehicle number: D20E/8022, Offer Number: D20E/8022 Kedpfx Aewi Tideaaedw Machinetype: multiple wire drawing machine - dry Info: straight through Make: VEB Type: 8 Block Constr. year: inlet wire diameter: 2,5 mm finished wire diamter: 0,8 mm number of drafts: 8 diameter of capstan: 400 mm speed -meters/sek: 15 m Location: Europe

Condition: used, functionality: fully functional, Wire drawing machine COMPAC – model TR560 – 7 steps of drawing Raw material : low carbon hot rolled wire rod Input: from fi 5,5 mm output: 1,8 mm on the last step Speed: cca 15 m/s Diameter of blocks 560 mm (5 pcs with ceramics) Engine power - 41 KW Electronics: SANTERMO matrix cassette No. 1 rotating on a chain, others fixed with water for cooling 2 cassettes for washing the wire +1 rotating cassette (spare) Kdodpfjw Ephnox Aaaow +1 block (reserve) Complete with two mandrels for unwinding. We have complete documentation for the machine. The machines are in good condition, we used them for production and dismantled them at the end of last year.

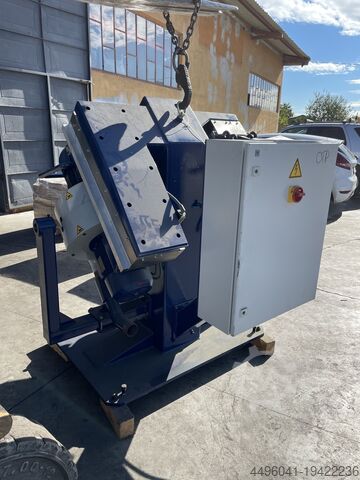

Condition: like new (used), functionality: fully functional, Witech brushing machine (for wire) 4 pcs Year of production: 2015 The brush descaling/cleaning unit is designed for all wire qualities (low-high carbon) wire rod with diameter 5.5–8mm and wire speed up to max 4m/s Used for a very short time (1 year). Kdedpowu Da Rofx Aaajw Very good condition Price: 18,000 euro/piece
