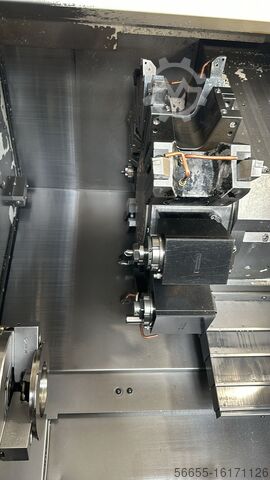

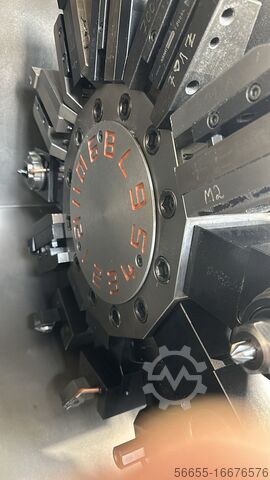

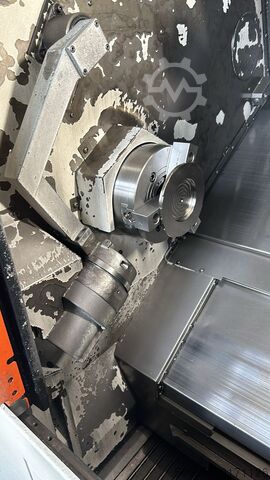

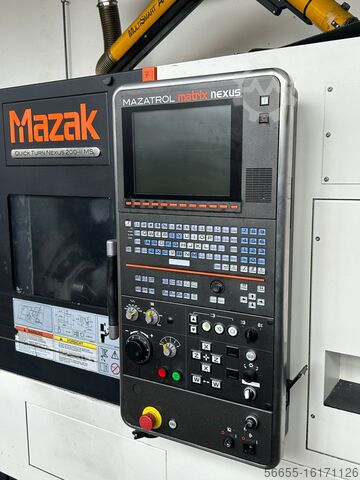

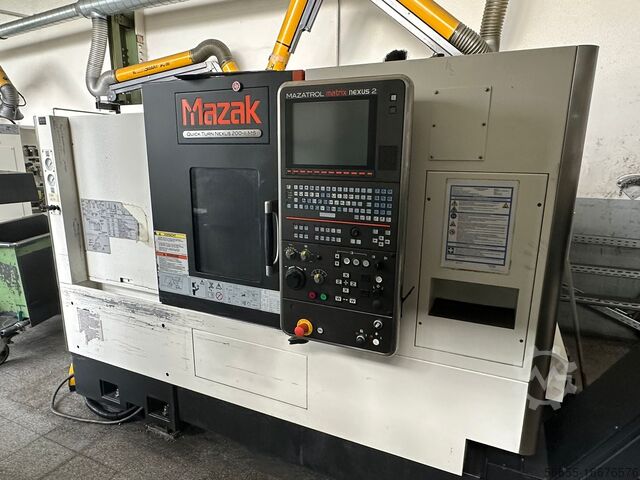

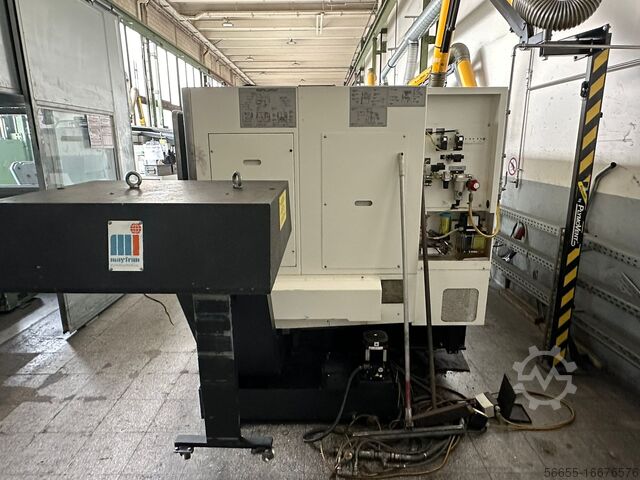

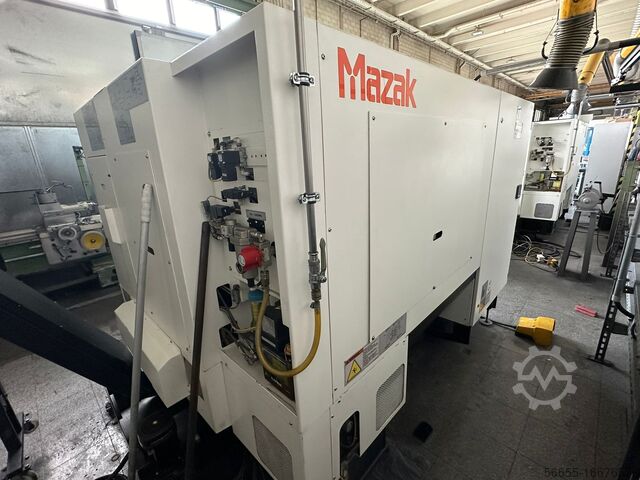

CNC turn-mill center 12 AG 2 spindles

Mazak Quickturn Nexus 200-II MS

Condition: good (used), Year of construction: 2015, functionality: fully functional, turning diameter: 380 mm, spindle speed (max.): 5,000 rpm, spindle bore: 65 mm, travel distance X-axis: 230 mm, travel distance Y-axis: 575 mm, power: 65 kW (88.38 HP), For sale is a CNC lathe of the brand Mazak and the type Quickturn Nexus 200-II MS. The machine is in good condition and ready for immediate use after installation. Technical data: Year of construction: 2015 Spindle hours main spindle: 10,379 h Spindle hours counter spindle: 6741 h Control system: MAZATROL Matrix Nexus 2 Chuck diameter main spindle: 8 Chuck size counter spindle: 6 Swing diameter: 675 mm Max. Machining diameter: 380 mm Max. bar diameter of main spindle: 65 mm Max. speed main spindle: 5,000 1/min Motor power 30 min operation: 26 kW Max. Counter spindle speed: 6,000 1/min Power (40%ED): 11 kW Tool positions: 12 Driven tool positions: 12 Travel range X-axis: 230 mm Z-axis travel range: 575 mm Ffodpfst R S Dasx Agmst Dimensions: 2,765*1,780 mm Weight: 4,900 kg Offer does not include accessories such as tools or tool holders Loading and shipping throughout Europe can be organized on request. Prices plus value added tax Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website

Condition: good (used), Year of construction: 2003, Main spindle: Speed range - main spindle max. 6,000 min/-1 Ffsdpov Drigofx Agmjt Drive power - main spindle 16 kW Max. torque 155 Nm C-axis 360 ° Tool turret: Number of tool positions 12 pos. Number of driven tool stations 12 pos. Speed range - driven tools max. 5,000 min -1 Drive power - driven Tools 10 kW Tool holder (VDI 30) Tool shaft 20 x 20 mm Travel paths: x-axis 160 mm z-axis 450 mm Feed rates: Rapid traverse X: 60 m/min Rapid traverse Z: 45 m/min Feed force X: 2.5 kN Feed force Z: 4 kN Rapid traverse C: 200 1/min Max. torque C: 155 Nm Total power requirement Machine weight approx. 3.7 t Space requirement approx. 4.5 x 2.5 x 2.5 m Heidenhain control Hollow clamping cylinder C-axis and tool drive a Chip conveyor Oil and emulsion mist separator with electrostatic filter

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, turning length: 810 mm, turning diameter over cross slide: 800 mm, turning diameter: 320 mm, spindle motor power: 25,000 W, spindle speed (max.): 5,000 rpm, spindle bore: 73 mm, travel distance X-axis: 210 mm, travel distance Y-axis: 110 mm, travel distance Z-axis: 810 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 20 m/min, rapid traverse Z-axis: 50 m/min, rotational speed (max.): 6,000 rpm, CNC FANUC MSX-701 / MAPPS IV CAPACITY Swing diameter over bed: mm 800 Swing diameter over cross slide: mm 800 Maximum turning diameter: mm 320 Standard turning diameter: mm 200 Maximum distance between the center: mm 1.130 Maximum turning length: mm 810 Maximum workpiece size: mm 300 TRAVELS X axis turret 1 and 2: mm 210 Y axis turret 1 and 2: mm +65 / -45 Z axis turret 1 and 2: mm 810 B axis headstock 2: mm 920 MAIN SPINDLE Maximum speed: rpm 5.000 Drive power (30 min / continuous operation): kW 25/22 Maximum bar diameter: mm 65 Spindle bore: mm 73 Spindle diameter in front bearing: mm 120 Spindle mount: JIS A2-6 C-axis resolution: degrees 0,001 SUB SPINDLE Maximum speed: rpm 5.000 Drive power (30 min / continuous operation): kW 25/22 Maximum bar diameter: mm 65 Spindle bore: mm 73 Spindle diameter in front bearing: mm 120 Spindle mount: JIS A2-6 C-axis resolution: degrees 0,001 FEED DRIVES Rapid traverse turret 1 X/Y/Z: m/min 30/20/50 Rapid traverse turret 2 X/Y/Z: m/min 30/20/50 TOOL TURRET Number of turrets: 2 Number of tool stations per turret: 16 Shaft cross – section for turning tools: mm 20 x 20 Maximum shaft diameter for boring bars: mm 32 Turret switching time (1 station): s 0,18 Maximum speed of the driven tools: rpm 6.000 Drive power for driven tools (5 min/continuous operation): kW 7,5/5,5 DIMENSIONS Installation area with chip conveyor: mm 5.120 x 2.720 Net weight: kg 8.300 Macchina equipped with: • High pressure cooling system • Bar loader interface • Gantry-type piece unloading arm • Cutting effort management system and load monitor • No. 1 double radial motorized tool holder • No. 3 axial motorized tool holders • No. 2 external tool holders • No. 2 double boring bar holders • No. 2 single radial motorized tool holders • No. 2 internal boring bar holders • No. 2 Kitagawa BD 208 self-centering chucks diam. Mm 210 • No. 1 set of jaws for each self-centering chuck Ffjdpfswlvlgox Agmjt • Instruction manuals and CE declaration Year of manufacturing: 2010

Condition: used, Year of construction: 2011, functionality: limited functionality, bar passage: 51 mm, overall weight: 6,000 kg, bar capacity 51 mm – three turrets – three Y axes – fixed/driven tool holders – LNS Sprint 552 bar feeder new in 2011 – Fanuc Control Ffodpfswvvyrjx Agmet

Condition: used, Year of construction: 1999, swing dia. 680 mm max. turning diameter 429 mm turning length 440 mm control MORI SEIKI - MSC-501 turning speeds 5.000 U/min max. bar material dia. 56 mm travel -x axis 233 mm travel -z axis 510 mm number of tapers in turret head 2x12 Fsdpfx Agowplulsmoft CNC Turning- and Milling Center | MORI SEIKI - ZL-150SMC equipped with main/counter spindle, c- axis, 2x turret for driven tools, bar feeder and chip conveyor. The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: ZL 150SMC | ZL150SMC | ZL-150 SMC | ZL 150 SMC

Condition: used, Year of construction: 2010, turning diameter max. 320 mm turning length 810 mm control MSX 701 Number of revolutions max. 6.000 U/min power capacity - main spindel 22 / 18 kW max. usable bar diameter 52 mm C-Axis 0,001 ° spindle nose JIS A2-5 collet chuck 140 mm Number of revolutions max. 6.000 U/min power capacity - Sub spindle 22 / 18 kW max. usable bar diameter 52 mm C-Axis 0,001 ° spindle nose JIS A2-5 collet chuck 140 mm number of toolpositions 16 pos. Number of driven toolspositions 16 pos. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 7,5 / 5,5 kW Y - Axis 110 mm number of toolpositions 16 pos. Number of driven toolspositions 16 pos. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 7,5 / 5,5 kW x-travel 1/2: 210 mm y-travel 110 mm z-travel 1/2: 810 mm b-axis 900 mm total power requirement 86 kVA weight of the machine ca. 8,1 t dimensions of the machine ca. 8,0 x 3,5 x 2,8 m CNC - Turning- and MillingCenter Fodpfxev E R E Aj Agmeft MORI SEIKI - NZ 1500 T2Y - Main- and Subspindle - 2 turrets, up and below - Y-Axis - 2x 16 driven tool positions

Condition: good (used), Year of construction: 2002, operating hours: 18,000 h, CNC MULTITASKING LATHE MORI SEI MOD. MT 2000 SZ Main Spindle Kw 22 6,000 RPM X/y/z/b Travels: 565 - +/- 80 - 1077 - +/- 120° Milling Head Capto C6 6,000 RPM Motorized Lower Turret 12 Stations Tool Magazine 40 Posts Year 2002 Fsdpfx Agju Sg Aujmeft

Condition: excellent (used), Year of construction: 2020, functionality: fully functional, spindle bore: 81 mm, TAKISAWA TM 4000 Y2 ! Very few operating hours ! Control: FANUC 31iB Standard turning diameter on both spindles: 215 mm Spindle bore: 81 mm Ffjdow Hxidopfx Agmot 2 x Y-axis -50mm +70mm / -50mm +30mm Z-axis travel: 800 mm Max. main spindle speed: 4,200 rpm Max. sub spindle speed: 5,000 rpm Revolver: 2 x 12-position, driven tools up to 6,000 rpm 1 x power chuck 250 mm / 200 mm 1 x collet chuck Signal lamp Tool presetting device Helical interpolation Raku-Raku tool monitoring Parts ejector Direct path measurement Y1 axis X1 Air blast sub spindle Bar feeder magazine BK 105L High-pressure coolant system KNOLL 30 bar
