Machining center

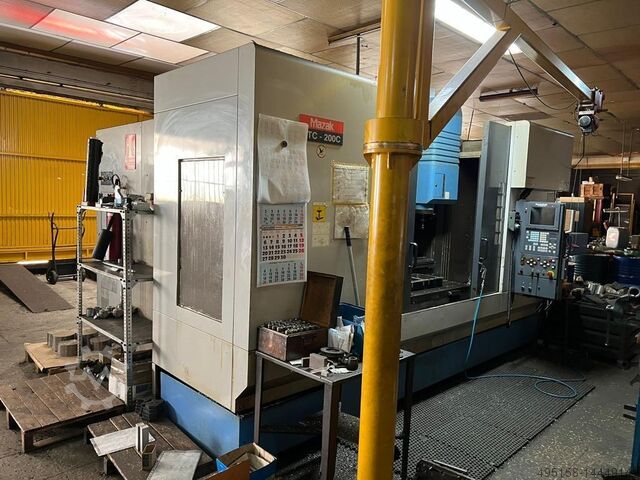

MAZAK VTC-200-C

Condition: used, Year of construction: 2001, Vertical machining center, Mazak brand, model VTC-200C, year 2001. Hedpfxjq E Ttzs Agieg

Condition: like new (used), Year of construction: 2018, operating hours: 2,350 h, functionality: fully functional, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, The used QUASER MV 184 C 4-axis vertical machining center is a medium-sized CNC vertical machining center featuring a cast iron structure and roller guideways for the table. Axis travels: X 1020 mm, Y 610 mm, Z 610 mm; table dimensions: 1200×600 mm, with a maximum load capacity of 500 kg. The machine is equipped with a continuous 4th axis TJR HR 255N with corresponding tailstock, as well as a precision-milled table with T-slots. Spindle: ISO-40 (DIN 69871) with 10,000 rpm (max power: 18 kW), spindle cooling via dedicated chiller, high-pressure through-spindle coolant, 30-position RANDOM-type tool changer with swing arm, RENISHAW TS 27 tool presetting device, wireless RENISHAW part probe, and belt-type chip conveyor. Year of manufacture: June 2017 (installed in 2018), equipped with FANUC MILL I CNC with color LCD, Manual Guide i software, remote handwheel, USB port, RS-232 serial interface, memory card slot, and FILTERMIST mist extraction unit. Hedpfx Asxf Nbrjgisg The machine is in PERFECT condition with only 2,350 cutting hours, and various tooling options are available as accessories.

Condition: good (used), Year of construction: 2006, Table size 2000 x 510 mm, Traverses XYZ 1660 x 510 x 510 mm, Table load 1200 kgs, Hsdpfx Agowaidleisg Spindle taper Din 40, Spindle speed 12000 rpm, 30 ATC, Mazatrol 640M control, through spindle coolant, swarf conveyor, 4th axis rotary table.

Condition: ready for operation (used), Year of construction: 2005, Make: YAMAZAKI MAZAK U.K. LTD Type of machine: VTC-200C Hjdpfx Aoxk U R Nsgisg Year of manufacture: 2005 Control system: Mazatrol 640 M Machine's weight: 8.260 kg Tool holder: SK 40 x-travel: 1.660 mm y-travel: 510 mm z-travel: 510 mm Speed range: 12.000 U/min Table dimensions: 2.000 × 510 mm Number of tools in the magazine: 24 Plätze

Condition: good (used), Year of construction: 2002, functionality: fully functional, 3-axis machining center, CNC FANUC 18MC Complete with: Hsdpfxjxfguvs Agisg - High-pressure through-spindle coolant - Belt chip conveyor - Spindle chiller - Manuals - CE certificate TRAVEL X axis (longitudinal table movement): 1020 mm Y axis (transversal table movement): 600 mm Z axis (vertical head movement): 560 mm TABLE Table-to-spindle distance: 150 / 710 mm Dimensions: 635 × 1200 mm Maximum table load: 1000 kg SPINDLE Table with T-slots: 6 x 18 mm h8 T Maximum speed: 10,000 rpm Gear ranges: 1 Maximum torque: 192 Nm Taper: No. 40 Internal bearing diameter: 70 mm FEED Rapid traverse: 32,000 mm/min Working feed: 1–20,000 mm/min Jog feed: 4,000 mm/min Thrust (x & y / z): 7,400 / 13,500 N ATC (Automatic Tool Changer) Tool holder taper type: ISO 40 [BT-40] Number of tools: 24 [32] Maximum tool diameter: 88 / 125 mm Maximum tool length: 300 mm Maximum tool weight: 7 kg Selection method: random Tool change time: 2.5 sec Chip-to-chip time: 6 sec MOTORS Spindle drive: 15 / 11 kW Servo motors (x & y / z): 2.1 / 3.8 kW Coolant pump: 0.5 kW (nozzles) Washing pump: +1.4 kW POWER SUPPLY Capacity: 30 kVA TANKS Lubricant: 4 liters Coolant: 400 liters DIMENSIONS Height: 2,825 mm Floor space: 2,650 × 2,200 mm Weight: 7,500 kg PLEASE NOTE: Machine only; vices and tools are not included in the sale.

Condition: good (used), Year of construction: 2012, travel distance X-axis: 1,660 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, table width: 510 mm, table length: 2,000 mm, table load: 1,000 kg, IKZ with 9 Bar and 140 L/Min Tank filter 300 L Mazak Monitoring ASystem B OMP60 Measuring probe X - Travel: 1660mm Y - Travel: 510mm Z - Travel: 510mm Table Length: 2000mm Table Width: 510mm Table load: 1000 Feed rate X-Axis: 36000mm/min. Feed rate Y-Axis: 36000mm/min. Feed rate Z-Axis: 36000mm/min. Spindle Taper: 40ISO/Bt/Mk Power on spindle: 18.5kW Speeds / ranges: 12000Rpm ATC / revolver: 30 Coolant through spindle / Bar:Yes Number of controlled axis: 3 Chip conveyor: Yes Coolantsystem: Yes Length: 4500mm Width: 3145mm Height: 2760mm Weight: 9100kg Hjdpfsw Rdufex Agiog

Condition: excellent (used), Year of construction: 2001, functionality: fully functional, X 1,660 Y 510 Z 510mm, BT 40, ATC 30 pos, Mazatrol PC Fusion 640, weight 9.000kg Hsdpjw Nw Tfjfx Agijg

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, Mazatrol Matrix 2 Travel paths Hedpfjwpgn Hex Agieg X-axis: 3,000 mm Y-axis: 800 mm Z-axis: 720 mm B-axis: 220° C-axis: 360° Table Table: 3,500 mm x 820 mm Rapid traverse X/Y/Z: 50 m/min B/C: 50/25 rpm Milling spindle Drive power: 35 kW max. spindle speed: 18,000 rpm SK-40 DIN69781 Tool magazine Mazak Tool Hive System Number of tool spaces: 155 Air blow-out on the workpiece High pressure 15 bar through the spindle Mazak Monitoring B (Renishaw RMP60) Tool length measurement x2 table center partition NC rotary table, 360,000 positions, diameter: 1,000 mm 5-axis simultaneous machining package

Condition: used, YOM 2004 Mazatrol PC Fusion 640 M Axis X 1660 mm Axis Y 510 mm Axis Z 510 mm Table length 2000 mm Hjdpfov Ax Uyox Agiog Table width 510 mm Max. part weight 1000 kg Number of tool pockets 30 Spindle taper CAT 40 Max. spindle speed 10000 rpm Spindle motor power 18.5 kW

Condition: ready for operation (used), Year of construction: 2001, operating hours: 29,189 h, functionality: fully functional, machine/vehicle number: 153493, travel distance X-axis: 1,660 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, controller model: Mazatrol 640M, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS X-axis travel: 1,660 mm Y-axis travel: 510 mm Z-axis travel: 510 mm Control: Mazatrol 640M Rapid traverse: 30,000 mm/min Feed rate: 8,000 mm/min Spindle Spindle mount: 7/24 taper, No. 40 Hodpfowixtbsx Agisg Speed range: 40 - 10,000 rpm Power (continuous operation/30 min/10 min): 7.5 / 11 / 15 kW Table Table area (right/left): 2,000 mm Table area (forward/backward): 510 mm Number of T-slots: 5 T-slot size (ISO R299): 18 mm T-slot spacing: 100 mm Max. table load: 1,000 kg Distance spindle to table: 180 - 690 mm Spindle center to column: 530 mm Table height: 750 mm MACHINE DETAILS Weight: 9.1 t EQUIPMENT - Spindle cooling

Condition: excellent (used), Year of construction: 2005, Control Mazatrol 640 MT Pro Max. Turning Diameter 660 mm Max. Turning Length 1,045 mm Travel Paths X1 axis: 580 mm X2 axis: 150 mm Y axis: 160 mm Z1 axis: 1,045 mm Z2 axis: 1,010 mm Hedpfoxmu Dbox Agijg W axis: 1,050 mm B axis: -30 to 210° Rapid Traverse X/Y/Z/W 50/40/50/30 m/min Main Spindle Drive power: 22 kW Max. spindle speed: 4,600 rpm C axis Sub Spindle Drive power: 18.5 kW Max. spindle speed: 5,000 rpm C axis Milling Spindle Drive power: 18.5 kW Max. spindle speed: 12,000 rpm B axis: 0.0001° Capto C6 Tool Magazine / ATC 40 tool stations Max. tool diameter: 90/125 mm Max. tool length: 300 mm Max. tool weight: 10 kg Lower Turret Drum turret 9 tooling stations Special Equipment Chip conveyor Tooleye 15 bar high-pressure pump Thread cutting synchronized with milling spindle 5-axis simultaneous machining Preparation for multiple and flash tool holders Interface for bar feeder Conveyor belt for finished parts Preparation for Renishaw system 3-jaw chuck for main and sub spindle
