MECOF

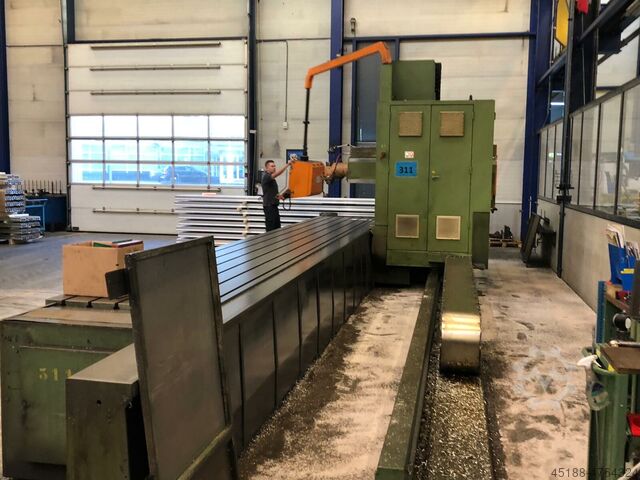

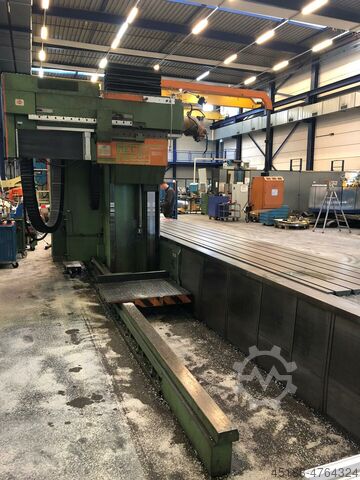

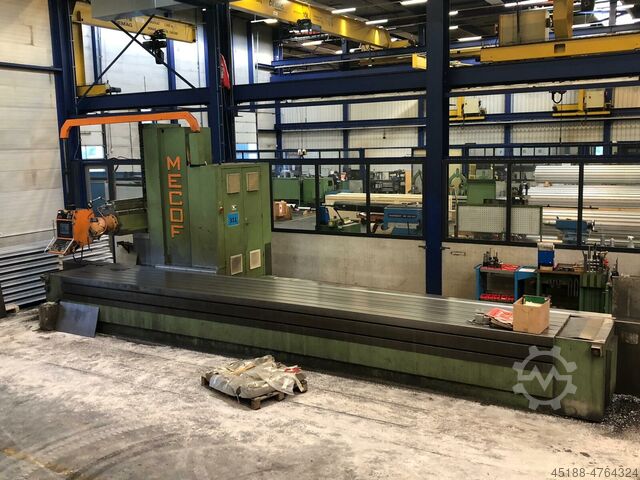

Mecof CG 83/G

Condition: used, Year of construction: 2007, x-travel 900 mm y-travel 300 mm z-travel 1000 mm Lrodsw Rrb Hepfx Agret control Siemens Sinumerik 840D max. workpiece diameter 1600 mm max. module 20 mm tip circle diameter 350 mm Milling arbour diameter 375 mm Total closing value 80 kVa weight of the machine ca. 33,5 t dimensions of the machine ca. 10,530 x 6,375 x 4,680 m Feed rate: - X-axis 1 to 3000 mm/min - Y-axis 1 to 3000 mm/min - Z-axis 1 to 4000 mm/min Spindle speeds in rpm: - Tool 26 to 265 - Workpiece table 0 to 8 Equipment/accessories: - M 2 motor milling head - Milling mandrels - Oil cooler - Technical documentation

Year of construction: 2005, condition: ready for operation (used), Travel X/Y/Z: 2500mm/900mm/800mm, speed: 18000rpm, spindle power: 35kW, max. table load: 3000kg, tool places: 30, machine dimensions X/Y/Z: approx. 6500mm/3000mm/3000mm, weight: approx. 20000kg, control: Siemens Sinumerik 840D, operating hours: 55730h, spindle hours: 18696h. Z-axis brake defective, roller shutter in machine room defective, screen cable defective. Including cooling lubrication system Knoll VRF 250/1250, documentation available. On-site inspection is possible. Lrjdpfx Agjvamqdorot

Condition: good (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 6,000 mm, travel distance Y-axis: 3,400 mm, travel distance Z-axis: 1,500 mm, table length: 6,000 mm, table width: 3,000 mm, spindle speed (min.): 3,000 rpm, A CNC portal milling machine FKD-Feichter with double column is available. Travel range X/Y/Z/W: 6000mm/4800mm/1500mm/1300mm, table dimensions X/Y/Z: 6000mm/3000mm, max. workpiece weight: 115,000kg, max. table load: 6,400kg/m², total machine bed length: 14,500mm, portal dimensions X/Y: 3,000mm/4,400mm, C-axis: 360°, A-axis: +/-120°, ram section: 700mm/700mm, feed rate: 10m/min. Total system dimensions X/Y/Z: approx. 15,100mm/6,100mm/7,000mm, total system weight: approx. 115,000kg, control system: Heidenhain. Includes chip guard, coolant system, and hydraulic unit. The machine was built at the site in 2022. The ram and spindle have been freshly overhauled. Documentation is available. On-site inspection is possible. Immediately available. Three heads: Fork milling head with A-axis, 90-degree angular head, spindle extension – straight head, tool holder SK 50. Lrodpfxsxp Rgko Agrjt

Condition: good (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 28820005482, travel distance X-axis: 1,000 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 500 mm, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 50 m/min, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, rapid traverse Z-axis: 50 m/min, Equipment: documentation/manual, Dear Sir or Madam, We are selling a DMC 100 V hi-dyn machining center in good condition. Unfortunately, the year of manufacture is not written down, but we suspect it was 2001. Please see the pictures for further details; we are of course happy to answer any questions you may have. The system can be viewed with power on. The buyer must organize collection with a suitable truck. The system can be dismantled and removed by either the buyer or us (for an additional fee of €1,500). Ledpfx Agjvx N Shjrsrt

Condition: used, travel distance X-axis: 6,000 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 1,000 mm, spindle diameter: 150 mm, spindle speed (max.): 2,800 rpm, travel distance W-axis: 700 mm, X-AXIS TRAVEL: 6000 MM Y-AXIS TRAVEL: 3000 MM Z-AXIS TRAVEL: 1000 MM W-AXIS TRAVEL: 700 MM ISO 50 SPINDLE MOTOR POWER: 51 KW SPINDLE ROTATIONAL SPEED: 2800 RPM SPINDLE QUILL DIAMETER: 150 MM SIEMENS 840 D CNC 2000 x 2500 mm rotary table, 1500 mm V-travel, 25 ton load capacity 80-station tool changer AUTOMATIC HEAD 1 AXIS MODEL KF-D4 2.5 ° Through-spindle coolant 2 x 2000 x 5000 mm clamping plates Lodpfx Agsyb Rztsrert Chip conveyor

Condition: excellent (used), Year of construction: 2005, travel distance X-axis: 16,000 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 1,500 mm, Head Pick up Station TUPC CNC Indexing Micro Head A-Axis 360.000 x 0,001 Gr C-Axis 360.000 x 0,001 Gr SELS Spindle extionsion L=500 mm CTS Internal coolant system ATC Chain Tool changer 60 Positions Hydrostatic guideways Optional T Slotted floorplates 5600 x 1875 (2x) + 4000 x 1875 mm X-Axis: 16.000mm Y-Axis: 3.500mm Z-Axis: 1.500mm Lredpfsxpfkkex Agrst Power on spindle: 80kW Spindle speeds: 4000Rpm Spindle Taper: Sk59ISO/Bt/Mk Feed rate X-Axis: 25000mm/min. Feed rate Y-Axis: 25000mm/min. Feed rate Z-Axis: 25000mm/min. Millinghead auto-index:2.5 x 2.5° Length: 24000mm Width: 6500mm Height: 6500mm Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Year of construction: 1995, travel distance X-axis: 10,000 mm, travel distance Y-axis: 2,600 mm, travel distance Z-axis: 600 mm, spindle speed (max.): 1,950 rpm, feed length W-axis: 700 mm, quill diameter: 140 mm, cnc SELCA 3045 X AXIS STROKE 10000 MM Y AXIS STROKE 2600 MM Z AXIS RAM STROKE 600 MM W AXIS QUILL STROKE 700 MM SPINDLE DIAMETER 140 SPINDLE CONNECTION ISO 50 SPINDLE MOTOR POWER 53 KW ROTATION SPEED 6 - 1950 MM ROTARY TABLE TABLE 2000 X 1600 MM CAPACITY 10 TON STROKE AXIS V 2100 MM AUTOMATIC BI-ROTATIVE HEAD UNIVERSAL TUAR 25 Lrjdpfx Agjwnqnusrot PICK UP HEADS INTERNAL AND EXTERNAL COOLANT 60-Place TOOL CHANGE CHIP CONVEYOR ANCHORING PLANE 2500 X 6000 MM HYDROSTATIC X-AXIS RAM WITH HYDROSTATIC GUIDE ON 4 SIDES

Condition: excellent (used), Year of construction: 1972, functionality: fully functional, We are offering this machine for sale. It is connected and can be tested under power. A video of the machine can be sent via WhatsApp. Centre height above bed: 1,250 mm Maximum swing diameter over cross slide: 2,000 mm Maximum swing diameter over bed: 2,500 mm Maximum workpiece weight between centres without supports: 80 t Bed height: 700 mm Ljdpfxsv Spvms Agrert Bed width: 3,000 mm Distance between centres: 7,000 mm Machine weight: approx. 160,000 kg

Condition: excellent (used), Year of construction: 1986, functionality: fully functional, machine/vehicle number: 50166, travel distance X-axis: 9,000 mm, travel distance Y-axis: 2,295 mm, travel distance Z-axis: 2,500 mm, rapid traverse X-axis: 9 m/min, rapid traverse Y-axis: 1 m/min, rapid traverse Z-axis: 2 m/min, feed rate X-axis: 3 m/min, feed rate Y-axis: 1 m/min, feed rate Z-axis: 2 m/min, spindle speed (max.): 710 rpm, spindle speed (min.): 15 rpm, rotational speed (max.): 710 rpm, total width: 8,500 mm, total height: 7,150 mm, total length: 20,720 mm, table length: 9,000 mm, table width: 2,000 mm, torque: 6,500 Nm, clearance between the columns: 2,750 mm, year of last overhaul: 2003, table height: 1,000 mm, table load: 45,000 kg, spindle motor power: 50,000 W, workpiece weight (max.): 45,000 kg, Equipment: documentation/manual, rotational speed infinitely variable, GENERAL MACHINE CHARACTERISTICS The machine features a rigid gantry design with a movable table. The gantry is equipped with a height-adjustable crossbeam, which can be fitted with one or two vertical spindle heads of type VFS 160. Additionally, the gantry can accommodate one or two lateral (horizontal) spindle heads VFS 160. The specified spindle head types can be equipped with additional spindle heads, with up to 4 available. The clamping surface of the machine consists of two connected clamping tables, which can also be used separately when disconnected (only one can be active at a time). Clamping Table - Dimensions of one table: 2,000 x 4,000 mm - Total length of connected tables: 9,000 mm - Clamping surface of connected tables: 8,500 mm - Clamping T-slots (width x spacing x quantity): 36mm x 180mm x 11 pcs - Working table height from base: 1,000 mm Lredpfx Agexpudterst - Load per meter of table length: 5,000 kg - Table travel: 4,250 mm (connected tables: 9,000 mm) - Working feed rate: 15 – 3,000 mm/min - Rapid traverse: 9,000 mm/min Gantry with Height-Adjustable Crossbeam - Clearance between columns: 2,750 mm - Crossbeam vertical adjustment: 2,295 mm - Crossbeam travel: 750 mm/min Vertical Spindle Head VFS 160 - Toolholder taper: ISO 60 - Spindle power: 50 kW - Speed range: 15 – 710 rpm - Working feed: 10 – 2,000 mm/min - Rapid traverse: 2,000 mm/min - Distance from spindle nose to clamping table: 425 – 2,720 mm Horizontal Spindle Head VFS 160 - Toolholder taper: ISO 60 - Spindle power: 50 kW - Speed range: 15 – 710 rpm - Working feed: 5 – 1,000 mm/min - Rapid traverse: 1,000 mm/min - Distance from spindle nose to table centering T-slot: 377 – 1,177 mm Overall Machine Dimensions (L x W x H): 20,720 mm x 8,500 mm x 7,150 mm Additional Spindle Heads: NVS Head (Extension Adapter) - Toolholder taper: ISO 60 - Speed: 15 – 710 rpm - Max. transmitted power from 60 rpm = 40 kW - Max. torque: 6,500 Nm HFUS Head (Universal Milling Head) - Toolholder taper: ISO 60 - Speed: 15 – 710 rpm - Max. transmitted power from 80 rpm = 22 kW - Max. torque: 2,700 Nm - Swivel range vertical axis: 360° - Swivel range horizontal axis: 360° - Quill adjustment: 50 mm HFOS Head (Double-Sided Right-Angle Milling Head) - Toolholder taper: ISO 60 - Speed: 15 – 710 rpm - Max. transmitted power from 60 rpm = 40 kW - Max. torque: 6,500 Nm

Condition: used, Herkules WS1100 x 7000 CNC roll grinder (re-manufactured by Metex - Year 2011) Lodpfx Ajy U Hc Isgrert Model WS1100 x 7000 18 ton capacity 1100mm swing 7000mm between centres Single saddle 700mm chuck Lismar roll inspection Waste conveyor Siemens Sinumerik 840 DSL controls Safety fence
