Horizontal flat grinding machine

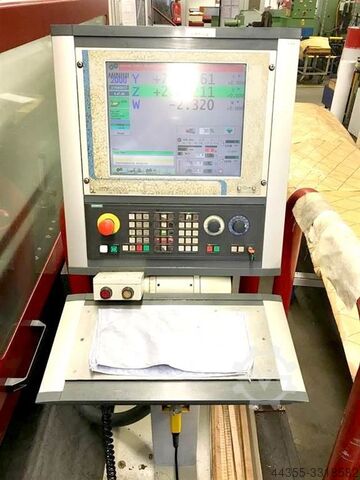

Minini PL 8.32 CNC

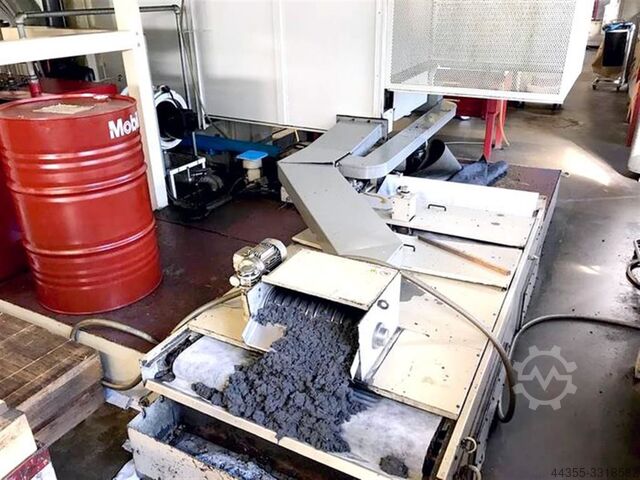

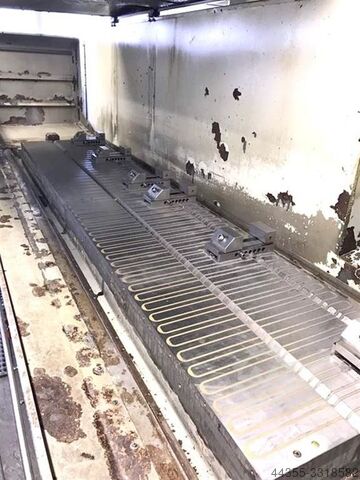

Condition: used, Year of construction: 2007, Technical details: grinding length: 3150 mm grinding width: 800 mm workpiece height: 650 mm Bedpsuh H Iyofx Af Hodk table surface area: 3.150 x 600 mm magnetic clamping plate: 3.000 x 600 mm table load: max. 6 t dimensions of grinding wheel: 450 x 100 x 127 mm : 22 kW total power requirement: 70,6 kW weight of the machine ca.: 15 t dimensions of the machine ca.: 11 x 3 x 2,4 m surface grinding machine, CNC Flachschleifmaschine, coolant device 2.500l, magnetical adhesive force control, semi automatic balancing system, *

Condition: used, Year of construction: 1984, x-travel 2500 mm y-travel 750 mm z-travel 1000 mm table surface area 2550 x 800 mm Bodjtqqnwopfx Af Hodk spindle taper SK 50 control HEIDENHAIN, TNC 150 B weight of the machine ca. 16 t

Condition: excellent (used), Motor-driven NC rotary table Stepless rotary table (pitch 0.001°) Attached pallet station: pallet changing table (2 pallets) Manufacturer: Rückle Type: PKTF 1200 Table size: 1200 mm x 1200 mm Total height: 660 mm Centring hole: 100 H6 mm Clamping grooves: 7 pieces Slot dimension: 22 H7 mm Slot distance: 160 mm The displacement is measured via a ROD 250 rotary encoder. Condition: Very good (used) Optionally with machine bed (travel = 2000 mm ) About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH, is a free specialist for SHW machine tools. Our main focus lies in the field of tool milling machines. Our services include the supply of spare parts, on-site customer service, machine overhauls and control modernization. Bodpfx Ajfk R Tdof Hjdk Services: - Used machines - spare parts - after-sales service - machine service - machine overhauls - control modernization

Year of construction: 1992, condition: good (used), Indoor crane, crane, electric wire rope hoist, hoist, motor winch, motor winch, tackle, traction winch, block and tackle -Manufacturer: steel, crane chassis with electric cable pull -Crane chassis: Type GO 24 20 16 -Traveling speed: 20 m/min -Roller pitch: 800mm -Cable: Type AS 2010 -Traction: 1000 kg / load capacity 4000 kg -Drum speed: 16 m/min / stroke 4 m/min -Lifting height: mm -Transport dimension: 1250/1180/H400 mm Bedpfxel Tuvde Af Hedk -Own weight: 356 kg

Condition: used, inner taper of milling spindel / collet diameter / turning speed range 1500 U/min Bdsdpfshwt Eljx Af Hsk

Condition: used, Year of construction: 1990, x-travel 2800 mm y-travel 1000 mm z-travel 1200 mm table surface area 2000 x 800 mm rotary table dia. 800 mm spindle taper SK 50 spindle turning speed - stepless 50 - 2000 U/min max. torque on the spindle 3000 Nm spindle drive 30 kW feeds longditudinal/cross/vertical 2 - 2000 mm/min rapid motion -longitudinal/cross/vertical 7 m/min control SIEMENS control SINUMERIK 850 M no. of tools in magazin 56 workpiece diameter at full load 114 mm wotkpiece diameter with 2 vacant positions 200 mm workpiece length 400 mm weight of tools max. 16 kg tool changing time ca. 8 - 9 sec internal coolant system feed ja / yes total power requirement kW weight of the machine ca. 25,4 t dimensions of the machine ca. 6,6 x 3,15 x 2,98 m = 5-axis CNC-bed-type milling machine with integrated NC-rotary table and NC-swivelling milling head - Bdodpfstqqmgjx Af Hsk Acc.: tool pre-setting device, various tool fixtures, chip conveyor, coolant with high pressure pump and filtration device, electron. handwheel, fixators

Condition: excellent (used), Year of construction: 2005, table load: 15,000 kg, rotary table diameter: 1,600 mm, Specification Dimension of bed – width 1170 mm height 290 mm length 2000 mm Dimension of slide - width x length (with no extensions) 1340 x 1300 mm height over the sliding surface 320 mm Length of travel along the „W“ axis 500 mm Rotary table surface clamping dimensions Ø 1500 mm Centering hole 100 H7 mm Height of the rotary table from the sliding surface 590 mm Number of clamping slots 9 Size of clamping T-slots. 22H7 Spacing of the T-slots 160 mm Speed of rotation smoothly controllable within the limits 1 ÷720 °/min Maximum centric load on the rotary table due to the workpiece mass 15000 kg Maximum eccentric load on the rotary table due to the workpiece weight (up to 750 mm distance of the workpiece center of gravity from the rotary table axis) 5000 kg Maximum rotary table bearing capacity – centre of gravity from table axis 500 mm Maximum torque on rotation 15000 Nm Maximum torque on stiffening 10000 Nm Maximum tilting moment to a plane perpendicular to clamping surface 15000 Nm Total time required for the table turning cycle through 360° 30 sec Working feed along the W-axis 1÷5000 mm.min-1 Fast feed along the W-axis 5000 mm.min-1 Oil working pressure (table stiffening) 5 MPa (drive pre-stressing) - MPa Table positioning accuracy Rotation Bilateral accuracy of the A-position setting by the ISO 230-2 16 µm Unilateral repeatability of the R-position setting by the ISO 230-2 8 µm Linear axis Bedpfjw Uz S Asx Af Hsdk Bilateral accuracy of the A-position setting by the ISO 230-2 0,02 µm Unilateral repeatability of the R-position setting by the ISO 230-2 0,01 µm Table turning part peripheral accuracy ±0,01 mm
