Strapping press

Mosca KPK-121

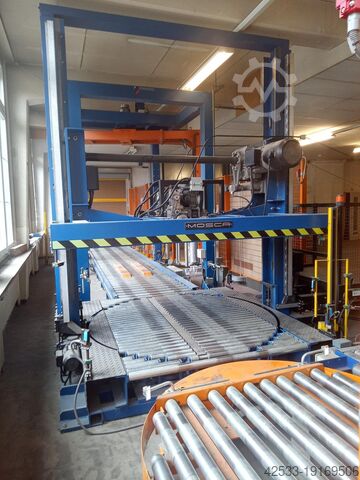

Automatic Pallet Packing Press MOSCA KPK-121
Year of manufacture: 2002

With integrated rotary turntable roller conveyor (diameter: 1,800 mm)
Suitable for Euro and industrial pallets, with pallet runners aligned in the conveying direction

Pallet dimensions:
Length: min. 1,000 mm / max. 1,600 mm
Width: min. 800 mm / max. 1,000 mm
Height: 145 mm

Packed dimension including pallet:
Length: min. 800 mm / max. 1,600 mm
Width: min. 800 mm / max. 1,400 mm
Height: min. 500 mm / max. 2,000 mm

For cross-strapping, the following pallet dimensions are possible:
Length: min. 800 mm / max. 1,200 mm
Width: min. 1,200 mm / max. 1,200 mm
Lasdpfxewlaico Ah Asi

Dimensions of the packing press:
Max. clearance height: 1,800 mm
Max. clearance width: 1,400 mm
Length of the pressing plate: 1,600 mm
Pressing force: up to max. 50,000 N, selectable via potentiometer
Pressing speed: 75 mm/s
Capacity of the pallet packing press:
With double strapping: max. 120 pallets/hour
With cross-strapping: max. 70 pallets/hour
Number of position programs: 10

Strapping band: PET strap
Dimension/width: 12 mm

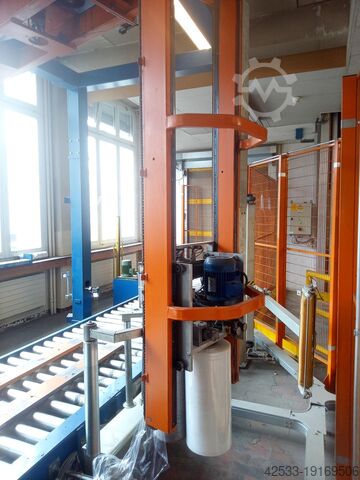

Pallet wrapper:
Max. pallet dimensions: Width: 1,000 mm / Length: 1,200 mm
Wrapping dimensions: 1,200 mm x 1,200 mm
Roller conveyor under the wrapper: W: 1,000 mm x L: 2,500 mm

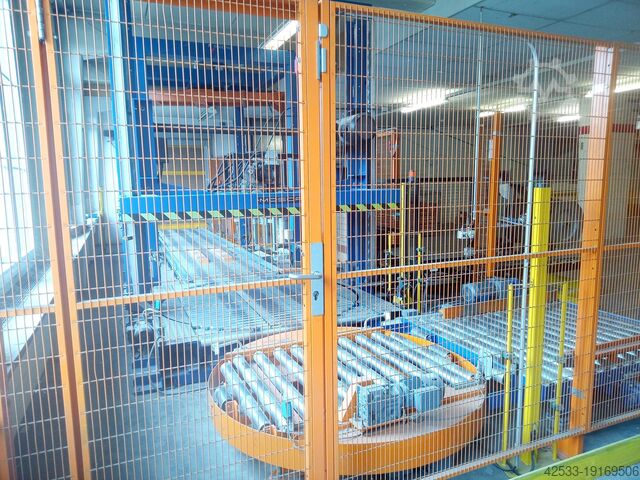

The system consists of:
- Centering roller conveyor
- Rotary corner conveyor
- MOSCA pallet packing press
- Robopac pallet wrapper
- 3 x outfeed roller conveyors
