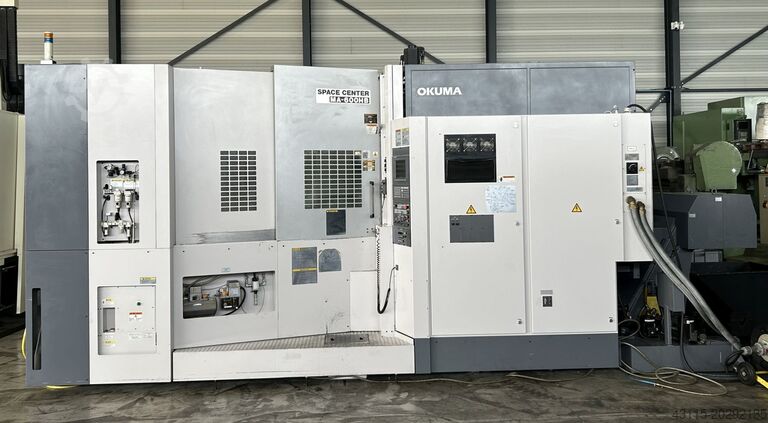

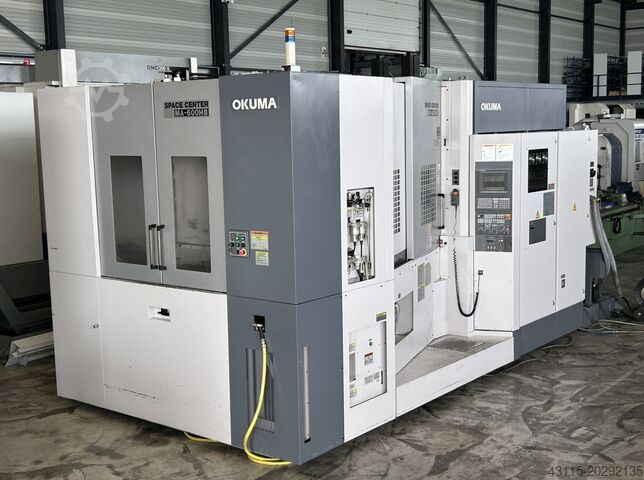

Horizontal Machining Centre

Okuma MA-600HB

Condition: used, Year of construction: 2004, travel distance X-axis: 1,000 mm, travel distance Y-axis: 950 mm, travel distance Z-axis: 1,000 mm, controller manufacturer: Okuma, controller model: OSP-E100M, total height: 3,280 mm, total length: 6,500 mm, total width: 3,460 mm, table width: 630 mm, table height: 630 mm, spindle speed (min.): 12,000 rpm, power: 37 kW (50.31 HP), Okuma MA-600 HB Space Center OSP E 100M control Dimensions pallet 630 x 630 mm Number of pallets 2x X-axis travel 1000 mm Y-axis travel: 950 mm Z-axis travel 1000 mm Indexing of table 1° Spindle holder MAS BT 50 Spindle speed 12,000 rpm Spindle motor 37/26 kW Positions in the tool magazine 60 Gbedpfxsxnkvie Abpjw If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: good (used), Year of construction: 2009, functionality: fully functional, turning length: 1,500 mm, turning diameter: 550 mm, spindle motor power: 22,000 W, spindle speed (min.): 3,800 rpm, spindle bore: 80 mm, power: 22 kW (29.91 HP), Equipment: rotational speed infinitely variable, Okuma Macturn 350 2SW-1500 Big Bore main spindle, machine type CNC turning-milling center Make / manufacturer Okuma Okuma Model / type MacTurn 350 2SW1500 BigBore Year of manufacture 2008 / 2009 Control OSP P 200 L IGF One Touch Advanced + CAS Spindle turning time 6437 h Technical data Max. turning diameter: 550 mm Max. turning length: 1,500 mm Travel path of upper turret (milling spindle): X-axis: 505 mm/190 mm/1670 mm Y-axis: 190 mm (+95 /-95) Z-axis: 1670 mm W-axis: 1680 mm Godpfx Absvta Rdopebw Travel path of lower turret: X/Z 210 mm/ 1670 mm Main spindle “Big Bore” version Spindle motor main spindle 22 kW, 412 Nm Max. speed main spindle 3800 rpm Spindle nose main spindle JIS A2-8 Spindle passage 80 mm Max. bar diameter: 71 mm C-axis 0.001 ° Counter spindle “Super Big Bore” version Spindle motor counter spindle 22 kW, 412 Nm Max. speed counter spindle 3300 rpm Spindle end counter spindle JIS A2-8 Spindle passage 80 mm Max. bar diameter: 71 mm Milling spindle Spindle motor milling spindle: 11 kW Max. speed milling spindle: 12000 rpm Tool holder: HSK 63 B-axis: 0.001° Tool magazine: 44 stations Lower turret Tool positions: 12 Tool holder: VDI-40, Driven tool stations: 12 positions Max. power of driven tools: 7.5 kW Max. speed of driven tools 4500 rpm Machine weight: approx. 15,000 kg Space requirement 6000 x 3500 x 3000 cm Other features - High pressure cooling 40 bar - Chip conveyor Interlit ISF 614 - Heavy crane filter Interlit SBP 4 - Touch Setter - Helical Cutting - 4 Extra M-Code Set - 2x hydraulic power chuck SMW BH-D 315-95 diam. 250 mm - DNC- T1 interface - RS 232 C interface - Chuck blow-off function main counter spindle - TAS -S + TAC-C Status report after commissioning in Bergisch Gladbach Geometry measurement results Reverse play XA - axis 0.015 mm Reverse play XB - axis 0.015 mm Reverse play ZA - axis 0.020 mm Reverse play ZB - axis 0.020 mm Reverse play Y - axis 0.010 mm XA - axis measured with measuring mandrel at 300 mm 0.02, YA at 300 mm 0.007in T1,T2, T3 B-axis: alignment and function good M-drive lower turret: tested and good Milling spindle: tested up to 6000 rpm, no abnormalities Main/counter spindle tested , no abnormalities High pressure pumps function well, no abnormalities Accessories - 2 x hydraulic crane chuck SMW - pallet with 16 driven tool holders, 10 HSK 63 holders, 3 VDI 40 holders - lifting hook on the front - all original axle locks Neff The Okuma specialist and NeffBuy We are also happy to provide you with the all-round carefree package, a tour of our showroom including demonstration and acceptance, loading, transport, assembly and commissioning of the machine as well as instruction and subsequent service. We operate Okuma CNC service throughout Europe, both electronically and mechanically, and on top of that we have a 1200 m2 inventory of all Okuma spare parts, please visit us on our homepage.

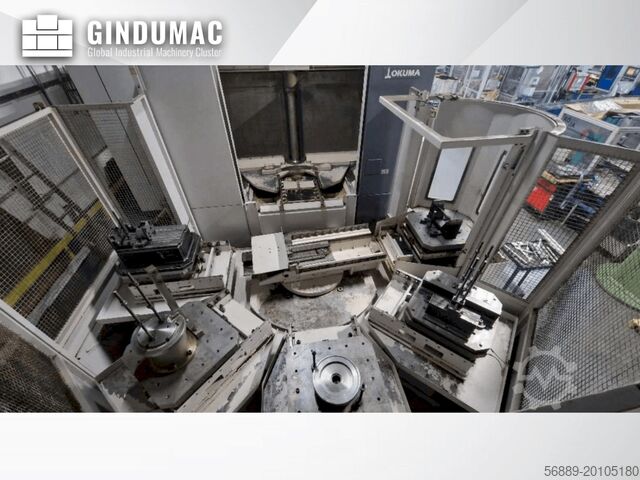

Condition: ready for operation (used), Year of construction: 2007, General Data Measurements width 5400 mm Measurements depth 10500 mm Machine weight 27000 kg Gbodjxgv T Rspfx Abpew Main Drive Spindle speed range 6000 rpm This 4-axis Okuma MA-600 HB was manufactured in 2007. It features a maximum machining area of 1000 x 900 x 1000 mm, a spindle speed up to 6000 rpm, and a rapid feed rate of 30 m/min. With 150 tool positions and a MAS BT 50 tool holder, it's ideal for complex machining tasks. Consider the opportunity to buy this Okuma MA-600 HB horizontal machining centre. Contact us for more information about this machine. Application Types Milling

Condition: excellent (used), Year of construction: 2010, turning length: 800 mm, turning diameter: 430 mm, spindle motor power: 11,000 W, spindle speed (max.): 6,000 rpm, travel distance X-axis: 455 mm, travel distance Y-axis: 105 mm, travel distance Z-axis: 800 mm, rotational speed (max.): 12,000 rpm, total height: 8,500 mm, total length: 2,500 mm, total width: 2,495 mm, CNC controller: Fanuc FS31IA5 (MAPPS 4) Capacity Turning length mm: 800 Max. turning diameter mm: ø Ø430 Turn-mill spindle X-axis travel mm: 455 Y-axis travel mm: ±105 Z-axis travel mm: 800 B-axis degree: ±120 (0.001º) Speed spindle rpm: 12.000 Drive power kW: 9/5.5 Tool magazine Magazine places: 76 Tool holder: Capto C5 Tool length max. mm: 250 Tool diameter max. mm: 70/130 Tool weight max kg: 5 Lower turret X-axis travel mm: 160 Z-axis travel mm: 730 Number of tool slots St .: 10 Main spindle Speed spindle rpm: 6.000 Drive power spindle kW: 11/7.5 Spindle bore mm: 73 Chuck type: Hollow Chuck (8") Manufacturer: KITAGAWA Counter spindle Speed spindle rpm: 6.000 Drive power spindle kW: 7.5/5.5 Chuck type: Solid Chuck (8") Manufacturer: KITAGAWA Equipment Chip conveyor Signal lamp High pressure pump Chuck foot switch (double) for main and counter spindle Coolant gun Working time hours Gbjdpfxou Afizs Abpow Under power: 76.482 Spindle 1: 14.010 Spindle 2: 4.306 Rated power kVA: 48 Basic machine dimensions / weight 4.170 Length mm: 2.500 Width mm: 2.495 Height mm: 8.500

Condition: used, TECHNICAL DETAILS Gjdpfx Absuhamcopobw - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 4500 [rpm] - Max. bar diameter : 65 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 51 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0,001 [°] - Travel : 780 [mm] - Spindle / counter-spindle distance : 980 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 570/1297 [mm] - Y stroke : +/- 100 [mm] - B Axis stroke : 190 (+/-95) [°] - Tool type : Capto C4 - Spindle speeds : 12000 [rpm] - Spindle power : 7,5 [kW] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 48 (2x24) LOWER TURRET - Number of positions : 24 - X/Z stroke : 130,5/658 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 7,1 [kW] POWER SUPPLY - Supply voltage : 380 [V] WEIGHT & DIMENSIONS - Machine floor space : 2700x3460 [mm] - Machine height : 2857 [mm] - Machine weight : 14500 [kg] MACHINE HOURS - Number of working hours : 11000 [h] EQUIPMENT - CNC : Fanuc 31iA-5 - Coolant tank * with high-pressure pump : 25 [bars] * Coolant through spindle - Chips conveyor : Droite - Spindle cooling unit - Predisposition for barfeeder - Electric transformer - Chuck 3 jaws : SCHUNK 215 / SCHUNK 165

Condition: good (used), Year of construction: 2008, functionality: fully functional, spindle speed (min.): 6,000 rpm, bar passage: 32 mm, overall weight: 3,800 kg, 32 mm-5 axis Swiss Cnc lathe with moving bushing - Iemca Boss 332E barfeed new in 2008 - Syntec Control Godetxq Emspfx Abpobw

Condition: good (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 560 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 625 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, controller manufacturer: Okuma, controller model: OSP-E100M, workpiece length (max.): 600 mm, workpiece width (max.): 710 mm, workpiece weight (max.): 400 kg, total height: 2,760 mm, total length: 4,535 mm, total width: 2,415 mm, table width: 400 mm, table length: 400 mm, table load: 400 kg, overall weight: 11,500 kg, spindle speed (max.): 10,000 rpm, distance table center to spindle nose: 710 mm, spindle motor power: 15,000 W, spindle nose: BT40, number of spindles: 1, number of slots in tool magazine: 40, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, rotational speed infinitely variable, Okuma Space Center MA400HA Horizontal Machining Centre Machine Type: CNC Horizontal Machining Centre Year: 2004 Control: OSP-E100M Axes: 4 No. of Pallets: 2 Condition: Good Includes Cromar Swarf Conveyor Coolant Filtration System Technical Specifications Pallets: 2 Size of Pallets: 400 x 400mm X Axis Travel: 560mm Y Axis Travel: 610mm Z Axis Travel: 625mm Gbjdpfswcd Evsx Abpow B Axis Travel: 360 Deg Rapid Traverse: 60m/min Spindle Centre to Pallet Top: 50 - 660mm Spindle Nose to Pallet Centre: 85 - 710mm Max Pallet Load: 400kg Max Workpiece Dimensions: 600 x 710mm Tool Pockets: 40 Spindle Taper: BT40 Spindle Power: 15kW Spindle Speed: 10,000rpm Machine Dimensions: 4535 x 2415 x 2760mm Machine Weight: 11,500kg

Condition: good (used), Year of construction: 2002, MSG-501 control MAPPS (Fanuc) Max. turning diameter: 550 mm Max. turning length: 1,020 mm Travel axes X1/X2/Y/Z1/Z2/W: 565/160/1,077 mm Main spindle drive power: 22 kW Max. spindle speed: 4,600 rpm Bar capacity: 65 mm Spindle nose: A2-6 Sub spindle drive power: 15 kW Max. sub spindle speed: 6,000 rpm Gbsdpfjwwk Uasx Abpsw Milling spindle max. speed: 7,000 rpm Capto C6 tool system Tool magazine with 60 tool stations Lower turret with 12 tool stations, 6 of which are live stations Max. speed of driven tools: 4,000 rpm Chip conveyor
