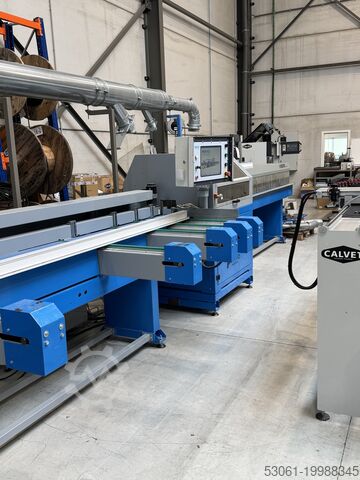

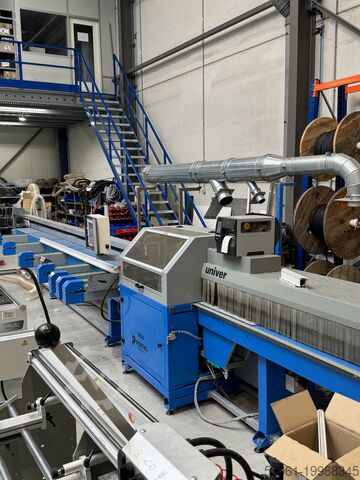

Automatic cutting machine PVC windows

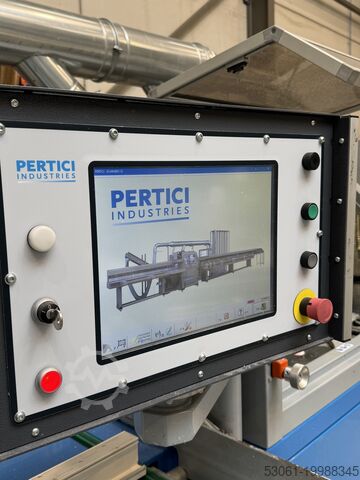

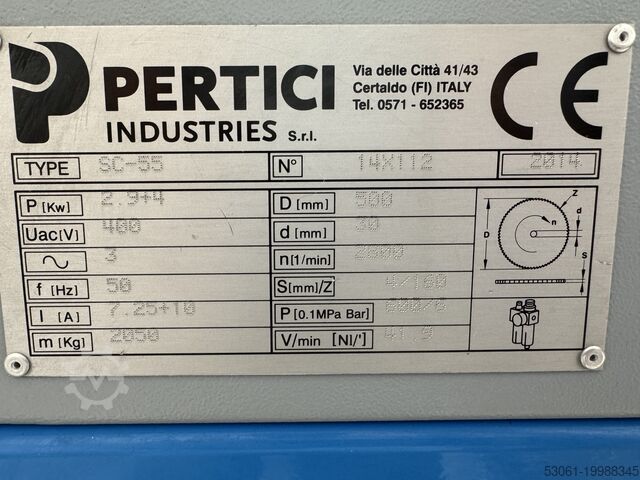

Pertici Scarabeo SC55

Condition: good (used), Year of construction: 2009, machine/vehicle number: 09X114, PERTICI Sawing center for plastic profiles, model Scarabeo SC 55. Without dust extraction system. Dodjzlym Ejpfx Abgeck

Condition: excellent (used), Year of construction: 2012, - 3-axis CNC center SCM Pratix S - model PRATIX 12B from 2012. - Range X, Y, Z axes: 2500x1250x150+ mm - Number of tool spaces in the magazine: 8 - Machine table: Raster aluminum table, 2 sections. - Control: PC control - Software: SCM NESTING, SCM XILOG MAESTRO Djdpfouu Ntgsx Abgjck - Serial no.: AH/115920 Number of milling axes: 1 Drilling unit: 1 - practically unused Maximum spindle speed: 24,000 rpm Tool holder: HSK-F63 Main engine: 6.6 kW Table measurements: 130 cm x 260 cm Portal construction: Machine with movable portal Vacuum pumps: 2 pcs. BECKER from 2012 - one placed outside, the other installed in the machine. Vacuum pump capacity m³/h: 240/280 m³/h. Interface for reading CAD format (.dxf) Security: Rejects Weight approx. 2,500 kg Length: 5,900 mm Width: 2,790 mm Height: 2,190 mm Automatic tool length measurement

Condition: good (used), Year of construction: 2008, functionality: fully functional, turning length: 750 mm, turning diameter: 590 mm, spindle bore: 78 mm, spindle speed (max.): 3,000 rpm, Equipment: documentation/manual, Centre distance: 750 mm Swing: 590 mm over bed / 375 mm over slides Spindle speeds: 25 - 3.000 rpm Spindle bore: 78 mm Dcjdpfx Aboxmvzuegek Revolver: 10 Platze Controller: Siemens 810D Shopmill Featured with: - Double footpedals - Chipconveyor - Machine manuals Country of origin: Z. Korea Motor power: 25 kW Machine weight: 6.000 kg Machine LxWxH: 300 x 180 x 190 cm

Condition: used, CNC machining center BIESSE Rover C 6.50 CONF.2, year 2007 Working area: approx. 140 × 460 cm Dsdpfxew Rpd So Abgeck Machine dimensions: 300 × 650 cm Weight: approx. 6,100 kg Two working heads Tool magazine: 22 positions Vertical drilling spindles: 28 pcs Horizontal drilling spindles: 12 pcs Price negotiable, available immediately. Price is without VAT.

Condition: good (used), Year of construction: 2011, machine/vehicle number: 2212.287, Automatic panelsaw Schelling Typ:FH 6 430 Maskin nr:221.287 År:2011 Panel beam saw Schelling with automatic, rear-feed,lifting table. For sawing board material, chipboard, MDF, Plywood, Board, Laminate etc. Techn info: Software MCS Evolution 2.0, SPS, Soft-SPS-Siemens WinAC Operating system WINDOWS XP PC with keyboard and mouse TFT monitor 17" Cutting length 4300mm, automatic detection of the start of the plate Cutting width 4300mm Machine accuracy of the cut length 3m +-0.1mm Positioning accuracy measured at input +-0.1mm Max diameter saw blade 460mm, spindle 30mm Pre-scoring blade 200mm, spindle 20mm motor operation is set from the control console Max panel thickness 120mm Panel stack aligner Main saw blade motor 27kw Dcsdjtk It Sjpfx Abgok Saw blade over table 135mm Safety curtain Air cushion table with 3pcs air ball nozzles, radial ventilator fan Table sizes 2650x850mm 620x850mm 2650x2550mm Pressure beam with automatic adjustment of pressure to cut length and package height Package straightener before and after the pressure beam Max package height 120mm (incl. sum of curvature and board thickness tolerance) Pusher with 12 grippers Max clamp opening (gripper) 133mm Min-max force package straightener 400/2000N Speed saw carriage forward 6-150m/min Speed saw carriage back 150m/min Forward feed speed (pusher) up to 25m/min (according to EC Europa EN1870-13) other countries 80m/min Speed feeding back up to 80m/min Push-off device 3 pcs Lift table length x width 4350x2550mm Hydraulic unit Standard version 1600mm lifting height 1.25/2.5m/min raising speed, 1.25/5m/min lowering speed Maximum load 1200 kg/m2 total 9 tons Roller track driven rollers, frequency controlled for stack on lifting table 4100x2600mm Max stack weight 6500 kg Max stack length 1060mm Slots for forklift 4 pcs, distance in the middle 1200mm, slot width 300mm Light curtain for personal protection Roller conveyor driven for package frequency controlled input to lifting table left 5600x2600mm max load 6500kg Roller conveyor driven for packages frequency controlled input to lifting table right 5600x2600mm max load 6500kg Slots for forklift 2 pcs, center distance 900mm, slot width 400mm 2 positioning stops with roller for stack alignment Light curtain (double beam) for personal protection Roller table after saw depth 4300mm, free-running ployamide rollers Angle stop at the rolling table Infeed guide two-lane (beam length 7200mm) 2-sided hardened precision guides rack and pinion drive, two-sided Input carriage (pusher) gear rack servo drive, non-contact measuring system Gripper, (scissor clamps) in pusher 12 pcs Automatic adaptation of the clamping force to the package height (progressive clamping force) can be set to 0 Pusher for panels thickness greater than 6mm,material thinner than 6mm is fed manually Central cleaning system feed trough (pusher) Compressed air 6-8 bar, approx. 1600l/min Power 38 kw, 70 A. 3x400 volts, 50 Hz, operating voltage 24 VDC Dust extraction 4000m/h, air speed 30m/s Diameter connection 80mm (angle connection), 120mm /pressure beam), 150mm (sawdust channel) Total setup area without driven roller conveyors including protective grid approx: 11650x7300mm Driven roller tracks left-right 5500+5500mm Stock no: 2002125BXACEO Subject to incorrect technical data presented

Condition: good (used), Year of construction: 2003, travel distance X-axis: 1,060 mm, travel distance Y-axis: 710 mm, travel distance Z-axis: 710 mm, feed rate X-axis: 15,000 m/min, feed rate Y-axis: 15,000 m/min, feed rate Z-axis: 15,000 m/min, total height: 2,800 mm, total length: 3,200 mm, total width: 2,900 mm, table width: 800 mm, table length: 1,500 mm, table load: 550 kg, rotary table diameter: 800 mm, spindle motor power: 20,000 W, Chip conveyor 3D measuring probe Paper filtration IKZ 15 Bar Under power X - Travel: 1060mm Y - Travel: 710mm Z - Travel: 710mm A - Axis: 360000° B - Axis: - 30 to + 120° Table Length: 1500mm Table Width: 800mm Table load: 550 Table Ø: 800mm Feed rate X-Axis: 15000mm/min. Feed rate Y-Axis: 15000mm/min. Feed rate Z-Axis: 15000mm/min. Spindle Taper: 40ISO/Bt/Mk Power on spindle: 20kW Speeds / ranges: 12000Rpm ATC / revolver: 32 Coolant through spindle / Bar:15 Number of controlled axis: 5 Chip conveyor: Yes Coolantsystem: Yes Length: 3200mm Width: 2900mm Height: 2800mm Weight: 9500kg Dcodpfx Aeym Sdysbgsk Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Year of construction: 2004, Mazak Multiplex 6300 Dsdev Tvkaspfx Abgsck Mazatrol 640T YOM: 2004-11 approximately 20 pcs tools Mazak Flex-GL200F More information is coming soon.

Condition: like new (used), Year of construction: 2023, functionality: fully functional, Fixed setting vice with roller quills for SUI 80 TRENCIN Capacity : 210 - 370 mm Dcedpfsu Tvdbjx Abgok 365 - 520 mm Only available as a set

Condition: used, Year of construction: 2001, No. of controlled axes: 8 Swing over bed (mm): 650 Swing over carriage (mm): 250 Distance between centers (mm/in): Max. 1450 / 57.08, Min. 310 / 12.20 Max. turning diameter × length (mm/in): Ø300 × 300 / Ø11.81 × 11.81 SPINDLE Spindle nose taper: JIS A2-11 Spindle diameter (mm): 120 Spindle hole (mm): 80 Spindle speed range (min⁻¹ / rpm): 38 – 3800 Number of spindle speed ranges: 2 Please see photos of specs. Dcsdow N Nqvspfx Abgjk Includes all parts and tools in pallets.

Condition: ready for operation (used), Year of construction: 2007, Brand: Holz Her Model: PRO-MASTER 7123K Serial no: 527/0-705 5010147 Year of manufacture: 2007 - 2 HSK cones included + various drills for drill box - Comes with a number of suction cups and some spare parts Tech. info: 4-axis (c-axis) 6 beams Motor-controlled adjustment of beams Number of vertical boring bits: 24 Number of vertical boring bits in X axis: 10 Number of vertical boring bits in Y axis: 8 Centres distance: 32 mm Dsdpfxorz Irre Abgsck Horizontal double spindle in X axis: 2 Horizontal double spindle in Y axis: 1 Centres distance: 64 mm Working area: 3200x1260 mm Maximum travel path: X= 3866 mm Y= 1650 mm Z= 325 mm Workpeice pass height for tool change spindle with HSK 63F tool connection: 345 mm Max. machining thickness/ feed-in height (rear stop): 175 mm Max. workpiece size for vertical bores: X=3730R/ 3460L mm Y=1570 mm Max. workpiece size for horizontal bores X: X=3450R/ 3370L mm Y= 1315 mm Max. workpiece size for horizontal bores Y: X=4760R/ 3300L mm Y= 1385 mm Max. workpiece size for edge milling, less cutter radius (tool 25 mmdiameter x 125 mm, HSK): X=3510R/ 3525L mm Y=1445 mm Z=280 mm Max. workpiece size for grooving in X (dim. centre grooving tool approx. 120 mm): X=3300R/ 3760L mm Y=1585 mm Max. workpiece size for grooving in Y (dim. centre grooving tool approx. 120 mm): X=3200R/3860L mm Y=1485 mm Max. travel speed X axis: 100 m/min Max. travel speed Y axis: 100 m/min Max. travel speed Z axis: 25 m/min Max. travel speed C axis: 60 m/min Motor power of boring unit: 3 kW Motor power of saw: 1,5 kW Motor power of electro spindle unit with clamping system: 6 kW Speed electro spindle 1000-18000rpm Power: 22 kW, 50 Hz, 400 V, 3-phase Compressed air: operating pressure 6,0 bar permissible limit pressure 8,0 bar Air requirement: 300 l/min Extraction capacity: approx. 5300 m3/h Dust nozzle diameter: 250 mm Size: Length with control cabinet: 6420 mm Overall width: 3760 mm Height with extractor hood: 2475 mm Weight: 4200 kg Program Campus NC-HOPS Operating system Microsoft Windows Graphic variants system with HOP and CAD/CAM properties For the creation of parts variants with macro technology Program operation Windows-conform surface configuration and operator guidance Macro / variant programming Indication and simulation modes Export and import facility to the various branch programs Interaction possibilities with a variety of branch programs Stock no: 2002061BXA with reservation for incorrectly presented technical data
