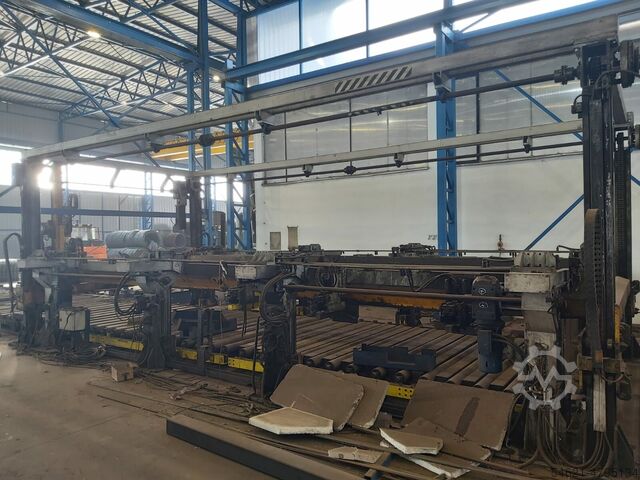

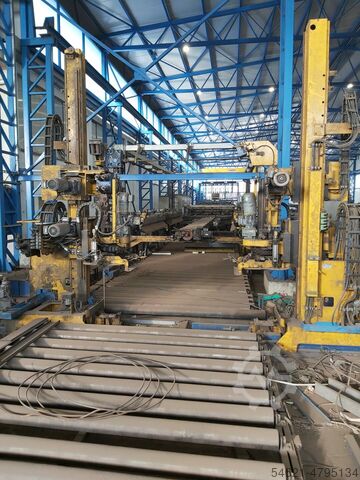

Mesh Welding Line

PITTINI IMPIANTI 2400/8

Year of construction: 2010, condition: good (used), USED CNC BIESSE BREMA EKO 902 INSERTING MACHINE TECHNICAL DETAILS: 3-AXIS (X-Y-Z) CNC MACHINING CENTER - Complete protection of the machining head and the work area on the machine. - Numerical control system with BIESSE Works software on Windows. - Vertical positioning of the panels, with 2 panel clamping jaws. Isdpfohknbrex Aqceig - Panel feed (in the direction of the X-axis, on the lower support with rubber wheels), movement (in the X-axis) of the panel/board clamping jaws. PANEL DIMENSIONS (WORKING DIMENSIONS): - Minimum length: 160 mm / Maximum length: 3200 mm - Minimum width: 35 mm / Maximum width: 900 mm - Minimum thickness: 8 mm / Maximum thickness: 80 mm WORKING GROUPS: - No. 1 Vertical spindle (electro-spindle) ER32 (4.5 kW) with inverter (up to 18000 RPM) - No. 1 Circular saw (for grooves) diameter 120 mm (X-axis fixed) - No. 13 Independent vertical spindles for drilling (6 on the X-axis + 7 on the Y-axis) - No. 8 Independent horizontal spindles for drilling (3+3 on the X-axis and 1+1 on the Y-axis) - No. 1 Head group for hinge drilling - Total installed power: 20 kW AUTOMATIC DOWEL INSERTING GROUP ON BOTH SIDES WITH A PRESSURE PUMP FOR APPLYING THE GLUE.

Year of construction: 1980, condition: good (used), strip width: max. 1.650 strip thickness: max. 3 mm blade shaft Ø: 165 mm speed: max. 150 m/min Iiedpfx Aed Ha Hmoqceg

Condition: excellent (used), LOADER (BRIDGE-FRAME) WITH DOUBLE PICK-UP STATION Vacuum system (with its pump) N. 4 Vertical supporting columns of the top supporting beam N. 1 Horizontal top supporting beam (where the carriage slide on) N. 1 Motorized sliding carriage with horizontal metal arms N. 2 Horizontal metal arms with vacuum cups, adjustables N. 2 Out-side rollers ways (on gound) to in-feed pile of panels to the Loader N. 1 Out-side motorized rollers table (which in-feed the panels to the Unloader), with also cross motorized conveyor belts (at 90°), dimensions mm 7232 (ca.) Isdpfx Aqed Rg Dpecjig Separate electric and command panel Electronic Programmer OMRON Perimetral safety metal grids Working capacity (cycles/min) 16 - 20 (ca.) Min/Max panels thickness mm 10 - 50 (ca.) Min dimensions of the panels mm 250 x 320 (ca.) Max dimensions of the panels mm 1200 x 3200 (ca.) Total installed motor power Kw 23.3

Condition: ready for operation (used), Year of construction: 2008, A complete filling line from filler to packer is available. Format: Gable top/pyramid pack 0.50l/0.75l/1l, output: approx. 7000 packs/h, dimensions X/Y/Z: approx. 9500mm/3200mm/3500mm, weight: approx. 13000kg, operating hours: approx. 32500h. Applicator: 3x Elopak E-PLA-S30, year of construction: 2009, air pressure: 700kPa, weight: approx. 1000kg. Packer: Oystar A+F Traypacker TF, year of construction: 2011. Iodetul Raopfx Aqceig

Condition: excellent (used), Year of construction: 2003, PET bottle blowing machine Manufacturer: KRONES Isdpfsvddkvex Aqcjig Model: CONTIFORM K781 Efficiency: 12,000 bph Includes 1.5 L and 0.5 L bottle molds Power: 150 kW Air requirement: 10 bar - 1500 m3/h, 30 bar - 1000 m3/h Set dimensions (blow mold + preform feeder): 1100 x 340 cm, h: 450 cm Blow mold dimensions: 500 x 340 cm, h: 250 cm Feeder dimensions: 600 x 250 cm, h: 450 cm Air requirement: 10 bar - 1500 m3/h, 30 bar - 1000 m3/h Year of production: 2003 Technical documentation of machine operation Very good condition

Condition: used, Year of construction: 2014, for sale Machine types & quantities: - 1 unit: Linear transport system for 14 stations, type: LT-14-270 (original from sp280) - 1 unit: automatic loading station - 1 unit: new infeed station - 1 unit: double spiral kneader + powerbox Type: W240A No: 7402-978 - 1 unit: dough return station - 1 unit: lift and tipper, type: HK1200 - 3 units: 3 mixing bowls. Type: W240A - the frames and platforms for this line - 1 unit: weighing hopper - 1 unit: star hopper Iijdjnnz Hwepfx Aqcjg - powerbox - the small parts required for the line Inspection of the line is possible on site. If you have any questions or remarks, please feel free to contact us. The seller will load all goods carefully into the container/truck. The buyer will need to arrange transportation. Kind regards, Leo Holland

Condition: good (used), Year of construction: 2001, Format: max 360 x 310 mm; min 140 x 100 mm Book block thickness: max 60 mm; min 3 mm Cover format: max 642 mm; min 203 mm Output: max 18,000 c/h Equipment Gathering machine - Clamping element - 18 feeder 3681 - Diverter 3714 Controls Iedpfeq Rv Htsx Aqcjig - Double and missing sheet control - ASAC automatic self-adjusting caliper Intermediate modules - 2 vibrating elements 3642 - coupled with adhesive binder - Commander - 41 clamps - Infeed channel with vibration direction - 2 milling stations - 2-fold combi spine processing - 2 hotmelt spine gluing units - Hotmelt side gluing unit - 3 premelters - SF shingle cover feeder - SF cover pressing - 2nd SF cover pressing unit - Plate chain Laydown conveyor Cooling section - inline with - Zenith S three-knife trimmer Optional accessories---not included in the scope of delivery-- - compensating stacker - film wrapper - palletizer

Condition: used, Cut To Length CTL 2000x8, made by BRONX Strip width: 600 - 2.000 mm Strip Thickness: 2 - 8 mm Coil max. weight: 30 Tn Coil Outer Diameter: Up to 2.100 mm Coil Inner Diameter: 508mm - 610mm - 762mm with filler segments Sheet Length Stacker: 600 - 8.000 mm Iodpfx Aqoymclbjceig Stacking Capacity: 1 x 8000mm long x 2000mm wide packs Stacking: 10000kg maximum uniformly distributed over 5000mm sheet length Pack Height: 750 mm Max. speed: 60 m/min

Condition: ready for operation (used), Year of construction: 1998, Travel X/Y/Z: 3200mm/300mm/250mm, speed: 18000rpm, motor power: 7.4kW, tool holder: SK30, tool positions: 8, tool changer: turret, materials processed: aluminum/steel (max. 5mm thick)/PVC (steel-reinforced and unreinforced), wood and plastics. Documentation available. On-site inspection is possible. Iodpfx Ajuzlfasqcoig

Condition: used, Year of construction: 2015, Wall line, manufactured to produce walls for modular manufacturing. Used by a Swedish producer between 2015 and 2021. Iiodpfx Aqsxv Arxscjg NOTE: Sold in its current condition. Station lengths: 7000 mm Station width: 2700 mm Station nr1: Framing station CAD/CAM (includes two nail tools) Station nr2: Working table Station nr3: Semi automatic nailing bridge (includes two nail tools) Station nr4: Working table - Upraiser table Station nr5: Multifunction portal CAD/CAM (includes four screw tools and milling unit) Station nr6: Working station - Receiver table - Moveable sideways Station nr7: Working station - Angle transmission Station nr8: Working station - Upraiser table Station nr9: Working station - Angle transmission Station nr10: Working station - Upraiser table
