Forging Hammer CM3150 Analog Huta 10000B

Progresul Braila CM 3150

Condition: good (used), Magnetic table 455 x 170 mm digital display water tank Honing device Bcjdstu Il Tepfx Afcow Wet sanding device

Condition: excellent (used), 1 permanent - magnetic Chuck D = 315 mm Bcjdjd Eaauspfx Afcew with mounting flange DIN 55027 Gr. 6

Condition: used, BROACHING MACHINE Bcsdst Hr Dfepfx Afcew

Condition: used, Year of construction: 1983, Bohrleistung in Stahl (-Ø 50 mm throat 1500 mm workpiece height max. 1380 mm Bohrleistung in Guß (-Ø 60 mm Abstand Spindelmitte bis Säule 320 - 1250 mm swival range +/- 180 ° base plate surface area 2640 x 1000 mm max. torque on the spindle 310 Nm Bohrspindel-Ø/ Aufnahme 75 mm /MK 5 bore spindle stroke 310 mm spindle turning speed range 28 - 2500 U/min feed: 0,05 - 2 mm/U power capacity 4 kW weight of the machine ca. 4,3 t dimensions of the machine ca. 3,2 x 1 x 2,75 m cube table 500 x 500 x 500 mm Bjdpfx Afotv Iklececw

Condition: used, Year of construction: 1991, bore capacity in steel (diameter) 50 mm Bcodeu Sblwspfx Afcjw arm length 1100 mm workpiece height max. ca. 1000 mm bore capacity in cast iron 60 mm spindle taper MK 5 spindle turning speed range 28 - 2500 U/min feeds 0,05 - 2 mm/U quill stroke 300 mm distance basic plate - spindle nose 630 - 1380 mm crossrail adjustment vertical 750 mm total power requirement 6 kW weight of the machine ca. 4 t dimensions of machine L x W x H 2,74 x 1,14 x 2,59 mm - with thread cutting attachment - Accessories: box table 550 x 550 x 550 mm, vice, coolant

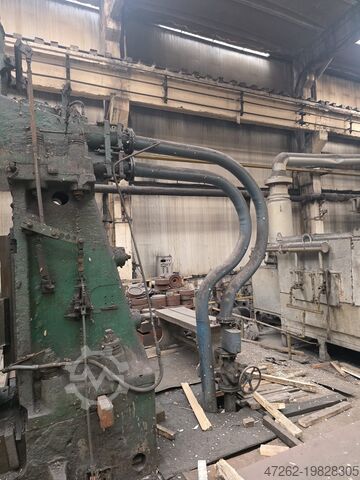

Condition: ready for operation (used), Romanian Forging Hammer CM 2500 (The hammer is similar to Huta Zygmunt MPM 6300B) - Maximum impact energy at full stroke: 7000 kgm - Ram weight: 2500 kg - Mode of operation: pneumatic - Ram stroke: 850 mm - Number of blows per minute: 100 - Working pressure: 5–7 bar - Anvil weight: 48 t - Total weight: 65 t Romanian Forging Hammer CM 1250 (The hammer is similar to Huta Zygmunt MPM 3150B) - Maximum impact energy at full stroke: 3600 kgm - Ram weight: 1250 kg - Mode of operation: pneumatic Bcedsw Sdxaspfx Afcjw - Table size (front to back): 700 mm - Stroke: 800 mm - Number of blows per minute: 110 - Working pressure: 5–7 bar - Max. upper die weight: 400 kg - Die height: 220 mm - Ram (front to back): 500 mm - Air consumption: 15 m³/min - Anvil weight: 24 t - Height of machine above floor: 3750 mm - Total machine height: 4380 mm - Total weight: 35 t

Condition: good (used), Year of construction: 1971, functionality: fully functional, machine/vehicle number: 12.02-37-31, grinding wheel width: 250 mm, grinding wheel diameter: 500 mm, grinding diameter: 125 mm, grinding length: 200 mm, type of input current: three-phase, overall weight: 5,000 kg, workpiece diameter (max.): 125 mm, nominal power: 28 kW (38.07 HP), The machine was used exclusively for grinding piston rods with a diameter of 10 mm. Bcjdpsw E D Eujfx Afcsw

Condition: ready for operation (used), Year of construction: 2004, operating hours: 37,165 h, travel distance X-axis: 560 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 630 mm, rapid traverse X-axis: 50 m/min, controller manufacturer: FS-18IMB (MAPPS 2), workpiece height (max.): 800 mm, workpiece diameter (max.): 560 mm, workpiece weight (max.): 300 kg, table width: 400 mm, table height: 400 mm, table length: 400 mm, spindle speed (min.): 14,000 rpm, tool length: 400 mm, tool weight: 8,000 g, CNC controller: FS-18IMB (MAPPS 2) Axes Bsdpfxswx Itvs Afcscw X-axis travel mm: 560 Y-axis travel mm: 560 Z-axis travel mm: 630 Rapid traverse m/min: 50 Rotary Worktable (4th axis): FULL 4TH AXIS ROTARY TABLE Worktable Number of pallets: 3 Table dimensions mm: 400 Maximum workpiece size (D x H) mm: 560 x 800 Max. workpiece weight kg: 300 APC time s: 6 Spindle Spindle speed rpm: 14.000 Spindle drive power kW: 18.5/11 KW Spindle torque Nm: 120 Nm (10%ED) Tool system Tool holder: BT-40 Tool magazine slots: 120 With free neighboring places mm: 140 With occupied neighboring places mm: 70 Max. Tool Length mm: 400 Max tool weight kg: 8 Tool-to-tool time s: 0,9 Chip-to-chip time s: 2,8 Equipment Chip conveyor Signal lamp 4th axis Ready for internal cooling (40/80 bar) RENISHAW OMP60 CE Round pallet storage Measuring system (worktable) Cooling Tank capacity: 500 High-pressure bar: 70 Machine running times Under power: 135.042 Rated power kVA: 32,8 Operating Time: 37.165 Basic machine dimensions / weight Length mm: 4.004 Width mm: 2.397 Height mm: 2.711 Weight kg: 9.600

Year of construction: 1989, condition: ready for operation (used), Table dimensions X/Y: 600mm/200mm, grinding dimensions X/Y: 600mm/250mm, magnet dimensions X/Y: 600mm/200mm, grinding wheel diameter: 225mm, grinding wheel width: 25mm, grinding wheel bore: 51mm, spindle center-to-table distance: 350mm (+/-50mm), table feed: 20m/min, creep speed: 0mm/500mm/min, speed: 4200rpm, machine dimensions X/Y/Z: approx. 2700mm/2100mm/2100mm, weight: approx. 2500kg. On-site inspection is possible. Bcjdjv Exrwjpfx Afcow

Condition: ready for operation (used), Year of construction: 1989, functionality: limited functionality, machine/vehicle number: 47107/000, grinding length: 600 mm, grinding width: 250 mm, total height: 1,920 mm, total length: 2,800 mm, total width: 1,770 mm, feed length X-axis: 630 mm, feed length Y-axis: 400 mm, feed length Z-axis: 250 mm, table length: 900 mm, table load: 300 kg, table width: 200 mm, power: 85 kW (115.57 HP), input voltage: 400 V, Equipment: documentation/manual, Elb grinding machine, in working order. Everything has been replaced by a CNC. Machine is functional but dismantled and therefore cannot be tested on site. Bcodpfx Afeu It R Rscow
