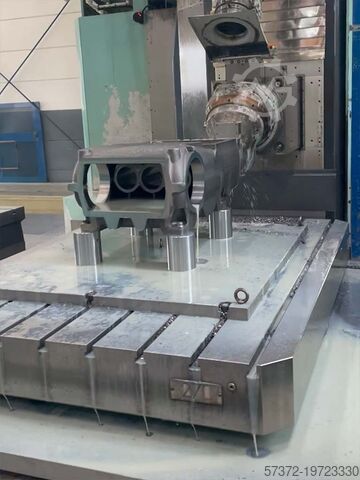

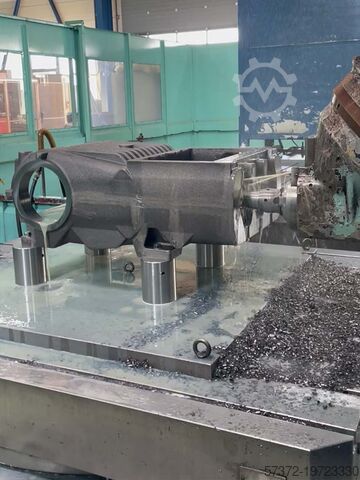

CNC Travelling Column Milling Machine

Sachman Rambaudi MP 212 HS

Condition: excellent (used), Year of construction: 2014, travel distance X-axis: 6,000 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 1,600 mm, Hersteller: ZAYER, Typ: 30 KCU 6000-AR Baujahr: 2013 Serien-Nr.: 77258 5-Achs Delhjw U E Unjccqnewf Verfahrwege (X/Y/Z) ca. 6000/3500/1600 mm, Werkzeugaufnahme SK50 2 heads: -45° Automatic Head -Direct Head 80-fach Werkzeugwechsler Steuerpult HEIDENHAIN iTNC 530 Späneförderband TECNIMETAL Kühlaggregat EURO COLD Aufspanntisch DEMMELER Kühlmittelanlage Sicherheitsabsperrung mit Lichtschranke LENZE

Condition: used, Technical details: table diameter: 4500 mm faceplate diameter: 4500 mm operating hours: 0 h swing diameter: 5000 mm turning diameter: 5000 mm workpiece height max.: 2500 mm control: Sinumerik 840D SL x-axis: 300 Hub/ram Slide mm x-axis: 2850 Hub / ram travel mm x-axis: 2850 working without tool mm x-axis: 5000 with tool changer mm w-axis: 1800 Querwegelevating cross rail mm tool holder / places: 12 tool taper: HSK 100 (spindle) workpiece weight: 100 t table speed: 1 - 50 U/min T-slots: 8 Stück (36 H12) stroke speed: fräsen ram speed: 4000 U/min rapid power traverse in X-and Z direction: 8000 mm/min Torque: fräsen: 100.000 Nm Torque: drehen: 200.000 Nm total power requirement: 80 (2x40) kW weight of the machine ca.: 140 t dimension machine xH: 11,5 x 6,6 x 8,4 m CNC vertical lathe - vertical - NEW ( It is a demonstration machine on the photos) Application of the manufacturing processes: Turning, such as external longitudinal turning, internal and external facing and profile machining. Grooving, such as internal and external Drilling, such as short hole drilling and deep hole drilling Milling, such as face-corner profile and T-slot milling Thread cutting But also suitable for roughing and end machining. Djlju Ix H Dshccqnewf The machine bed, designed with a welded construction, absorbs extreme cutting forces. The table is made of high-strength meehanite cast iron. To withstand heavy loads, the part weight is supported by two high-precision tapered roller bearings. Furthermore, the table is equipped with hydrodynamic support for the workpiece. other features: automatic tool change jaw chuck (8 pieces with power clamping spindle and hardened jaws) incl. cooling system 40bar with filter unit hydraulic and lubrication equipment ATOS and Dropsa with measuring system of axes Heidenhain Renishaw NEW - with guarantee & service via WWM AG *

Condition: excellent (used), Year of construction: 2016, travel distance X-axis: 2,400 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 810 mm, CNC HEIDENHAIN iTNC 530 X/Y/Z 2,400/1,500/810 mm Dwelhcsq Rcu Eecqnjf retrofitted 4th axis 12,000 min-1, 40 kVA, , traverse paths weight 7.800 kg Table with vacuum plate with BORNEMANN 960 suction unit

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 6,000 mm, travel distance Y-axis: 3,200 mm, travel distance Z-axis: 1,400 mm, table length: 6,000 mm, table width: 3,000 mm, spindle speed (max.): 24,000 rpm, distance between stands: 4,000 mm, Technical Specifications Dwolexlip Aehccqnof • Table clamping area: 6,000 × 3,000 mm • X-axis (longitudinal travel): 6,000 mm • Y-axis (cross travel): 3,200 mm • Z-axis (vertical travel): 1,400 mm • Distance between columns: 4,000 mm • Feed speed: 30,000 mm/min • Table load: 4,000 kg/m² • Max. spindle speed: 24,000 rpm • Max. spindle power (S1-100%): 42 kW • Max. spindle torque (S1-100%): 67 Nm • Tool holder: HSK63A • Tool changer: 24 positions • C-axis: ±360° • A-axis: +95° / -110°

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, Heyligenstaedt Heynumill 2700-PF 3/5-axis CNC portal milling machine with integrated C-axis and interchangeable milling heads. Heidenhain TNC 430 control X-axis Y-axis Z-axis 3,000 mm 4,000 mm 1,500 mm In 2018, the complete hydraulic system of the Heynumill was renewed, all electrical cables were replaced, the spindle cooling unit and both longitudinal conveyors were renewed, and the heads were fully overhauled. The total refurbishment cost €160,000. In 2020, the milling gearbox was replaced. Further technical data see PDF file. Dwjlhccswthz Aeqnjf

Year of construction: 2018, condition: ready for operation (used), - USED - 5-AXIS BRIDGE-TYPE CNC MILLING MACHINE LONGITUDINAL TRAVEL: 2500 mm TRANSVERSAL TRAVEL: 3500 mm VERTICAL TRAVEL: 1300 mm Djlswla Hnehccqnowf RAPID FEEDS L-T-V: 40 m/min TABLE SIZE: 3500 x 2500 mm HEAD: A/B AXIS AUTOMATIC ; A-axis ±185° - B-axis ±270° ; HSK A100 ; 12000 rpm TOOL MAGAZINE: CHAIN-TYPE ; 64 POS CONTROL UNIT: HEIDENHAIN TNC640 WEIGHT: 51370 Kg ACCESSORIES: HIGH PRESSURE COOLANT ; SWARF CONVEYOR ; LASER TOOL SETTER ; PAPER FILTER ; TOUCH PROBE ; PORTABLE HANDWHEEL

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, travel distance X-axis: 3,500 mm, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 1,500 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 40 m/min, rotational speed (max.): 7,000 rpm, spindle motor power: 34 W, Equipment: documentation/manual, rotational speed infinitely variable, Travelling column milling machine used with CNC H. TNC-530 Dwslhoxyw Tfsccqnof

Condition: used, Year of construction: 2018, travel distance X-axis: 2,300 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,000 mm, table length: 2,300 mm, table width: 1,600 mm, spindle speed (max.): 10,000 rpm, spindle nose: SK 50, Used CNC portal milling machine KRAFT VM-2018B with Heidenhain TNC 620 Year of manufacture: 2018 Storage location: Germany Delivery time: short term Payment: 100% before loading Warranty: none Machine description The KRAFT VM-2018B is a precise and powerful CNC portal milling machine with HEIDENHAIN TNC 620 control, ideal for heavy-duty and high-precision machining processes. Thanks to its robust design and high-quality components, it is ideal for demanding milling tasks in tool and mold making as well as in series production. Highlights & features Monoblock cast iron bed and cross beam for maximum rigidity and precision FEM-optimized machine design BF gearbox with 26 kW motor for high torque (662 Nm) Feed roller linear guides P-class (very low coefficient of friction 0.003-0.006) C3 ball screws with double nut - high load capacity & accuracy Djlhewkg T Ssccqnowf Spindle: SK50, 10. 000 rpm, direct drive Heidenhain TNC 620 control Spindle cooling & IKZ 20 bar Coolant system, oil separator, air conditioning for control cabinet Full enclosure, TÜV-approved, CE-compliant Technical data Travel (X/Y/Z): 2,300 / 2,000 / 1,000 mm Table size: 2,300 × 1,600 mm T-slots: 8 × 22 × 180 mm Max. Table load: 8 t Distance spindle nose - table: 180-1,180 mm Rapid traverse X/Y: 20,000 mm/min Rapid traverse Z: 15,000 mm/min Feed range: 1-10,000 mm/min Positioning accuracy (VDI/DGQ3441): 0.020

Condition: excellent (used), Year of construction: 2008, feed length X-axis: 10,000 mm, feed length Y-axis: 2,500 mm, feed length Z-axis: 1,500 mm, SPECIFICATION: Longitudinal stroke “X” axis 10000mm + 1000mm for pick up the milling head Cross stroke “Z” axis 1500 mm Spindle headstock vertical travel “Y” axis 2500mm Two re-circulation ball screw on vertical axis Controlled continuously in 7 axis Heidenhain iTNC 530M with alternative control smart NC cyborg TE 530 with mouse Dwolhcoxbgn Iecqnjf 1 x pcs Rotary table CES size 2000 x 2500 mm in specification Two floor plates 6400x1900mm,

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, We are selling this machine. ISO 50 tool holder, through-spindle cooling X axis 9,000 mm Y axis 4,000 mm Dolhcox Auzljcqnjwf S 30 rotary table with 30,000 kg load capacity, dimensions 2,500 x 3,500 mm Spindle speed 10–3,000 rpm Plates measuring 4,000 x 2,000 mm (1 pc) and 2,000 x 2,000 mm (1 pc) Heidenhain iTNC530 Two angle irons, tools, accessories. This is a complete workstation. The machine will be released from production at the end of January 2026.
