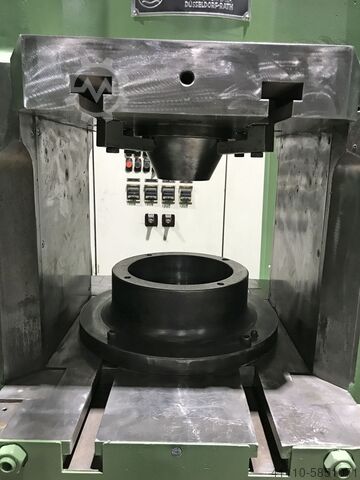

Hobbing press

SACK & KIESSELBACH EP 630

Condition: good (used), Year of construction: 1971, pressing force: 630 t, Manufacturer: Sack & Kiesselbach Model: EP 630 Mode of operation: oil-hydraulic Csdowxw Amepfx Ah Iepw Table height: 1175 mm Stroke: 305 mm Tool installation height: 317 mm Rapid approach descending speed: 6.9 mm/s Pressing speed: 0.3 mm/s Return speed: 6.3 mm/s Drive power: 11 kW Electrics: 550 V / 60 Hz Information without guarantee.

Year of construction: 1979, condition: used, pressure 160 t Codpfelp Uz Rox Ah Iopw distance between columns 850 mm stroke 400 mm ram surface 800x700 mm 300 mm pressure of ejector 20 t table surface area 800x700 mm total power requirement kW weight of the machine ca. 12 t dimensions of the machine ca. 1800x1800x4200 m

Condition: good (used), 1 used single-sided press Make: SACK & KIESSELBACH, year of construction: 1962,74 Cpsdpsul U Svefx Ah Iew serial number 31900 Pressing force 630 t, stroke 310 mm Installation height 320 mm Working height 1200 mm Drive power 10 KW

Year of construction: 1978, condition: used, pressure 25 t stroke 100 mm table surface area 440x320 mm ram surface 360x220 mm hole in the table 160x100 mm table height 900 mm tool hole in ram Ø 40 mm Csdpfolp U A Iox Ah Iepw dayligth 280 mm weight of the machine ca. 1,5 t dimensions of the machine ca. BxTxH 1500x1500x2100 mm

Condition: ready for operation (used), 6-kolomspers met 4 hydraulische zuigers opwaartse slag diameter van de zuiger: 450 mm Csdpfjv Rwftex Ah Iopw slag: 550 mm Maximale kracht van 2000 ton max opening zonder verwarmde tafels: 780 mm max opening met verwarmde tafels: 655 mm Verwarmde tafels met stoom of olie Maximale temperatuur: 300° C Totale oppervlakte: 2000 x 2000 mm Twee tafels van 2000 x 1000 mm (kunnen samen of apart gebruikt worden) 2x 11 kW hydraulisch vermogen met invoerroltafel: 4260 x 1550 x 1250 mm Olietank op platform: 2000 x 2000 x 2500 mm Totale hoogte van de pers: 3600 mm De pers zit 920 mm in de grond Werkhoogte is 750 mm Toepassingen: - composietmateriaal - vulkaniseren - buigen / strekken

Condition: used, Year of construction: 1984, Pressure total: 600 ton Ram stroke: 762 mm Slide adjustment: 406 mm Shut height (stroke down, adjustment up): 1322 mm Free frontal opening L-R: 3700 mm Table surface area : 3350 x 2134 mm Slide area: 3350 x 2134 mm Die cushion capacity in table: 180 ton Die cushion stroke: 305 mm Ejector in ram: 60 ton Ejector stroke in ram: 230 mm Number of strokes: 16 s.p.m. Required power: 90 kW Weight of machine approx.: 185 ton Standard configuration Cushion in table pneumatic Extended machine accessories die loading charts for tool changeABB Handling robots for loading and unloading presses Csdpjuqdizefx Ah Iopw

Year of construction: 1990, condition: as good as new (ex-display), Eckolt hydraulic press in mind condition executed with plate holder Csded Siacspfx Ah Iepw see pdf for technical specs

Condition: new, pressure 80 t stroke 400 mm table surface area 920 x 540 mm Motor output 2,2 kW Cedpsvu E T Hsfx Ah Iopw liter capacity 9,0 l dayligth 800 mm tank capacity 31 l daylight between the columns 920 x 300 mm weight of the machine ca. 0,725 t dimensions of the machine ca. 1,45 x 0,85 x 2,45 m Hand and Motor operated. Side-sliding cylinder.

Condition: reconditioned (used), Year of construction: 1985, In 2020, the machine was extensively overhauled for €7000. Proof available. Working processes: - 60° chamfering - longitudinal turning up to maximum 40 mm - Center drilling Work process fully automatic: - Clamping, chuck closed - rapid traverse forward - Work feed - Dwell time for cutting out - Rapid traverse back - Unclamp, chuck open Technical data: max. workpiece diameter round 80 mm max. workpiece diameter hex-SW 70 mm min. workpiece diameter round and hex 10 mm min. Workpiece length 450 mm Speed range stepless Stage I/Stage II = 51-306/102-612 Electrical equipment 220/380 V, 50 Hz Motor power main motor kW 1,3/1,8 Motor power coolant motor kW 0,07 Required air pressure 6-8 bar Cjdpfoiamn Sex Ah Iopw Weight approx. 520 kg Dimensions: L 1520 mm x W 610 mm x H 1350 mm Roller conveyor

Condition: used, Year of construction: 1978, pressure 800 t distance between columns 3010 mm stroke 300 mm distance table/ram, max. stroke up, adjustment up 1350 mm table surface area 3000 x 1800 mm table height over floor 500 mm side window 1500 x 1400 mm ram surface 3000 x 1800 mm speed down 300 mm/s oil volume 900 l height over floor 5,4 m height beneath floor 2,1 m power requirement 200,0 kW weight 80,0 t Dimensions (WxDxH) 5,2 x 2,6 x 7,5 m SPECIAL DEAL hydraulic high-speed press Cpodpfx Ahovuk Ipe Iew with oil-hydraulic drive, controllable dependent on pressure/time and way, hydraulic cutting impact cushioning, mechanical depth stop (motoric adjustable), ram interlocking in upper position maximum stroke frequency 50/min (when using automatic feeding devices) as is where is, WITHOUT putting into operation, stored in dismantled condition
