CNC lathe

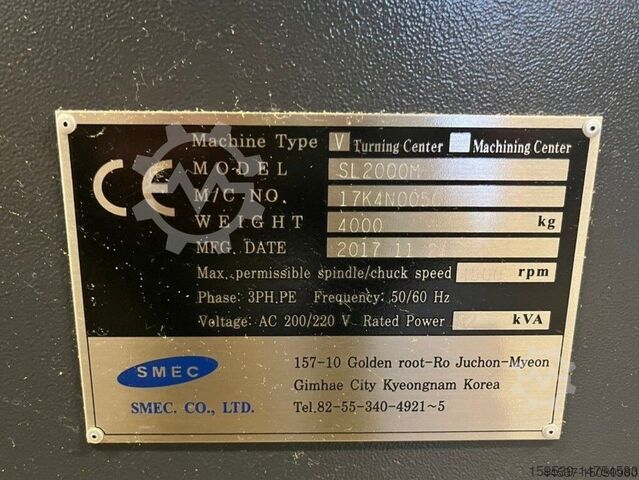

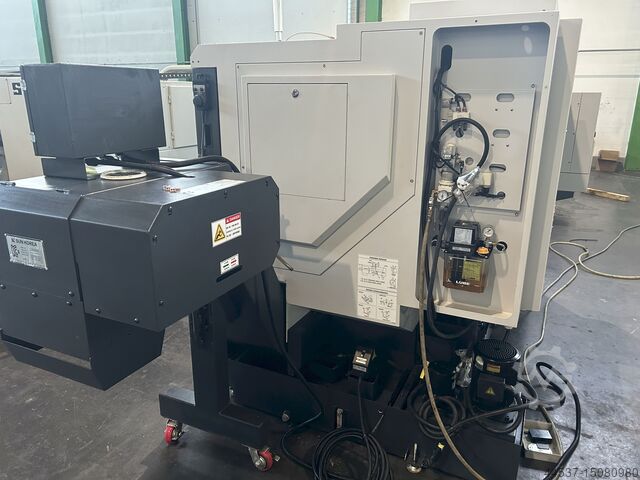

Samsung SMEC SL 2000 M

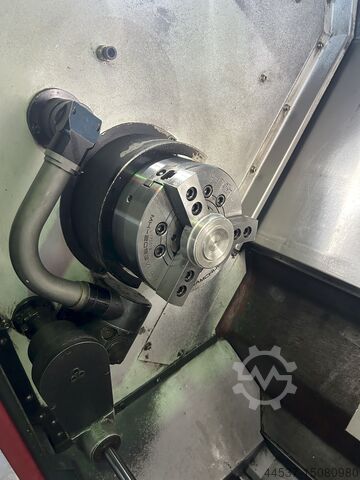

Condition: like new (used), Year of construction: 2021, functionality: fully functional, Double spindle CNC lathe with 2 spindles, 3 turrets and 3 Y axes each turret with 15 stations, BMT 44 driven tool holder 2x C-axis 3x Y axis Fanuc 32i -TB control Bar passage 65 mm Left spindle 15/11 KW, Hainbuch Spanntop mini Axle pull size 65 Right spindle 11/7.5 KW, Kitagawa three-jaw chuck Finished part gripper Conveyor belt Bar loader interface Coolant system, separate tank 200 l Cooling unit High pressure on turrets 1-3 via M function 15 bar/40 l/min Fedpfsvxu Eajx Agmopb 2x Brinkmann pump Renishaw tool measurement for all turrets Tool monitoring for spindle and AGW Spindle flushing through the counter spindle IKZ, Deublin Rotary distributor Hinged belt conveyor Transformer available immediately

Condition: as good as new (ex-display), Year of construction: 2025, Offered is a External cylindrical grinding machine EMAG Weiss WPG 7 - external cylindrical grinding at the highest level and on the smallest footprint. Footprint of the WPG 7 is only 1,800 x 2,400 mm. The machine is perfect for machining small shafts or pinions. The WPG 7 can be loaded manually as well as by automated solutions (such as chain conveyors and linear gantry). CONTROL Fanuc 0i TECHNICAL DATA Workpiece length: max. 250 mm grinding Ø: max. 80 mm Center height: 100 mm Center length: 380 mm Workpiece weight: max. 30kg Grinding wheel Ø: max. 500x 80 mm Fodetlrkbspfx Agmepb Price, delivery time and equipment of the machine according to agreement.

Condition: excellent (used), feed length X-axis: 450 mm, feed length Y-axis: 300 mm, feed length Z-axis: 300 mm, CNC TOS INTOS ZEBRAK FNG30 milling machine TNC310 Heidenhain control X450mm Fodpsrq D Uksfx Agmepb Y300mm Z300mm tool clamping hydraulic inverter on spindle SK40 machine in very good condition

Condition: used, _____ Description: Year of manuf. : 2020 Control : Sonstige WEISS CNC Centre width : 6 mm In Generel: ear of construction:2020 Control system:WEISS CNC Centre width:6 mm Centre height:200 mm Grinding wheel dimensions:400x60 mm + 0x60 mm Workpiece headstock: Fodpfov Armcsx Agmspb Speed:1 rpm Workpiece weight max.:25 kg Sanding diameter max.:390 mm Mounting:MK4 Grinding headstock: Peripheral speed:2 m/s Grinding disc dimensions right:0 x 60 mm Grinding disc dimensions left:400 x 60 mm X-axis:380 mm Z-axis:1,1 mm B-axis:torque motor, infinitely variable Tailstock: Pinole diameter: mm Pionole stroke:45 mm Mounting:MK 4 Cylinder fine adjustment:+/- 0.04 mm Equipment: Positioning sensors:Direct scales Grinding spindles:2x grinding spindle (left/right) GAP / Crash Controll:Structure-borne sound (Sensotronik) Balancing:MPM balancing device Workpiece measurement:Marposs PF ME Automation:Robot interface prepared Set-up mode:Electronic handwheel Emulsion mist separator:Mechanical Dresser:For external grinding wheel left/right Accessories:Various grinding discs + flanges

Condition: refurbished (used), Year of construction: 2012, Offered is a vertical turning and grinding center EMAG VSC 250 DS. The machine will be mechanically overhauled and rebuilt by EMAG. Depending on requirements, the machine can be equipped with various automation options (shuttle, O-type conveyor, L-type conveyor, turn around station) and other peripherals such as chip conveyors, coolant systems, etc. CONTROL Siemens 840Dsl TECHNICAL DATA Workpiece diameter: 250 mm Workpiece height: 100 mm X-stroke: 860 mm Z-stroke: 200 mm MAIN SPINDLE power 28 kW TOOL CARRIER EMAG wheel turret, 12x VDI 40 console with grinding spindle 18 kW, 45000 1/min Fsdpfoh Tkdqex Agmspb Delivery time and additional equipment of the machine on request.

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, Working area Grinding length: 250 mm Centre height: 100 mm Fedjvz Snkopfx Agmopb Workpiece weight: 30 kg Z-axis: 350 mm Table adjustment: 8 ° degrees X-axis: 190 mm Grinding spindle Grinding wheel diameter max.: 500 mm Grinding wheel width max.: 80 mm Grinding wheel bore: 127 (203) Grinding wheel motor power: 5.5 kW Peripheral speed: 50 m/s Grinding wheel protection cover: D500 x 80mm Workpiece spindle Speed: 1 - 2,000 rpm Workpiece spindle mount: MK4 Tailstock Tailstock quill mount: MK3 Tailstock quill stroke length: 30 mm Cylinder fine adjustment range: ± 0.04 Equipment Paper belt filter system Rinse gun Mechanical fume extraction

Condition: excellent (used), Year of construction: 2019, operating hours: 403 h, functionality: fully functional, turning length: 1,200 mm, spindle bore: 120 mm, controller model: Siemens 840 Dsl, Equipment: documentation/manual, Technical data: Turning length 1200 mm Chuck diameter 350 mm Working stroke X top/bottom 200 mm Working stroke Y. axis 210 mm (+130/-80) Fodpfx Agevw Upcomspb Working stroke Z. axis 1200 mm Maximum travel speed W/X/Y/Z meters/minute 45/40/40/46 Ball screw diameter W/X/Y/Z mm 40/40/40/40 Profile rail guide, B/X/Y/Z mm 45/45/45/55 Tool flight circle 700 mm Maximum center distance 1200 mm Main spindle/counter spindle Spindle bearing diameter 120 mm/160 mm Spindle passage 65/105 mm Spindle bore diameter 80/120 mm Spindle flange/spindle head DIN 55026 A6 / A8 Drive power 100% ED 22 KW/67.4 Drive power, 40% ED 24 KW/80 Nominal speed 1400 rpm Maximum speed 5,700 rpm Torque 100% ED 150 nm/585 Torque 40% ED 191 nm/795 C-axis resolution 0.001 degrees Both turrets: Tool holder: VDI 40 Maximum speed rpm 6000 torque drive 12,000 speed drive Maximum drive power kW: 28.5 torque drive 23.5 speed drive Maximum torque (25% ED) Nm: 85 torque drive 56 speed drive Dimensions: 4500 x 2500 x 2500 Weight approx. 16000 kg Control: Siemens 840 Dsl

Condition: refurbished (used), Year of construction: 2014, functionality: fully functional, total width: 2,500 mm, total length: 4,500 mm, total height: 3,200 mm, Offered is a double spindle pick up turning machine VSC 250 DUO. There are 2 nearly identical machines available. Each machine is equipped with 2 independent working spindles and 2 EMAG turrets. The machine can produce 2 identical workpieces with the same machining operation, as well as one workpiece in two successive machining operations. The VSC 250 DUO will receive a general overhaul before delivery and gets a control upgrade to Siemens Sinumerik ONE. Fpedpfx Agjr Nc Ufjmob The machine can be equipped with other periphery (chip conveyor, coolant system, external automation, etc.), depending on requirements. COTROL Siemens Sinumerik One TECHNICAL DATA workpiece diameter: max. 250 mm workpiece height: max. 150 mm chuck diameter: 250/315 mm swing diameter: 350 mm X-stroke: 745 mm Z-stroke: 300 mm TOOL CARRIER working area 1 1x EMAG disc turrets, 12x VDI 50 without driven tools working area 2 1x EMAG disc turret, 12x VDI 50 with driven tools Price, delivery time and equipment of the machine on request.

Condition: used, Year of construction: 2015, Technical details: turning diameter: 200 mm swing diameter: 260 mm Fedpfx Agsq Sc Hujmjpb turning height: 60 mm

Condition: ready for operation (used), Year of construction: 2010, For sale is a turning line for drive shafts incl. end machining machine (cutting to length & drilling) The line consists of the following machines: Lang -Laru > cutting to length and drilling 3x Emag VTC 250 for turning the drive shafts All machines are connected with an Ewab belt Fsdpfx Ajupgbwjgmopb Each lathe is loaded with a KUKA robot The technical data of the machines can be seen in the pictures.
