Mesh welder

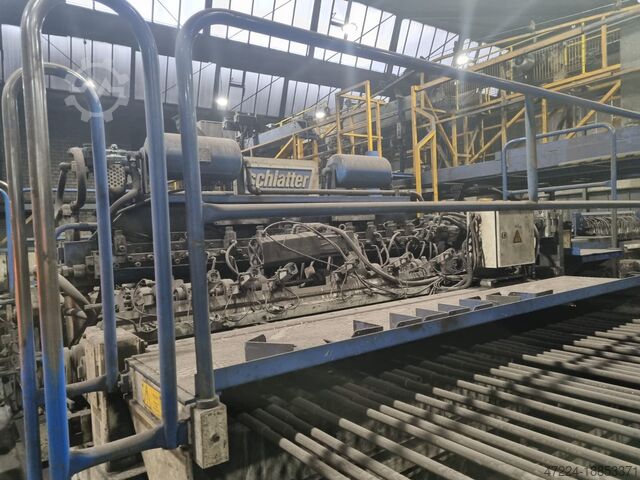

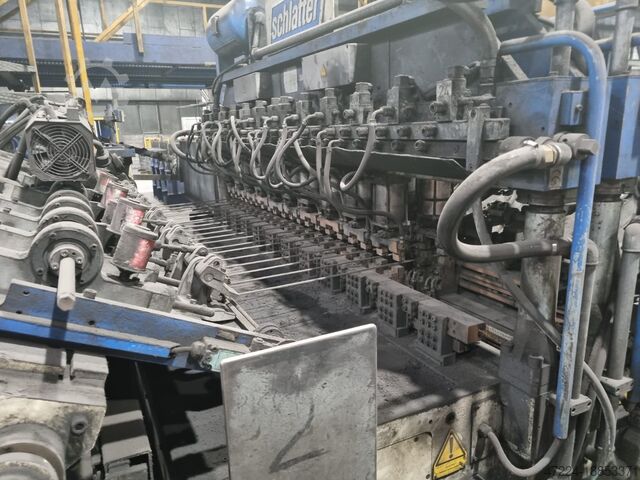

Schlatter MG316

Condition: excellent (used), Year of construction: 2023, functionality: fully functional, Wire mesh welding system (Schlatter MG316d) Hedpjxgg Rtsfx Afcoi H6.1, Spool pay-off system, line wire LEU1.1, Line wire end supervision RZ2, Alignment device with center adjustment LHV5, Line wire pull-off device LHA5, Line wire compensating system loop RZT, Alignment device with center adjustment LVR6, Line wire roller advance unit MG26.26.3, Welding machine H17, Spool pay-off system, cross wire DV6, Prefeeding system DA4, Loop control device DES5.1, Cross wire pull-in and feeding device SD3, Cross wire shear QAE6, Cross wire feeding device SL4.3, Mesh shearing machine MST17.4, Mesh stacking device RGW-L, Roller conveyor SAB2.1, Automatic tying device RGW-L, Roller conveyor RGW-L, Roller conveyor SPH3/6000, Mesh package stacking device RGW-S, Roller conveyor MP PLS S7-1500, Control center E10-80, Wire butt welding unit

Condition: refurbished (used), SCHLATTER Welded wire mesh production line MG24 Full revamped WORKING RANGE Panel width: max. 2500 mm Weft wire length: min. 900 mm Weft wire length with QF5 dispenser: min. 300 - 1600 mm Spacing between extreme warp wires: max. 2400 mm Mesh length (warp wire length): max. 2500 - 6000 mm Spacing between warp wires: min. 100 mm Spacing between weft wires: 25-250 mm Adjustable by cutting device (0-1) Warp wire diameter: 4.0 - 12.0 mm Weft wire diameter: 4.0 - 12.0 mm Number of warp wires: max. 24 WELDING MESH MACHINE MG 24.1/8C, Basic equipment including: - 1 Machine frame - 1 Upper support for press reception, continuously adjustable by hand crank - 1 Magnet supports with retaining magnets and weft wire monitoring. - 1 Row of pneumatic solenoid valves for press actuation. - 1 Installation for air and water. - 2 Pneumatic rotary drives with oil damping - Static motor torque with 5 bar compressed air: 480 Nm - Front continuously adjustable from: 25 - 250 mm adjustable by cutting device (0-1) - 1 Advance carriage with panel lifting device - 1 Set of tools for machine adjustment WELDING SECTION 8 Type C Transformers Rated power of each transformer: 100 kVA No-load secondary voltage: 7.1 V Rated secondary current: 14 kA 8 Thyristor contactors ES 130 12 Welding presses: 5.0 kN 12 Chain current bridge for spacing of warp wires: 50-100 mm 12 Chain current bridge for spacing of warp wires (for offset warp wires): 100 mm 10 Chain current bridge for spacing of warp wires: 100-150 mm 8 Chain current bridge for spacing of warp wires (for offset warp wires): 150 mm 6 Chain current bridge for spacing of warp wires: 150 - 200 mm 6 Chain current bridge for spacing of warp wires (for offset warp wires): 200 mm 24 Lower electrode holders Cu with standard angled electrodes and each with a water-cooled current cable, width: 58 mm Hedowu Tu Dopfx Afcsi 24 Wire clamping pliers Panel width: max. 2500 mm Weft wire length: min. 900 mm Weft wire length with QF5 dispenser: min. 300 - 1600 mm Spacing between extreme warp wires: max. 2400 mm Mesh length (warp wire length): max. 2500 - 6000 mm Spacing between warp wires: min. 100 mm Spacing between weft wires: 25-250 mm Warp wire diameter: 4.0 - 12.0 mm Weft wire diameter: 4.0 - 12.0 mm Number of warp wires: max. 24

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 2-1, 2006, Eurobend CNC 16x4 rebar from coil straightening and cutting machine in used but working condition. 4 x 5 Ton decoilers with pneumatic brakes. 4 x rotor for diameter 8-10-12-16 mm rebar wire straightening and automatic cutting with hydraulic moving cutters. 1 line or even up to 4 lines together cutting. PC with barcode scanner option. Cutting length up to 14 meters and more. Pockets for storage. Chain conveyor for transport of bundles. Hsdpjrdvq Aefx Afcoi

Year of construction: 1985, condition: reconditioned (used), Technical Details : Wire Dimeter range- 4-12mm Hjdpfx Aoh In Thefcji Gscxckebw Run out table - 4m Speed -80' m/min. Reconstruction- 2022

Condition: used, functionality: fully functional, machine/vehicle number: D20E/7694, Offer Number: D20E/7694 Machinetype: multiple wire drawing machine - dry Hsdpfx Aowi S Ixjfcsi Make: SKET / MILL Type: 8 BLOCK Constr. year: inlet wire diameter: 6,5 mm finished wire diamter: 1,6 mm number of drafts: 8 diameter of capstan: 550 mm and 650 mm speed -meters/sek: 8-12 Location: Europe

Condition: used, Year of construction: 1980, functionality: fully functional, machine/vehicle number: D08L/7600, Offer Number: D08L/7600 Machinetype: straightening and cutting machine Hedpfx Afswi S N Njcji Make: WAFIOS Type: RS40S Constr. year: 1980 diameter range: 4-10 mm cutting length: 3000 mm speed - meters/min: 130 Location: In our warehouse

Condition: used, Year of construction: 2016, functionality: fully functional, working width: 2,000 mm, wire diameter (max.): 6 mm, type of input current: three-phase, operating speed: 142 mm/s, mesh size: 9,999 mm, continuous power (apparent): 833 kVA, We offer a used Schlatter MG600/MG24.4/10Sp-AC mesh welding machine, model year 2016. Hsdpfx Aoyaqzqefcsi Type: MG600/MG24.4/10Sp-AC Serial number: 4885.31609 Year of manufacture: 2016 Rated primary voltage U1N: 400 V Rated secondary voltage Ua: 230 V Primary phases: 3 ~ Secondary phases: 1 ~ Frequency: 50 Hz Rated apparent power Sp: 833 kVA Rated primary current I1,p: 1202 A Primary short-circuit current I1cp: 50 kA Secondary short-circuit current I’acp: 10 kA If you have any questions or require further information, please feel free to send us a message or call us.

Condition: refurbished (used), Year of construction: 2025, JAGER welded mesh line U-Gsa-st Full revamped "as new" Technical data 24 pay off for longitudinal wire spools, longitudinal wire straightening equipment Line wire pull off system Longitudinal wire loop Hjdpfxewu Dcxs Afcoi Longitudinal wire straightening equipment Cross wire magazine Number of installer line wires : 24 up to 10 mm Diameter of lines wires : 4 to 10mm Diameter of cross wires : 4 to 10mm Separation between line wires : 100, 150, 200, and 300 mm Separation between cross wires : min 30 mm , steplessly programmable Max. length of cross wire (mesh width) 2500 mm , max welding width : 2400 mm Mesh length : min 3000 mm and max . 6000 mm Trafos : 8 x 160 Kva Number of installer line wires: Number of installer line wires : 24 up to 10 mm Diameter of lines wires: 4 to 10mm Diameter of cross wires: 4 to 10mm Separation between line wires: 100, 150, 200, and 300 mm Separation between cross wires: min 30 mm , steplessly programmable Max. length of cross wire (mesh width): 2500 mm Max welding width: 2400 mm Mesh length: 3000 - 6000 mm Trafos: 8 x 160 Kva

Condition: used, Year of construction: 2011, functionality: fully functional, machine/vehicle number: D12E/8151, Offer Number: D12E/8151 Machinetype: wire nail press Make: ENKOTEC Hsdpfx Afowi Tl Ejcoi Type: NA05 SH Constr. year: 2011 diameter range: 1,8-2,5 mm nail length: 32-57 mm output - pieces/min: 2000 Location: Europe

Condition: used, Year of construction: 1979, functionality: fully functional, machine/vehicle number: S1.4020.1137, working width: 1,220 mm, welding power (max.): 225 kVA, wire diameter (max.): 10 mm, nominal power at 50% duty cycle: 225 kVA, mesh size: 1,150 mm, We are selling our Schlatter mesh welding machine, type Pg 12.0/4/B. The machine is being sold as shown in the pictures, including extraction system and safety cabinet. Unfortunately, the exact operating hours cannot be determined, but in recent years the machine has operated only on a few days per year. This is not due to the machine's condition, but rather because we no longer manufacture large quantities of mesh panels. Numerous spare parts are included in the scope of delivery. The machine is immediately ready for dismantling. Hjdpfx Aoyazftefcji
