Sliding table saw

SCM si 4

Condition: new, Year of construction: 2026, Panel Saw Holzkraft / SCM minimax si 4 - 400 / 32 M A With tilting saw blade and sliding table made of anodized aluminium Item number: 5504933 Brand: Holzkraft TECHNICAL DATA Dimensions and Weights Weight (net): approx. 690 kg Dust Extraction Extraction port diameter: 120 mm Saw blade guard extraction port diameter: 80 mm Electrical Data Connection voltage: 400 V Mains frequency: 50 Hz Scoring motor power: 0.65 kW Output power (main motor): 7.0 kW Rated duty cycle (main drive): S6 Fpjdpfx Agsxw N N Hemob Duty cycle (main drive): 40% Sliding Table and Worktable Sliding table length: 3200 mm Sliding table width: 360 mm Sliding table height: 175 mm Table length: 1000 mm Table width: 560 mm Table height: 900 mm Saw Unit Cutting width with rip fence: 900 mm Max. crosscut width left of blade: 3200 mm Edging length: 3200 mm Saw blade tilting range: 90 - 46° Max. cutting height at 90°: 136 mm Max. cutting height at 45°: 97 mm Note max. cutting height: independent of scorer Saw blade diameter: 400 mm Note saw blade diameter: independent of scorer Saw blade speed: 3500/5000 rpm Scoring Unit Scoring blade diameter: 120 mm Scoring blade speed: 9200 rpm EQUIPMENT Scoring unit with separate scoring motor Anodised aluminium sliding table Handle for sliding table On/off switch on sliding table for main and scoring blade motors Edging frame Material roller on edging frame Rip fence with round bar guidance Stops: two professional folding stops Edging shoe Excenter clamp Table extension Table width extension Pendulum-type saw blade guard Motorised height adjustment and tilt of saw unit, digital tilt angle display Location: ex stock 54634 Bitburg - immediately available -

Year of construction: 2006, condition: ready for operation (used), Panel type: Tubular panels for 3-layer parquet, panel length: 2230mm, panel width: 782mm, panel thickness: 9mm-22mm, panel thickness tolerance: 0.5mm/panel, feed rate: 15m-50m/min, output: 12 cycles/min, working height: 1015mm, max. saw blade diameter: 250mm. Extraction included. Documentation available. On-site inspection is possible. Fodpfxst Amc Io Agmjpb

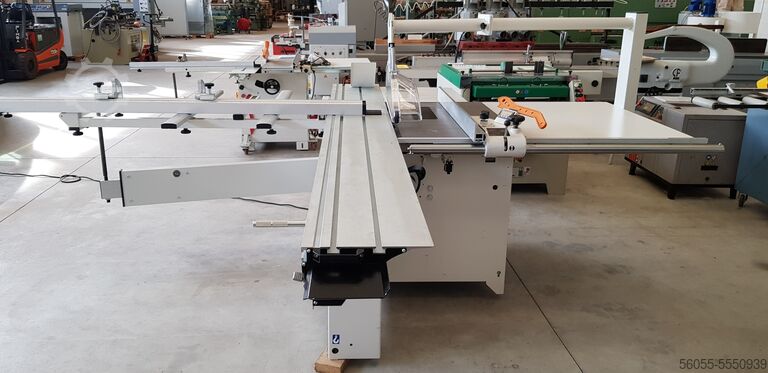

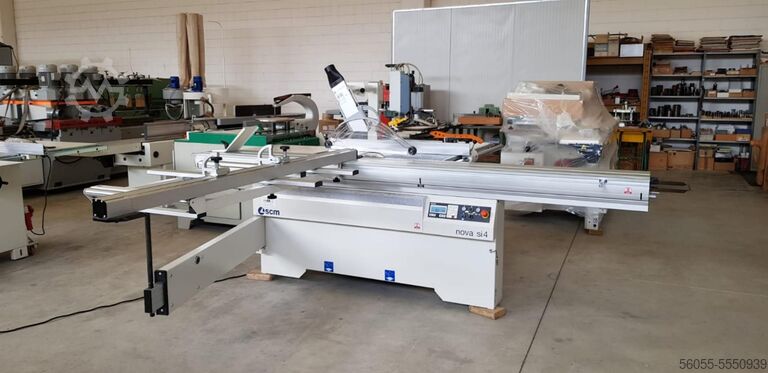

Condition: new, Year of construction: 2025, cutting length (max.): 3,200 mm, cutting width (max.): 1,250 mm, saw blade diameter: 400 mm, main saw diameter: 400 mm, type of input current: three-phase, CIRCULAR SAW model SCM SI 4 . CN NEW machine in prompt delivery CE regulation: YES CN control "READY" 2 controlled NC axes (lifting and tilting of the blade) - blade lifting and tilting management - tool data settings with automatic correction of the height of the blade with respect to the inclination - electric and automatic NC mode with 99 storable programs Fedpfeglp I Nox Agmepb digital display on the parallel guide n.02 reversible stops on the squaring guide extension floor out with scoring unit : YES max diameter saw blade 400 mm length of the squaring carriage mm 3200 main blade motor power Hp 9.5 scoring unit motor power Hp 1,7 3 main blade rotation speed rpm. 3000 /4000 / 5000 volt. 380/50

Condition: new, Year of construction: 2026, Panel Saw Holzkraft / SCM minimax si 4 - 400 / 32 With tilting saw blade and anodised aluminium sliding table Article number: 5504932 Brand: Holzkraft Heavy-duty worktable made of strongly ribbed cast iron – for maximum stability and durability Robust welded steel base – ensures high torsional rigidity and vibration-free operation Precision sliding table made of anodised aluminium – smooth running via high-quality ball contact system Carbide guide rails – for lasting precision and minimal maintenance Tilting cast iron saw unit with double segment guide – precise zero-point tilt for highest cutting accuracy Heavy-duty rip fence with round bar guide Equipped with adjustable eccentric clamp Integrated mitre cutting device on the sliding table – for quick and precise mitre cuts Scoring unit with powerful separate drive motor Equipped with high-quality crosscut fence – with heavy-duty telescopic stop, integrated roller for easy loading and unloading, inclined scale for comfortable reading and practical eccentric clamp for secure hold Saw blade speed adjustable in two stages Practical saw blade pendulum guard TECHNICAL DATA Dimensions and Weights Weight (net) approx. 670 kg Extraction Connection Extraction port diameter: 120 mm Extraction port diameter at saw blade guard: 80 mm Fpsdjxw N Sbepfx Agmjb Electrical Data Connection voltage: 400 V Mains frequency: 50 Hz Scoring motor power: 0.65 kW Rated output (motor power): 7.0 kW Duty type (main motor): S6 Duty cycle (main motor): 40% Sliding Table and Table Sliding table length: 3200 mm Sliding table width: 360 mm Sliding table height: 175 mm Table length: 1000 mm Table width: 560 mm Table height: 900 mm Saw Unit Cutting width with rip fence: 900 mm Max. crosscut width left of saw blade: 3200 mm Crosscutting length: 3200 mm Saw blade tilt: 90 - 46° Max. cutting height at 90°: 136 mm Max. cutting height at 45°: 97 mm Note on max. cutting height: Independent of the scorer Saw blade diameter: 400 mm Note on saw blade diameter: Independent of the scorer Saw blade speed: 3500/5000 rpm Scoring Unit Scoring blade diameter: 120 mm Scoring blade speed: 9200 rpm Features Scoring unit: with separate scoring motor Anodised aluminium sliding table Handle for sliding table Crosscutting fence Material roller on crosscutting fence Rip fence: with round bar guide Stops: Two professional folding stops Crosscutting shoe Eccentric clamp Table extension Table widening Saw blade pendulum guard Manual height adjustment and tilting of saw unit Location: ex stock 54634 Bitburg - immediately available -

Condition: ready for operation (used), Technical characteristics Power and Motors Voltage: 400 V Pluging: Three-phased Overall dimensions Weight: 1428 Kg Fpodpfxjtu R Sdo Agmeb
