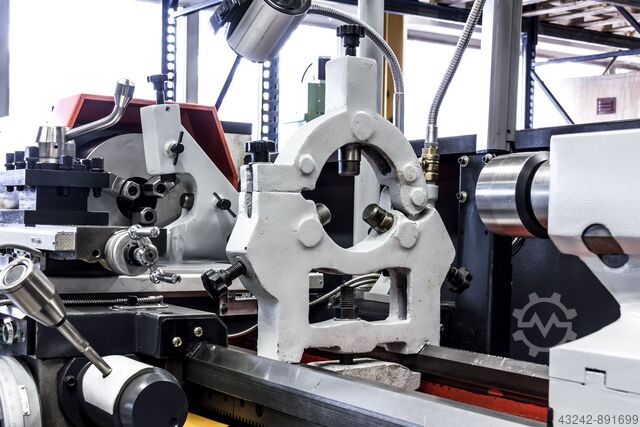

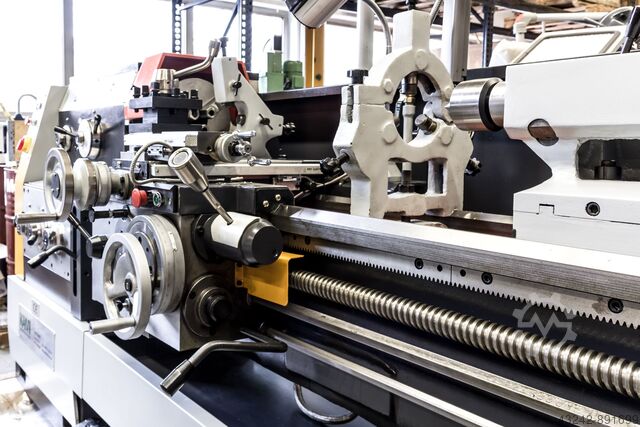

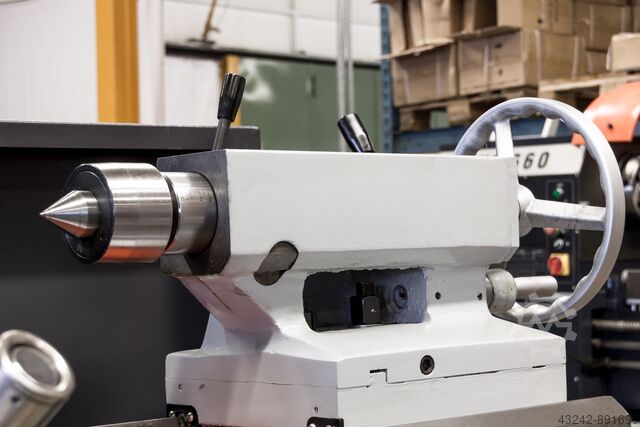

Lathe

SHEM/KAMI DKM 400

Condition: new, turning diameter over bed 410 mm turning diameter over slide rest 240 mm turning length 1000 mm turning diameter in the gap 530 mm turning speeds 65 - 1810 U/min centre height 205 mm spindle bore 52 mm tailstock quill taper MT 4 total power requirement 2,2 kW weight of the machine ca. 0,9 t dimensions of the machine ca. 1,9 x 0,8 x 1,3 m Hnolhcem Rlb Nedwvjh Center lathe with: 3-axis digital measuring system fully assembled electromagnetic main spindle brake auto. Feed in longitudinal and transverse direction safety relay Micrometer end stop coolant device 3-jaw lathe chuck with 1 set of turning and drilling jaws German operating instructions.

Condition: good (used), Year of construction: 1988, Weiler lathe Type Condor B 2-axis digital readout Center height 165 mm Center distance 750 mm Rotation over bed 330 mm Rotation over cross slide 185 mm Hnjlhcsvgmbvsdwvsh Spindle bore 40 mm Connected load 3 kw Speed 22-2800 rpm Tailstock MK 3 Coolant pump (not connected) work light Automatic longitudinal and planar feed spindle brake - Folding jaw chuck guard - splash guard Weight approx. 1040 kg 3 jaw lathe chuck Multifix B Rotating center point

Condition: new, TC 165 x 750V Illustration shows MIOTAL® TC 180 x 1000 Center distance: 750 mm Hjlhcdjir Igwjwvjnh Center height: 165 mm Swing diameter over bed: Ø 330 mm Bed width: 190 mm Cross slide travel: 160 mm Top slide travel: 90 mm Spindle connection: DIN 55029 (Camlock) D 1 - 4 Spindle bore: Ø 40 mm Max. Chuck diameter: Ø 200 mm Spindle speed, infinitely variable: 30 - 2000 1/min Mechanical feed stages: 3 Motor power: 2.2 kW Longitudinal feeds Z: (40) 0.044 - 1.96 mm/rev Face feeds X: (40) 0.022 - 0.98 mm/rev Metric thread: (32) 0.4 - 7.0 mm Thread inch: (32) 4 - 56 Gg/inch Thread module: (32) 0.4 - 7.0 Diametral thread: (32) 7.5 - 112 Quill diameter tailstock: Ø 40 mm Inner taper of quill tailstock: MK 3 Quill stroke: 100 mm Lateral adjustment: ± 10 mm Weight, approx.: 650 kg Features: - Acceptance protocol according to DIN - Precise, hardened and ground guides - Robust headstock with recirculating oil lubrication, precision bearing-mounted spindle, hardened and ground gears for long-lasting quality - Electromagnetic spindle brake (TC), frequency converter with electric braking device (V models) - Torsion-resistant machine beds made of MEEHANITE quality casting, stress-free annealed and multi-ribbed for extremely smooth running - Electrical equipment from SIEMENS/SCHNEIDER - Overload protection for feed gearbox - Pulse button for main spindle - CE / IEC as well as German documentation and German service Basic equipment (standard accessories): - Machine stand with splash guard rear panel - 3-jaw lathe chuck - 4-fold steel holder - Foot pedal with mech. brake device - Coolant device - Chuck guard and spindle cover in accordance with European safety standards CE - 1 Fixed center point for main spindle - 1 Fixed center point MK3 - 1 Test report - Safety devices and electrical equipment according to CE - Reducing sleeve for main spindle Operating tool Available options for this lathe: - 3-axis digital readout - Quick-change holder system Multifix also available as a gearbox version

Condition: used, Technical details: turning diameter over bed: 320 mm turning length: 800 mm Hnjlhceu Ixy Dsdwveh centre distance: 800 mm centre height: 150 mm spindle bore of work spindle: 30 mm range of revolution per miute: 35 - 1500 / 16 step U/min range of feed in x - axis: 0,04 - 2,4 / 30 step m/min tailstock quill adjustment:: 125 mm tailstock taper MT: MK2 dimension machine xH: 1,7 x 0,8 x 1,5 m Equipment and other features: -3-jaw chuck Röhm 160mm -chuck guard -protection system WxH: 510x400mm -Multifix tool clamp (4 pieces) -Tip in tailstock -Upper slide swivels +/- 45°, maximum travel = 100mm -Cross slide travel = 300mm feed Pump for coolant device (without feed) *

Condition: good (used), Year of construction: 2010, Conventional lathe, center high 254 mm, between centers 1000 mm, bore Ø 80 mm, 12 speed 30 - 2200 rpm, motor 5,5 kw, camlock 6'', dimensions 230x115x165 cm, weight ca. 1750 kgs; equipement: DRO on 2 axis, coolant device, 3-jaws chuck Ø 250 mm, rotating pin, tool post MULTIFIX C with toolholders, steady and following rest Hnolhcdetv Iy Eowveh

Condition: used, functionality: fully functional, Manufacturer: Haaf (formerly Gema) Hnelhcew Svtcjdwvjh Type: LZ 185 Swing diameter over bed: 365 mm, over cross slide: 225 mm Turning length: 750 mm Centre height: 185 mm Spindle bore: 40 mm Spindle flange: KK5 (DIN 55022) Spindle taper: MT5 Speed range: 20 – 1,600 rpm Digital readout: Heidenhain VRZ 773 B on 2 axes (scales on compound and longitudinal slides) Dimensions: 1,900 x 900 x 1,700 mm Features: - Spindle brake with foot pedal - Adjustable stop on compound slide (disengages feed) - Splash guard Accessories: - Operating manual - Multifix B tool holder with 2 inserts - Coolant pump integrated in machine base (no coolant hose connected) - Röhm 3-jaw chuck 200 mm with hard and soft jaws Weight: approx. 950 kg Condition: Used The machine runs smoothly and can be inspected under power. All information is supplied without guarantee. Subject to errors and prior sale; all dimensions are approximate. Offer is non-binding. The machine can be inspected by appointment. Specifications, information and prices are subject to change and prior sale! All prices are net plus VAT. Payment in advance within 14 days of contract conclusion, including any applicable freight costs. In case of incomplete payment within this period, the seller reserves the right to cancel the purchase contract. Sale is only to businesses as defined by § 14 BGB. The machine is sold excluding liability for material defects. This exclusion does not apply to claims for damages based on grossly negligent or intentional breach of obligations by the seller or his agents, or in case of injury to life, body, or health. Any remaining claims against third parties for material defects will be assigned to the buyer. Please understand that compliance with any applicable safety regulations for the sold machine and its components is the responsibility of the end user. No liability is assumed by us for such compliance. German law exclusively applies to all our contracts, to the exclusion of the United Nations Convention on Contracts for the International Sale of Goods (CISG). Place of jurisdiction is agreed to be Mannheim.

Condition: excellent (used), - Digital 3-axis position display. - Accessories included. Working Range Centre distance: 1000 mm Centre height: 200 mm Swing diameter over bed: 400 mm Swing diameter over cross slide: 250 mm Distance from top slide to turning centre: 40 mm Bed width: 260 mm Longitudinal slide travel: 900 mm Cross slide travel: 220 mm Top slide travel: 110 mm Bed carriage guide length: 380 mm Turning tool cross-section: 20 x 20 mm Spindle Spindle nose according to DIN 55 029 (Camlock): 5" Spindle bore: Ø 50 mm Internal taper according to 7178: 1:22 Max. faceplate diameter: Ø 260 mm Max. chuck diameter: Ø 200 mm Spindle speeds: 40 – 3000 rpm Speed control: stepless Mechanical speed ranges: 4 Drive Motor Three-phase AC motor with integrated brake Infinitely variable speed (frequency inverter) Power at 40% duty cycle: 5.3 kW Max. nominal torque at main spindle: 640 Nm Tailstock Quill diameter: Ø 50 mm Quill stroke: 120 mm Quill internal taper: MT 3 Holhcew U Ac Nedwvenh Machine Dimensions Overall length: 1950 mm Overall height: 1635 mm Overall width: 1060 mm Spindle height above floor: 1133 mm Total machine weight: 865 kg

Condition: new, turning length 850 mm turning diameter 400 mm swing diameter over bed slide 245 mm spindle bore 52.0 mm turning speeds 45 - 1800 U/min bed width 260 mm spindle taper DIN 55029 D 1-5 taper in tailstock 3 MK quill travel 120 mm total power requirement 3.0 / 4.5 kW weight of the machine ca. 1255 kg range L-W-H 1900 x 1000 x 1610 mm Equipment: - 3-axis digital display ES-12 V with LCD display - 3-jaw chuck PS3-200 mm / D5 - Clamping disk 320 mm - Fixed steady rest - passage diameter max. 130 mm - Follow-on steady rest - passage diameter max. 100 mm Heljxaaxwjhcdwvsnh - Coolant system - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - Micrometer longitudinal stop - Slip clutch - Motor with magnetic brake in accordance with CE standard - Initial filling with Shell Tellus 46 - Extendable chip tray - LED machine light - Change gears - Reduction sleeve - 2 centering points - Chip rear wall - Operating tool

Condition: new, functionality: fully functional, turning diameter over cross slide: 240 mm, spindle bore: 58 mm, turning diameter over bed slide: 430 mm, center height: 215 mm, turning length: 760 mm, quill stroke: 127 mm, quill diameter: 58 mm, total length: 1,885 mm, total width: 810 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 20 rpm, bed width: 300 mm, overall weight: 1,680 kg, quill mount: MK 4, Equipment: rotational speed infinitely variable, Tip height: 215 mm Helhcdwou T E Ehjvsnh Center width: 760 mm Spindle bore: 58 mm Spindle nose according to DIN 55029 Camlock D6 Motor power: 7.5 kW Spindle speed range: 20-2000 mm Weight approx. 1680 kg Features include infinitely variable speed control Hardened and precision-ground Z-axis guideways Turcite coatings (on mating surface) of the tool and cross slides Manual central lubrication with one pump for longitudinal and cross slides Complete coolant system with rear splash guard and splash guard on the slide Chuck guard Switch rod with 3 adjustable cams Machine light Fixed center point Set of machine mounting plates

Condition: used, functionality: fully functional, Distance between centers: 1000 mm Swing over bed: 420 mm Swing over cross slide: 210 mm Spindle bore: 42 mm Spindle speeds: 50-2500 RPM Hnolhcdoxu Ariewvoh Accessories: - 3-jaw chuck - 4-jaw chuck - Fixed steady rest - Follow rest - Quick-change tool holder - Digital readout (Mitutoyo) - Coolant system
