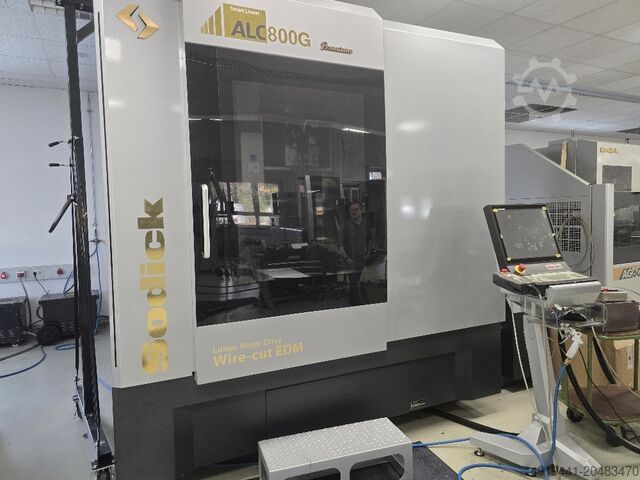

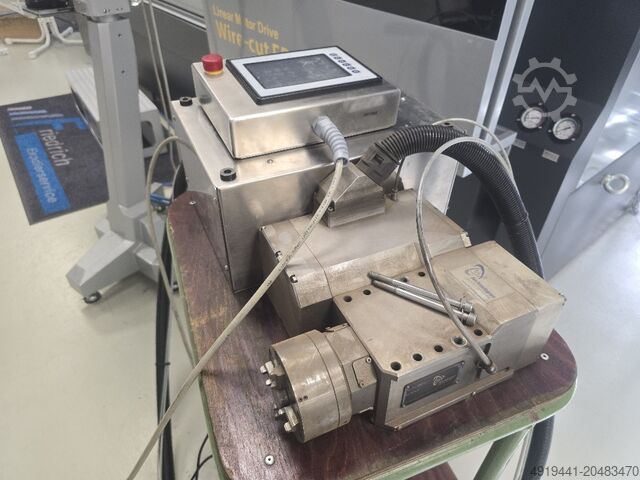

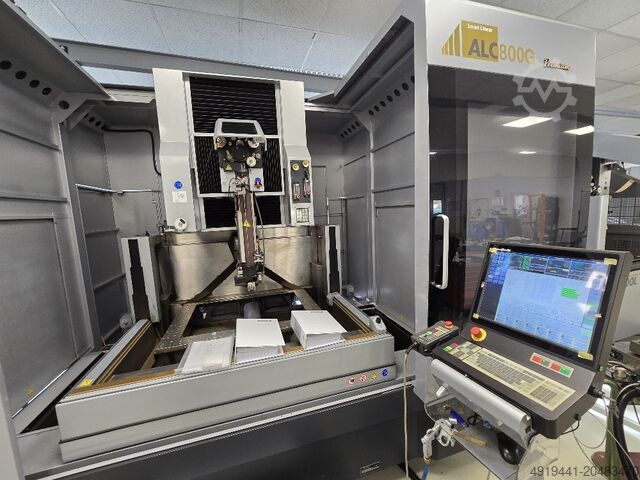

Wire EDM machine

Sodick ALC800G+SPW

Condition: as good as new (ex-display), Year of construction: 2023, travel distance X-axis: 1,450 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,035 mm, Highlights: - fastest chip-to-chip time in this workspace dimension - Optimum footprint - Automation “ready” _____ G720F machining center X-axis travel = 1450 mm Y-axis travel = 1200 mm Z-axis travel = 1035 mm Interference diameter 1,500 mm (2x) table load 2x 750 kg Work area lighting Machine control Siemens Sinumerik ONE HT10 handheld control unit Motorized spindle 17,000 min-1, 64 Nm GROB spindle diagnosis (GSD) for twin-spindle machines Tool magazine, HSK-A-63 with 80 (2x40) tool pockets Tool loading lift for parallel loading and unloading of tools during machining time mechanic-tactile tool breakage check HSK taper shaft cleaning Air blow-off gun Inspection window for viewing the tool change area/tool robot Lighting in the tool change area/tool robot Minimum quantity lubrication unit for two spindles as single-channel Minimum quantity lubrication unit pressure booster Decentralized exhaust system MQL Scraper conveyor with wear plate Kdedpstiyzdjfx Acuow Basic installation Clamping functionality Evaluation unit for monitoring support evaluation unit for clamping monitoring - volume flow Preparation for process-related measurement (Renishaw) Renishaw RMP400 extra long measuring probe Loading, directly into the machine by the operator Two-hand operation, incl. automatic opening at the end of the cycle HVO console Preparation for direct loading into the machine by robot Machine status light

Condition: used, Year of construction: 2012, x-axis 350 mm y-axis 250 mm z-axis 256 mm U-axis +/-70 mm V-axis +/-70 mm dimension of workpiece 750 x 550 x 256 mm Kdedpfx Aewtr Dzecusw Working hours 29.559 h -edm hours 29559h

Condition: excellent (used), Year of construction: 2020, operating hours: 9,999 h, functionality: fully functional, machine/vehicle number: 119 118, Schaudt – GSN Schleiftechnik Model: PS4 Kjdpjxdcx Isfx Acujdw Year of manufacture: approx. 1986, completely overhauled/retrofitted in 2020 Control: CNC, Siemens SINUMERIK 840D after retrofit Application: External cylindrical grinding; plunge, oscillation, and face grinding possible

Condition: refurbished (used), Year of construction: 2020, Machine Type: Cylindrical Grinding Machine Manufacturer: Schaudt Maschinenbau GmbH Model: PS 4 Year of Original Manufacture: 1986 Renovation/Retrofit: 2020 Control System (Post-Retrofit): Siemens CNC SINUMERIK 840D General Specifications Application: External cylindrical grinding Grinding Method: Plunge, traverse, face grinding Control Type: CNC (Siemens retrofit in 2020) Machine Weight: Approx. 3,500 – 4,500 kg Kdjdpfxsw Avrzo Acusw Installation Area: Approx. 3.5 m x 2.0 m Workpiece Capacity Center Height: 180 mm Distance Between Centers: 1000 mm (varies by version) Max Workpiece Diameter: 360 mm Max Workpiece Weight: ~150 kg between centers Grinding Spindle Grinding Wheel Diameter: 400 mm Grinding Wheel Width: 50 mm Bore: 127 mm Peripheral Speed: Up to 45 m/s Spindle Drive Power: ~7.5 kW Spindle Speed Range: Up to 1,500 – 2,500 rpm (depending on wheel size) Headstock Type: Fixed or rotating spindle Speed Range (if motorized): ~30 – 500 rpm Taper: MK4 or similar Drive: AC Servo (post-retrofit) Tailstock Type: Manual or hydraulically actuated Quill Stroke: Approx. 50 mm Quill Diameter: ~75 mm Axes X-Axis (infeed): CNC-controlled Z-Axis (longitudinal): CNC-controlled Resolution: 0.001 mm Drive Type: Digital servo motors with ball screw Position Feedback: Absolute/Incremental linear encoders Coolant System Coolant Tank Capacity: Approx. 150 – 250 liters Coolant Pump: High-pressure, with filtration system Other Features (Post-Retrofit) Siemens HMI with touch interface Electronic handwheels (MPG) Updated safety system and enclosure New electrical cabinet with ventilation and cooling Optional AE sensor for gap detection or touch dressing
