Used Sodick Wire Edm Machine for sale (26)

Condition: excellent (used), Year of construction: 2015, operating hours: 5,090 h, functionality: fully functional, machine/vehicle number: T0298, workpiece weight (max.): 850 kg, travel distance X-axis: 500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 250 mm, workpiece height (max.): 245 mm, workpiece length (max.): 670 mm, type of input current: three-phase, table width: 960 mm, input frequency: 50 Hz, Equipment: cooling unit, The Sodick VZ500L is a wire-cut EDM (Electrical Discharge Machining) machine from Sodick, designed for electro-erosive machining of metals. This is a wire-type machine equipped with linear drives, enabling precise cutting of intricate shapes at an angle based on CAD files (e.g., DXF, STEP, IGES). Main features: Type: Wire-cut EDM Manufacturer: Sodick Model: VZ500L Drives: Linear Working range (X x Y x Z): 500mm 350mm 250mm Maximum workpiece dimensions: 960mm 670mm 245mm Maximum workpiece weight: 850 kg Iisdpfx Apox Ekcyjcea Capabilities: Angular wire cutting (based on 3D models) Additional features: Automatic wire feeding (AWF) Immersion in dielectric fluid

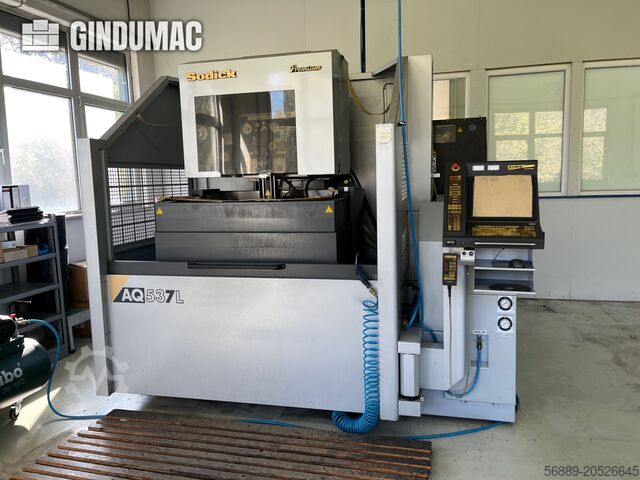

Year of construction: 2007, condition: ready for operation (used), This Sodick AQ537L was manufactured in 2007. It operates optimally between 20°C and 25°C ambient temperatures, with a full load current of 43 A and a rated capacity of 15 kVA. It requires a supply voltage of 200 V and is designed for three-phase power. Contact us for more information about this machine. Application Types EDM Iiedpfjx D Iplex Apcsa

Year of construction: 2001, condition: ready for operation (used), - USED - WIRE EDM MACHINE WITH AWF X-AXIS TRAVEL: 350 mm Y-AXIS TRAVEL: 250 mm Z-AXIS TRAVEL: 220 mm U/V-AXIS TRAVEL: ± 80 mm Iisdpfoyry Tajx Apcsa MAX  PIECE WEIGHT: 450 Kg TANK SIZE: 895 x 650 x 220 mm TABLE SIZE: 600 x 400 mm DRAFT ANGLE / DRAFT HEIGHT: 20 °; 80 mm WIRE SPEED: 0-15 m/min WIRE DIAMETER: 0,1-0,3 mm WEIGHT: 3000 Kg OVERALL DIMENSIONS: 1650 x 2125 x 2080 mm ACCESSORIES: ETHERNET PORT ; PCMCIA SERIAL PORT ; RS 232 SERIAL PORT

Condition: used, Year of construction: 2006, Wire erosion / EDM Travel distance X: 300 mm Travel distance Y :200 mm Travel distance Z: 200 mm max. workpiece size X: 500 mm max. workpiece size Y: 300 mm max. workpiece size Z: 200 mm max. workpiece weight: 300 kg table size X: 536 mm table size Y: 337 mm with AWF ( Automatic Wire Feeding ) U / V axis: +-80 generator: 60 Ampere submerged cooling unit Linear motor drive (no ball screw wear) High positioning accuracy with glass scales Automatic wire threading Submerged machining capability CNC control system (Sodick LN series) Taper cutting up to ±20° Ijdjyznabjpfx Apceia Integrated cooling system Filtration system with ion exchange resin Ideal for complex contours and precision machining

Condition: like new (used), Year of construction: 2024, operating hours: 2,200 h, functionality: fully functional, workpiece weight (max.): 850 kg, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 310 mm, total height: 2,245 mm, total length: 3,445 mm, total width: 2,595 mm, wire diameter (max.): 0.3 mm, type of input current: three-phase, overall weight: 3,684 kg, input frequency: 60 Hz, Equipment: cooling unit, We are offering this Sodick VN 600Q wire EDM machine, year of manufacture 2024. Manufacturer: Sodick Model: VN 600Q Year: 2024 Condition: like new The machine currently has 1,137 hours of cutting time and approx. 2,200 operating hours. • 10-year warranty on positioning accuracy • Linear motors (X, Y, U, V axes) • Absolute linear glass scales (X, Y, U, V axes) • Ceramic components • LN3W generator • Remote control • Enhanced operator-friendliness • Energy-saving circuit • Automatic water level control • Fixed Jet AWT with pop-up function • Heart NC software • Wire end remover • Dielectric cooling unit • Voltage stabilizer • LAN interface • USB port Iedjyyy Dispfx Apcoia Further specifications for this machine: Travel (X/Y/Z axis, mm): 600 x 400 x 310 Travel (U/V axis, mm): 90 x 90 Max. workpiece weight (kg): 850 Table height from floor (mm): 1,000 Machine dimensions (W x D x H, mm): 2,595 x 3,445 x 2,245 Machine weight (kg): 3,684 Air pressure: 0.65 MPa, 30 NL/min Total power consumption: 11.5 kVA, 3 phase, 50/60 Hz Taper angle: ±15° (workpiece thickness: 120 mm) Wire diameter (mm): ø 0.1 ~ ø 0.3 mm Wire tension (N): 3 ~ 23 N Category ID: 1896 Type ID: 2593 Machine type: Wire EDM machine If you have any questions or require further information, feel free to send us a message or call us.

Condition: good (used), Year of construction: 2008, travel distance X-axis: 570 mm, travel distance Y-axis: 370 mm, travel distance Z-axis: 350 mm, workpiece height (max.): 340 mm, workpiece width (max.): 520 mm, workpiece length (max.): 770 mm, cooler type CST150A-001A Iodpfsyw Uh Rjx Apcsia Weight 75 kg

Condition: excellent (used), Year of construction: 2007, operating hours: 16,906 h, functionality: fully functional, Sodick AQ 300 L in good condition Operating hours: 16,906 Year of manufacture: 2007-11 Linear servo control X, Y, Z: 300 x 200 x 200 mm U, V: 80 mm Wire diameter: 0.15–0.3 mm (0.25 mm installed) Max. workpiece dimensions: 740 x 440 x 200 mm (X, Y, Z) Max. workpiece weight: 300 kg Chiller Deionization cartridge Iiodpfxoyh E S De Apcoa Complete documentation Machine is powered for inspection

Condition: used, Year of construction: 2016, Wire erosion / EDM Travel distance X: 600 mm Travel distance Y :400 mm Travel distance Z: 350 mm max. workpiece size X: 800 mm max. workpiece size Y: 570 mm Iodpfx Apsyudrrjcoia max. workpiece size Z: 340 mm max. workpiece weight: 1000 kg U / V axis: 150 x 150 mm submerged

Condition: like new (used), Year of construction: 2024, operating hours: 2,200 h, functionality: fully functional, workpiece weight (max.): 850 kg, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 310 mm, total height: 2,245 mm, total length: 3,445 mm, total width: 2,595 mm, wire diameter (max.): 0.3 mm, workpiece height (max.): 310 mm, overall weight: 3,684 kg, Equipment: documentation/manual, We are offering this Sodick VN 600Q wire EDM machine, year of manufacture 2024. Manufacturer: Sodick Model: VN 600Q Year: 2024 Condition: like new The machine currently has 1,137 hours of cutting time and approx. 2,200 operating hours. • 10-year warranty on positioning accuracy • Linear motors (X, Y, U, V axes) • Absolute linear glass scales (X, Y, U, V axes) • Ceramic components • LN3W generator • Remote control • Enhanced operator-friendliness • Energy-saving circuit • Automatic water level control • Fixed Jet AWT with pop-up function • Heart NC software Iisdsytr Nvepfx Apcja • Wire end remover • Dielectric cooling unit • Voltage stabilizer • LAN interface • USB port Further specifications for this machine: Travel (X/Y/Z axis, mm): 600 x 400 x 310 Travel (U/V axis, mm): 90 x 90 Max. workpiece weight (kg): 850 Table height from floor (mm): 1,000 Machine dimensions (W x D x H, mm): 2,595 x 3,445 x 2,245 Machine weight (kg): 3,684 Air pressure: 0.65 MPa, 30 NL/min Total power consumption: 11.5 kVA, 3 phase, 50/60 Hz Taper angle: ±15° (workpiece thickness: 120 mm) Wire diameter (mm): ø 0.1 ~ ø 0.3 mm Wire tension (N): 3 ~ 23 N Category ID: 1896 Type ID: 2593 Machine type: Wire EDM machine If you have any questions or require further information, feel free to send us a message or call us.

Condition: excellent (used), Year of construction: 2018, Working table dimensions (width x depth): 600 x 400 mm Internal dimensions of working tank (W x D x H): 975 x 555 x 350 mm Fluid level in working tank (min. - max.): 170 ~ 300 mm Working tank volume: 180 L X-axis travel: 350 mm Y-axis travel: 250 mm Z-axis travel: 270 mm Maximum workpiece weight: 550 kg Maximum electrode weight: 50 kg Distance between clamping system and table surface: EROWA COMBI / EROWA ITS: 217 ~ 487 mm 3R COMBI / 3R MACRO: 200 ~ 470 mm Distance between table surface and floor: 810 mm Machine dimensions (W x D x H) (including power supply and dielectric tank): Iijdpoyv Ezljfx Apcsa 2080 x 1955 x 2350 mm Installation footprint (W x D): 2800 x 2900 mm Machine weight (including NC): 3200 kg Air pressure (automatic clamping system): 0.65 MPa Air consumption: 100 l/min (ANR) Total power consumption: 3-phase, 50/60 Hz, 10 kVA

Condition: excellent (used), Year of construction: 2015, Working table dimensions (width x depth): 600 x 400 mm Internal dimensions of working tank (W x D x H): 975 x 555 x 350 mm Fluid level in working tank (min. - max.): 170 ~ 300 mm Working tank volume: 180 L X-axis travel: 350 mm Y-axis travel: 250 mm Z-axis travel: 270 mm Maximum workpiece weight: 550 kg Maximum electrode weight: 50 kg Distance between clamping system and table surface: EROWA COMBI / EROWA ITS: 217 ~ 487 mm 3R COMBI / 3R MACRO: 200 ~ 470 mm Distance between table surface and floor: 810 mm Machine dimensions (W x D x H) (including power supply and dielectric tank): 2080 x 1955 x 2350 mm Installation footprint (W x D): 2800 x 2900 mm Machine weight (including NC): 3200 kg Air pressure (automatic clamping system): 0.65 MPa Air consumption: 100 l/min (ANR) Isdpfx Apoyv Eyhsceia Total power consumption: 3-phase, 50/60 Hz, 10 kVA Working hours: 5.744h

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, Equipment: documentation/manual, Machine model: ALC400G Max. workpiece dimensions (W×D×H): 600 × 470 × 240 mm (Flushing) Max. workpiece dimensions (W×D×H): 600 × 470 × 230 mm (Submerged) Max. workpiece weight: 500 kg (Flushing) Max. workpiece weight: 350 kg (Submerged) Work tank dimensions (W×D): 850 × 610 mm X axis travel: 400 mm Y axis travel: 300 mm Z axis travel: 250 mm U axis travel: 150 mm V axis travel: 150 mm Iodpfx Aeyu Nqmopcsia Taper angle (at workpiece thickness 130 mm): ±25° Wire diameter: Ø0.1 – Ø0.3 mm Wire feed speed (max): 420 mm/sec Wire tension: 3 – 23 N Machining method: Flushing / Submerged Distance from floor to table top: 995 mm Wire bobbin weight: 8 kg Machine dimensions (W×D×H): 2,115 × 2,500 × 2,230 mm Machine installation space (W×D): 3,350 × 3,850 mm Machine weight (including power supply): 3,400 kg Air pressure: 0.5 MPa Air consumption: 30 NL/min Total power input: 3-phase, 50/60 Hz, 13 kVA Dielectric tank external dimensions (W×D): 700 × 2,155 mm Dielectric tank weight (empty): 450 kg Dielectric tank capacity: 675 liters Dielectric fluid filtration method: 3 replaceable paper filters (internal pressure type) Deionizer: Ion-exchange resin (18 L type)

Condition: excellent (used), Year of construction: 2019, operating hours: 4,247 h, functionality: fully functional, machine/vehicle number: T1284, workpiece weight (max.): 1,500 kg, travel distance X-axis: 600 mm, travel distance Y-axis: 420 mm, travel distance Z-axis: 370 mm, total height: 2,570 mm, total length: 1,852 mm, total width: 2,825 mm, workpiece height (max.): 400 mm, workpiece width (max.): 750 mm, workpiece length (max.): 550 mm, type of input current: three-phase, table width: 750 mm, overall weight: 5,350 kg, table length: 550 mm, table height: 400 mm, empty load weight: 5,350 kg, table load: 1,500 kg, input voltage: 400 V, input frequency: 50 Hz, The Sodick AG60L die-sinking EDM was manufactured in 2019. It features a ceramic table measuring 750 x 550 mm and can handle a maximum workpiece weight of 1,500 kg. The machine is equipped with a linear motor, glass scales, and a remote control unit, which enhance both precision and operator convenience. We invite you to purchase the Sodick AG60L die-sinking EDM. Please contact us for further details about this machine. Axis travel (X/Y/Z): 600 / 420 / 370 mm Equipment includes: replaceable paper filter, SEC-10 (C-axis), SGF2 Nano Wear Unit, fire extinguisher, TMM3 Power Generator, dielectric cooling unit, 15" TFT touchscreen, linear motors (X, Y, Z axes), glass scales (X, Y, Z axes), ceramic work area, remote control. Ijdpfx Aox Ekb Nepcoia Machine dimensions (LxWxH): 1852 x 2825 x 2570 mm / Machine weight: 5,350 kg Max. workpiece weight: 1,500 kg / Ceramic table size (W x D): 750 x 550 mm Distance floor-to-table: 850 mm / Max. electrode weight: 50 kg Dielectric fluid level (min-max): 150 – 400 mm / Dielectric capacity: 465 liters

Condition: excellent (used), Year of construction: 2016, operating hours: 8,000 h, functionality: fully functional, workpiece weight (max.): 1,000 kg, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 350 mm, total height: 2,345 mm, total length: 2,945 mm, total width: 2,757 mm, wire diameter (max.): 0.25 mm, workpiece height (max.): 350 mm, type of input current: three-phase, table width: 490 mm, table length: 840 mm, table height: 995 mm, empty load weight: 4,600 kg, feed length X-axis: 600 mm, feed length Y-axis: 400 mm, feed length Z-axis: 350 mm, table load: 1,000 kg, input voltage: 400 V, input frequency: 50 Hz, Equipment: cooling unit, documentation/manual, Commissioning date: May 2017. Cutting time: 8,000 hours. At our company, the machine operates in a climate-controlled, virtually dust-free facility with an epoxy-coated floor. Price of the machine – loaded onto a vehicle in Hungary. Shipping and all other costs are the responsibility of the buyer. Ijdpfxoyuutgs Apcsia

Condition: used, Year of construction: 2020, Wire erosion / EDM Travel distance X: 600 mm Travel distance Y :400 mm Travel distance Z: 270 mm max. workpiece size X: 990 mm Iedpfxsw H Aw Eo Apcjia max. workpiece size Y: 670 mm max. workpiece size Z: 250 mm max. workpiece weight: 850 kg U / V axis: 80 x 80 mm cooling unit Max. machining current: 32 A Control unit:: LN2W

Condition: good (used), Year of construction: 2018, 1 used CNC wire EDM machine Make: Sodick Model: AQ 750 L, year 2002, overhauled by Sodick in 2018 4000 operating hours since overhaul Iodpfx Apjyknpgjcsia Control: MARK 30 LN 1 W Wire threading: 97 Pipe AWT

Condition: used, Year of construction: 1998, Sodick AM 35 CNC EDM Machine Model: AM 35 Year: 1998 Control: Neuro Fuzzy II 40: ‘X’ axis Travel: 350mm ‘Y’ axis Travel: 250mm Iiedowqgh Aepfx Apcea ‘Z’ axis Travel: 250mm Tank Dimensions: W 790 x D 590 x H 320mm Max. electrode weight: 50 kg Max. Table Load: 550 kg With: Magnetic chuck 350 x 250mm

Condition: used, Year of construction: 2002, Wire erosion / EDM Isdpfew Ei Stex Apceia Travel distance X: 750 mm Travel distance Y :500 mm Travel distance Z: 400 mm max. workpiece size X: 1050 mm max. workpiece size Y: 750 mm max. workpiece size Z: 400 mm max. workpiece weight: 1500 kg U / V axis: 770 x 520 mm generator: 60 Ampere Linear drives

Condition: excellent (used), Year of construction: 2017, operating hours: 7,700 h, X travel 600 mm Y travel 400 mm Z travel 350 mm U travel 150 mm V travel150 mm Max. workpiece weight 1 000 kgs Size of working area (L × W) 1 050 × 710 mm Wire dia 0,1 ‒ 0,3 mm (optional 0,05 mm is still possible) Ijdpfx Apjxgqitecsia Range of wire tension ~3 ‒ 23 N Max. wire speed cca. 420 mm / s Dimensions (L × W × H) cca.. 2 575 × 2 945 × 2 345 mm Place required (for installation) ca. ~3 860 × 4 245 mm Weight cca.4600 kgs High from floor to table surface cca. 995 mm Power required 3 Phasys, 50/60 Hz, cca. 13 kVA Tolerance: “Fine Corner Control”, “Digital PIKA-W Plus” options Visual / additional functions / controller: Smart Pulse (SPW) generator, Linearmotor (X/Y/U/V), absolut linearscales, ceramic working area, automatic wire threading (AWT), wire rotation, sparing power circles, optional Extra-taper (±45°) function, etc.

Condition: ready for operation (used), Year of construction: 2008, travel distance X-axis: 550 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 350 mm, total height: 2,720 mm, total width: 2,630 mm, overall weight: 6,840 kg, product length (max.): 2,070 mm, number of axes: 3, This 3-axis Sodick AG 55 L die-sinking EDM machine was manufactured in 2008. It features a work table size of 750 x 550 mm and a maximum workpiece weight capacity of 1000 kg. The machine offers an X-axis travel of 550 mm, Y-axis travel of 400 mm, and Z-axis travel of 350 mm. If you are looking to get high-quality die-sinking capabilities, consider the Sodick AG 55 L machine we have for sale. Contact us for further details. • Work table: 750 x 550 mm • Internal tank dimensions: 950 x 725 x 410 mm • Fluid level (min–max): 70–350 mm • Work tank capacity: 248 L • Max workpiece weight: 1000 kg Iiodpfxsy Ddmij Apcea • Spindle to table distance: 280–630 mm • Spindle to table distance: 263–613 mm • Installation footprint: 2070 x 2630 mm • Tank dimensions: 1180 x 1250 x 1035 mm • Full tank weight: 170 kg • Tank capacity: 475 L • Cooling unit dimensions: 520 x 520 x 900 mm • Cooling unit weight: 50 kg • Cooling tank capacity: 19 L • Included feature: Linear motors Additional equipment • Erowa C-axis • 32-position Erowa ATC • UPS

Condition: excellent (used), Year of construction: 2022, operating hours: 4,204 h, functionality: fully functional, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 270 mm, workpiece weight (max.): 550 kg, total height: 2,350 mm, total width: 2,025 mm, total length: 2,040 mm, overall weight: 2,920 kg, table load: 550 kg, Operating hours 24,038h, cutting hours 4,204h, tool changer, fire extinguishing system, dielectric tank 400l, max. electrode weight 50kg, extraction system is not included in the scope of delivery. Iiodoyu R Imjpfx Apcsa

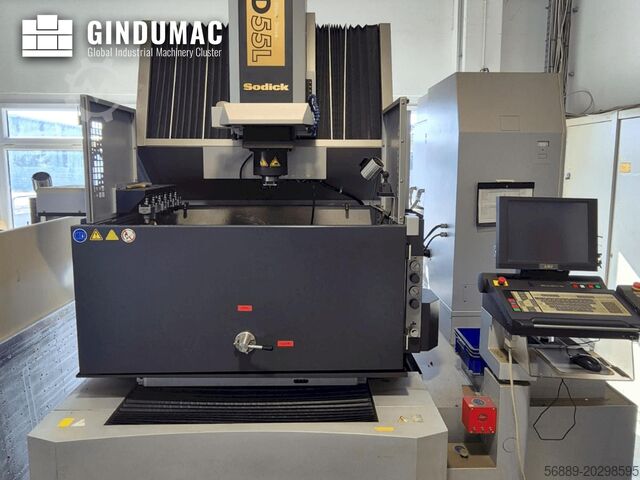

Condition: ready for operation (used), Year of construction: 2016, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, total height: 2,635 mm, overall weight: 4,020 kg, This Sodick AD 55 L die-sinking EDM machine was manufactured in 2016. It features a work tank with internal dimensions of 1200 x 800 x 500 mm and a capacity of 470 liters, supporting a maximum workpiece weight of 1000 kg. Equipped with a cooling unit for the linear motor, a C-axis, and a SGF generator unit, it offers robust performance for precision applications. Contact us for more information about this machine. Additional equipment • Features: 10-year warranty on positioning accuracy, LN Professional, Cooling unit for linear motor, Glass scales (X, Y, Z axes), Remote control, USB port, Shuttle ATC, C-axis (SEC-10), SGF generator unit, 15" TFT touchscreen, Dielectric cooling unit, Automatic voltage stabilizer, Paper filters (2), Fire extinguisher, Mouse, LAN port, Work lighting Machine Benefits Technical Machine Benefits • Machine footprint (w x d): 3300 x 3535 mm • Work tank internal dimensions (w x d x h): 1200 x 800 x 500 mm • Work tank capacity: 470 l • Workbench size (w x d): 750 x 550 mm • Air flow: 100 nl/min • Power requirement: 3-phase 50/60hz, 10 kva Extra Information Machine operating times: Machine switch-on time: 3089 hours Machine processing time: 1488 hours Accessories: 40 Erowa electrode holders On request, copper rod material, various threads and rod electrodes are available at an additional cost at the current copper hine still under power Iisdpfjx D Riujx Apcsa Dimensions Machine Depth 2335 mm

Condition: ready for operation (used), Year of construction: 2008, travel distance X-axis: 550 mm, travel distance Y-axis: 400 mm, overall weight: 6,440 kg, controller manufacturer: SODICK, controller model: LP1, number of axes: 3, This 3s Sodick AG55L die-sinking edm machine was manufactured in 2008. With a magazine capacity of 32 positions and a maximum workpiece weight of 1000 kg, it offers robust capabilities for precision machining. The X travel reaches 550 mm and Y travel extends to 400 mm, making it suitable for various applications. Consider the opportunity to buy this Sodick AG55L die-sinking edm machine. Contact us for further details. • Magazine capacity: 32 positions • Table dimensions: 750 × 550 mm • Internal tank dimensions: 1100 × 950 × 500 mm • Maximum workpiece weight: 1000 kg • Maximum electrode weight: 50 kg • There are 2 equal machines available Iedpfxsyk Ddyj Apceia

Condition: ready for operation (used), Year of construction: 2024, operating hours: 1,800 h, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 310 mm, total height: 2,080 mm, total width: 2,620 mm, wire diameter (max.): 0.3 mm, overall weight: 3,300 kg, number of axes: 5, wire diameter (min.): 0.1 mm, This 5s Sodick VN 600 Q wire edm machine was manufactured in 2024. It features a maximum workpiece weight of 1,874 lbs and advanced capabilities such as high-speed automatic wire threading and improved surface finish circuit for smoother machining. With a robust design and user-friendly software, consider the opportunity to buy this Sodick VN 600 Q wire edm machine. Contact us for further details. Iisdpsyi Dwkefx Apcsa • Hours: 1,800 • U/V-axis travel: 3.54" x 3.54" (90 x 90 mm) • Wire diameter range: 0.004"–0.012" (0.10–0.30 mm) • Work tank dimensions (W x D): 40.94" x 30.71" (1040 x 780 mm) • Maximum workpiece weight: 1,874 lbs (850 kg) • Distance from floor to table: 36.61" (930 mm) • Fixed Jet High Speed Automatic Wire Threading (AWT) • Improved Surface Finish Circuit — smoother machining finish • High Speed Electrolysis-Free Power Supply • Advanced Tension Servo Control — stable wire tension control • Ceramic machine components — improved thermal stability & wear resistance • Wire Tip Disposal Unit — automatic waste handling • Z-axis automatic dielectric fluid level control • Motion controller — precision axis control system • On-board user-friendly Heart NC software • Remote hand control + mouse • USB & LAN connection ports — data transfer and networking • Energy saving circuit — reduced power consumption • Built-in voltage stabilizer — stable power input Dimensions Machine Depth 2605 mm

Condition: ready for operation (used), Year of construction: 2012, operating hours: 7,357 h, travel distance X-axis: 600 mm, travel distance Y-axis: 420 mm, travel distance Z-axis: 370 mm, This Sodick AG60L Die-sink EDM machine was manufactured in 2012. It features a ceramic table measuring 750 x 550 mm and can handle a maximum workpiece weight of 1500 kg. The machine includes a linear motor, glass scales, and a remote control for enhanced precision and ease of use. Consider the opportunity to buy this Sodick AG60L die-sink EDM machine. Contact us for more information about this machine. Additional equipment • Replaceable paper filter / SEC-10 (C-axis) / SGF2 Nano Wear Unit / Fire Extinguisher / TMM3 Power Generator / Dielectric Cooling Unit / 15" TFT Touch Screen / Lowerable Work Container • Linear motor (X-, Y-, Z-axes) / Glass scales in X-, Y-, Z-axes / Ceramic work area / Remote control • Accessories include electrodes (graphite, tungsten, and copper), electrode holders, and jigs with documentation. / Some electrode holders with electrodes are still in the machine. Machine Benefits Technical Machine Benefits • Dimensions of machine (lxwxh): 1852 x 2825 x 2570 mm / machine weight: 5350 kg Iiedpox D Rytjfx Apcoa • Max. Workpiece weight: 1500 kg / ceramic table dimensions (w x d): 750 x 550 mm • Floor-table distance: 850 mm / max. Electrode weight: 50 kg • Dielectric fluid level (min-max): 150 - 400 mm / dielectric capacity: 465 l
