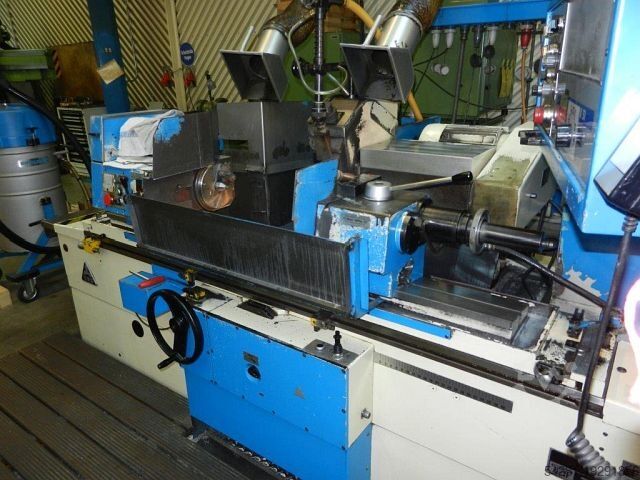

Cylindrical grinding machine

TOS BUB 40-1000

External cylindrical grinding machine
Manufacturer: TOS
Type: BUB 40-1000
Year: 1993
Control: Cetos K 51

WORKING AREA CYLINDRICAL GRINDING
Max. swing diameter 400 mm
Workpiece weight between centers (max) 500 kg
Workpiece weight one-side clamped (max) 100 kg

WORKING AREA EXTERNAL GRINDING
Max. grinding diameter 400 mm
Min. grinding diameter 10 mm
Bodpfxjwp D Aue Abmjlp
Grinding length 1000 mm

TABLE – CYLINDRICAL GRINDING
Swiveling
(B-direction) from 8.5 °
Rotation range B-axis up to -4.5 °
Longitudinal travel 1200 mm

WORKPIECE SPINDLE STOCK
Swiveling (B-direction) from 0 °
Rotation range B-axis up to 90 °
Spindle bore 40 mm
Number of gear stages 2
Drive power 9.5 kW
Tool holder MK 5

TAILSTOCK
Quill stroke 40 mm
Quill fitting MK 5
Contact force (max.) 4 kN

GRINDING SPINDLE STOCK
Swiveling (B-direction) from -15 °
Rotation range B-axis up to 45 °

GRINDING WHEEL
Type: grinding wheel, disc
Diameter (max) 500 mm
Bore: diameter 203 mm
Width 80 mm

ELECTRICAL CONNECTION DATA
Connected load 16 kVA
Connection voltage 400 V
Network frequency 50 Hz

DIMENSIONS / WEIGHTS
Required space -left/right- 4700 mm
Required space -front/back- 2050 mm
Total height 1900 mm
Total weight approx. 5400 kg

ADDITIONAL EQUIPMENT (GRINDING)
Balancing device yes
Machine in well-maintained condition
Workpiece spindle stock swivels 90°
Grinding spindle stock swivels -15°, +45°
Table swivels +8°30' - 4°30'
Accessories:
- hydrostatic spindle
- various corundum grinding wheels
- 2 diamond grinding wheels
- Balancing head MPM, renewed in 2021
- Filter system
- Extraction system
