CNC lathe
TRAUB TNK 36

Name: TRAUB TNK 36
Brand: TRAUB
Availability: InStock

Condition

Used

Location

Contamine-sur-Arve France

Show map

Machine data

Machine type:: CNC lathe

Manufacturer:: TRAUB

Model:: TNK 36

Condition:: used

Price & Location

Location:: Contamine sur Arve, France

Call

Details about the offer

Listing ID:: A169-73926

Reference number:: 14240

Update:: 24.02.2025

Description

TECHNICAL DETAILS
- Number of spindles : 2
- Number of axes : 9
- Number of turrets : 1
MAIN SPINDLE
- Spindle power : 10.7 [kW]
- Spindle speeds : 6300 [rpm]
- Max. bar diameter : 36 [mm]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Spindle power : 10.7 [kW]
- Spindle speeds : 6300 [rpm]
- Max. bar diameter : 36 [mm]
- C axis indexing precision : 0.001 [°]
- X/Z stroke : 370 x 250 [mm]
UPPER LEFT TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 50/100 [mm]
- Y stroke : +/- 20 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 5.5 [kW]
COMBINED ATTACHMENT
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
- Live tools power : 4.3 [kW]
- X/Z stroke : 370 x 270 [mm]
COUNTER COMBINED ATTACHMENT
- Number of tools : 5
- Number of motorized tools : 4
- Live tool speed : 6000 [rpm]
- Live tool power : 4.3 [kW]
- Stroke X/Y : 73 x +/-50 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 33 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 3335 x 1222 [mm]
- Machine height : 1680 [mm]
- Machine weight : 4000 [kg]
MACHINE HOURS

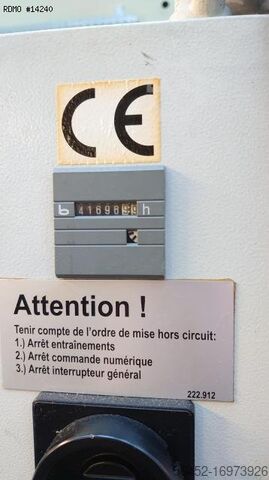

- Number of hours under power : 41.698 [h]
- Number of working hours : 11.346 [h]

EQUIPMENT
- CNC : TRAUB TX 8i
- Coolant tank : RESY
* with high-pressure pump
* with paper filtering unit
- Chips conveyor
- Parts catcher
Cjdeuhadhjpfx Abwshc
- Parts conveying strip
- Bar loader : LNS HYDROBAR EXPRESS 332 (2005)

Seller

Last online: A week ago

Registered since: 2016

544 listings online

Call

Send inquiry

Telephone & Fax

+33 4 50 ... show
