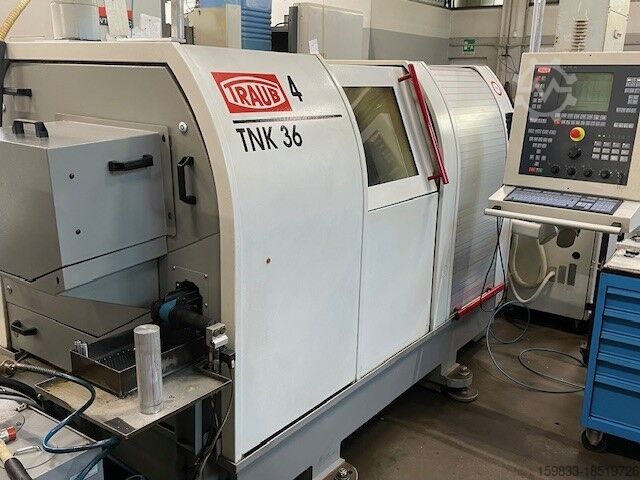

Automatic bar lathe

TRAUB TNK 36

Condition: used, Year of construction: 2010, functionality: fully functional, spindle speed (max.): 6,000 rpm, Traub TNK36 incl. LNS Quick Load Servo3 bar feeder Control: TX8i Main spindle: 36 mm bar capacity Speed: 6,300 rpm C-axis: 0.001° Counter spindle as motor spindle Workpiece ejector unit 12-position tool turret Hinged belt conveyor: KNOLL Coolant system: 450 l & 30 bar Thread cutting without compensating chuck Front attachment, 5-position with Z3 slide - 4 tools Bar feeder magazine: LNS Quick Load Servo 65, diameter: 8-36 mm Length: max. 750 mm Documentation and export available at extra cost. Chodpfx Absw U Atuswsc Inspection under power possible. We will be happy to send further details or arrange an on-site viewing.

Condition: used, TECHNICAL DETAILS - Number of spindles : 2 - Number of axes : 9 - Number of turrets : 1 MAIN SPINDLE - Spindle power : 10.7 [kW] - Spindle speeds : 6300 [rpm] - Max. bar diameter : 36 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle power : 10.7 [kW] - Spindle speeds : 6300 [rpm] - Max. bar diameter : 36 [mm] - C axis indexing precision : 0.001 [°] - X/Z stroke : 370 x 250 [mm] UPPER LEFT TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 50/100 [mm] - Y stroke : +/- 20 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 5.5 [kW] COMBINED ATTACHMENT - Number of motorized positions : 4 - Live tools speed : 6000 [rpm] - Live tools power : 4.3 [kW] - X/Z stroke : 370 x 270 [mm] COUNTER COMBINED ATTACHMENT - Number of tools : 5 - Number of motorized tools : 4 - Live tool speed : 6000 [rpm] - Live tool power : 4.3 [kW] Chodpfx Absuhadhowoc - Stroke X/Y : 73 x +/-50 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 33 [kW] WEIGHT & DIMENSIONS - Machine floor space : 3335 x 1222 [mm] - Machine height : 1680 [mm] - Machine weight : 4000 [kg] MACHINE HOURS - Number of hours under power : 41.698 [h] - Number of working hours : 11.346 [h] EQUIPMENT - CNC : TRAUB TX 8i - Coolant tank : RESY * with high-pressure pump * with paper filtering unit - Chips conveyor - Parts catcher - Parts conveying strip - Bar loader : LNS HYDROBAR EXPRESS 332 (2005)

Condition: good (used), Machining diameter max: 36 mm Maximum spindle speed: 6300 rpm No. of Spindles: 2 Controller: Traub TX8i Chedpfx Aotrvzxsbwjc Toolchanger 1: No. of tools: 12 positions X-axis travel: 50 mm Z-axis travel: 50 mm Toolchanger fronside: No. of tools: 7 positions Speeds: 150 - 3000 Rpm 300 - 6000 Rpm Max. diameter: 40 mm X-axis travel: 370 mm Z-axis travel: 250 mm Toolchanger backside: No. of tools: 5 Speeds: 150 - 3000 Rpm 300 - 6000 Rpm Max. diameter: 40 mm X-axis travel: 73 mm Barfeeder: FMB Turbo 5-42 Barlength: 3200 mm Bardiameter: 5 - 42 mm Country of origin: Germany Machine LxWxH: 3400 x 1300 x 1700 mm Machine weight: 4000 kg
