Cnc lathe

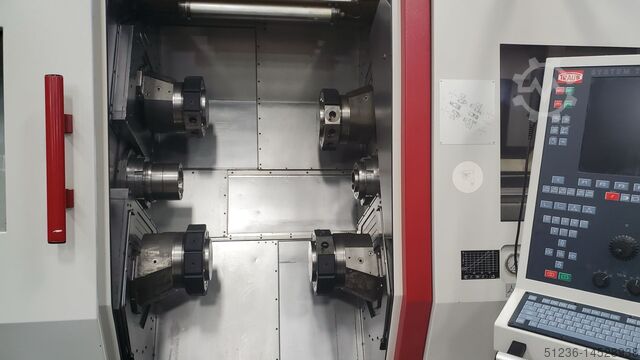

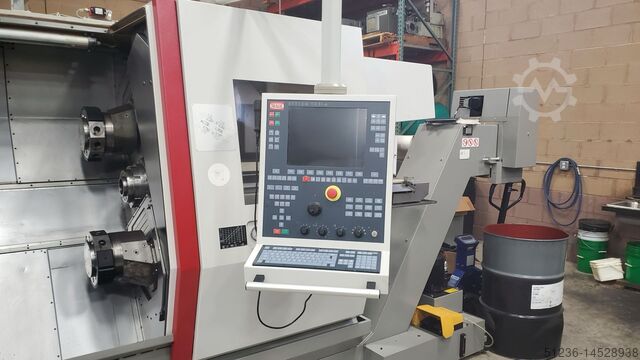

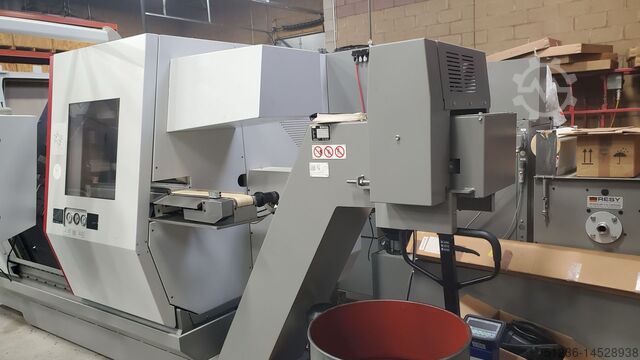

Traub TNX 65/42

Condition: good (used), Year of construction: 2012, functionality: fully functional, Description follows Kjdpfx Ajx A Hdfonwsdn

Year of construction: 2004, condition: excellent (used), Swiss type lathes MANURHIN K'MX overhauled with : Kdedpfx Aoir Id Uonwon – Spindle, counter spindle, geometry and changes of all non-conforming parts. Rotating tool on: rear comb, front comb, end unit, radial and axial counter operation C-axis on: main spindle and counter spindle Rigid tapping on: main spindle and backworking spindle High-pressure Predispo Year of construction 2004 – approx. 22 000 h

Condition: good (used), Year of construction: 2009, functionality: fully functional, CNC Lathe TRAUB TNX 65/42 Year of manufacture: 2009 Control: Traub TX 8i-s TECHNICAL DATA - Number of spindles: 2 - Number of axes: 12 - Number of turrets: 2 MAIN SPINDLE - Spindle nose: A2-6 - Spindle drive power: 24 kW - Spindle speed: 5,000 rpm - Max. bar diameter: 65 mm - Max. diameter of main spindle chuck: 175 mm - Minimum C-axis resolution: 0.001 degrees SUB SPINDLE - Spindle nose: A2-5 - Spindle drive power: 28 kW - Spindle speed: 7,000 rpm - Max. bar diameter: 42 mm - Minimum C-axis resolution: 0.001 degrees - Travel: 700 mm LEFT UPPER TURRET - Number of stations: 10 - Number of live stations: 10 - X/Z-axis travel: 175 / 650 mm Kedpoyw H Szofx Anwodn - Y-axis travel: +/- 40 mm - Tool type: VDI 30 - Driven tools speed: 6,000 rpm - Driven tools power: 5.5 kW RIGHT LOWER TURRET - Number of stations: 10 - Number of live stations: 10 - X/Z-axis travel: 175 / 650 mm - Y-axis travel: +/- 40 mm - Tool type: VDI 30 - Driven tools speed: 6,000 rpm - Driven tools power: 5.5 kW ELECTRICAL SUPPLY - Supply voltage: 400 V - Total power: 95 kW WEIGHT AND DIMENSIONS - Footprint: 5,450 x 2,318 mm - Machine height: 2,258 mm - Machine weight: 10,000 kg New spindle since 04/26 ACCESSORIES - 3-color status signal lamp - Coolant tank: RESY * with high-pressure pump * with paper filter - Chip conveyor - Parts extraction - Parts belt conveyor

Condition: new, Year of construction: 2023, The K’MX 920 CLEVER sliding headstock automatic lathe is designed for machining complex workpieces up to Ø 20 mm. The lathe is equipped as standard with two electrospindles with a maximum speed of 12.000 rpm each. With its nine axes, comb + turret on three axes and independent end unit, this machine is capable of having four tools in the material for an optimised cycle time. Kdodpfx Aek Dz Disnwsn 9 linear axis 1 independent rack with 10 positions Cross-section of outer tools 12 x 12 mm Turret number of stations 12

Condition: used, Year of construction: 1990, Technical details: Kodpfx Anou Iwyvewsdn spindle passage: 23 mm z-axis: 150 mm turning length: 150 mm stroke: x+z Achse / Axis/eje/eixo/os = 30 mm facing movement (x-axis): 30 mm longitudinal traverse (z-axis): 30 mm control: Num 760T spindle turning speed - continuous: U/min feed speed: x/y: 5 mm/min feed speed: z: 10 mm/min tool turret: 2 Stück/pcs mit je/each 6 tools operating pressure: max. 45 bar total power requirement: 8,0 kW weight of the machine ca.: 2,2 t dimension machine xH: 2,45x1,3x2,2 m dimensions of the bar loader L-W-H: 4,65x0,5x1,3 m techn. details: - bar clamping hydraulic -automatic workpiece discharge (via catch basket) - 2 turrets with each 6 tool tapers - coolant device - control NUM 760 (size: L:1,0xW0,8mxH:1,56m) Zubehör: - bar loader magazine make IEMCA type CS 112/31 accessories: -24 div. tool tapers - device tool Sylvac system ( size:L:0,58xW:0,5xH:0,43m) *

Condition: used, Year of construction: 2001, Technical details: turning diameter: 33 mm turning length: 330 mm control: 840 total power requirement: 20 kW weight of the machine ca.: 6 t dimensions of the machine ca.: 3850,2000,2100 m 17 axes Kdedpfow D Hh Aox Anwon 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours *

Condition: ready for operation (used), Year of construction: 2013, spindle speed (max.): 4,000 rpm, travel distance X-axis: 260 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 795 mm, spindle motor power: 18,500 W, overall weight: 6,140 kg, number of axes: 4, This 4-axis MORI SEIKI NLX 2500Y was manufactured in 2013. It features a maximum swing over bed of 742 mm and a maximum turning diameter of 366 mm. The machine includes a powerful spindle motor with 18.5 kW and a maximum spindle speed of 4,000 rpm. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI NLX 2500Y horizontal turning machine we have for sale. Contact us for further details. • Control unit: M730 BM • C-axis0.001° indexing • Maximum swing over bed: 742 mm • Maximum turning diameter: 366 mm • Maximum turning length: 705 mm • Maximum bar capacity: 80 mm • Spindle nose: ASA 8" • Tailstock: MT5 • Tailstock quill diameter: 80 mm • Tailstock travel: 734 mm • Turret stations: 12 positions • Motorized tool positions: 12 • Turret tool coupling: BMT • Turning tool size: 25 × 25 mm • Boring bar capacity: 50 mm • Maximum driven tool speed: 6,000 rpm • Driven tool motor power: 5.5 / 7.5 kW Additional equipment • Chip conveyor Kjdpezcphnofx Anwodn • Parts unloader arm • Parts conveyor belt • High-pressure pump with paper filter tank • Optical scales Technical Specification Counter Spindle No Driven Tools Yes

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, WE OFFER AN VERY NICE CONDITION INDEX WITH FULL EQUIPMENT AND TOOLINGS. MACHINE IS IN FULLY WORKING CONDITION. WE OFFER AN NICE CONDITION INDEX WITH Control FANUC 21i-TA DRIVEN TOOLS AND EQUIPMENT Max. turning diameter 310 mm max. turning length 1,470 mm Hollow clamping cylinder diameter 80 mm HOLE TROUGH SPINDEL 95mm Rapid traverse 12 m/min Kdsdpfsvkx Nysx Anwen Tool positions 16-way turret / 4 driven C-axis division 1-locking bolt 2.5 degrees 2-locking bolt 0.5 degrees Speed range level 1: 20-2000 rpm level 2: 40-4000 rpm Total power requirement 40 kW Machine weight approx. 6 t Dimensions 5,350 with chip conveyor x 2,000 x 2,500 mm Control FANUC 21i-TA Year of manufacture 2002 Incl. chip conveyor Incl. tailstock Incl. steady rest Incl. documentation FOR CUSTOMER WE CAN ORGANIZE AS WELL TRANSPORT TO THEIR COMPANY..WORLDWIDE DELIVERY TO LOAD MACHINE NEED 7 LOADING METERS ON TRUCK.

Condition: new, MANURHIN K'MX 620 is designed for the productive machining of workpieces consisting of bars with a maximum diameter of 20 mm. The machine is equipped as standard with two electro-spindles with a maximum speed of 12,000 rpm and a rotating guide bush synchronised with the main spindle by means of pulleys and belts. Kjdpeuqngqofx Anwsdn Main features: - Max. bar material diameter 20 mm - 12,000 rpm on both spindles - Main spindle power 3.7/5.5 kW - Spindle travel 210 mm - Number of tools in the cut at the same time: 2 - Power of rotating tools: 2kW - Number of stations: 22, 9 of which can be motorised

Condition: new, MANURHIN K'MX 520 is designed for the productive machining of workpieces consisting of bars with a maximum diameter of 20 mm. The machine is equipped as standard with two electrospindles with a maximum speed of 12,000 rpm and a rotating guide bush synchronised with the main spindle by means of pulleys and belts. Five CNC linear axes (X1, Y1, Z1, X2, Z2), two rotary axes (C1, C2). Main features : - Max. bar material diameter 20 mm Kedouqirbspfx Anwsdn - 12,000 rpm on both spindles - 8,400 rpm driven tools - Main spindle power 3.7/5.5 kW - Headstock travel 210 mm - Number of tools in the cut at the same time: 2
