Laser Punch Press

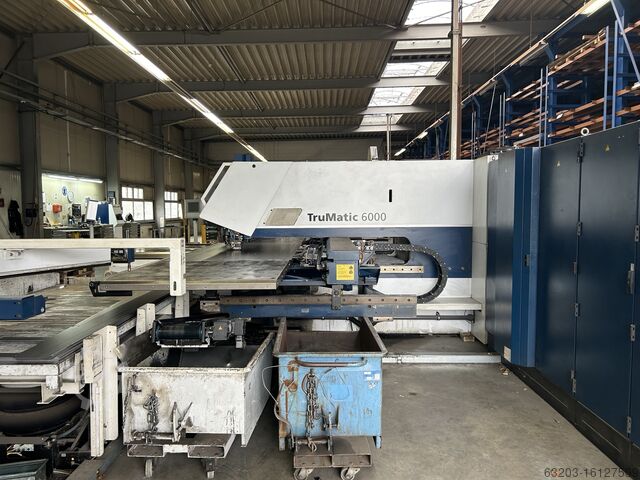

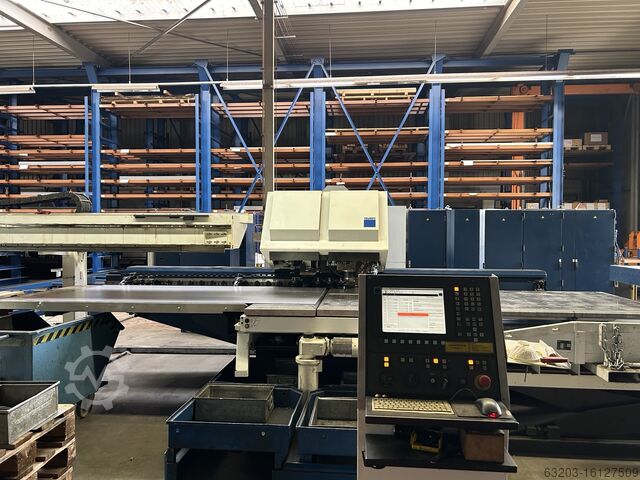

Trumpf TruMatic 6000

Year of construction: 2008, condition: ready for operation (used), Punching force: 220kN, working range combined operation X/Y: 2585mm/1650mm, working range punching operation: 3085mm/1740mm, working range laser operation X/Y: 3085mm/1650mm, max. sheet thickness mild steel/stainless steel/aluminum: 8mm/6mm/4mm, max. workpiece weight: 230kg. Positioning speed: 109m/min, max. stroke rate: 900 strokes/min, max. marking rate: 2800 strokes/min, tool positions: 18, accuracy: +/-0.1mm. Machine dimensions X/Y/Z: approx. 8000mm/9000mm/2500mm, weight: approx. 22500kg. Documentation available. An on-site inspection is possible. Expected to be available from November 2025. Codpfjxddagsx Abwehc

Condition: used, Year of construction: 2007, operating hours: 71,182 h, functionality: limited functionality, punching force: 22 t, workpiece weight (max.): 230 kg, laser power: 2,700 W, tool length: 37 mm, punching diameter: 75 mm, positioning accuracy: 0.01 mm, overall weight: 15,000 kg, workpiece height (max.): 30 mm, workpiece length (max.): 3,700 mm, workpiece width (max.): 1,500 mm, positioning speed: 90 m/min, sheet thickness (max.): 8 mm, sheet thickness aluminum (max.): 4 mm, sheet thickness steel (max.): 8 mm, sheet thickness copper (max.): 4 mm, sheet thickness brass (max.): 4 mm, cutting force: 200 t, compressed air connection: 6 bar, repeat accuracy: 0.01 mm, space requirement height: 2,400 mm, space requirement length: 18,000 mm, space requirement width: 9,100 mm, Equipment: cooling unit, safety light barrier, The machine will be available from week 42 as agreed. Additional equipment: - Widening of the C-frame, allowing loading of sheets up to 3800 x 1500 mm with the SheetMaster - Laser TruFlow 2700 - MultiTool function - Thread forming function - Marking/High-speed beading function - MultiBend function - Roll technology - Post-processing cylinder - Warping detection Codexa Dx Uspfx Abwshc - Chip conveyor Loading and dismantling must be carried out by the buyer! Condition: used Scope of delivery: (see image) (Specifications and technical data are subject to change and errors excepted!) Further questions can be answered by phone.

Condition: ready for operation (used), Year of construction: 2008, operating hours: 72,918 h, functionality: fully functional, punching force: 22 t, laser power: 2,700 W, sheet thickness (max.): 6 mm, sheet thickness aluminum (max.): 4 mm, sheet thickness steel (max.): 8 mm, TECHNICAL DETAILS Combined punching/laser operation: 2,585 x 1,650 mm Punching mode: 3,085 x 1,740 mm Laser operation: 3,085 x 1,650 mm Outputs Laser power: 140 - 2,700 W Maximum sheet thickness: 8 mm Cutting capacity for mild steel: 8 mm Cutting capacity for aluminum: 4 mm Cutting capacity for stainless steel: 6 mm Maximum punching force: 220 kN Active hold-down device (programmable in stages): 4.5 - 20 kN Maximum workpiece weight: 230 kg Speeds Maximum positioning speed X-axis: 90 m/min Y-axis: 60 m/min Simultaneous (X and Y): 108 m/min C-axis punching: 60 revolutions/min Thread forming: 180 revolutions/min Punching stroke sequence (E = 1): 900 1/min Marking: 2,800 1/min Tools Linear magazine: 18 tools with 3 clamps Tool change time: 1.5 - 5 s Tool accuracy Position deviation: ±0.10 mm Average position spread: ±0.03 mm Programmable slides for punched and laser parts (max.) Size: 500 x 500 mm Chedpew Suwysfx Abwec TRUMPF CNC control: based on Siemens Sinumerik 840D MACHINE DETAILS Laser switch-on time: 72,918 h Cutting time: 18,536 h Space requirement (width x length): 7,900 x 9,100 mm Height: 2,400 mm Weight: 22,500 kg Laser gas consumption CO2 / N2 / He: 1 / 6 / 13 l/h Connected load: 73 kVA

Condition: good (used), Year of construction: 2007, functionality: fully functional, laser power: 3,200 W, X working area max.: 3085 mm Y working area max.: 1650 mm Control: Siemens Sinumerik 840 D Laser power: 3200 Watts Operating hours: Power supply 41,117 h Laser ready 37,005 h Chjdpsw I Rq Ijfx Abwsc Laser beam on: 7,365 h Standard equipment: - Hi-Las high-pressure cutting - Laser cutting head with 5'' lens - Laser cutting head with 7.5'' lens - Quick-change device for cutting heads - Programmable cutting gas selection/pressure setting - Capacitive height control (DIAS III) - ContourLas function - Slag cone detection - Compact dust extractor - Tank heater - Automatic tool changer with 17 stations (21 – clamping claws) - 3 clamping claws - Rotation of all tools - NC-controlled, digital, maintenance-free three-phase drives - Automatic repositioning - Tool length compensation - Fast shutoff of hydraulics - Automatic shutdown - Automatic part slides, each 500 x 500 mm - Sensors for both part slides - 2 good-part bins - Scrap slug extraction - Forming capability - Programmable punching tool lubrication - Programmable hold-down device - Adaptive stroke length control - Safety devices - Remote diagnostics unit - RJ 45 network connection - 3.5'' floppy disk drive + Warp detection + Blow-off device for small parts + AutoLas Plus (FocusLine) + Function for deburring and roller technology + Function for thread forming with thread former breakage monitoring + MultiShear function + MultiTool function + Marking/fast beading function + Softpunch function + Low-scratch processing + Repositioning cylinder + Vibration-damped installation + Chip conveyor with tipping container + Additional clamping claw Automation: + Peeling system + GripMaster (3000 x 1500 mm) + SheetMaster (3000 x 1500 mm) + Lift table (300 mm)

Condition: excellent (used), Year of construction: 2022, operating hours: 500 h, functionality: fully functional, TruMatic 6000 fiber large format (K06) + SheetMaster + GripMaster + TruStore 3030 Double tower (46 Storage pallet) Full automated high-end punch laser combination machine with with all available options! Cedpfxew Iz N Ij Abwohc Operating hours: 500 h (!) Year of prod.: 06/2022 Highlited options: Punching quality package : • MultiShear function • Deburring and roller technology function • Adaptive stroke calibration • StripLine Forming package: • Tapping function including forming tap breakage control • Marking/quick beading function • MultiBend function • Height-adjustable clamps Descending die MultiTool function Engraving function Die spray lubrication with level monitoring Chip conveyor with tipping container Loading/Unloading: SheetMaster 3000 x 1500 mm (AK04) Loading and unloading parallel to production Peeling unit including positioning aid for large sized sheets Additional positioning aid for small-sized sheets Additional positioning aids for medium-sized sheets First additional suction package Second additional suction package Unloading monitoring of laser cut parts Integrated tool changer, 40 stations GripMaster 3000 x 1500 mm Three scrap skeleton grippers, one of which with sensor system Parts conveyor belt for punch and laser side TruStore 3030 double tower storage system (46 pallet) • Storage equipment • Sheet size 3048 x 1524 mm • 3 t load capacity per pallet • Storage safety device • Column covering • Pallet lift (lifting chain, cable carrier) • 19" touchscreen operating panel • Storage interface for connecting two automation solutions • Instruction, documentation • Electrical cabinet lighting • CE marking and EC Machinery Directive

Condition: good (used), Year of construction: 2006, operating hours: 17,000 h, functionality: fully functional, Trumpf TruMatic 6000 FMC -1300 Sheetmaster + Gripmaster Manufacturer: Trumpf Type: TruMatic 6000 FMC -1300 Year of manufacture: 2006 Condition: used, very good. Regularly serviced by Trumpf. Machine is powered and in use. Operating hours NC hours: 70,305h Beam-on hours: 17,217h Control: Siemens Sinumerik 840 D Punching force: 220KN Laser power: 2700W Working area for laser operation approx.: 2585 x 1280 mm Working area for punching operation approx.: 2585 x 1370 mm Max. sheet thickness approx.: 8 mm Support tables Brush tables CE marking Standard equipment: Stable, easily accessible C-frame Coordinate guide with integrated linear magazine, 21 places for tools and clamping claws 1 clamping claw Maintenance-free three-phase servo motors Parts chute 500 x 500 mm (sensor-monitored) HI-LAS high-pressure cutting TRUMPF laser: CO2 laser TLF 2700 High-frequency excitation Laser control TASC 3 Cutting head: Laser cutting head 5″ Laser cutting head 7.5″ Quick change device Cutting gas pressure setting programmable Distance control DIAS ContourLas Chsdpfswyphdjx Abwoc Punching head: Hydraulic mono tool holder 360° rotation Programmable hold-down device Tool spray lubrication Punching slug extraction Control: Sinumerik 840D 10.4″ TFT color screen Teleservice Automatic switch-off 3.5″ floppy disk drive RJ45 network connection MDE interface Safety: Multi-beam light barriers Quick switch-off hydraulics Compact dust extraction system Options: Automatic switch-off Thread former Soft punch Adaptive stroke calibration Adjustment cylinder Individually openable claws Chip conveyor with container Multishear Multitool Control Brush tables Automation SheetMaster (loading and unloading during production) Scissor lift table Chip conveyor with container TrumaGripMaster TrumaSortmaster R4 TwinCarts (unloading) Spreading magnet Rotor scanner (unloading monitoring) Autolas Plus Remaining grid pallet 2500x1250mm

Year of construction: 2001, condition: ready for operation (used), Max. cutting force: 220kN, laser power: 3200W, nitrogen connection: 30bar, oxygen connection: 20bar, connected load: 76kVA, operating hours at the beginning of 2025: 67,766h, with Trumpf TLF 3200 laser and RIEDEL L 15/21 TR3/19.00 cooler, refrigerant: R134a, filling weight: 11.5kg, high pressure: 20.2bar. Tools additionally available. An on-site inspection is possible. Cedpfx Abow Uk A Rjwshc

Condition: excellent (used), Trumpf Here we offer a laser and punching machine. Technical data: Network: 400V/50 Hz Fuse: 3 x 100 A Connection power 65 kVA Working area X x Y without repositioning Combined operation 2585 x 1280 mm Punching operation 2585 x 1370 mm Laser operation 2585 x 1280 mm Power: Laser 2000 W Maximum sheet thickness 8mm Maximum punching force (including 20 kN hold-down device) 220 kN Active hold-down device (programmable in stages) 4.5-20 kN Maximum workpiece weight 200 kg Maximum clearance height In punching operation 35mm Chsdjm Ak Huepfx Abwec 1m laser operation 22mm Speeds: X-axis 90 m/min Y-axis 60 m/min Simultaneous Stroke sequence Punching 900 min Signing 2800 min C-axis Punching 60 revolutions/min Thread forming 330 revolutions/min Tools Tool positions on the linear magazine 19 with 2 clamps Number of tools when using multitool 19 to 190 tools Rotation of all tools 360° Tool change time 1.5-5 s Maximum punching diameter Single stroke 76.2 mm on all tool positions Standard multicut 200mm Maximum bending height 25mm Maximum part size 500 x 500 mm Accuracy: Position deviation ± 0.1 mm Average position spread ±0.03 mm TRUMPF CNC control: Basis: Siemens SINUMERIK 840D Type: TC 6000 L 1300 Loading and dismantling must be carried out by the buyer! Condition: used Scope of delivery: (see picture) (Changes and errors in the technical data, information are subject to change!) We will be happy to answer any further questions you may have over the phone.

Condition: good (used), Year of construction: 2008, operating hours: 41,804 h, functionality: fully functional, used TRUMPF TruMatic 6000 (K01) – Medium format Csdewkd Efopfx Abwehc Technical data: Year of manufacture: 2008 Last maintenance: 18.03.2025 Operating hours NC: 41804 Resonator hours: 14466 Beam ON hours: 2054 Y-Axis: 1300 mm Additional equipment: various tools Recently installed new parts: Conversion to laser control TASC5 (01/2025) Control panel with display (01/2025) Box PC (01/2025) Hydraulic punching head/multilayer (10/2021)

Condition: good (used), Year of construction: 2014, functionality: fully functional, laser power: 3,000 W, X Working area max.: 2500 mm Y Working area max.: 1250 mm Control: IndraMotion MTX Laser power: 3000 watts Standard equipment: Machine - Coordinate guide for high-precision machining - Stable, easily accessible C-frame - Linear magazine with 21 tool positions and 4 clamps - Drives with maintenance-free three-phase servo motors - Repositioning device with programmable hold-down device - Foot switch for clamp closing - Ball tables - 2 part flaps 500 mm x 500 mm - FocusLine - NitroLine - FastLine - Ejection cylinder for laser parts - Slag cone detection TRUMPF laser - TruDisk 3001 solid-state laser with 1 LLK outlet - Excitation via pump diodes - LLK according to standard layout (10m) - TruControl laser control 1000 - Cooling unit - Laser logbook function Cutting head - Solid-state laser compact cutting unit - ControlLine Punching head - Electro-hydraulic punching head - Rotatable mono tool holder - Tool length compensation - Programmable hold-down device (active / passive / repositioning) - Punch stroke counter and thread stroke counter - Spray lubrication of punch - Punch slug extraction - Calculation of filling level in the punching console - Level monitoring of thread forming and tool lubrication Control - Open control based on Rexroth IndraMotion MTX - Control panel with 17" touch control panel - Program management - Production plan - Integrated technology data - Teleservice via Internet - Programmable cutting gas pressure - Automatic switch-off with wake-up mode Data transfer - USB interface - RJ-45 network connection Safety - CE marking - Two-beam light barriers - Monitoring system for, among others Gas pressure, temperature, cooling water - Quick shutdown hydraulics - Protection against scattered radiation - Compact dust extraction system - MultiTool function - MultiBend function - Thread forming function - Engraving function - Deburring and rolling technology function - SoftPunch function - StripLine - Lowerable die - Spray lubrication die including level monitoring - Additional clamping claw - 4 pcs. Height-adjustable clamping claws - Vibration-damped installation - Chip conveyor with tilting container - Blow-out device for small parts - Warping detection SheetMaster - Unloading platform - Suction frame with 36 suction cups - Peeling suction cup - Vacuum sensors for each suction cup Chedpfxjwld Suo Abwoc - Double sheet detector for double sheet control - Central lubrication - TRUMPF control based on Rexroth IndraMotion MTX - Automatic clamp closing machine - Loading and unloading parallel to production time - Peeling system including positioning aid medium format (2500x1250) - First additional suction cup package standard - Second additional suction cup package standard - Unloading monitoring laser parts GripMaster - Parts conveyor belt punching station - Parts conveyor belt laser station ToolMaster with 70 stations (only for punching operation) - ToolMaster set-up parallel to production time
