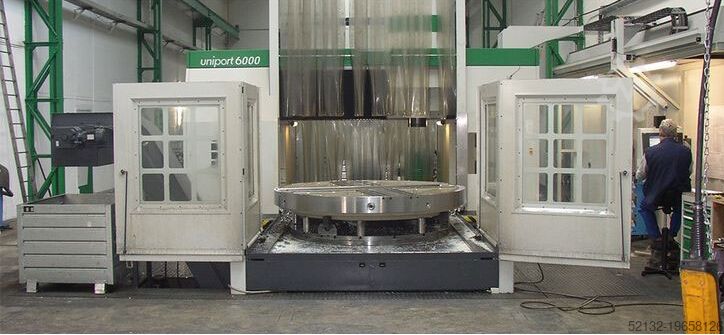

Vertical machining center

Unisign Uniport6000

Condition: ready for operation (used), Year of construction: 2010, x-travel 10000 mm y-travel 1500 mm z-travel 1000 mm passage 1300 mm passage width 1500 mm control Siemens Sinumerik 840 D turning speeds 2 Stufen: 6000 U/min Number of working hours 54821 h tool taper SK 50 Boring power 120 mm thread capacity M 55 toolpiece magazine: chain magazine 30 Stück rapid traverse X-axis 36000 m/min rapid motion Y-axis 30000 m/min rapid traverse Z-axis 30000 m/min total power requirement 36 kW dimensions of the machine ca. 12 x 11 m Gantry-style milling machine with movable portal bridge and stationary clamping table. Features: • Clamping table designed with transverse clamping beams spaced 750 mm ndard panel panels are not included. Panel panels must be purchased separately if required. • Hydraulic clamping device with clamping bridges for axis machining, includinghydraulic system • Angle drilling and milling head, n = 4000 rpm SK50 • High accuracy and stability thanks to Hirth gearing • Automatic tool change in the angle head Djdpfx Ajx S Rx Iodvjun • RWP20.50-M touch probe • Pendulum operation • Safety fence with light curtains, Sick brand • Clamping table with 750 mm transverse clamping beams • 30-position tool chain magazine on the gantry frame • Machine cooling system • Integrated water-to-air heat exchanger in the control cabinet • Unisign remote diagnostics for Siemens Sinumerik 840 D • Makrolon curtains on both sides of the gantry bridge motorized height adjustment • Partition wall with viewing window • Chip conveyor with hinged belt design • Mounting and alignment elements • Documentation Accessories: 1 spare SK50 angle drill and milling head 1 spare Hexagon RWP 20.50-M touch probe 1 2500 x 1200 mm T-slot clamping frame, which can be installed on the machineinstead of the hydraulic device. Various spare parts

Year of construction: 2011, condition: ready for operation (used), Horizontal machining center with 5-axis Fanuc CNC, tilting table with 120° and continuous B-axis. Pallet magazine with 10 stations, automatic tool changer with 199 stations. Accessories included with the machine: Dsdpjku A A Hjfx Advoun Chip conveyor, high pressure coolant system through the spindle line with separate tank and paper filter.

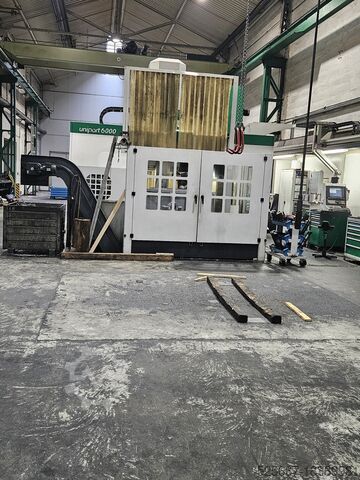

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, A used CNC portal milling machine with carousel turning unit / C-axis for turning Hirth gearing TRAVEL PATHS X: 3,000 mm Y: 2,500 mm Z: 1,000 mm Table diameter: 2,000 mm Max. turning diameter: 2,500 mm Max. turning height: 1,000 mm Machine: Uniport 6000 Boring work, also CNC turning, CNC milling and angle head machining. All in one clamping, combined with the speed and precision of a CNC portal milling machine. Djdpfx Asvvh T Sodveun C-axis for turning New price: €1.8 million Dismantling: by arrangement The machine comes with a protective cover so that no chips get into the Hirth gearing on the slide during milling. Then the rotary attachment head for the turning tools and an angle head for lateral machining on the plate field or on the rotary table. You can swivel this by 2.5° each time over the Hirth gearing. All holders (milling, turning, angle head) are clamped via HSK-100. A radio measuring probe from M&H (Hexagon) for measuring and probing the zero point is included with the machine. The machine is in operation and can be viewed on site. A video of the machine is available.

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, A used CNC portal milling machine with a C-axis for turning (CNC turning, CNC milling and angle head machining). Boring machine machining! Hirth gearing! TRAVEL PATHS X: 3,000 mm Y: 3,000 mm Z: 1,000 mm Table diameter: 2,500 mm Max. turning diameter: 3,000 mm Max: turning height: 1,000 mm Machine: Uniport 6000 Boring machine work, also CNC turning, CNC milling and angle head machining. All in one clamping, combined with the speed and precision of a CNC portal milling machine. Dedpfx Aevvh R Dedveun TRAVEL PATHS X: 3,000 mm Y: 3,000 mm Z: 1,000 mm Dimensions Table diameter: 2,500 mm & 2,000 mm Max. turning diameter: 3,000 mm & 2,500 mm Max: turning height: 1,000 mm C-axis for turning New price: €1.8 million Dismantling: by arrangement The machine comes with a protective cover so that no chips get into the Hirth gearing on the slide during milling. Then there is the turning attachment head for the turning tools and an angle head for lateral machining on the plate field or on the rotary table. You can swivel this over the Hirth gearing by 2.5° each. All holders (milling, turning, angle head) are clamped using HSK-100. The machine comes with a radio probe from M&H (Hexagon) for measuring and zero point probing.   The machine is in operation and can be inspected on site. A video of the machine is available.

Condition: used, Year of construction: 2013, travel -x axis 800 mm travel -y axis 520 mm travel -z axis 550 mm control HEIDENHAIN - iTNC 530 number of spindle speeds 10.000 U/min numbers of positions in the tool changer 24 520 x 950 (B x L) mm Milling machining centers - vertical | POSmill - C 800 Kompakt equipped with 24- way tool changer and ITC. Dusdpfx Adjv Td Iajvjn The machine is in a well-maintained condition. For further technical details, please refer to the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: C800 | C-800 | C800Kompakt | C -800-Kompakt

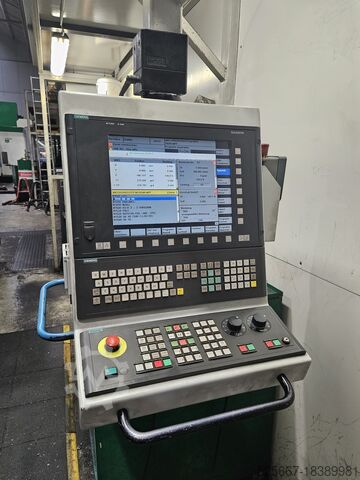

Condition: good (used), Year of construction: 2005, Unisign Uniport 6000 portal milling machine, year of manufacture 2005, Siemens 840 D control, Travel X/Y/Z 3000/3000/1000 mm, C-axis for turning operations, Table Ø 2500 x 2000 mm, max. turning diameter Ø 3000 x 2500 mm, max. turning height 1000 mm, Angular head for side machining, 2.5° Hirth serration, Dujdpfeyhb Tajx Advsn Spindle speed up to 6,000 rpm, Spindle power 36 kW, Mount HSK 100, Tool changer for 30 tools, 3D measuring probe, Chip conveyor, Faceplate Ø 2000 mm, Max. faceplate load 10,000 kg, Machine weight 45,000 kg.

Condition: used, Year of construction: 2007, BAZ Unisign Type: Uniport 6000, Year of manufacture 2005 and 200. Machining centers with Ø2 and Ø2.5 meters. Uniport 6000/05 as well as 6000/08. The machines can be inspected on site. Dodpsxurc Refx Advoun

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 25.4 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kW] WEIGHT & DIMENSIONS Dodpeuhaycefx Adveun - Machine floor space : 2270 x 1650 [mm] - Machine height : 2200 [mm] - Machine weight : 3500 [kg] MACHINE HOURS - Number of hours under power : 46571 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2 - Rotating guide bush - Parts catcher - Ejection of workpiece - Chips conveyor : KNOLL - Coolant tank * with high-pressure pump : 100 [bars] - Bar loader : TORNOS ROBOBAR SSF - Oil mist extractor : Elbaron - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: used, Year of construction: 1998, travel distance X-axis: 460 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 450 mm, rapid traverse X-axis: 3,880 m/min, rapid traverse Y-axis: 3,880 m/min, rapid traverse Z-axis: 3,880 m/min, feed length X-axis: 840 mm, nominal power (apparent): 8 kVA, controller manufacturer: HEIDENHAIN, workpiece weight (max.): 500 kg, overall weight: 2,500 kg, spindle speed (max.): 6,000 rpm, spindle motor power: 7,500 W, spindle nose: BT40, number of spindles: 1, number of slots in tool magazine: 16, input voltage: 380 V, type of input current: three-phase, Equipment: chip conveyor, Metalworking – Vertical Machining Center Used Bridgeport industrial machinery – VMC 460/16 from 1998. This vertical machining center is equipped with a control unit Heidenhain TNC 370 and has a working area of 840 x 360 mm, 6000 rpm spindle speed and motor power of 7.5 kW.Control unit Heidenhain TNC 370 X-Axis travel 460 mm Y-Axis travel 300 mm Z-Axis travel 450 mm Dedpfx Ajv A I Ipodveun Table length 840 mm Table width 360 mm Workpiece weight 500 kg Spindle speed 6000 rpm Motor power 7.5 kW Spindle taper BT 40 Tool magazine 16 positions Dimensions L 2800 x W 2100 x H 2500 mm Weight 2500 kg Availability Immediately

Condition: used, Year of construction: 2006, Technical details: swing diameter: 200 mm Djdpfxsquy Ius Advjun weight of the machine ca.: 15 t Distance between tips: 832,5 mm turning length: 380 mm with chip conveyor and belt filter press, infeed and outfeed belt 2 x 12-position revolvers *
