Machining center with throughfeed

Weeke BHX500

Condition: used, machine/vehicle number: 005910, X axis working area: 2500 mm Gkedjwuckhspfx Afpec Y axis working area: 1300 mm Main Electrospindle power: 6 KW Number of controlled axes: 3 axes Total number of drilling spindles: 84

Condition: used, Year of construction: 2012, Automatic CNC machining center for efficient and precise drilling and milling of panel furniture components wooden PC 85 numerical control - woodWOP 6 software Safety cabin for the working head N. 2 clamps for blocking and moving the piece during machining Loading bench by air curtain table Minimum dimensions of the piece (X - Y - Z) mm 250 x 100 x 8 (2 x 4 mm) Maximum dimensions of the piece (X - Y - Z) mm 3000 x 1000 (optional mm 1300) x 80 (2 x 40 mm) Possibility of processing two panels simultaneously N. 2 working heads (one lower and one upper) composed as follows: * Upper vertical work head N. 1 ETP-6 vertical electrospindle (power Kw 6) N. 1 Grooving saw (90° on the X-Y axis) dia. 125mm N. 32 vertical drilling spindles (power Kw 2,7) N. 10 Horizontal drilling spindles (8 in X + 2 in Y) * Bottom vertical working head N. 1 ETP-6 vertical electrospindle (power Kw 6) N. 1 Grooving saw (90° on the X-Y axis) dia. 125mm N. 32 vertical drilling spindles (power Kw 2,7) N. 10 Horizontal drilling spindles (8 in X + 2 in Y) Evacuation of the panel (panels) by motorized belt roller conveyor Security system with perimeter grilles and frontal safety mats Gksdpfx Aovz A E Tefpec

Condition: excellent (used), FLEXIBLE C.N.C. WORKING CENTER 3 axes (X-Y-Z) Movable panel (workpiece), static working head - Horizontal position of the panel (workpiece) Numerical Control PowerControl (Software woodWOP) Safety cabin (enclosure) of the working head Separate electric and command cabinet No. 2 Workpieces fixing clamps (for the panels introduction in the working area) WEEKE Prepositioning Unit - to position workpieces in machines with clamp grippers faster. In-feeding working table (panel support) and Out-feeding table (with motorized belts) With pushing system to automatically infeed the workpiece Minimum workpieces dimensions (X - Y - Z) mm 200 x 70 x 8 (2 x 4 mm) Maximum workpiece dimensions (X -Y- Z) mm 2500 x 1000 (option mm 1300) x 80 (2 x 40 mm) Two panels simultaneously processables (in Z axe) WORKING GROUPS (TOP): 2V32, 2H8X/Y2, N2 X-Y90,F2-ETP-6 KW No. 1 Vertical electro-spindle ETP-6 (power Kw 6) No. 1 Circular Grooving Saw (90° on X-Y axe) dia. mm 125 No. 23 Vertical drilling spindles (power Kw 2.3) No. 5 Horizontal drilling spindles (4 in X + 1 in y) WORKING GROUPS (BOTTOM) No. 1 Vertical electro-spindle ETP-6 (power Kw 6) No. 1 Circular Grooving Saw (90° on X-Y axe) dia. mm 125 Godpfx Ajlkdpmefpskc No. 23 Vertical drilling spindles (power Kw 2.3) No. 5 Horizontal drilling spindles (4 in X + 1 in y)

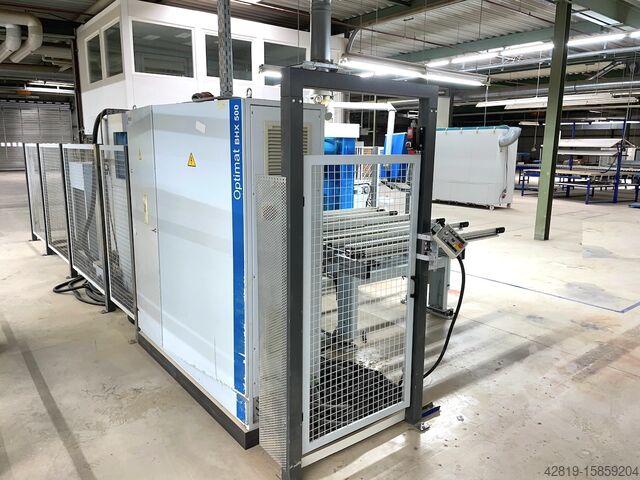

Condition: good (used), Year of construction: 2008, functionality: fully functional, Homag Weeke Optimat BHX 500 20KW Center Gsdpfxow A R Iqs Afpskc Machine in excellent condition Viewable in department 14 Dismantling, loading, and transport at buyer's expense

Condition: excellent (used), Year of construction: 2008, Machining center Manufacturer: Weeke Type: BHX 500 Year of manufacture: 2008 machining dimension X: 2.500 mm machining dimension Y: 1.300 mm Machining dimension Z: 4 - 80 mm Number of milling units. 2 Number of drilling units: 2 Drilling spindles vertical: 72 drilling spindles horizontal X: 16 drilling spindles horizontal Y: 4 grooving saw: 90° tiltable speed X-axis: 130 m/min Gedpfxjh E Sghj Afpjkc speed Y-axis: 80 m/min speed Z1-axis: 50 m/min speed Z2 axis: 27 m/min Speed: 18.000 rpm Disassembled - directly available

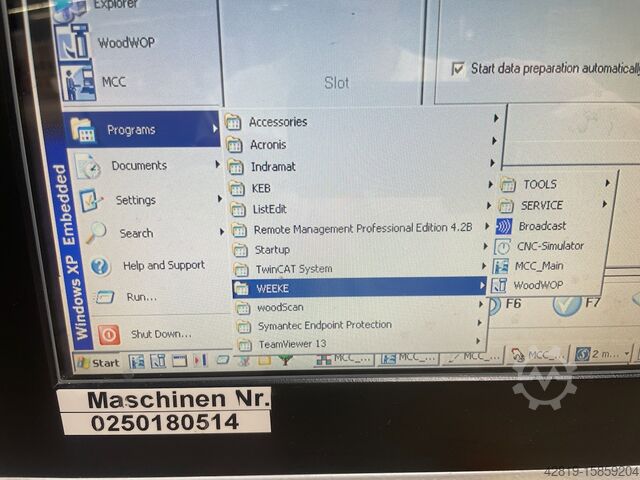

Condition: excellent (used), Year of construction: 2007, operating hours: 23,983 h, functionality: fully functional, workpiece length (max.): 2,500 mm, workpiece width (max.): 1,000 mm, workpiece height (max.): 80 mm, spindle speed (max.): 7,500 rpm, TECHNICAL DETAILS Workpiece length: 200 – 2,500 mm Gsdpswi Inzefx Afpskc Workpiece width: 70 – 1,000 mm Workpiece thickness: 4 – 80 mm Power and Operation Operating power: 21 kW Software: WoodWop 4.5 Speeds Rapid traverse X-axis: 130 m/min Rapid traverse Y-axis: 80 m/min Rapid traverse Z-axis: 50 m/min Spindle Spindle speed: 1,500 – 7,500 rpm Compressed air and extraction Compressed air requirement: 7 bar Dust extraction: approx. 4,450 m³/h MACHINE DETAILS Dimensions (L x W x H): approx. 7,300 x 3,700 x 2,100 mm Weight: 5.5 t Operating hours: 23,983 h Workpiece counter: 102,199 pieces

Condition: used, machine/vehicle number: 005990, X axis working area: 2500 mm Gsdpfx Afjwuclfepekc Y axis working area: 1000 mm Main Electrospindle power: 6 KW Number of controlled axes: 3 axes Total number of drilling spindles: 92

Year of construction: 2007, condition: excellent (used), Used CNC machining center incl. hedgehog buffer Manufacturer: Weeke Type: Optimat BHX 500 year of construction 2007 Technical data: Workpiece length min. - max. mm 200 - 2500 workpiece width min. - max. mm 70 - 1000 workpiece thickness min. - max. mm 4 - 80 Workpiece stacking max. pcs. 2 Configuration 2V36, 2H8X/2Y, N2 X-Y 90, F2-ETP-6 KW Drilling spindles vertical per side, pcs. 36 Drilling spindles horizontal per side, in X-direction 8 Drilling spindles horizontal per side, in Y-direction 2 Gkedpsiy Di Isfx Afpec Grooving saw X-Y swiveling 90°, per side YES Milling spindle, per side, kW 6 Integrated options - Extension package vertical drilling spindles - Insertion table with automatic workpiece feeding and positioning - Length measurement in the machine - barcode software - Hedgehog buffer (description below) Technical data hedgehog buffer Number of buffer places 30 Workpiece dimensions length 250 - 3000 mm width 100 - 1000 mm Thickness 12 - 80 mm Length over all Approx. 5700 mm Useful width Approx. 2000 mm Takeover height Approx. 950 mm Pick-up height / document height Approx. 1120 mm Pitch Approx. 125 mm
