Angular window machining center

WEINIG Unicontrol 10

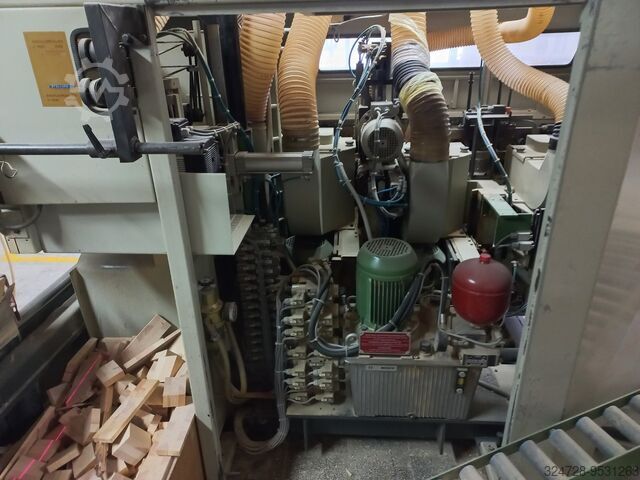

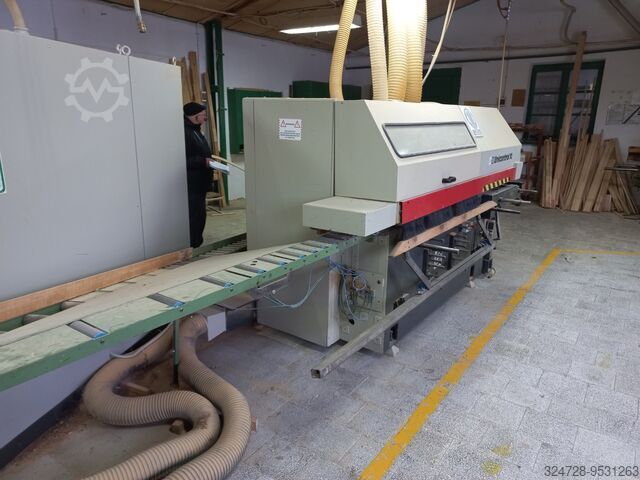

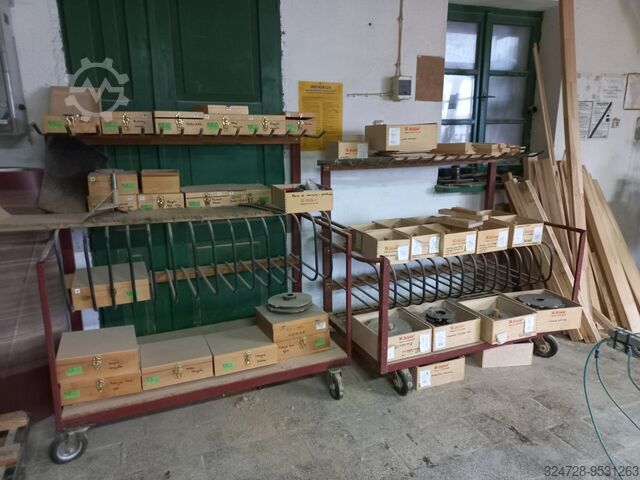

Condition: used, Year of construction: 1988, operating hours: 2,506 h, functionality: fully functional, machine/vehicle number: 032-230, We are offering this Unicontrol 10 window manufacturing machine from Michael Wenig AG. It is in used condition but fully functional. Year of manufacture: 1988, Machine No. 032-230 Including control cabinet! Bjdpfszx Emdsx Aqwell Comes with three complete sets of Leitz tools: - IV68 reversible cutting tool with standard profile - IV68 cornice profile for historic buildings - Tools for wood and aluminum windows The following tools are available (as shown in the pictures): 1x straight cutter, vertical and 1x horizontal 1x straight frame cutter, horizontal 1x tenon cutter, vertical, bottom and 1x top 1x cornice profile cutter, horizontal 1x tenon cutter, vertical 7 straight cutters 1x milling head frame, left/right/ top 1x milling head frame, bottom 1x milling head cutter, left/right/ top 1x milling head cutter, 2-wing, vertical 1x milling head cutter, bottom 1x milling head cutter, aluminum, for clipping 1x frame milling head, aluminum, for clipping 1x glass bead cutter, profile, standard 1x glass bead cutter, profile, cornice 1x roller shutter bead cutter It was decommissioned due to lack of space. Further information available upon request. Stored in a weatherproof location in 96231 Bad Staffelstein - Uetzing. Collection at your own expense, including loading. We are happy to help, but due to the weight and the necessary loading equipment, we cannot take over the loading and transport and cannot provide any warranty. Price upon request. Private sale. Old, used machine. No warranty, return, or guarantee claims.

Condition: used, Year of construction: 2000, Storage location: Nattheim Bledpfx Aqjvwdmwowjl

Condition: used, Year of construction: 1998, Window manufacturing system Manufacturer: Weinig Type: Unicontrol 10-5 Year of manufacture: 1998 Technical data Working width: 40 - 220 mm Working height, longitudinal machining: 40 - 100 mm Working height, transverse machining: 40 - 100 mm (80 mm counterpiece height) Workpiece length, longitudinal machining: min. 220 mm + 2 x tenon length Workpiece length, transverse machining: min. 275 mm + 1 x tenon length at 320 mm tool diameter Feed (transverse machining) Motor power: 0.3 kW Feed speed: 3 - 25 m/min Workpiece clamping: by means of 2 clamping jaws Length stop: with scale and magnifying glass for frame or sash outer dimensions Counterpiece: pneumatically controlled - 4 positions - (not for studio windows) up to a wood height of max. 80 mm Double part package: For single or double part feeding. With transverse separation and retention system 1. Wood (lying against the stop) Wood width: 55 - 90 mm 2. Wood Wood width: 130 mm Feed (longitudinal machining) Motor power: 2.2 kW Feed speed: 4 - 18 m/min (continuously variable via frequency converter) Feed roller spacing: 100/120 mm Feed roller width: 30/50 mm Feed roller diameter: 95 mm Machining units Cut-off saw Motor power: 3 kW Spindle diameter: 40 mm Spindle speed: 2800 rpm Tool circle diameter: max. 400 mm Adjustment, axial: pneumatically controlled against a 4-position turret 1. Tenon and mortise spindle Motor power: 11 kW Spindle diameter: 50 mm Spindle speed: 3250 rpm Tool circle diameter: max. 320 mm Tool clamping length: 320 mm Adjustment, axial: 240 mm Number of tools: 4 x 80 mm Axial adjustment: hydraulic 1. Profiling spindle Motor power: 11 kW Spindle diameter: 50 mm Spindle speed: 6000 rpm Tool diameter: max. 232 mm Tool zero circle diameter: 130 to 140 mm Tool clamping length: 320 mm Adjustment, axial/radial: 240/80 mm Number of tool positions: 4 x 80 Axial adjustment: hydraulic 2. Profiling spindle Motor power: 11 kW Spindle diameter: 50 mm Spindle speed: 6000 rpm Tool diameter: max. 232 mm Tool zero circle diameter: 130 to 140 mm Tool clamping length: 320 mm Adjustment, axial/radial: 240/80 mm Number of tool positions: 4 x 80 mm Axial adjustment: hydraulic 2 Mechanical spindle brake for profiling spindle 3 Mechanical spindle brake for cut-off saw and profiling and sawing units Profiling milling unit (horizontal, top) before the last profiling spindle radially controlled to 2 positions axially controlled to 2 positions Motor power: 3 kW Spindle diameter: 40 mm Spindle speed: 5850 rpm Tool circle diameter: 130 mm Tool clamping length: 40 mm Adjustment, axial: 52 mm Adjustment, radial: 125 mm Profiling milling unit (vertical, right) at the end of the machine radially controlled to 2 positions axially controlled to 2 positions Motor power: 3 kW Spindle diameter: 40 mm Spindle speed: 5850 rpm Tool circle diameter: 210 mm Tool clamping length: 160 mm Adjustment, axial: 90 mm Adjustment, radial: 100 mm Length, tenon and mortise spindle with 640 mm tool clamping length (instead of 320 mm spindle) Motor power: 15 kW Spindle speed: 2925 rpm Number of tool positions: 8 x 80 mm Adjustment, axial: 560 mm Laser alignment light for cut-off saw for detecting the section Studio window configuration Swiveling length stop +/- 60 with electronic digital display and pneumatic clamping Sliding counter rail Bljdpfezuyxgjx Aqwsl Special pressure pad for angled part production Limitation: Wood thickness max. 120 mm At -60 position: Workpiece width max. 110 mm with 80 mm tenon length, or max. 150 mm with counter profili

Year of construction: 1998, condition: ready for operation (used), An angular system for Weinig window and door production is available. Max. tool outside diameter: 320mm, max. tool flight circle: 232mm, slotted spindle length: 640mm, profiling and synchronized spindle length: 285mm-320mm, control: Siemens WS400. Including complete tooling and style window. Documentation available. Bledpfx Ajtq U A Ioqwjl

Condition: ready for operation (used), Year of construction: 1997, travel distance X-axis: 3,000 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 142 mm, controller manufacturer: SIEMENS, controller model: WS 400-20, CNC processing center manufactured in 1997. This WEINIG / DIMTER Unicontrol 10 features a maximum workpiece length of 3,600 mm and a maximum workpiece height of 100 mm. It includes a powerful cross-cut saw with a spindle speed of up to 3,000 rpm and a tenoning spindle motor power of 15 kW. If you are looking to get high-quality CNC processing capabilities, consider the WEINIG / DIMTER Unicontrol 10 machine we have for sale. Contact us for further details. • Max. workpiece height: 100 mm Bedpfjzug Nrex Aqwoll • Min. workpiece height: 40 mm • Min. workpiece width: 40 mm • Max. workpiece width: 140 mm • Max. workpiece length with CNC stop: 3,500–3,600 mm • X-axis stroke: 3,000–3,500 mm (version dependent) • Cross-cut saw motor power: 3.7 kW • Cross-cut saw spindle speed: 2,800–3,000 rpm • Cross-cut saw max. tool diameter: 400 mm • Cross-cut saw spindle diameter: 40 mm • Tenoning/slotting spindle quantity: 2 pcs • Tenoning spindle diameter: 50 mm • Tenoning spindle clamping length: 400–640 mm • Tenoning spindle max. tool diameter: 400 mm • Tenoning spindle motor power 1: 11 kW • Tenoning spindle motor power 2: 15 kW • Tenoning spindle speed: 2,900–3,250 rpm • Profiling spindle quantity (vertical): 2–3 pcs • Profiling spindle diameter: 50 mm • Profiling spindle clamping length: 320–400 mm • Profiling spindle max. tool diameter (flight circle): 232 mm • Profiling spindle motor power: 11 kW (each) • Profiling spindle speed: 6,000 rpm • Horizontal profiling unit (top) motor power: 3 kW • Horizontal profiling unit spindle diameter: 40 mm • Horizontal profiling unit max. tool diameter: 130 mm • Horizontal profiling unit speed: 5,850 rpm

Condition: used, Weinig Unicontrol 10 (UC 10) mitre saw system for the manufacture of windows, components and doors. Suitable for frame-by-frame, batch or individual part production, with 2 tenoning and slotting spindles, including an Oertli tool set Units: 1. Cross-cut saw, NC axis, 3 kW, ø 40 mm, 2,800 rpm 2. First tenoning and slotting spindle, NC axis, ø 50 mm, 15 kW, Bjdoztv Diepfx Aqwoll Technical data: - Clamping length: 640 mm (8 x 80) mm

Condition: used, Second-hand control cabinet, a Weinig Unicontrol 10, suitable for use as a source of spare parts or for building a new control cabinet. Bodpfxoztvt Ds Aqwjll Contents include, amongst other things: Siemens Simatic S5 Siemens EMG 45

Condition: reconditioned (used), Tenoning spindle 1 St Number of milling agregates 4 St. Spindle diameter 50 mm Control Weinig, PC-Nexus Weinig Unicontrol 10 CNC - Spindles radially and axially CNC-controlled ----- The machine was factory overhauled by Weinig in 2024. The control panel was also upgraded to a Siemens S 7 677 C, with a new membrane panel "Touch". With the following machining units: Crosscut saw ----- with laser alignment light, motor power 3 kW, spindle diameter 40 mm, spindle speed 3,000 Axially adjustable via NC axis Radial pneumatic adjustment to 8 positions for edge rounding from above Unit from below for edge rounding ----- Axially adjustable with crosscut saw Tenon and slotting spindle ----- Motor power 15 kW Spindle diameter 50 mm Spindle speed 2,925 rpm Tool travel radius min. 380, max. 400 mm Tool clamping length 640 mm Axially adjustable CNC axis Axially adjustable travel 580 mm Adjustment speed 100 mm/sec. 1. Profile spindle (up- and down-rotation) ----- Motor power 11 kW Spindle diameter 50 mm Spindle speed 6,000 rpm Tool clamping length 400 mm with counter bearing Axially and radially adjustable via CNC axis 2. Profile spindle ----- Motor power 11 kW Spindle diameter 50 mm Spindle speed 6,000 rpm Tool clamping length 400 mm with counter bearing Axially and radially adjustable via CNC axis Profile milling unit horizontally mounted on top ----- Motor power 3 kW Spindle diameter 40 mm Spindle speed 9,000 rpm Pneumatically adjustable to 8 axial and radial positions Profile milling unit vertically mounted on the right side Machine end ----- Bedpfexpi Duex Aqwsll Motor power 3 kW Spindle diameter 40 mm Spindle speed 5,850 rpm Pneumatic adjustment to 8 axial and radial positions Additional accessories ----- CNC-controlled length stop, mounted on the slotting table for lengths up to 3,500 mm, including a positioned cross-cutting saw integrated into the control system. Studio window device, pivots 60° on both sides Double-part package with automatic separation and transfer Synchronization device with automatic window rebating Rebating carriage for rebating small sash widths Air conditioning unit in the control cabinet PC control NEXUS Automatic turning system Slat conveyor, including conveyor belt for returning the workpieces to the operator (Technical specifications according to the manufacturer - without guarantee).

Condition: used, Tenoning spindle 2 Stk. Number of milling agregates 5 St. Spindle diameter 50 mm Control Weinig, PC-Nexus Weinig Unicontrol 10 NC Window System — Optional: Extensive Tooling Set ----- Optionally available (at an additional cost): IV 68 Wood, Wood/Aluminum IV 78 Wood, Wood/Aluminum IV 68 Entrance Doors Manufacturer's Technical Description: ----- Item 1: Weinig Unicontrol 10 NC Window System ----- Cross-cut Saw ----- with laser alignment light; motor power: 3 kW; spindle diameter: 40 mm; spindle speed: electronically variable (with brake) from 3,000 to 6,000 rpm. Max. tool cutting circle: 400 mm Axial adjustment: 150 mm via NC axis Radial adjustment: pneumatic, to 8 positions for top edge rounding Horizontal bottom rounding unit ----- Axial adjustment travel: mechanically coupled with cut-off saw 1st Tenoning and Slotting Spindle ----- Motor power (with brake): 15 kW Spindle diameter: 50 mm Spindle speed: 2,925 rpm Max. tool cutting circle: 400 mm Tool clamping length: 640 mm Axial adjustment travel: NC axis Home position (below table): 5–10 mm Radial adjustment travel: fixed 2nd Tenoning and Slotting Spindle ----- Motor power (with brake): 11 kW Spindle diameter: 50 mm Spindle speed: 2,925 rpm Max. tool cutting circle: 400 mm Tool clamping length: 320 mm Axial adjustment travel: NC axis Radial adjustment travel: NC axis Home position (below table): 5–10 mm 1st Profiling Spindle (Climb and Conventional Milling) ----- Motor power (with brake): 11 kW Spindle diameter: 50 mm Spindle speed: 6,000 rpm Tool cutting circle: 140 mm Max. tool diameter: 232 mm Tool clamping length: 400 mm (with outboard bearing) Axial adjustment travel: 350 mm (NC axis) Radial adjustment travel: NC axis Home position (below table): 5–10 mm 2nd Profiling Spindle ----- Bodpfx Aqszawizowell Motor power: 11 kW Spindle diameter: 50 mm Spindle speed: 6,000 rpm Tool cutting circle: 140 mm Max. tool diameter: 232 mm Tool clamping length: 400 mm (with outboard bearing) Axial adjustment travel: 350 mm (NC axis) Radial adjustment travel: NC axis Home position (below table): 5–10 mm Horizontal Profiling Unit (Top) ----- Motor power (with brake): 3.0 kW Spindle diameter: 40 mm Clamping length: 40 mm Spindle speed: 5,850 rpm Max. tool cutting circle: 130 mm Pneumatic adjustment: 8 positions (axial and radial) 3rd Profiling Spindle ----- Motor power: 11 kW Spindle diameter: 50 mm Spindle speed: 6,000 rpm Tool cutting circle: 140 mm Max. tool diameter: 232 mm Tool clamping length: 400 mm (with outboard bearing) Axial adjustment travel: 350 mm (NC axis) Radial adjustment travel: NC axis Home position (below table): 5–10 mm Vertical Profiling Unit (Right, at Machine End) ----- Motor power (with brake): 3.0 kW Spindle diameter: 40 mm Clamping length: 160 ...

Condition: excellent (used), Year of construction: 1998, I sell the window production set: 1pc. tenoning profiling centre Weinig Unitec 10 1pc. profiling automat centre Weinig Univar 10 Bjdpofzzhysfx Aqwsll Year 1998. Moulding heads OERTLI. Available immediately. Total price 17.000 euro. Condition very good !
