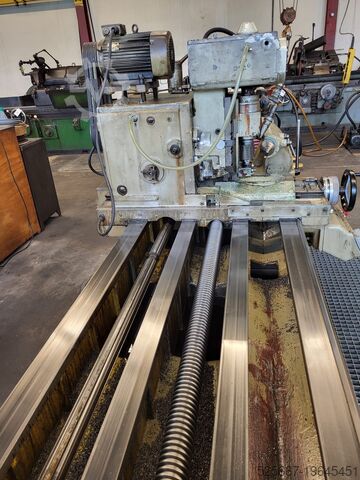

Horizontal gear hobbing machine

WMW HECKERT ZFWVG 250x2000

Condition: used, Technical details: center height over bed: 260 mm workpiece dia. over bed: 500 mm workpiece dia. over support: 250 mm hobbing length: 2000 mm Fpsdpov U T Dysfx Agmsb number of teeth: 2 - 50 feed:: 0,023 - 5,17 / mm/min module max. : 8 / 12 spindle bore diameter: 102 mm workpiece rpm : 18 - 224 U/min tailstock quill adjustment: 100 mm total power requirement: 9,5 kW weight of the machine ca.: 5,2 t dimension machine xH: 3,6 x 2,1 x 2,0 m

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, Reishauer RZ 362A with approx. 60 sets of diamond wheels Grinding worm dimensions: Min/Max. outside diameter: 280/350 mm Width: 84/104 mm Max. module with restrictions: MOD 8.0 (DP 3.2) Number of starts: with restrictions up to 3 Max. usable width (axial shift): 90 mm For detailed technical information, please refer to the attached PDF file. Accessories: Dressing device Approx. 60 sets of diamond wheels Grinding stones Turbo separator Fedpfoxb Ufujx Agmjpb

Condition: excellent (used), functionality: fully functional, machine/vehicle number: 2623, workpiece weight (max.): 4,200 kg, WMW Heckert Horizontal Thread Milling Machine Model: ZFWVG 250 x 2000 Very good mechanical condition, located in Rostock This machine is a highly versatile universal horizontal gear hobbing machine. It can be inspected under power for a short period. The machine is equipped with a differential mechanism and a large selection of miscellaneous tooling and features. It conforms to the following technical specifications: Fpjdpfxox R Efye Agmob General machine specifications: - Max. workpiece diameter: 20" / 500 mm - Max. cutting length: 80" / 2000 mm - Max. center distance (chuck face to tailstock): 86" (approx. 2180 mm) - Module range: 3 – 12 module - Max. hob diameter x length: 5.5" x 4.5" (140 x 115 mm) - Max. hob swivel: 180° (±90°) - Minimum number of teeth: 2 - Work spindle bore: 4" / 102 mm - Hob spindle speed range: 45 – 900 RPM - Electrical system: 220 Volt - Machine weight: approx. 18,000 lbs (8,165 kg) - Machine dimensions (L x W x H): 160" x 98" x 63" (4060 x 2490 x 1600 mm) The machine is equipped with: - Differential mechanism for cutting helical gears - 12" diameter 3-jaw chuck - Tailstock with pinion support - Coolant and oil return pumps - Automatic forced lubrication system - Large assortment of change gears - Miscellaneous tooling - Manuals and electrical documentation Further details and inspection upon request.

Condition: excellent (used), workpiece diameter 10 - 250 mm threading length 900 mm thread pitch 0,3 - 100 mm spindle turning speed range 72 / 1700 - 2540 U/min relief of the tap 0,03 - 8 mm clamping length max. 1190 mm max. module 10 workpiece turning speeds 0,4 - 160 U/min total power requirement 13 kW weight of the machine ca. 7,4 t dimensions of the machine ca. 4,5 x 2,0 x 2,1 m Many accessories. Fodpfx Agow Rrhgsmepb

Condition: ready for operation (used), Workpiece diameter range: 2mm-320mm, max. grinding length: 500mm, center distance: 1000mm, max. workpiece weight: 150kg. On-site inspection is possible. Fodpfx Agswmqxwemjpb

Condition: good (used), Year of construction: 1985, functionality: fully functional, total height: 3,300 mm, drilling capacity: 60 mm, total width: 2,100 mm, total length: 900 mm, spindle speed (max.): 1,200 rpm, spindle speed (min.): 20 rpm, spindle mount: MK 5, clearance between the columns: 1,100 mm, overall weight: 3,000 kg, spindle stroke: 400 mm, height adjustment type: mechanical, Radial drill BR 40/2 x 1250. Prod. Heckert (GER). Year 1985. Max drilling diameter in steel (mm) - 60 mm Max threading diameter in steel - M24 Max workpiece height - 1100 mm Spindle stroke - 400 mm Arm length - 1250 mm Arm rotation - 360 Drill attachment - MK5 Rotation speed range (rpm) - 20-1200 rpm Fjdpswazbvjfx Agmjpb Feed range - 0.063-0.63 mm/rev Base plate mounting surface - 1400 x 800 mm Table dimensions - 650 x 650 x 500 mm Machine dimensions width x depth x height - 2100 x 900 x 3300 mm Motor power - 3.7 kW Weight - 3 tons
