Vertical Turning Lathe

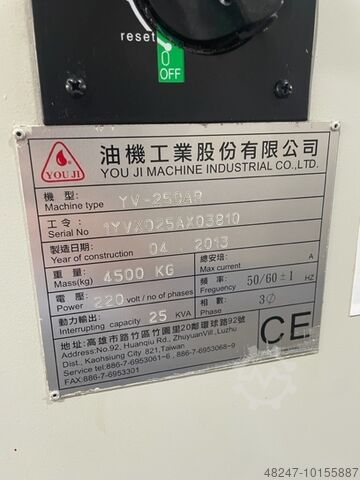

YOU JI YV-250A

Condition: good (used), Manufacturer ESTARTA Model 301 MV Condition Used Stock number 4576 Location Badajoz, Spain Dimensions 1520x1020x1260mm Weight 1550 kg Opening between grinding wheels 1,5/50mm Max. grinding wheel width in plunge grinding plunge 125mm Dimensions of the working wheel (od x id x width) 300x125x175mm Øext.min. working wheel working wheel 220mm Max. depth of profile of working profile depth 8mm Dimensions of the driving wheel (od x id x width) 220x125x125mm Øext.min. of driving wheel drive wheel 165mm Max. depth of profile of the driving wheel profile depth 8mm Grinding wheel motor power motor power 7,5Kw Kjdpfer Ezfpex Ahuedg Motor power of grinding wheel driving motor power 0.75Kw Tilting angle angle of working working +/- 5º

Condition: good (used), Year of construction: 1997, TBT ML 200-2-850 deep hole drilling machine TECHNICAL DATA Type: M200-2-850 Number of spindles: 2 Drill carriage stroke: 850 mm Drilling method: Single-lip drilling Drilling depth with: Submersible spindle: 120 mm Sealing housing: 400 mm Sealing housing with bezel: 350 mm Spindle drive Power: 2 / 3.5 / 1.5 kW Kdedpfx Aevca Rcjhujg Voltage: 140 / 350 / 350 V Speed: 14 / 11 / 6 / A Feed - own drive Feed speed: 20 - 500 mm/min Rapid traverse speed NC operation: 12 m/min Feed force: 1.5 kN Motor power: 2.2 Nm at 3000 rpm Clamping tailstock Motor power: 0.75 kW at 1000 rpm Spindle speed: 500 rpm Stroke max: 200 mm Main dimensions L x W x H: 4600 x 2500 x 2100 mm Transport weight: 3200 kg Control: Sinumerik 805 M No liability is assumed for the correctness, completeness and up-to-dateness of the information provided

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm max. module: 5 module min. : 0,5 max. workpiece weight: 60 kg weight of the machine ca.: 4,0 t dimensions of machine: 1800x1850x2500 mm dimensions electric cabinet: Nr. 1: 1930x400x1920 mm dimensions electric cabinet: Nr. 2: 800x230x1950 mm dimensions:: Abluftanlage: 1400x700x560 mm dimension cooling device LxWxH: 1,2 x 1,0 x 0,45 m Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 77x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. * Kdedpfjvc Apbox Ahujg

Condition: used, TECHNICAL DETAILS - Pulling force : 80 [kN] - Max. broaching stroke : 1250 [mm] - Max. feed stroke : 500 [mm] - Spindle lengths : 650 - 1400 [mm] Kedpfou E U R Tsx Ahujdg - Table width : 400 [mm] - Broaching speed : 1 - 10 [m/min] - Return stroke speed : 1 - 15 [m/min] - Installed power : 25 [kW] - Machine weight : 4300 [kg]

Year of construction: 1965, condition: used, machine/vehicle number: 2112, Color: green Force: 2,5 to Stroke: 1000mm Weight: 1,2 to Kdjdpfxjbrclvj Ahuog 3 KW Area required: appr. 140 x 130 cm

Condition: excellent (used), Year of construction: 2004, Technical Specifications – ZS 130 T Gearwheel Shaving Machine Gear Specifications: * Gear diameter: 20 – 145 mm * Tooth width: 40 – 45 mm * Module range: 1.25 – 3.5 Working Area: * Swivel range of the shaving head: -23° to +90° * Taper adjustment (B-axis): +2° / -2° * Horizontal adjustment (X-axis travel): 160 mm * Swivel range of rotary table (E-axis): ±20° * Input resolution for all NC axes: 0.001 mm / degree Kedpekwc Tfofx Ahuodg Slide Travel (Z-Axis): * Travel range (Z-axis): 300 mm * Input resolution: 0.001 mm Shaving Cutter Dimensions: * Outer diameter: 230 – 256 mm * Bore diameter: 63.5 – 100 mm * Shaving cutter width: 50.8 – 0.2 mm Workpiece Parameters: * Outer diameter: 20 – 145 mm * Module: 1.25 – 3.5 * Gear width: up to 40 mm Rotational Speeds: * Tool spindle speed (infinitely adjustable): up to 600 rpm * Workpiece speed (machining): up to 3000 rpm * Workpiece speed (spin): up to 4500 rpm Feed Rates: * A-axis: up to 3.3 rpm * B-axis: up to 0.5 rpm * C0-axis: up to 60 rpm * X-axis feed: 10 – 10,000 mm/min * Z-axis feed: 10 – 10,000 mm/min Machine Weight: * Approx. 5,600 kg --- Machine Description: The ZS 130 T is a high-performance gearwheel shaving machine designed for the precise finishing of cylindrical gears after hobbing or shaping. Shaving is a crucial process in gear manufacturing, used to correct profile and lead deviations and to improve surface finish, ensuring quiet operation and extended gear life. This machine is capable of processing gears with modules from 1.25 to 3.5 and diameters up to 145 mm. With its CNC-controlled axes and flexible swivel and taper adjustment capabilities, the ZS 130 T allows for a wide range of gear geometries and high production efficiency. The machine is ideal for manufacturers requiring high precision, consistency, and productivity in gear finishing processes. Typical Applications: * Finishing of gears for automotive transmissions and gearboxes * Shaving of helical and spur gears * Volume production in automotive and industrial gear manufacturing * Correction of tooth profile and lead errors before heat treatment The ZS 130 T combines robust construction, high-speed capability, and flexible adjustment options, making it a reliable solution for demanding gear shaving applications.

Condition: used, Year of construction: 2005, Reishauer RZ150 gear grinding machine Kdjdoxz E Srjpfx Ahuog

Condition: used, Year of construction: 1988, max. wheel diameter 150 mm gear width . mm max. module 5 min. module 0,5 Control . total power requirement . kW weight of the machine ca. 10.000 t dimensions of the machine ca. 6500 × 2700× 3600 m Kedpfewhq Eaex Ahuedg

Condition: used, Year of construction: 2002, max. wheel diameter 125 mm max. module 3 max. width of spur-gears 24 mm Control SINUMERIK 840 D table diameter 145 mm table hole 80 mm rotary table speeds infinitely variable 0,03 - 50 U/min Distance of shafts -25 bis +180 mm pivoting angle 12 Grad ical angle 45 ° number of strokes (double strokes) 1.500 - 3.000 DH/min work spindle speeds min./max. U/min stroke position adjustment 70 mm length of stroke min./max. 0 - 30 mm work-spindle diameter 85 mm taper of shaper cutter HSK 80 B power capacity 7,5 kW total power requirement 30 KVA weight of the machine ca. 8 t dimensions of the machine ca. 4,3 x 2,8 x 2,9 m Tool: number of teeth = 1 - 200 module min. 0.05 Workpiece: number of teeth = 1 - 1500 module min. 0.05 Counter holder rotatable with 4 positions Automatic workpiece changing device Ksdpfx Ahsvxwx Nouodg Linear workpiece conveyor

Condition: used, Year of construction: 1989, max. wheel diameter 150 mm Kdsdpfx Ajwhq Egshujg max. module 5 min. module 0,5 weight of the machine ca. 10.000 kg dimensions of the machine ca. 6500x 2700x 3600 m
