1 x 120 m³ aluminum silo / storage silo

Zeppelin

Aluminum silo standing on foot ring (plastic granulate (PP) storage silo) - second-hand - designed for a bulk density of 0.8 kg/dm³

Volume: 120,000 liters
Available quantity: 1
Diameter: approx. 3,000 mm
Cylindrical height: approx. 20,000 mm
Total height: approx. 21,250 mm (incl. 1,250 mm roof edge railing)
Material: AlMg3
Bulk density: 0.8 kg/dm³
Roof pitch of the upper floor: 15°

Equipment and connections:

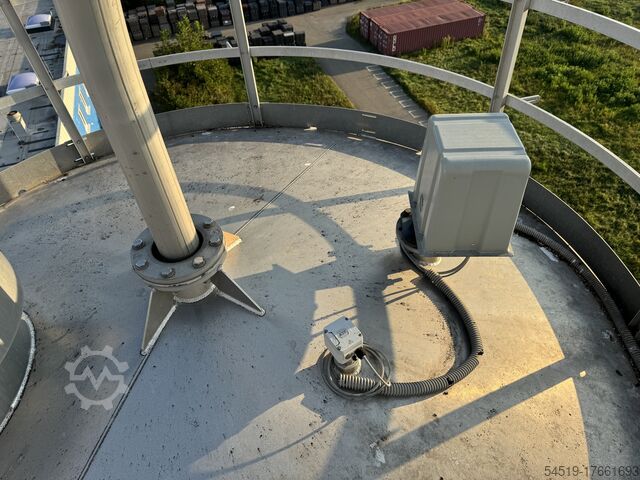

In the top floor:

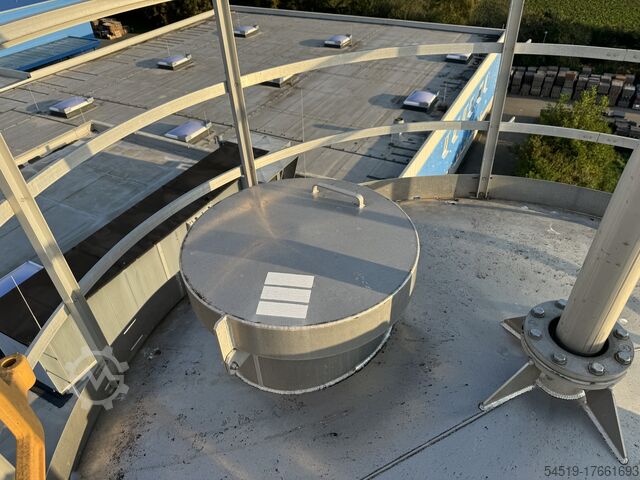

1 x DN 600 access and ventilation opening with cover
2 x flange DN 100 (filling spout + Silopilot)
1 x 1 1/2" threaded socket (full detector)
1 x roof edge railing with handrail
2 x crane eyes

In the shell:
1 x access door 850 x 1800 mm
9 x pipe holder ø 108 mm for filling pipe
1 x DN 100 filling pipe, ending in TW connection at the bottom
1 x cable protection pipe DN 50
Various pipe penetrations in the area of the lower standing frame

The silo has a 60° cone at the bottom, which ends in a DN 500 flange.

On the underside/cone:
1 x suction cost
1 x 1 x 1 1/2" threaded socket (empty indicator)

The currently connected measurement and control technology is included in the above offer. However, no warranty is given for their
Guedpeu I U D Ssfx Afpjh
warranty is assumed!

A three-part access ladder with back protection is optionally available (surcharge: € 1,950)

Otherwise as per pictures and drawing.
