5-axis machining center
+GF+ MIKRON HPM 1350U

Name: +GF+ MIKRON HPM 1350U
Brand: +GF+
Availability: InStock

Year of construction

2009

Condition

Used

Location

Mittweida

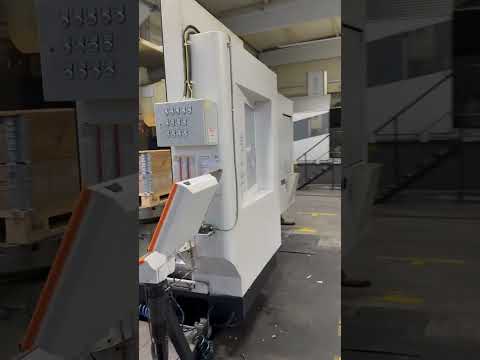

5-axis machining center +GF+ MIKRON HPM 1350U

Show map

Machine data

Machine type:: 5-axis machining center

Manufacturer:: +GF+

Model:: MIKRON HPM 1350U

Machine number:: 73136

Year of construction:: 2009

Condition:: used

Functionality:: unexamined

Price & Location

Location:: 09 Mittweida, Deutschland

Call

Technical details

Travel distance X-axis:: 1,350 mm

Travel distance Y-axis:: 1,150 mm

Travel distance Z-axis:: 720 mm

Nominal power (apparent):: 64 kVA

Controller manufacturer:: Heidenhain

Controller model:: iTNC 530

Total height:: 3,150 mm

Total length:: 5,605 mm

Total width:: 4,290 mm

Overall weight:: 12,600 kg

Spindle speed (min.):: 15,000 rpm

Operating hours of spindle:: 21,786 h

Number of slots in tool magazine:: 46

Equipment:: chip conveyor, documentation/manual, rotational speed infinitely variable

Details about the offer

Listing ID:: A207-16365

Reference number:: MPT-043

Update:: 11.02.2026

Description

+GF+ MIKRON HPM 1350U – 5-Axis Machining Center (Year of Manufacture 2009)

Gedpfxex Eh Iqs Aacoin
Used 5-axis milling machine MIKRON HPM 1350U from 2009. The machine is in operational condition and comes from ongoing production. Equipped with Heidenhain iTNC 530 control, rotary table Ø 1100 mm, 46-position tool magazine, and Renishaw OMP60 touch probe.

Operating Hours (Readout):
Control powered on: approx. 112,194 h
Machine powered on: approx. 72,272 h
Spindle running: approx. 21,786 h
Programs: approx. 21,654 h
Condition:
Used machine with normal signs of use, technically operational. Inspection under power possible by arrangement.

Work Areas
Travels:
X-axis: 1,350 mm
Y-axis: 1,150 mm
Z-axis: 720 mm (vertical spindle) / 895 mm (horizontal spindle)

Spindle
Standard spindle 15,000 rpm
Speed range: 0–15,000 rpm
Acceleration to max. speed: approx. 2.5 s
Power: 38 kW (S6 = 40% duty cycle, TS = 2 min)
Torque: 193 Nm (S6 = 40% duty cycle)
Tool holder: HSK-A63 (DIN 69063-1, option ISO-B40/DIN 69871)
Max. tool diameter: 130 mm (fully equipped)
Bearing: Ceramic hybrid Ø 70 / Cronidur steel
Lubrication: Lifetime lubricated
Cooling: Water-cooled with corrosion inhibitor

Feed Drives
Feed motors: AC
Rapid traverse / working feed:
32 m/min (20% duty cycle)
10 m/min (100% duty cycle)
max. 15 m/min (40% duty cycle/hour)
Position measuring systems X/Y/Z: Linear scales (direct)

Rotary Table
Clamping surface: Ø 1100 × 1000 mm, flattened on the side
Table load: 1,600 kg
T-slots: 8 × 18H12 + 1 alignment slot 18H7 (100 mm pitch)
Centering bore: Ø 50 H6
Clamping torque: 8,000 Nm
Max. mass moment of inertia: 75 kg·m²
Table elevation above floor: 1,120 mm
Table drive: Direct torque motor
Drive torque: 1,600 Nm (40% duty cycle, 2 min)
Swivel Axis (A-axis)
NC swivel range: +16° to −120°
Measuring system: direct, absolute
Clamping principle: hydraulic, stepless
Max. swivel speed: 4,000 °/min
Max. working swivel torque: 600 Nm (S6 40%)
Swivel time 0° → 90°: 0.9 s

Tool Magazine / Changer
46-position magazine (installed as per documentation)
Magazine positions: 46
Tool holder: HSK-A63 (DIN 69063-1), option ISO-B40
Max. tool diameter:
80 mm (fully loaded)
130 mm (partially loaded)
Max. tool length: 300 mm
Max. tool weight: 8 kg
Magazine loading: 200 kg
Tool change time (vertical): 11 s

Coolant / Chip Disposal
External coolant supply (AKZ): 40 l/min, 2.5 bar
Internal coolant supply (IKZ)

Electrical Data:
Installed rated power: 75 kW
Connection power: 58 kW
Connected load: 64 kVA
Control voltage: 24 V DC
Operating voltage: 3 × 400 V, 50 Hz
Protection class: IP54

Dimensions & Weight
Machine weight: approx. 12,600 kg (without accessories)
Required space (L × W × H): 5,605 × 4,290 × 3,150 mm

The listing was translated automatically. Translation errors are possible.
