Tool Room Milling Machine - Universal

DECKEL FP 1 Aktiv 3472

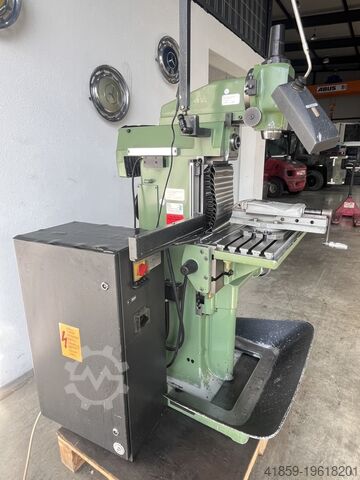

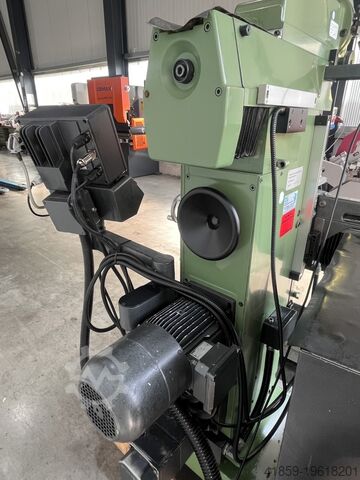

Condition: used, Universal Tool Milling Machine DECKEL Type FP 1 Machine No. 51265 Year of manufacture: approx. 1967 Travel paths X: 300 mm Y: 150 mm Z: 340 mm Table size 600 x 200 mm Spindle taper SK 40 - S20 x 2 Bedpeghtvaofx Afcocw Spindle speed 40–2000 rpm, 16 steps Motor power 1.0 and 1.6 kW, pole-changing Power supply 380 Volt, 50 Hz - Feed on X and Z axes - Spindle speed via 2 motor speeds and 8 gear steps - Quill movement at vertical milling head 60 mm - Swiveling, rotating, and tilting angle table - Coolant pump in machine base - Separate control cabinet Space requirements L x W x H 1100 x 1100 x 1600 mm Weight 690 kg In good condition

Condition: good (used), Please read the technical specifications in full. If you are considering the machine as an investment, we kindly request your complete identification, including a valid telephone number and email address, in order to provide you with an offer. DECKEL Tool Milling Machine FP 1 No. 2101 with HEIDENHAIN 3-axis digital readout Travel distances: X/Y/Z: 300 x 160 x 340 mm Manual adjustment of the milling head arm: 100 mm Expansion of working area to: 300 x 260 mm Bcodpfx Asxyc Tkofcsw Spindle speed vertical/horizontal: 40 – 2,000 rpm Number of gear stages: 16 Spindle taper: SK 40 Tool clamping: S20 x 2 (Deckel standard) Quill travel: 60 mm Feed X/Z-axis: 5 – 500 mm/min Feed adjustment: stepless Rapid traverse X/Z-axis: 1200 mm/min Feed Y-axis: manual Fixed angular table: 600 x 210 mm Swivelling vertical head: +/- 90 degrees Weight: 710 kg Dimensions: approx. 1250 x 1200 x 1850 mm Technical data are not binding! Features: - For horizontal machining, the milling head is swiveled by 90 degrees and pushed backwards. - 3-axis precision digital readout HEIDENHAIN - Stepless feed in X/Z axis - The machine underwent partial overhaul by a specialist company several years ago. Equipment: - 3-axis HEIDENHAIN digital readout - Micro-cooling spray unit - Fixed angular table - Chip tray - Machine lamp - Machine feet Further accessories available upon request! Condition: good to very good, from training workshop Available from March 2026

Condition: not inspected (used), Please see technical details on photo. Bcodpfx Afehvzxzecsw

Condition: ready for operation (used), travel distance X-axis: 300 mm, travel distance Y-axis: 160 mm, travel distance Z-axis: 340 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 40 rpm, position of the milling head: SK40, input voltage: 400 V, Deckel FP1 2 axis Active Displacements: X = 300 mm Y = 160 mm Z = 340 mm Speed 40-2000 Rpm Automatic feed and rapid traverse on the X, Y and Z axes. Continuously adjustable. Table dimensions 600 x 260 mm Bsdpjvuzg Ajfx Afcjcw 2 axes Active control, point-to-point control. 3 axis digital readout from Heidehain. Spindle mounting SK40 Deckel mounting (outside thread)

Condition: good (used), Year of construction: 1980, Table size 1300 x 355 mm Tool holder, vertical + horizontal ISO 50 Travel X-axis 1000 mm Y-axis 350 mm Z-axis 450 mm Vertical milling head, swiveling R + L Quill stroke 100 mm Speed range 22.4 – 1400 rpm Feed range 6.3 – 630 mm/min Rapid traverse 2.5 m/min Drive power approx. 5 kW Space requirement L x W x H 1900 x 1800 x 2100 mm Weight 3200 kg Bjdpfx Aovu Dv Tsfcjcw Accessories / Special features: • 3-axis digital display, make FAGOR • Swiveling vertical milling head (R-L) with quill adjustment 100 mm • Vertical and horizontal milling spindle ISO 50 • Milling spindle vertical + horizontal • Large Clamping table 1350 x 350 mm • Feed and rapid traverse in all axes • Wide, stable guideways • Central lubrication • Swiveling control panel • Coolant system • EMERGENCY STOP switch Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: excellent (used), functionality: fully functional, Weiler Primus lathe in excellent condition. Can be inspected under power. Technical data: Distance between centers: 450 mm Center height: 120 mm Spindle bore: 23 mm Spindle speed: 30 – 3000 rpm Tailstock: MK 2 Drive power: 1.5 kW Weight: 350 kg Dimensions: 1200 x 650 x 1550 mm Bcjdpfex Htf Hex Afcow Price reduced!

Year of construction: 1994, condition: ready for operation (used), Cutting force: 200kN, working width: 2500mm, cylinder width: 2600mm, cylinder diameter: 400mm, opening between the cylinders: 25-100mm, conveying speed: 11-44m/min, connected load: 7.5kW, weight: 3t, with documentation. Bodpfxoix Ahbs Afcscw

Condition: excellent (used), Please read the technical specifications in full. If the machine is of interest to you as an investment, we kindly request your complete identification including a correct telephone number and email address before submitting an offer. DECKEL Tool Milling Machine FP 1 No. 2101 with HEIDENHAIN 2-axis digital readout Travels: X/Y/Z: 300 x 160 x 340 mm Manual adjustment of milling head arm: 100 mm Extension of working area to: 300 x 260 mm Spindle speed, vertical/horizontal: 40 – 2,000 rpm Gear stages: 16 Spindle taper: SK 40 Tool clamping: S20 x 2 (Deckel standard) Quill travel: 60 mm Feed X/Z-axis: 5 – 500 mm/min Feed control: stepless Rapid traverse X/Z-axis: 1,200 mm/min Y-axis feed: manual Fixed angle table: 600 x 210 mm Vertical head swivels: +/- 90 degrees Weight: 710 kg Dimensions: approx. 1,250 x 1,200 x 1,850 mm Bodjxyc N Eepfx Afcecw Technical data subject to change! Features: - For horizontal machining, the milling head is swiveled by 90 degrees and pushed back. - 2-axis precision digital readout HEIDENHAIN POSITIP VRZ 719 - Stepless feed on X/Z-axis - The machine received a partial overhaul by a specialist company a few years ago. Equipment: - 2-axis digital readout HEIDENHAIN - Fixed angle table - Chip tray - Machine lamp - Machine feet Additional accessories available upon request! Condition: Good to very good from training facility Available from March 2026

Condition: used, Year of construction: 1976, x-travel 350 mm y-travel 150 mm z-travel 340 mm table surface area 600 x 210 mm spindle taper SK 40 spindle turning speed range 40 - 2000 U/min feeds 5 - 500 mm/min rapid traverse 1,2 m/min total power requirement 1,9 kW Bcsdewwwr Eopfx Afcew weight of the machine ca. 0,7 t - machine out of teaching shop - Accessories: solid table, vertical head with quill retraction, DRO on 3 axis HEIDENHAIN, various tool fixtures, various collets, original DECKEL tool cabinet

Condition: used, Year of construction: 1991, pressure 60 t throat 280 mm stroke 10 - 90 mm ram adjustment 60 mm no. of strokes 110 Hub/min table surface area 740 x 550 mm clamping plate 740 x 555 mm ram surface 380 x 200 mm daylight, max. stroke above - ram adjustment above 360 mm total power requirement 4 kW weight of the machine ca. 3,850 t dimensions of the machine ca. B 1,1 x T 1,6 x H 2,3 m - fixed table - clamping plate Bcodpfjv Az T Sjx Afcow - hydraulic clutch Ortlinghaus with additional brake - manual central lubrication Machine is partially overhauled in our company as follows: - disassembled, cleaned and completely technically inspected - new colour - shaft pulling, crack inspection, new seals - new control cabinet with touchscreen - current press inspection
