CNC Lathe

EMCO TURN 365/42

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: R6A N3602, turning length: 520 mm, turning diameter: 360 mm, overall weight: 3,800 kg, TECHNICAL DETAILS Turning diameter: 360 mm Turning length: 520 mm MACHINE DETAILS Total power requirement: 20 kW Ijdpfx Aexvrrueb Hotp Dimensions & Weight Required space: 3 x 2 x 2 m Machine weight: 3.8 t

Condition: excellent (used), Year of construction: 1994, Manual Plus control unit Turning diameter 260 mm Swing diameter 475 mm Center distance 1000 mm Turning length 880 mm Spindle speed 3,000 min-1 4-fold parat holder Itodst T T Uropfx Ab Hsp Tailstock

Condition: used, Year of construction: 2000, Technical details: turning diameter over bed: 600 mm turning dia. over face-slide: 260 mm turning length: 610 mm facing movement (x-axis): 160 mm longitudinal traverse (z-axis): 610 mm Iedpfou Ixwiex Ab Hotp control: Siemens 810D revolution per minute: 1 - 6300 steples U/min max. torque on the spindle: 86 Nm spindle passage: Ø 42 mm external spindle dia. in forward position: Ø 80 mm feed motor: X/Z: 5000 / 7000 N rapid motion - x-axis: X/Z: 16 / 20 m/min tool turret - number of stations: 12 / VDI 30 tailstock taper ISO: MK4 tailstock adjustment: 500 (Hub) mm Main spindle capacity: 7,5 (100%=11kW) kW electrics - voltage/frequency: 3/PE ~ 400V und 50/60Hz V/Hz total power requirement: 20 kVA (11 kW) Weight approx.: 4,0 t dimension machine xH: 3,0 x 2,0 x 2,1 m Further technical specifications: C-axis Distance main spindle - tailstock: 805 mm Power chuck Röhm Ø 160 mm (without jaws), speed 7,500 rpm. Tailstock with live center Coolant device, coolant supply via tool turret Switch cabinet with cooling, Rittal type SK3393100 Workpiece collecting tray Machine lighting Accessories: 1x driven tool i.D. *

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: R6AN3701, turning length: 520 mm, turning diameter: 360 mm, travel distance X-axis: 210 mm, travel distance Z-axis: 610 mm, rotational speed (max.): 6,300 rpm, total height: 1,872 mm, total length: 1,941 mm, total width: 3,074 mm, Equipment: rotational speed infinitely variable, TECHNICAL DETAILS Working Area Swing diameter over bed: 600 mm Swing diameter over cross slide: 360 mm Slide travel X/Z: 210 / 610 mm Distance main spindle – tailstock: 805 mm Max. workpiece size with tailstock: Ø160 x 520 mm Main Spindle Spindle interface according to DIN 55026: A5 Spindle external diameter at front bearing: Ø80 mm Through-hole hydraulic chuck with drawbar for workpieces up to: Ø160 mm Hollow clamping cylinder with drawtube max. passage: Ø45.5 mm Max. chuck size (spindle size Ø45): Ø160 mm Tailstock Internal taper: MT4 Tailstock travel: 500 mm Max. tailstock force (hydraulically controlled): 8,000 N Feed Drives Feed force X/Z: 5,000 / 7,000 N Rapid traverse speed X/Z: 24 / 24 m/min Acceleration time from 0 to rapid traverse X/Z: 0.2 s Positioning accuracy range X/Z/Z₂: 3 / 5 / 4 µm Main Spindle Drive AC motor power 100/40% duty cycle: 9 / 13 kW Speed range (stepless): 0-6,300 rpm Max. torque: 89 Nm MACHINE DETAILS Dimensions (W x D x H): 3074 mm x 1941 mm x 1872 mm Itsdpfx Aswxw H Sob Hjp

Condition: used, Year of construction: 1991, Mazak SQT 10MS lathe for sale. The machine is fully functional and in good condition. Technical specifications: Isdpfx Ajv Tbu Dob Hstp Max. turning diameter 230 mm Main spindle Speed range 35-6,000 rpm Main drive power 11 kW Secondary spindle Drive power 5.5 kW Speed range 180 - 6,000 rpm Indexing 72 positions/5 ° Tool turret Number of tool positions 12 Driven tools Speed range 120-3,000 rpm Drive power 2.2 kW Travel paths X-axis 160 mm Z-axis 455 mm B-axis 460 mm Travel speed Feed range X/Z-axis 0 - 5,000 mm/min C-axis 1 - 2,000 °/min Machine data (with standard equipment) Total connected load 43 kVA Machine weight, . 3,500 kg Machine dimensions (L x W x H), approx. 2.70 x 1.70 x 1.85 m Accessories Tool presetter (MAZAK Tool Eye System) C-axis Dual foot switch for opening/closing the chuck Chuck status feedback (open/closed) Front door lock Complete coolant system Work area lighting Documentation

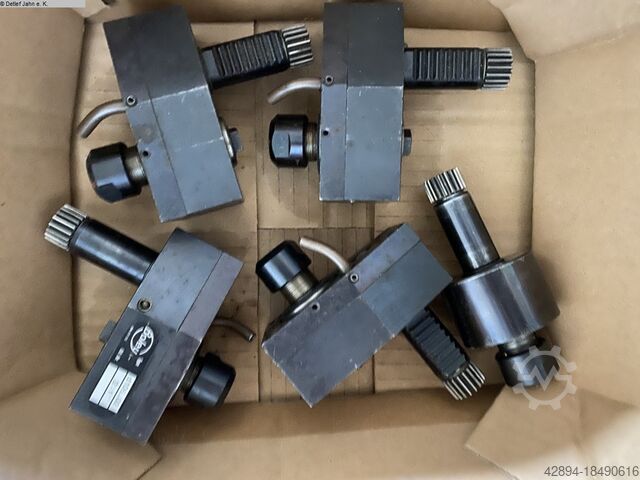

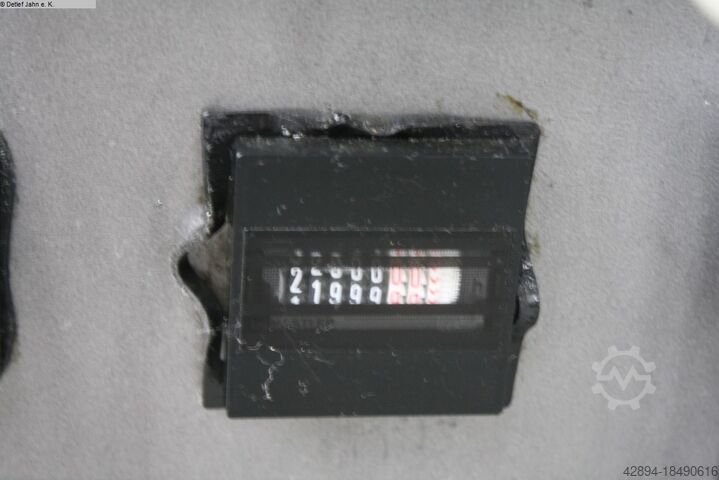

Condition: used, Year of construction: 2007, turning diameter 42 / 140 mm turning length 170 mm Iedpfevyli Ejx Ab Hetp control Mitsubishi Meldas turning speeds 80-8.000 U/min c-axis 0,001° turret (x-stations) 2x 12 (VDI 20) angetrieben turning speeds 45-4.500 U/min spindle 1 kW gripping station 42 mm turning speeds 60-6.000 U/min c-axis 0,001° number of controlled axis 8 collet unit 48 DIN 6343 . Number of working hours 10769 h chip conveyor ja/yes Bj. 2018 total power requirement 7,5 / 11 kW weight of the machine ca. 3,3 t dimensions of the machine ca. 2,4 x 1,6 x 2,2 m CNC turning and milling machine CITIZEN BOLEY BE 42, year 2007 Simultaneous working with 7 axes on main and pick-up spindle very good condition, operating hours 21.999h (September 2024) Accessories: # Various tool holders: 2x axial driven and numerous rigid tool holders 4x radiale driven tool holder # collet chuck for collets type 173E # additional coolant cooler # Knoll chip conveyor, year of construction 2018 The Boley BE 42 is without barloader. Loading magazine interface has been fitted.

Condition: used, Year of construction: 1998, turning diameter 570 mm turning length 2000 mm control Itjdpfxeugawfe Ab Hep total power requirement 15 kW weight of the machine ca. 3,5 t dimensions of the machine ca. m

Condition: used, CNC 3+2 axis vertical machining center DECKEL MAHO type DMU 35 M CNC control SIEMENS 810D with ShopMill Manufacturer no. 11065353554 Year of manufacture 2001 Travel paths: X: 350 mm, Y: 240 mm, Z: 340 mm Table movements: C-axis: 360° Swivel range: +105° / -15° Universal swivel - rotary table: 400 x 290 mm, center hole 30H6 Table load: max. 100 kg Distance spindle nose - table: min. 145 mm to max. 485 mm Feed rate: 5,000 mm/min Rapid traverse (X / Y / Z): 5 m/min Input resolution: 0.01 mm Total power requirement: 15 kVA Speed range - main spindle: 20 - 6,300 min/-1 Drive power - main spindle: 6.3 / 10 kW (100% / 40% ED) Torque: max. 55 / 80 Nm Tool holder: SK 40 DIN 69871 Pull bolt: DIN 69872 or ISO 7388/2 Type B Interface: Serial RS232C, LAN (RJ45) Power connection: 400 volts, 50 Hz, 15 kVA Itodpfx Ajvt D D Ujb Hsp Compressed air connection: 6 bar - CNC control Siemens Sinumerik 810D with ShopMill V05.03.22, NCU 03.03.34-CCU1E, MMC103 - 3-axis controlled (X, Y and Z axis) - Manual swivel rotary table, C axis = table rotation 360°, B-axis = swivel range +105°/ -15° - direct path measuring system for all 5 axes - electronic handwheel - spindle drive via servo motor with toothed belt and 2 gear stages - fully protected cabin with sliding door - swiveling control panel - coolant nozzles on the vertical head - chip tray with coolant container and cooling lubricant pump - work area lighting - documentation available space requirement L x W x H 2000 x 2000 x 2100 mm weight 1750 kg good condition

Condition: used, Year of construction: 2001, turning diameter 500 mm turning length 1000 mm control MONFORTS CONTROL control SYSTEM MTC-K turning diameter over bed slide 290 mm spindle bore 70 mm spindle turning speed range 3 - 2800 U/min Itjdpfx Abevh I Hvo Hsp spindle power 15 kW max. torque on the spindle 1530 Nm spindle head DIN 55027 Gr. 8 feed power X/Z axis 11300 N rapid travel - longitudinal/face 10 / 5 m/min bed width 360 mm travel of cross-slide 265 mm upper slide travel 140 mm turning tool - shaft cross cut 32 x 25 mm tailstock quill diameter 80 mm tailstock quill stroke 160 mm tailstock taper MT 5 weight of the machine ca. 3,1 t dimensions of machine L x W x H 2,88 x 1,68 x 2,18 m Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4 pos. toolholder PARAT, coolant

Condition: used, Year of construction: 1977, turning diameter x mm Itsdpfx Ajrpa Nyeb Hsp turning length x mm swing diameter over bed slide x mm turning diameter over bed x mm 550mm weight of the machine ca. 1,5 t
