Tool and Cutter Grinder

EWAG WS 11

Condition: used, EWAG WS 11 SP is a tool and cutter grinder designed for precision, high accuracy and reliability. Working capacities: X/Y/Z axes 100 mm, grinding-wheel diameter 75 mm, workpiece spindle speed 100-1300 t/min, vertical adjustment of grinding head 100 mm, slewing range horizontal 165°, grinding spindle speeds 2500-7100 t/min, collet attachment 20 W. Technical specifications: voltage 50 Hz 3x380 V, total power required 2 kVA, machine weight about 400 kg, dimensions L850×W850×H1580 mm. Key equipment: flange for wheel, dust extraction, set of grinding wheels, lamp, helical grinding device W20, feed unit (Z-axis) 4 E-M, grinding stroke 3 J. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical Crsdpfjxyi I Iex Af Hsk

Condition: good (used), Year of construction: 2007, 1 used CNC tool grinding machine Codeu A Dn Njpfx Af Hork Make: Schneeberger Model: Corvus GDS 650 Year of manufacture: 2007 CNC Control: FANUC 160i Software: Quinto 4.3 Activated software options (option numbers): 1, 2, 19, 21, 22, 30, 31, 32, 35 - Fanuc loading robot - Coolant system Travel: X-axis: 650 mm Y-axis: 300 mm Z-axis: 300 mm C-axis swivel range: +150°/ -60° C’-axis swivel range: +/- 180° Grinding spindle: Wheel diameter up to 250 mm Speed: 0 – 10,000 rpm Max spindle power: 26 kW HSK 80 interface Max. number of wheels: 6 Workpiece spindle head: Vmax: 180°/s Drive power: 1.6 kW ISO 50 interface Precision (resolution): Linear axis resolution: 0.001 mm C-axis: 0.001° Dimensions: Length: 3,100 mm Width: 1,915 mm Height: 2,190 mm Weight: 8,500 kg U-axis is integrated with steady rest, clamping cylinder, and tailstock 6-pallet loader (diameter 3 to 32 mm) 64 plastic collets Technical data subject to change without notice

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 176308, Country of manufacture: Switzerland Voltage: 400 / 380 / 50 / 3 Net weight: approx. 350 kg Dimensions: 82x85x156 cm Installed power: max 2 kVA Customs classification: 8460.3930 TECHNICAL SPECIFICATIONS GRINDING WHEEL SPINDLE UNIT Spindle speed (both rotation directions): 2,500 / 3,500 / 5,000 / 7,100 rpm Grinding wheel motor power (2,800 rpm): 0.4 HP Vertical slide stroke (linear): 100 mm Micrometric stop adjustment travel: 25 mm Micrometric stop readout accuracy: 0.01 mm WORKPIECE SPINDLE UNIT Workpiece spindle speed (both directions, continuous): 100–900 rpm Motor power: 0.2 HP Indexing plate teeth count: 120 Angular vernier reading: 20' Collet type: W-20 Horizontal travel: 100 mm Rapid feed per handwheel turn: 2 mm Micrometric feed per handwheel turn: 0.1 mm Micrometric feed per scale division: 0.001 mm SPINDLE HEAD SWIVEL RANGE (a) Main direction: 165° Fixed ratchet increments: every 3° Increments with micrometric screw: every 2' (b) Grinding plane: approx. 15° Stop: at 0° Cross movement range: 80 mm Micrometer travel: 25 mm Crsdpfx Afew T S Sqj Hok Reading precision: 0.01 mm Extraction motor power (2,800 rpm): 0.25 HP All technical specifications provided without guarantee and subject to possible errors or omissions.

Condition: used, Sharpening machine EWAG WS 11 SP Csdpfx Aewp T Nkef Hork

Condition: as good as new (ex-display), Year of construction: 2025, functionality: fully functional, This degreasing system operates under vacuum (pressure swing process) with modified alcohol or hydrocarbon. (New system) 12-month warranty Immediately available from St. Gallen With vacuum pressure swing process System process: spray, immersion, ultrasonic, and steam degreasing including vacuum drying. Specifications: Ultrasonic 2*1000 W - 25 kHz Double fine filter Chamber door in bulletproof glass 2-tank system, capacity 400L Double distillation and residual distillation Crsdpfxjqy H H Dj Af Hsk Automatic oil discharge 3-stage water separation Electropolished chamber for ultra-fine cleaning Screw vacuum pump (latest generation) Loading trolley 2 wash baskets, mesh size 7mm and 12mm 12" touch panel Prepared for automatic loading Maximum basket size (480 x 320 x 200 mm) Maximum load weight 100 kg System dimensions 2400 x 2400 x 3300 mm System weight (basic version) 2500 kg Color RAL 9003 (white) RAL 7021 (black)

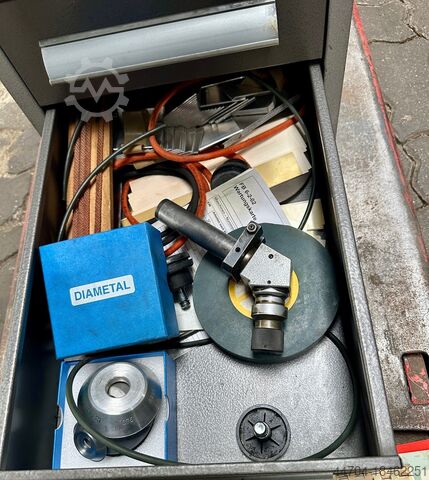

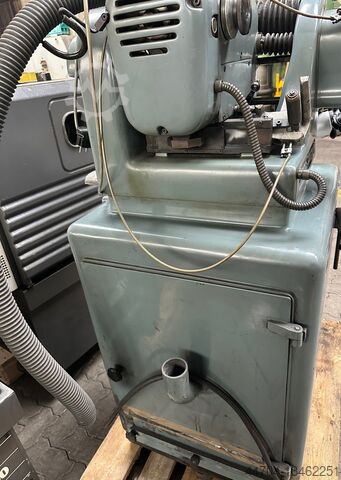

Condition: used, functionality: limited functionality, machine/vehicle number: 2194, EWAG WS11 This machine was last used around 10 years ago. Due to long periods of non-use, it now needs to be overhauled. Ideal for refurbishing. With extensive accessories: - Basic machine with cooled spindle and dust extraction - Swivel device for microscopes - Machine light - ISOMA microscope for side viewing - ISOMA microscope for front viewing - Radius grinding device with various accessories - Universal vice on collet body (no photo, as it is currently loaned out...) - 19 grinding wheel holders, some with grinding wheels - 29 SCHAUBLIN UP collets Ø 1.0 ... 20.0, some every 0.50 mm Crodovmt Uijpfx Af Hjk - Additional spindle holder for higher mounting of the spindle - Various accessories (dial gauge, additional pulley, etc.) The machine can be inspected at any time in D-78194 Immendingen.

Condition: reconditioned (used), EWAG WS 11 is a Tool and cutter grinder designed for precision, high accuracy and reliability. X/Y/Z travel 100 mm; grinding-wheel Ø75 mm; A axis -135°/+30°; workspindle 100–1300 rpm; vertical head travel 100 mm; collet nose 20 W. Wheel spindle 2500–7100 rpm; 380 V 60 Hz; 0.4 CV; ~350 kg; 1000×1000×1800 mm. Accessories: set of collets, flanges, wheel arbors, lamp, Z feed unit. Achieves tight tolerances; suited to automotive, aerospace, watchmaking, medical sectors. Csdpfsxx U Epjx Af Hjrk

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, TECHNICAL DESCRIPTION EWAG 6-axes CNC Tool Grinding Machine Ewamatic Line. Make : EWAG Type: Ewamatic Line ERS - SK2000 Year: 2002 Control type: CNC Control: NUM 1050 Origin: Switzerland Weight of the machine approx. 4 t Dimensions of the machine approx. 2365 x 2920 x 2810 mm Travels: Cross axis X 360 mm Height adjustment Y 150 mm Infeed axis Z 230 mm Swiveling axis B +/-120 deg. Tilt axis A: -15...+25 deg. Dividing attachment with cylindrical grinding mode HSK63 clamping variant (C-axis1000 rpm) Codpfxov Tbfpo Af Hsrk 6-station turret grinding head tiltable: Grinding spindle Ø 80 mm, number 6, arranged in a star shape Grinding wheels Ø max. 250 mm Grinding spindle drive 7.5 kW, speed 12000 rpm. RENISHAW 3D Measuring station Dressing device for automatic stone dressing of diamond and CBN grinding wheels Coolant equipment With oil-mist extractor Donaldson

Condition: excellent (used), Year of construction: 2003, HMC 500 control unit Year of manufacture: 2003 Crsdpfx Ajw Hxtvjf Hjk incl. software ball end mill; face mill; drill; taper tools: woodworking tools; etc.

Condition: good (used), Gillardon GT 16 bench drill - MK2 holder - infinitely variable speed Good condition, fully functional, can be inspected and tested on site. Shipping also abroad. Crjdeum Stajpfx Af Hok Inspection : Basically, I would like to point out that the item can be inspected and tested under power before purchase to avoid misunderstandings. Please ask questions before buying to avoid any ambiguities. For general questions or to make an appointment for a viewing, I can be reached at any time at the telephone number below or above. Errors in the description and prior sale reserved. VAT is shown separately on my invoices. Shipping with forwarding agent.
