Flatbed open

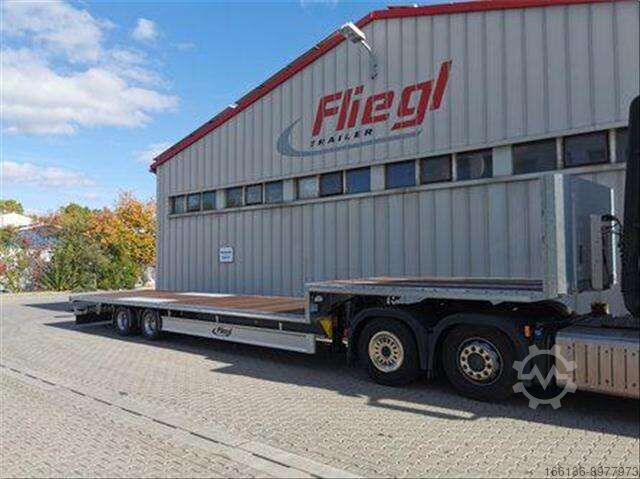

Fliegl SZS 280 Jumbo Plateau

# Customized Transport Solution

Configure your Fliegl vehicle according to your individual requirements. The vehicle shown is an example configuration. Production and equipment are tailored to customer specifications.

---

## Chassis – 2-Axle Jumbo Platform Semi-Trailer

* High-tensile fine-grain steel welded chassis construction
* Fifth wheel plate with replaceable 2" king pin
* New slightly inclined outer frame with integrated Load-Lock profile for securing lashing straps
* 24-tonne two-speed landing gear, single-side operation, straight foot design, without thrust compensation
* Free landing leg corner dimension / rear swing clearance approx. 1,920 mm
* 2 wheel chocks with holders
* Aluminium side underrun protection
* Steel rear underrun protection
* Quarter mudguards in front of and behind each axle
* Spare wheel carrier for one spare wheel, including wheel mounting kit
* Lockable plastic toolbox with shelf insert, dimensions: 620 × 360 × 440 mm (W × H × D), padlock not included

---

## Axles & Suspension

* Drum brake axles (manufacturer's choice)
* Laser-aligned axles and running gear for reduced tyre wear and improved fuel efficiency
* Air suspension

---

## Braking System

* Dual-line compressed air braking system
* Colour-coded air lines for simplified maintenance
* Spring-loaded parking brake
* Front Duomatic coupling without connecting hoses
* EBS (Electronic Braking System) with front EBS socket, without connecting cable
* Integrated raise-and-lower valve
* Vehicle Stability Control System

Note: The trailer may only be operated with towing vehicles that ensure proper ABS functionality.

---

## Wheels & Tyres

* 235/75 R17.5 tyres (manufacturer's choice)
* Steel rims, factory silver finish

Gisdjkv Uvzjpfx Ahzjw
---

## Electrical System

* 24 V electrical system
* Multi-chamber rear lights
* Yellow LED side marker lights
* 2 white front position lights
* 2 white/red rear outline marker lights
* 1 × 15-pin front socket without connecting cable

---

## Platform

* Approx. 30 mm phenolic-coated plywood floor
* High point-load capacity, suitable for forklift axle loads up to 5,600 kg

---

## Front Wall

* Front wall made of 25 mm aluminium hollow profiles, approx. 1,350 mm high
* Heavy-duty steel corner posts in volume specification

---

## Registration & Compliance

* Registration country: Germany
* DEKRA inspection and certification included (according to §13 EC-FGV)
* 24/7 service hotline
* Prepared for single-line licence plate holder
* Reflective contour markings according to ECE R048 (white on the sides, red at the rear)

---

## Finish

* Chassis: hot-dip galvanised or painted according to customer requirements
* Aluminium front wall

---
