CNC lathe

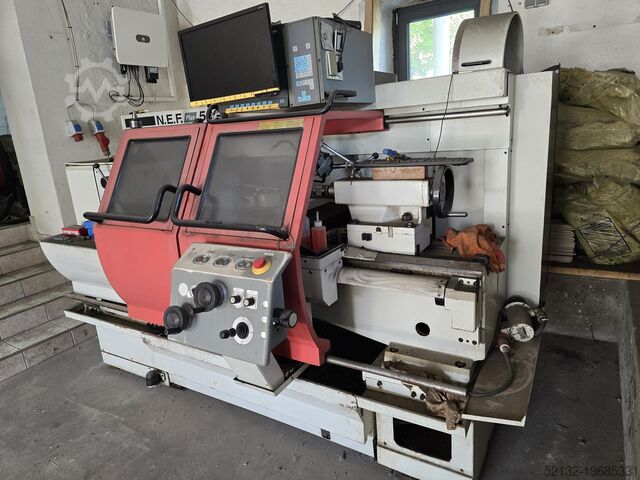

Gildemeister NEf plus 500

Condition: used, Year of construction: 1999, turning diameter 500 mm turning length 1500 mm control Manual Plus spindle bore diameter 70 mm turning speed range 8 - 2800 U/min transmission ratio 3 swing diameter over face slide 290 mm spindle head DIN 55027 Gr 8 tool holder Typ C quill stroke 180 mm weight of the machine ca. 3,2 t dimensions 3,0 x 1,8 x 1,8 m Description of the machine: This machine is suitable for turning chucked and shaft workpieces. The commercially available steel grades, casting, copper, aluminium, brass, gunmetal and cuttable plastic can be turned on this machine. --> Concept of the N.E.F. plus The machine si supplied as standard with the following described equipment - Cycle control - AC-Main drive - Compund slide rest with AC drive and operating panel - Tailstock traversable using slavingunit, manualy clamped, including following centre point - Coolant unti - Chip protection hoods, manually actuated - Protection hood for chuck - Fast change tool holder Hahn & Kolb Multifix C - Reduction collar for turning spindel accessories according to pictures: - 2 STK steady rests - various clamping jaws - Hahn & Kolb Multifix type C - Various torsion bar holders Technical data: Working area: - Circulation diameter over bed: 500 mm - Circumferential diameter above the radial slide: 285 mm - Chuck Ø: 250(315) mm - Face slide: 260 mm Gsdpfeub Amlsx Afpouh - Distance between centres: 1000/1500 mm Turning spindle: - Spindle head DIN 55027: Size 8 - Hole diameter of the spindle: 70 mm - Hollow taper of the spindle nose: 80 metric - Spindle diameter in front bearing

Condition: ready for operation (used), Year of construction: 1995, Make: GILDEMEISTER Type of machine: NEF Plus 500 Year of manufacture: 1995 Control system: Gründig Guodpfxotpn S Io Afpsh Machine's weight: 2650 kg Speed range: 8 - 2800 1/ min Cutting diameter: 500 mm Turning length: 1000 mm Overall dimensions: 2500 x 1750 x 1850 mm Spindle opening: 70 mm
