CNC bevel gear milling machine

Gleason No 631 CNC

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm max. module: 5 module min. : 0,5 max. workpiece weight: 60 kg Ljdpfx Ajvc Apbokyern weight of the machine ca.: 4,0 t dimensions of machine: 1800x1850x2500 mm dimensions electric cabinet: Nr. 1: 1930x400x1920 mm dimensions electric cabinet: Nr. 2: 800x230x1950 mm dimensions:: Abluftanlage: 1400x700x560 mm dimension cooling device LxWxH: 1,2 x 1,0 x 0,45 m Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 77x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *

Year of construction: 2016, condition: new, 1 unit of a completely overhauled, unused industrial bevel-helical gearbox from ASUG. TGL 21815. All gearbox parts have been replaced, with the exception of the housing!!! Clutch: 800 mm (only one half available) Maximum torque: 27,829 Nm Gear ratio: i = 1:80 Maximum power: 51 kW Oil capacity: 170 kg Speed: n1 = 1400 Speed: n2 = 17.5 Weight: 1450 kg Shaft diameter d1: 65 mm Shaft diameter d2: 160 mm Shaft height h1: 500 mm Ledpfx Aogwlrdekysrn Overall height h2: 925 mm Length of base: 1170 mm !! The gearbox does not have an oil cooler !!

Condition: used, cone distance min./max. 0-108 mm Pitch angle min/max 5°/84° Control GE Fanuc Series 0-GC Pitch diameter (1:1 ratio) 152 mm pitch diameter (10:1 ratio) 216 mm Diametral pitch (finest/coarsest) 1.3/8.5 Mod. Face width gear wheel max. 35 mm Ledpoyh Rmmofx Akysrn Knife spindle - Speed range 41-121 U/min working spindle speed range 0-33.33 U/min weight 9025 kg dimensions of the machine ca. 2707 x 2720 x 2200 mmxmmxmm Equipment/accessories: - 18-piece cutter set - Chip conveyor - Technical documentation

Condition: excellent (used), Year of construction: 2021, operating hours: 3,000 h, travel distance X-axis: 6,100 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 950 mm, CNC Travelling Column Milling Machine – Fully Retrofitted by REM (2021) Powerful and versatile heavy-duty milling machine, completely modernized by REM specialists in 2021 with state-of-the-art Heidenhain TNC 320 control. Ready for immediate production use. KEY SPECIFICATIONS: • X-axis (transversal travel): 6,000 mm • Y-axis (vertical head travel): 2,000 mm • Z-axis (axial slide travel): 950 mm • Dual-spindle head | Head rotation: 360° • Spindle speed: 1,000 – 4,000 rpm • Spindle taper: ISO 50 (automatic locking/unlocking) • Head dimensions: 290 × 290 mm • Spindle motor power: 15 kW (DC) Lodpjn D N H Tefx Akyern • Machine weight: approx. 32 tonnes • CNC Control: Heidenhain TNC 320 WHY BUY FROM REM? ✔ Machine fully inspected and tested in working conditions ✔ Modern CNC retrofit – new electrics, new drives ✔ Documentation and technical support available ✔ Export worldwide | Competitive shipping Ideal for heavy component machining in aerospace, energy, and heavy industry. Contact us today for full technical specifications, photos, and video demonstration.

Condition: excellent (used), Year of construction: 2006, operating hours: 53,244 h, functionality: fully functional, Technical Data – Gleason Phoenix II 600HC (CNC Hypoid Gear Cutting Machine) Working Area Max. workpiece diameter: Ø 600 mm Max. tooth depth: 24.6 mm Max. gear width: 110 mm Number of teeth: 1–300 Cutterhead size face milling (FM): 18" diameter Cutterhead size hobbing (FH): 210 mm radius Max. cutter spindle speed: 600 min⁻¹ Work Spindle Front taper diameter: Ø 203 mm Taper bore diameter: Ø 181 mm Bore depth: 884 mm Max. work spindle speed: 600 min⁻¹ Dimensions and Weight Footprint L × W × H: 4.4 × 3.5 × 3.5 m (incl. peripherals) Machine weight: 26,000 kg Connection Data Total connected load: 139 kVA Main fuse: 200 A Operating voltage: 400 V Mains frequency: 50 Hz Control voltage: 24 V DC Lrjdpoxwzu Iofx Akyon

Condition: excellent (used), Make - WMW Niles (Germany) Used gear grinding machine Manufacturer: NILES Model: ZSTZ 630 C3 Max. gear diameter = 630 mm Tooth width = 215 mm Module = 1 – 12 Number of teeth = 5 – 140 Lsdpfx Aoyr S Ntskyorn Table diameter = 500 mm Stroke = 500 mm Grinding wheel diameter = 270 – 350 mm Swivel range = 45° Strokes = 75 – 315 per min. Weight approx. = 6.3 t Feature: Hydraulic rapid traverse of the grinding head. Complete with change gears, coolant tank, coolant pump, etc. Electrical diagrams of the machine are available. The machine is in excellent working condition.

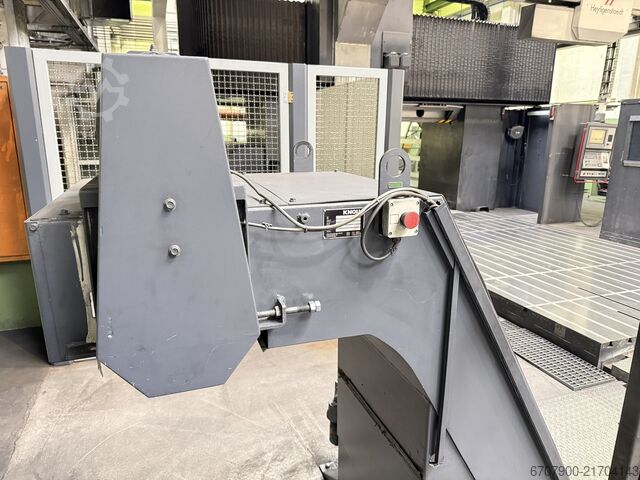

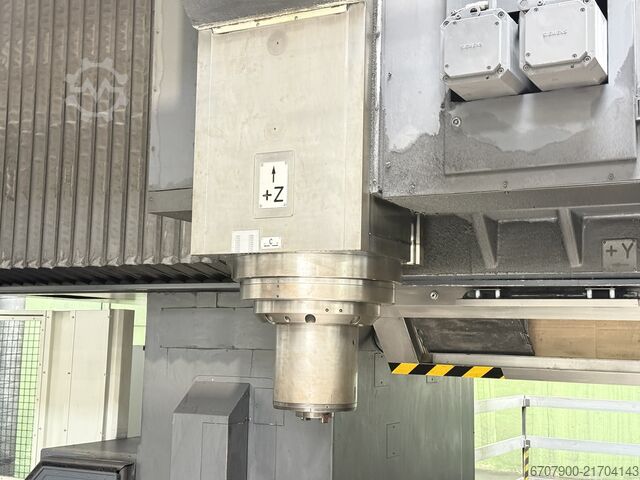

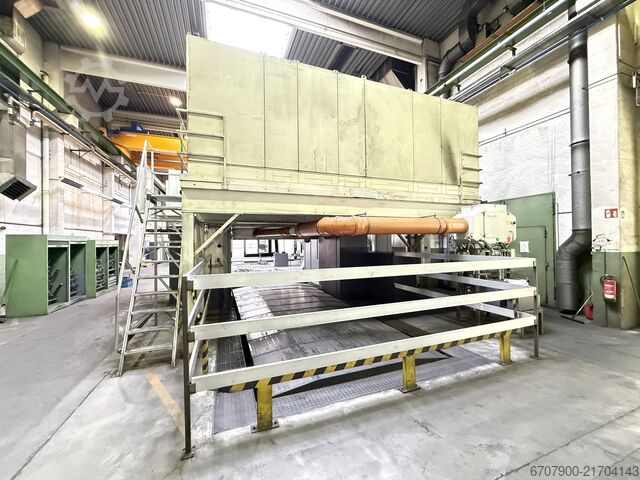

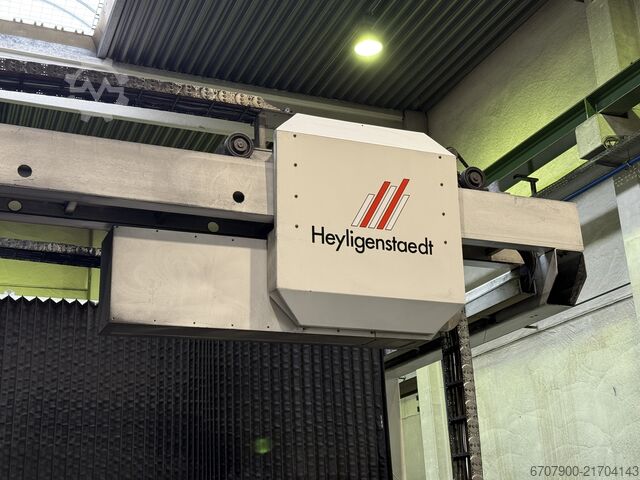

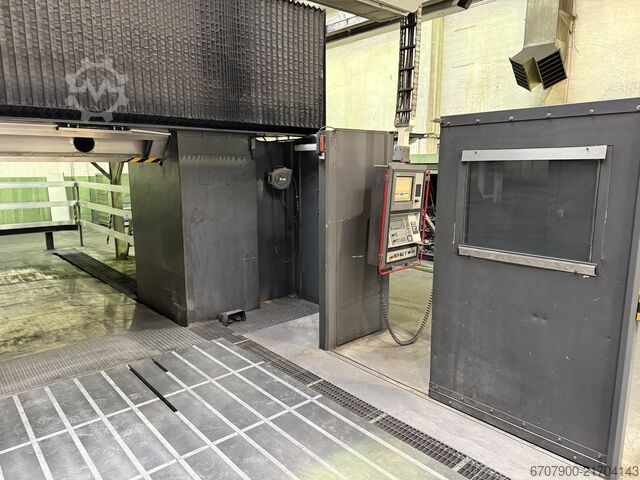

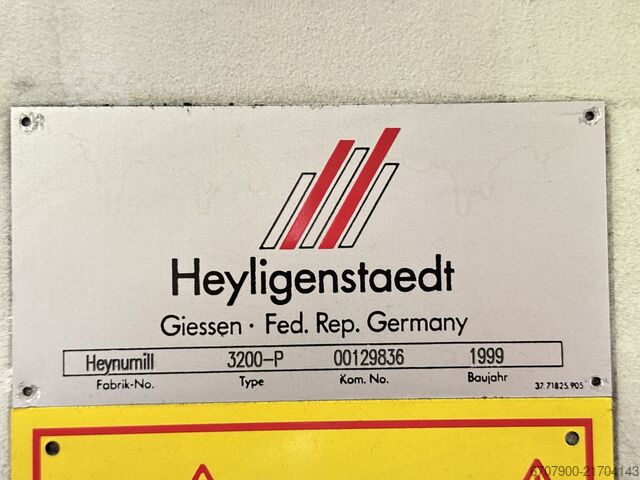

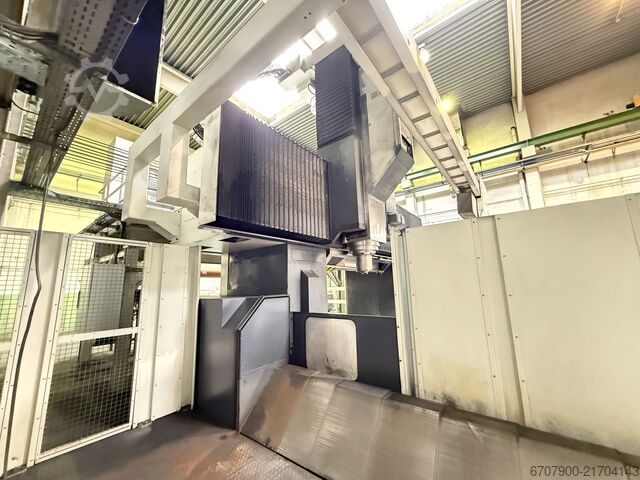

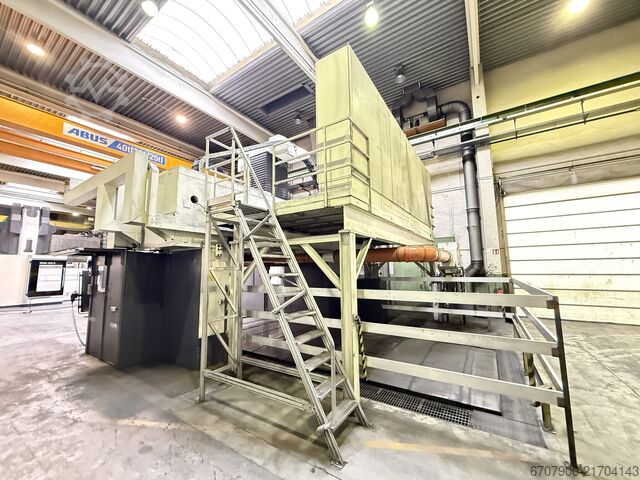

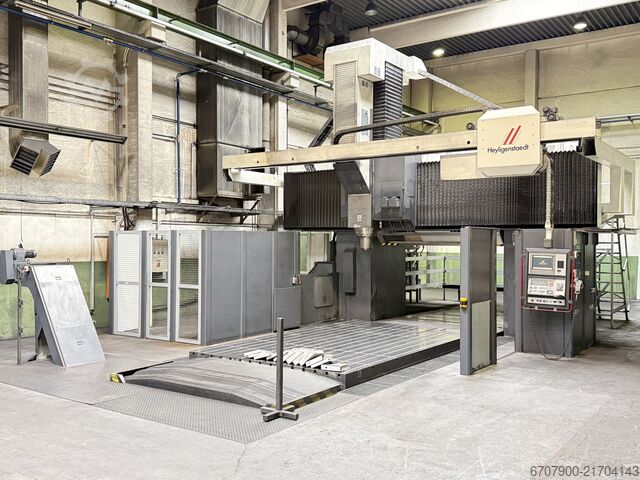

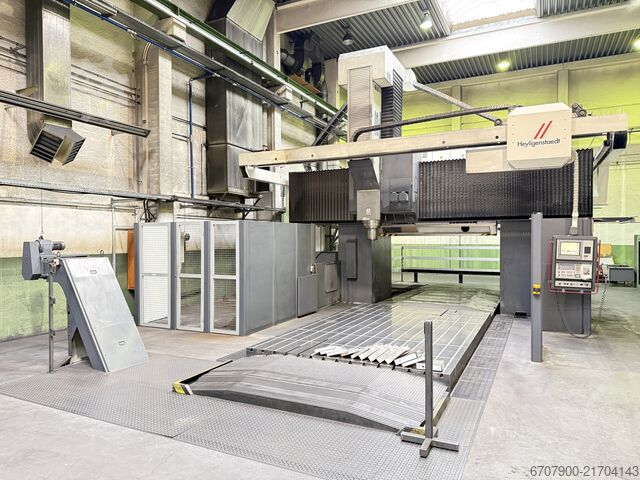

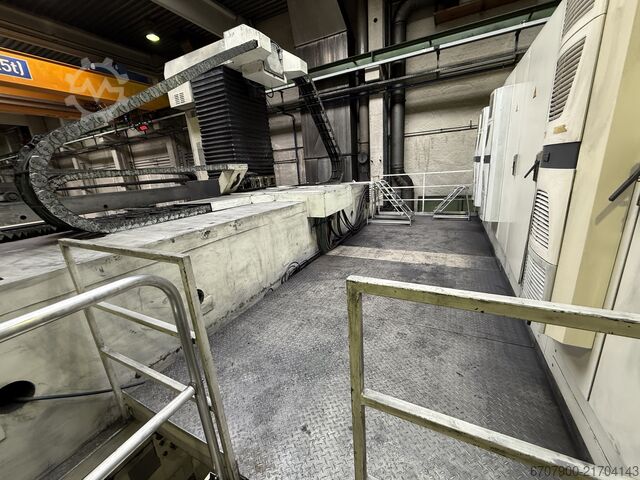

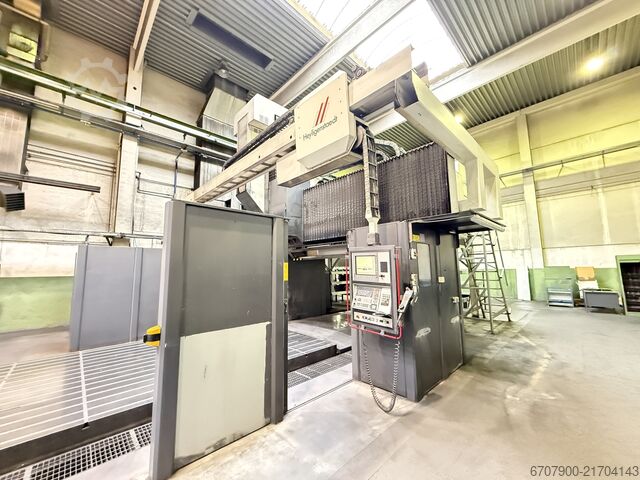

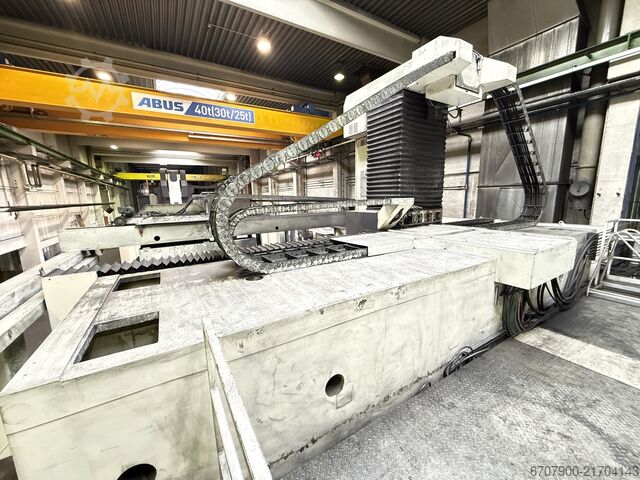

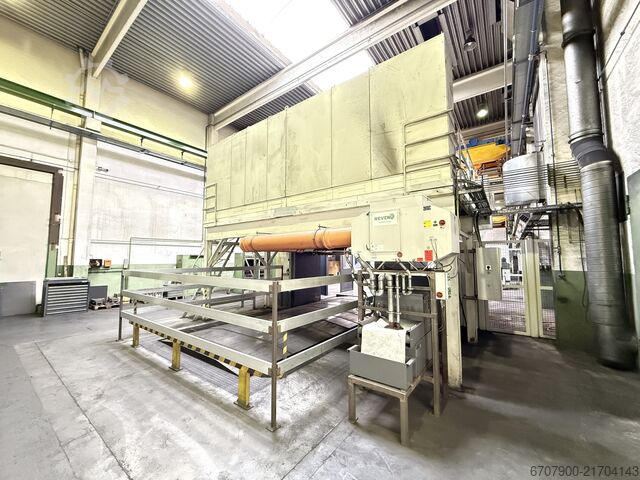

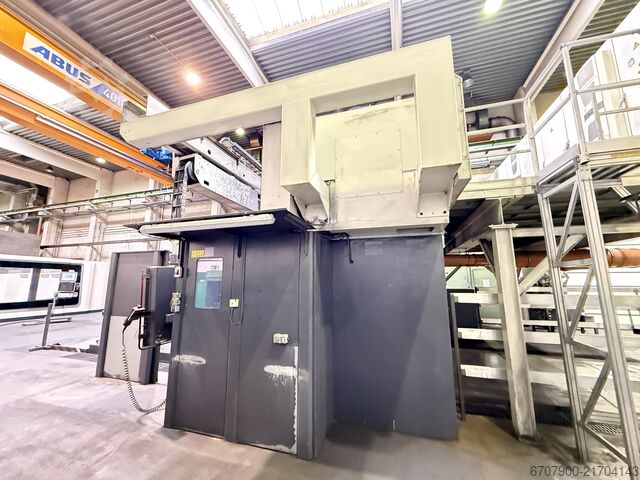

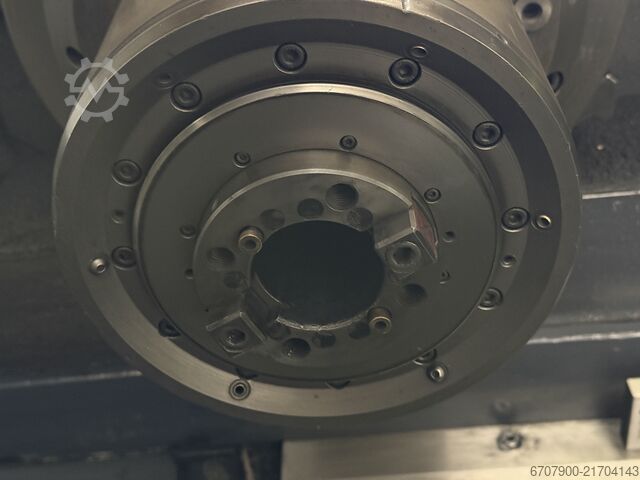

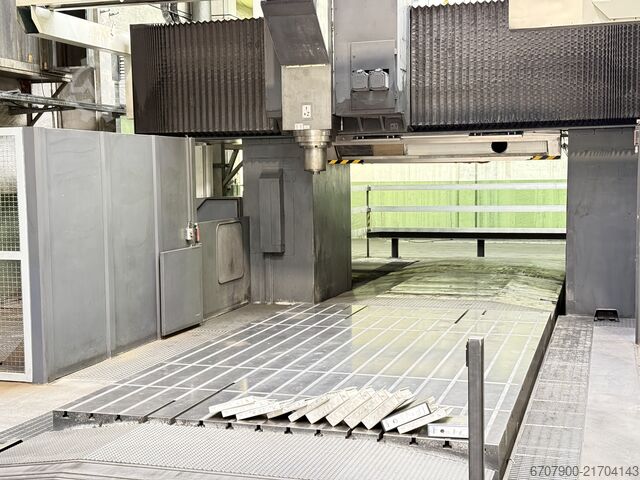

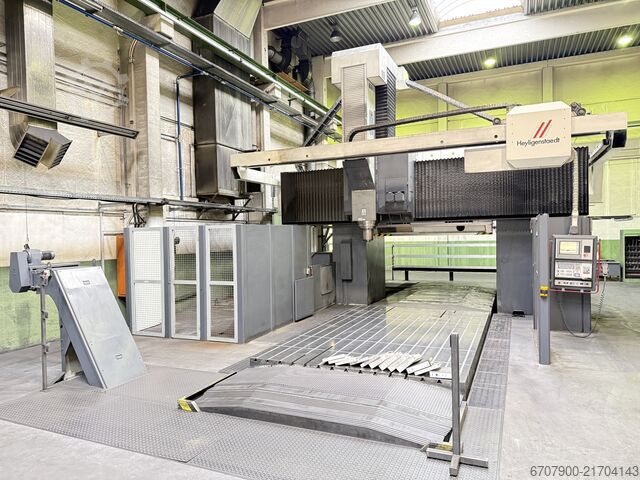

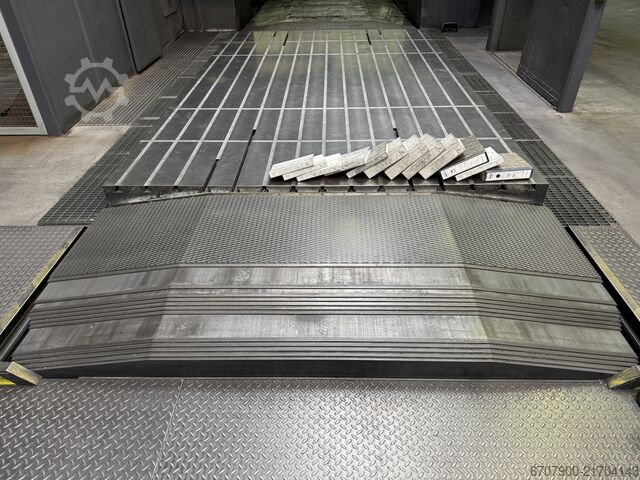

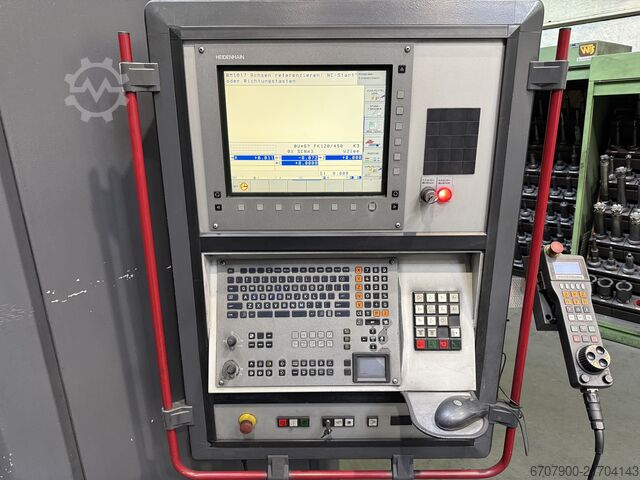

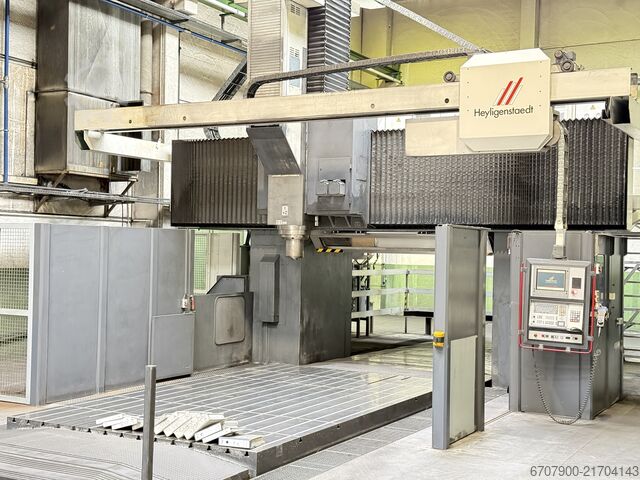

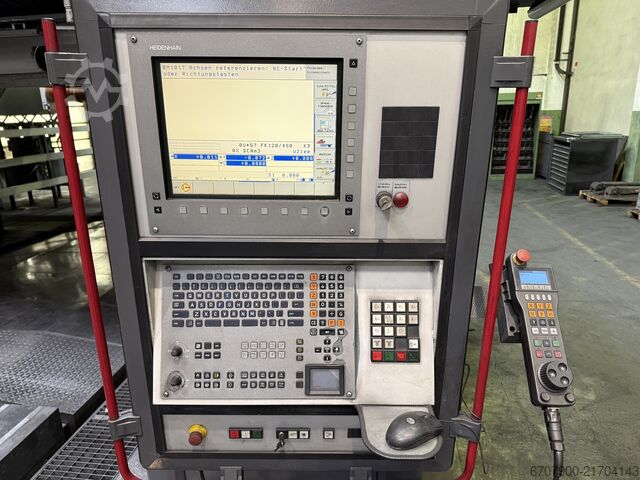

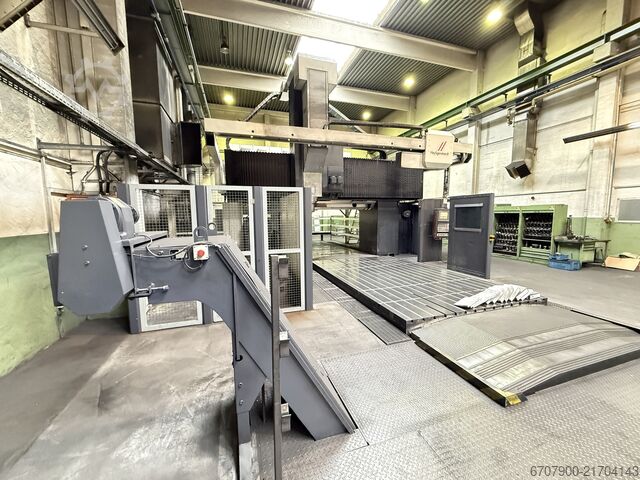

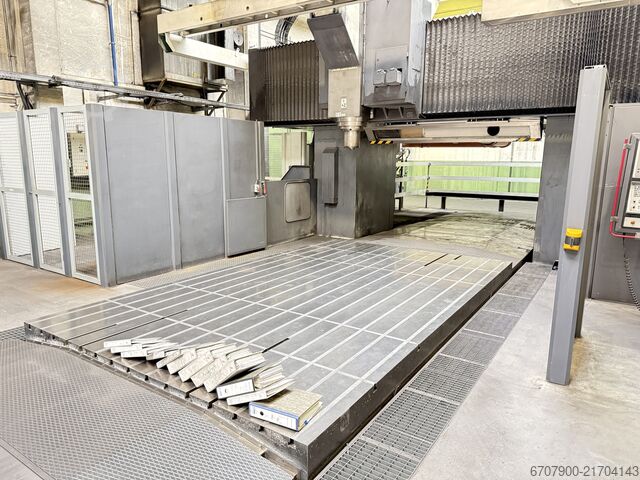

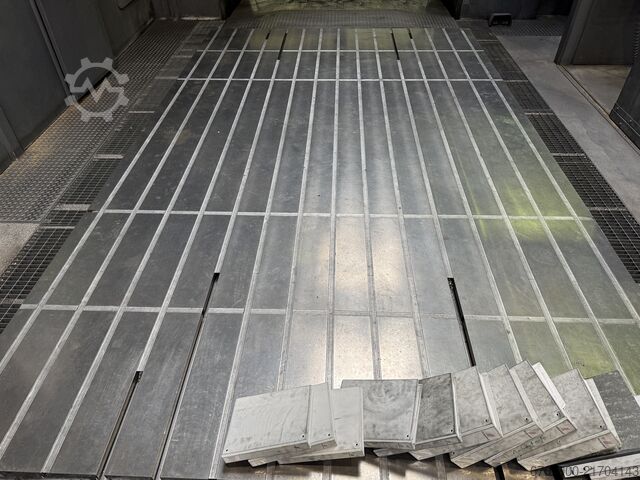

Condition: good (used), Year of construction: 1999, functionality: unexamined, travel distance X-axis: 6,000 mm, travel distance Y-axis: 3,200 mm, travel distance Z-axis: 2,050 mm, total length: 13,000 mm, table length: 5,000 mm, table width: 3,000 mm, total width: 8,000 mm, spindle speed (min.): 12,000 rpm, total height: 6,000 mm, table load: 50,000 kg, overall weight: 120,000 kg, number of slots in tool magazine: 32, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, HEYLIGENSTAEDT HEYMUNILL 3200-P heavy-duty portal-type machining center with fixed cross beam, designed for processing large and heavy workpieces. Large working area with travel distances of X 6,000 mm / Y 5,000 mm / Z 1,500 mm, table size approximately 5,000 x 3,000 mm, and table load capacity of approx. 50,000 kg. Ledpfxsy Anrts Akyorn Portal clearance approx. 3,220 mm width / 2,050 mm height. 5-axis machining / milling heads A and B axes (swivel axes in the milling head) C axis (360° rotation) Simultaneous 5-axis machining possible (with fork milling head) Milling heads: Straight milling head FK 120/340 90° angular milling head WFK 100/750M Fork milling head FK 100/2D Milling head magazine: 5 positions automatic milling head changer Additional equipment: ICS approx. 7 bar 32-position tool changer (SK50, Fibro ATC 32/50) Tool holder SK50 (DIN 69871) Tool length measuring system (laser) Chip conveyor Coolant system Adaptive feed control Heidenhain linear measurement systems X/Y/Z

Condition: excellent (used), The HURTH MODUL ZSTK 251 bevel gear planing machine was designed as a special machine and is used by manufacturers of drive systems in the drive technology, automotive, agricultural machinery, machine tools, mining technology, aviation and textile machinery sectors for the gear shaping of straight-toothed bevel gears with a short run-out. We still have 1 of these machines in stock, which, in conjunction with the Klingelnberg BF 203 bevel gear milling machine, can also produce crowned bevel gear sets in high quality. Technical data Workpiece diameter: 315 mm Module max.: 10 mm Lodpfx Aeup T Rlskysrn Tooth width: 45 mm Dimensions: 2.7 x 2.3 x 2.1 m Weight: 7,000 kg *Information and data are non-binding and subject to prior sale Viewing under operating conditions possible after consultation.

Condition: ready for operation (used), functionality: fully functional, One used CNC gear grinding machine OERLIKON Opal 800 Max. tip diameter: 1000 mm Min. root diameter: 40 mm Min. module: 1 Max. module: 16 Number of teeth: 999 Max. gear width: 630 mm Lodpeyucd Hjfx Akyern Opal grinding wheel and diamond disk Only single profile grinding possible, see photo.

Condition: used, Year of construction: 2009, faceplate diameter 3000 mm swing diameter 3500 mm turning height 3200 mm Control Fanuc type Series 320i Model A slide adjustment 1750 mm ram head dimension 300x300 mm x-axis 2700 mm Table load 30000 kg main drive motor 100 kW Tool changer 16 weight of the machine ca. 89 t dimensions of the machine ca. 8,5x6x8 m No. 1104 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. Lrodpjyqu Rwefx Akyon About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team
