Used Hurco Vmx 60 Srti for sale (139)

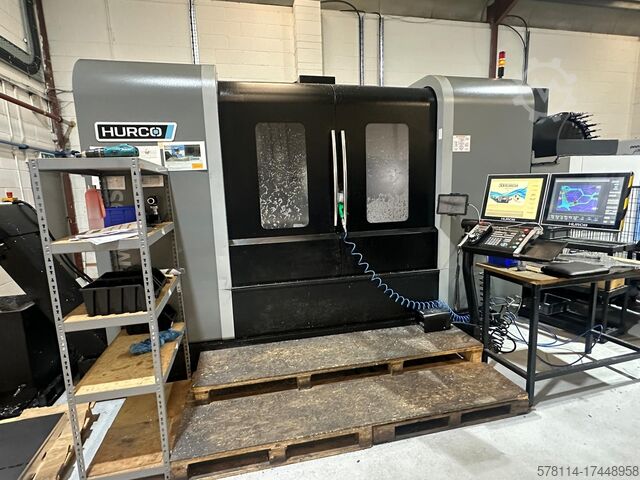

Condition: ready for operation (used), Year of construction: 2016, Control Unit Brand HURCO Model MAX5 Main Drive Spindle speed range 12000 Spindle motor power 70 kva Tool taper bt40 Movement X-Axis Movement 660 mm Y-Axis Movement 610 mm Workpiece Workpiece weight Up to 1360 kg Tools Max tool diameter 75 mm Media Chip conveyor Yes Internal cooling Yes Brvpwyqocq8 This 5-axis Hurco VMX60SRTi was manufactured in 2016. A vertical machining centre featuring a spindle speed of 12,000 rpm, a spindle drive power of 70 kVA, and a tool storage capacity of 40 slots. It supports a maximum tool diameter of 75 mm and workpiece weight up to 1360 kg. Additional features include internal cooling and a chip conveyor. Consider the opportunity to buy this Hurco VMX60SRTi vertical machining centre. Contact us for more information about this machine. Application Types Milling

Condition: excellent (used), Year of construction: 2016, operating hours: 23,163 h, Functionality: fully functional, travel distance X-axis: 1,524 mm, travel distance Y-axis: 660 mm, travel distance Z-axis: 610 mm, rapid traverse X-axis: 3 m/min, rapid traverse Y-axis: 3 m/min, rapid traverse Z-axis: 2 m/min, torque: 118 Nm, controller manufacturer: Hurco, controller model: MAX5, total height: 3,298 mm, total length: 5,662 mm, total width: 3,921 mm, table width: 660 mm, table length: 1,676 mm, table load: 1,360 kg, rotary table diameter: 600 mm, rotational speed (max.): 100 rpm, overall weight: 10,900 kg, spindle speed (max.): 12,000 rpm, distance table center to spindle nose: 622 mm, spindle motor power: 36,500 W, spindle nose: BT40, number of spindles: 1, number of slots in tool magazine: 40, tool length: 249 mm, tool diameter: 75 mm, tool weight: 7 g, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, Hurco VMX60SRTi 5 Axis Machining Centre Machine Type: 5 Axis Machining Centre Brs9E2V39P8 Year: 2016 Condition: Excellent Hours: 23163hrs Machine Description The SRT series of 5-axis CNC mills offers multiple advantages, starting with the machine's design configuration that utilizes a swivel head with either an A or C style rotary table. The generous size of the rotary table provides maximum versatility because you can use the extra table space for secondary operations or 3-axis work. Includes Touch screen shaded graphics with real-time display, 2GB RAM 120GB Solid state hard drive. USB ports Ultimotion high speed profiling software with data smoothing S curve acceleration and look-ahead features with selectable surface finish quality Coolant Through the Spindle NC4 Laser Tool Probe RMP 60 part probe Software Package(Mould Maker) Ultipocket Helical ramp entry Adaptipath (Controlling cutter engagement) and rest machining DXF software Ultimonitor incorporates Ultinet (networking) ESF (Extended Shop Floor) capability of remote diagnostics 3D Mould Swept surface (supersedes and includes 3D Mould) Conversational/NC merge Technical Specifications Table Size: 1676x660mm Rotary Table Size: 600mm Max Weight on Table: 1360kg Max Weight on Rotary Table: 500kg X Axis Travel: 1524mm Y Axis Travel: 660mm Z Axis Travel: 610mm B Axis Travel: +/- 92° C Axis Travel: 360° Spindle Nose to Table(Min/Max): 13mm/622mm Max Spindle Speed: 12000rpm Spindle Taper: BT 40 Spindle Power: 36.5kW Spindle Torque: 118 Nm at 2,900rpm Tool Changer: 40 Stations Max Tool Diameter: 75mm Max Tool Length: 249mm Max Tool Weight: 7kg Rapid Traverse(X,Y,Z): 32, 32, 24m/min Max Rotary Table Speed: 100rpm Power Rating: 70kVA Max Operating Floor Space: 5662x3921mm Machine Height: 3298mm Machine Weight: 10,900kg

Condition: excellent (used), Year of construction: 2001, Hurco VMX 50 Year of construction 2001 Control system: - Ultimax 4 Main spindle - Tool holder SK40 - Spindle speed max. 8000 rpm. Travel - X - 1270, Y - 660, Z - 610mm. Table: - Table load 1300kg - Clamping surface 1500 x 660mm Tool changer: Dpbb9L - 24 magazine positions Delivery time: - Immediately or by arrangement Machine can be inspected under power (desirable)

Condition: ready for operation (used), Year of construction: 2000, operating hours: 21,161 h, Functionality: fully functional, travel distance X-axis: 1,625 mm, travel distance Y-axis: 860 mm, travel distance Z-axis: 760 mm, table width: 1,680 mm, table length: 890 mm, rotational speed (max.): 10,000 rpm, number of slots in tool magazine: 40, TECHNICAL DETAILS X-travel: 1,625 mm Y-travel: 860 mm Z-travel: 760 mm Table size: 1,680 x 890 mm Control system: Hurco Ultimax Dql8Xf Spindle Spindle diameter: 80 mm Tool holder: SK40 Spindle speed (infinitely variable): 80 - 10,000 rpm Spindle motor power: 15 kW Number of positions in the tool changer: 40 Feed rates and rapid feeds Feed rates: 1 - 18,000 mm/min Rapid traverse: 18,000 mm/min MACHINE DETAILS Connected load: 33 kVA Machine weight: approx. 14 t Space requirement: approx. 6 x 4 x 3 m Spindle hours: 21,161 h

Condition: ready for operation (used), Year of construction: 2007, operating hours: 3,821 h, Functionality: fully functional, travel distance X-axis: 1,270 mm, travel distance Y-axis: 660 mm, travel distance Z-axis: 610 mm, table width: 1,500 mm, table length: 660 mm, rotational speed (max.): 10,000 rpm, number of slots in tool magazine: 24, With horizontal axis of rotation TECHNICAL DETAILS X-travel: 1,270 mm Y-travel: 660 mm Z-travel: 610 mm Table size: 1,500 x 660 mm Control system: Hurco Ultimax Additional axis: Horizontal rotary axis Spindle Spindle diameter: 80 mm Dql8Fl Tool holder: SK40 Spindle speed (infinitely variable): 10 - 10,000 rpm Spindle motor power: 15 kW Number of positions in the tool changer: 24 Feed rates and rapid feeds Feed rates: 1 - 30,000 mm/min Rapid traverse: 30,000 mm/min MACHINE DETAILS Connected load: 30 kVA Machine weight: approx. 10 t Space requirement: approx. 5 x 3 x 3 m

Year of construction: 2013, Condition: ready for operation (used), Travel X/Y/Z: 1270mm/660mm/610mm, max. spindle speed: 15000rpm, feed X/Y/Z in mm/min: 15200/15200/15200. table load (uniform): 1360kg, dimensions X/Y/Z: approx. 4900mm/4600mm/3000mm, weight: approx. 10000kg. Including short bar loading magazine (bar loader) LNS Quick Load Servo III, year of manufacture: 2003. On-site inspection is possible. Bl23Vrjq0Ha

Condition: good (used), Year of construction: 2001, Functionality: fully functional, Manufacturer HURCO Type VMX 40 Year of construction 2001 x-way 1020mm y-path 510mm z-path 610mm Clamping surface 1020x610mm Speed 10.000rpm Drive 15kW Machine weight approx. 6.5t Space requirement approx. 2.75m x 2.9m x 2.75m Doyeez

Condition: good (used), CNC machining center Hurco VMX30: (X/Y/Z): 760 / 510 / 610 mm Dql72L Table size: 1020 x 510 mm Control: Hurco WinMax - Chip conveyor - tool changer - new control keyboard - Machine was new and came to us in 2008 - approx. 35 tool holders without cabinet

Year of construction: 2004, Condition: excellent (used), TECHNICAL DATA Travel X 760 mm travel Y 510 mm travel Z 610 mm table clamping surface 1020 x 510 mm T-slots / table 5 x 18 mm x 100 mm distance spindle to table min./max. 150/762 mm Spindle mounting steep taper DIN 69871 ISO 40 spindle speeds 10 - 10'000 rpm Drive power (30 min/const. ED) 11 kW Torque max. 236 Nm Power constant from 500 rpm Coolant tank 190 l Ball bearing linear guide in X,Y,Z axes Eilang X / Y / Z 30 / 30 / 20 feeds programmable 3,0 - 7600 mm/min positioning accuracy +/- 0,01 mm repeatability +/- 0,005 mm milling feed rate 3,0 - 11400 mm/min table load 1000 kg Automatic tool changer (double arm) 24 stations Max. Tool diameter 80 mm Max. tool length Tool length 300 mm Max. Tool weight 7 kg C9Sahsfcd Machine weight 4700 kg Space requirement L x W x H (footprint) 3870 x 4170 x 2775 mmINCL. - Coolant system - Coolant spray gun - Chip splash guard cabin - Flushing system to support chip disposal - Machine light - set of machine shoes - rigid thread cutting - spiral conveyor in the chip room - Pocket milling with islands - Electronic handwheel - ULTIMAX 4 control - 2 VGA color screens (text + graphics) - 2 software units (1 x plain text dialog programming + 1 x for ISO code programming) via interface RS-232 C / V24 access for CAD / CAM or external programming station - Pentium technology, 1.6 GB hard disk, 64 MB RAM, parallel and serial data interfaces, DOS compatible 3.5 '' 1.44 MB drive. System internal self-diagnosis, DOS directory structure, software version 2.xx Servo technology DUAL DSP 40MHz

Condition: excellent (used), Year of construction: 2003, travel distance X-axis: 1,625 mm, travel distance Y-axis: 860 mm, travel distance Z-axis: 760 mm, spindle speed (max.): 8,000 rpm, Ultimax 4 control unit Travel X/Y/Z: 1625/860/760 mm Speed 8000 min-1 Tool magazine for 40 tools, SK 40 IKZ Bjzsmseadtg Chip conveyor

Condition: good (used), Year of construction: 2010, Commissioning 2011 Control system: Hurco WinMax Table work surface: 1,020 x 510 mm max. table load: 1,350 kg Travel: X= 760, Y= 510, Z= 610 mm Spindle power: 13.5 kW Dpqxjr Tool holder: SK 40 max. spindle speed: 12,000 1/min Tool changer: 24 places Machine weight: 4,800 kg

Condition: ready for operation (used), Year of construction: 2004, travel distance X-axis: 1,270 mm, rapid traverse Y-axis: 610 m/min, rapid traverse Z-axis: 660 m/min, ultimax 4 control spindle 40 speeds 8000 rpm strokes 1270X610X660MM weight 9500KGS Bkzmt0F9Cik chip evacuator

Condition: good (used), Year of construction: 2006, Machine in good technical condition, after agreement possibility of testing. Technical parameters: Cnosztbghu Travel (X-Y-Z) 610 - 510 - 610 mm Spindle power 9 kW Spindle speed 12 000 rpm X/Y/Z speeds 35 / 35 / 30 m/min Torque 95 Nm at 900 rpm Standard spindle with cone SK40 24 tools

Condition: good (used), Year of construction: 2008, operating hours: 27,500 h, Functionality: fully functional, travel distance X-axis: 1,625 mm, travel distance Y-axis: 860 mm, travel distance Z-axis: 760 mm, rapid traverse X-axis: 180 m/min, rapid traverse Y-axis: 180 m/min, rapid traverse Z-axis: 135 m/min, feed rate X-axis: 152 m/min, feed rate Y-axis: 152 m/min, feed rate Z-axis: 152 m/min, controller model: WINMAX, rotational speed (max.): 8,000 rpm, overall weight: 14,000 kg, operating hours of spindle: 18,500 h, On behalf of the customer: Used CNC milling machine Int. art. No. k0950 Manufacturer HURCO Type VMX 64T Year of construction 2008 Dqjz9P X 1,625 mm Y 860 mm Z 760 mm Machine hours approx. 27,500 h Spindle hours approx. 18,500 h WINMAX control system Spindle speed max. 8,000 rpm after spindle replacement For the most part, plastic block material was processed without coolant Item location: NEAR BIELEFELD FROM FUNDAMENT ! The machine is currently still under can be viewed and tried out. We will be happy to send you further photos by e-mail. Available by arrangement. Subject to prior sale. It is possible to examine the items for sale professionally on site. Specific questions should be clarified in advance. The information, e.g. technical data, dimensions, year of construction, condition are non-binding and are given to the best of our knowledge and belief. Errors are therefore reserved. The warranty / guarantee is excluded. The goods are sold ex location / warehouse, with the transfer of risk to the buyer there, this also applies to a shipment on our part, which we have carried out on your behalf. This offer is only aimed at traders, dealers and legal entities. Company names and trademarks are the property of their owners and serve only to identify and describe the products. The installation and electrical connection of the machine/device must be carried out or checked by a trained specialist. Please also have a look at my other offers. Unless otherwise agreed, the item MUST be paid for and collected within 14 days of invoicing. Otherwise the costs for storage will be charged.

Condition: good (used), Year of construction: 2004, travel distance X-axis: 1,270 mm, travel distance Y-axis: 660 mm, travel distance Z-axis: 610 mm, - 2015 retrofitted - ULTIMAX control - toolchanger for 24 tools - coolant through spindle 20 bar - chip conveyor - electronical hand wheel Technische Daten / technical details: Verfahrweg X / X-Travel 1270 mm Bhuqisagcq Verfahrweg Y / Y-Travel 660 mm Verfahrweg Z / Z-Travel 610 mm Tischgröße / table size 1500x660 mm Werkzeugschaft / spindle taper SK40 Drehzahlbereich / spindle speed 10000 UpM /rpm Anzahl der Werkzeugplätze / tool places in ATC 24 fach Gewicht der Maschine ca. / weight 9000 Kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: excellent (used), Year of construction: 2003, Ultimax 4 control unit Travel X/Y/Z 760 x 510 x 610 mm Table size 1020 x 510 mm Speed 12,500 min-1 Tool magazine for 24 tools, SK 40 Dpiijb

Condition: ready for operation (used), Year of construction: 2001, Functionality: fully functional, feed length X-axis: 610 mm, feed length Y-axis: 510 mm, feed length Z-axis: 610 mm, spindle speed (max.): 10,000 rpm, With Ultimax 14 controller Dqmrzp

Condition: used, Year of construction: 2007, machine/vehicle number: M242-06212107EHA (H-H20336), travel distance X-axis: 610 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 610 mm, spindle speed (max.): 12,444 rpm, number of slots in tool magazine: 24, Equipment: chip conveyor, Auction 492 / lot no.: 14 Description: CNC milling machine Make: Hurco Type: VMX 24 Year of manufacture: 2007 Serial No.: M242-06212107EHA (H-H20336) This item is part of an industrial auction. You can bid now. Dqjurn Description: with sep. cooling unit, chip conveyor, travel X/Y/Z - 610/508/610 mm, spindle speeds max. 12,444 rpm, tool changer, 24-position, clamping area 750 x 500 mm

Condition: good (used), Year of construction: 2005, Hurco VMX 30, Year of manufacture 2005, Ultimax 4 control system, travel X/Y/Z 780/510/610 mm, 24-position tool changer, SK 40 holder, Table size 1020 x 510 mm, max. table load 1,000 kg, Spindle speed up to 10,000 rpm, spindle drive 11 KW, chip tray, Cx03Jvo9

Condition: used, Year of construction: 2002, Technical details: Bb0Lgf2L x-travel: 1060 mm y-travel: 610 mm z-travel: 610 mm control: Ultimax 4 spindle speed:: 10 - 10.000 U/min tool taper: SK40 tool changer with: Trommelmagazin mit 24 Plätze places feed speed: XYZ: 3 - 7.000 mm/min rapid traverse:: XY: 30 m/min rapid traverse: Z: 20 m/min table-size: 1220 x 510 mm table load: 1,1 t air-pressure connection: für 6 bar bar Total power requirement: 30 kVA Weight approx.: 6,28 (ohne Anbauteile) t dimension machine xH: 2,82 x 3,2 x 2,7 m dimension swarf conveyor LxWxH: 3,0 x 0,65 x 1,5 The machine is currently in the technical department. delimited working area by chip splash guard cabin incl. cooling device with feeding (30bar internal coolant system) (size 1200x500x150mm) capacity for 340Liter spindle with internal coolant system Scraper belt chip conveyor control panel with two screens Attention! Tool gripper arm for tool change is missing on the machine! Is on sale with this limitation! i.D. *

Condition: good (used), Year of construction: 2002, Functionality: fully functional, travel distance X-axis: 610 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 610 mm, controller model: UltiMax 4, rotational speed (max.): 10,000 rpm, TECHNICAL DETAILS Control system Bsbf22Fsmco Control type: UltiMax 4 Machine weight Weight: approx. 5 tons Tool holder Type: SK 40 Travels X-axis: 610 mm Y-axis: 508 mm Z-axis: 610 mm Spindle Speed range: 10,000 1/min Table Max. Table load: 1 t Space requirement Dimensions (L x W x H): 2.2 x 2.4 x 2.5 m

Condition: excellent (used), Year of construction: 2007, Ultimax 4 control unit Travel X/Y/Z 760 x 510 x 610 mm Table size 1020 x 510 mm Bghbrlvgmm Speed 12,500 min-1 Tool magazine for 24 tools, SK 40 4th axis

Condition: used, Year of construction: 2005, operating hours: 82,000 h, feed length X-axis: 1,270 mm, feed length Y-axis: 660 mm, feed length Z-axis: 610 mm, table width: 66 mm, table length: 149 mm, table load: 1,335 kg, overall weight: 9,000 kg, spindle speed (max.): 10,000 rpm, - vertical machining center -second hand- - HURCO - VMX 50/40T - yom 2005 - conrol: ULTIMAX 4 Enij7Kz - linear guideways - working range: X x Y x Z = 1270 x 660 x 610mm - spindle speed upto 10.000 rpm - ATC 40 - Internal coolant system - 20bar - chip convoyer - 5 vices - app. 100 pieces of toolholder (see photo) - dimensions L x W x H = 3,1 x 2,5 x 2,7m - weight: app. 9500kg

Condition: good (used), Year of construction: 2003, x-Weg 1270 mm y-Weg 660 mm z-Weg 610 mm Steuerung Ultimax 4 Cic773Jdnj Tischbelastung 1300 kg Drehzahl 10.000 U/min Werkzeugwechseleinrichtung 24-fach Werkzeugaufnahme SK 40 Antrieb 15 kW Tischgröße 1500x660 mm Gesamtleistungsbedarf kW Maschinengewicht ca. 9 t Raumbedarf ca. 4,8x4,5x2,95 m

Condition: good (used), Year of construction: 2001, Functionality: fully functional, spindle speed (max.): 10,000 rpm, power: 15 kW (20.39 HP), Equipment: documentation/manual, rotational speed infinitely variable, - 5-Axis Vertical Machining Center - second-hand - HURCO - VMX 40 - with LEHMANN 2-axis dividing head - DRM 160mm, holder SK 50 - 24-fold tool changer - Control ULTIMAX 4 (64MB memory with all extensions, 5-axis simultaneous possible) - Ethernet interface - Zero-point clamping system Begkrzq - Coolant system (without chip conveyor, no IKZ)
