Used Ergomat Tbc 42 for sale (1)

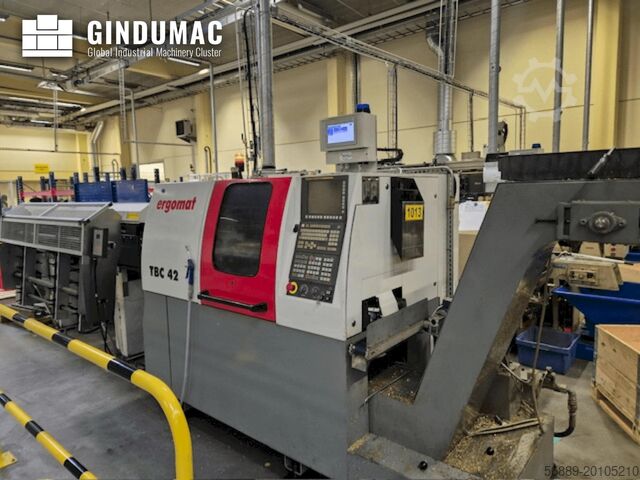

Condition: ready for operation (used), Year of construction: 2012, spindle motor power: 7,500 W, spindle speed (max.): 5,000 rpm, overall weight: 2,500 kg, total height: 1,580 mm, controller manufacturer: FANUC, controller model: na, number of axes: 6, This 6-axis ERGOMAT TBC-42 Swiss Turning Machine was manufactured in 2012. It features a maximum material diameter of 42 mm and a spindle speed up to 5000 rpm. Equipped with a Fanuc 18i-TB Dual Path control, it offers precision and versatility with 8 tool positions and rapid feed rates up to 30 m/min. If you are looking to get high-quality turning capabilities consider the ERGOMAT TBC-42 machine we have for tact us for more information. Machine Benefits Technical Machine Benefits • Main spindle power (intermittent): 11. 0 kw • Main spindle torque (continuous): 95. 5 nm • Rapid feed cross slide x1/z1: 15/15 m/min • Rapid feed turret slide x2/z2: 15/30 m/min • Rapid feed vertical slide v1/v2: 15/15 m/min • Thrust on all axes: 2500 n Extra Information Turret Cgodpfex D Sccex Af Hou Tool positions: 8 Tool section: 16 x 16 mm Tool holder diameter: 25 mm Standard tool holder: VDI 25 Switching time station to station: 0.3 sec Switching time additional station: 0.06 sec Switching time 180°: 0.48 sec Tools Live tool positions: 8 Live tool holder shaft diameter: 25 mm Live tool power (continuous): 1.1 kW Live tool power (intermittent): 3.7 kW Live tool torque: 7 Nm Live tool maximum speed: 6000 rpm Dimensions Machine Depth 2630 mm
