Used Jenbacher Gas Engine for sale (19)

Condition: ready for operation (used), Year of construction: 1998, operating hours: 72,000 h, functionality: fully functional, fuel type: gas, color: green, output voltage: 400 V, output frequency: 50 Hz, type of output current: three-phase, rotational speed (max.): 1,500 rpm, motor manufacturer: Jenbacher, type of cooling: water, Available complete Jenbacher 320 power plant with 72,000 operating hours. The engine is from 1998. An overhaul was performed at 42,000 hours, after which the maintenance schedule has been closely followed. It was shut down running at full load (1MW) without any issues. All auxiliaries are included except for the transformer and circuit breaker. Chsdjytq Hgopfx Ahmec

Condition: used, Year of construction: 2009, power: 800 kW (1,087.70 HP), input voltage: 400 V, fuel: domestic gas H, overall weight: 11,700 kg, nominal power: 800 kW (1,087.70 HP), input frequency: 50 Hz, input current: 950 A, ambient temperature (max.): 30 °C, We are offering this used Jenbacher JMS 412 GS-N.TE combined heat and power (CHP) unit, manufactured in 2009. Chjdpez Ehc Eefx Ahmsc Type: JMS 412 GS-N.TE Serial number: 6289001 Year of manufacture: 2009 Rated power: 800 kW Power factor: 1 Maximum operating altitude: 150 m Maximum ambient temperature (intake air): 30 °C Rated frequency: 50 Hz Rated voltage: 400 V Rated current: 950 A Weight: 11700 kg Performance class: G2 The unit was only operated at 555 kWh by the previous owner, but we used it at 800 kWh. According to the data sheet, it is designed for 800 kWh operation. We operated the unit with natural gas. We are selling the complete unit in a soundproof container, including the exhaust heat exchanger and chimney. If you have any questions or need further information, please feel free to send us a message or call us.

Condition: used, Year of construction: 2020, 1) Four-stroke engine Jenbacher J 612 GS-J03, operating hours: under 15,000h, ISO standard output: 2,058kW, design: V 60°, number of cylinders: 12, bore: 190mm, stroke: 220mm, displacement: 74.85l, input power: 4,474kW, mixture: 692kW, oil: 204kW, engine cooling water: 315kW, exhaust gas when cooled to 180°C: 638kW, exhaust gas when cooled to 100°C: 909kW, surface heat: 79kW, rated speed: 1,500/min, moment of inertia: 56.67kgm², direction of rotation (viewed from flywheel): left, radio interference suppression level acc. to VDE 0875: N, starter power: 13kW, starter voltage: 24V, mean piston speed: 11m/s, length: 4,246mm, width: 1,886mm, height: 2,503mm, engine dry weight: 9.5t, engine operating weight: 10.3t, 2) Generator Stamford LVSI 804 W, rated output: 2,643kVA, drive power: 2,058kW, rated active power cos φ=1: 2,004kW, rated active power cos φ=0.8: 1,986kW, rated apparent power cos φ=0.8: 2,483kVA, rated reactive power cos φ=0.8: 1,490kVA, rated current at cos φ=0.8: 3,584A, frequency: 50Hz, voltage: 400V, speed: 1,500/min, overspeed: 1,800/min, power factor (ind.-cap.): 0.8-0.95, efficiency cos φ=1: 97.4%, efficiency cos φ=0.8: 96.5%, moment of inertia: 117kgm², cable outlet: left, insulation class: H, temperature rise (at drive power): F, max. permissible ambient temperature: 40°C, weight: 6.752t, with documentation. An on-site inspection is possible. Csdpfx Aezvgg Tjhmehc

Condition: excellent (used), functionality: fully functional, machine/vehicle number: 01013115, overall weight: 15 kg, color: green, output voltage: 250 V, type of output current: DC, number of cylinders: 24, ambient temperature (min.): 18 °C, ambient temperature (max.): 65 °C, The MIC950 version C is a state-of-the-art ignition controller designed to optimize the performance of Jenbacher gas engines in the most demanding industrial applications. Thanks to its advanced architecture, this unit ensures precise ignition control, improving energy efficiency and reducing emissions. Additional uncategorized technical details: Minimum input voltage: 18 V DC Cedpfx Aswtmltjhmjhc Maximum input voltage: 32 V DC Nominal power: 24 V nom. Output voltage: 250 V DC Minimum temperature: -13°F Maximum temperature: +149°F Compatibility: Jenbacher series 2, 3, 4, and 6 Availability: 173 units in stock

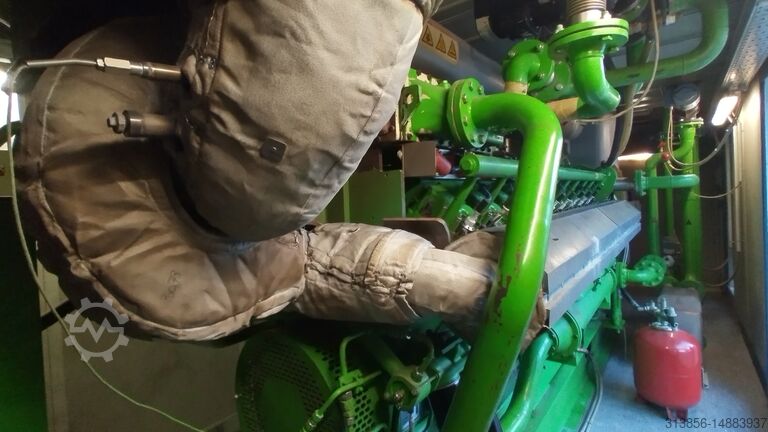

Condition: new, Year of construction: 2023, functionality: fully functional, fuel type: gas, output voltage: 400 V, output frequency: 50 Hz, rotational speed (max.): 1,500 rpm, motor manufacturer: Jenbacher, NEW power plant equipped with a refurbished generating set; two units are immediately available. NEW container, NEW fittings, Dia.Ne XT4, and a fully overhauled generating set; overhaul report available. ECOMAX 10 G2P NGS with a containerized Jenbacher JGS 320 GS-N.L 400V. Accessories and piping are partially visible and partially packed, as these are NEW systems. Chsdjz D H Dlopfx Ahmjc Drawings and engine data sheets are available. Option to switch to the EGHE 200°C + bypass configuration. Further customization can be discussed.

Condition: new, Year of construction: 2023, functionality: fully functional, fuel type: gas, output voltage: 400 V, output frequency: 50 Hz, motor manufacturer: Jenbacher, NEW power plant equipped with a reconditioned generating set; two units available immediately. NEW container, NEW fittings, Dia.Ne XT4, and a fully overhauled generating set; overhaul report available. ECOMAX 15 G2P NGS with containerized Jenbacher JGS 420 GS-N.L 400V. Accessories and piping are partially visible and partially packed, as these are NEW systems. Codpfx Ajz D H Haehmjhc Drawings and engine data sheets are available. Option to switch to the EGHE 200°C + by-pass configuration. Further customization options are available and can be discussed.

Condition: like new (used), Year of construction: 2020, operating hours: 14,000 h, functionality: fully functional, machine/vehicle number: 1455607, fuel: liquid petroleum gas (LPG), Jenbacher JMS612 in a container Electrical output: 2004 kW Thermal output: 2244 kW Chedpfx Aeztw Najhmsc First commissioning: November 30, 2020 Operating hours: 14,800 h Condition: Like new System is still in operation. Full maintenance contract was in place until recently. Includes flue gas cleaning system (suitable for horticulture).

Condition: used, Year of construction: 2008, operating hours: 110 h, functionality: fully functional, power: 834 kW (1,133.92 HP), fuel type: gas, Jenbacher J316 Bio Gas generator containerized set - Manufacturer: Jenbacher - Model: J316 - Hours 110k - Year of Manufacture: 2008 - Rated Output Power: 834 kW - Frequency: 50 Hz Cedpfx Ahey S Ttbjmshc - Alternator: Stamford New alt installed 2017 -XT4 New turbo installed 2k hours ago. Contact for more info.

Condition: ready for operation (used), Year of construction: 2016, operating hours: 32,524 h, functionality: fully functional, type of input current: three-phase, input voltage: 6,300 V, rotational speed (min.): 1,500 rpm, rotational speed (max.): 1,500 rpm, fuel: domestic gas H, fuel type: gas, Equipment: documentation/manual, rotational speed infinitely variable, GAS GENERATOR PLANT – JENBACHER J616 GS J11 (Complete Package) This offer is for a complete power plant package, comprising cooling system, pumps, lubrication system, electrical system, and exhaust system. Total operating hours (since new): 32,524 h Maintenance: Fully serviced by INNIO Chedoytg Rbopfx Ahmec Operating hours since 30,000 h major overhaul: 2,524 h Major overhauls performed (20,000 h and 30,000 h): fully completed. At the 30,000 h major service, the following components were replaced with new parts: turbochargers, pistons, connecting rods, cylinder liners, piston rings, as well as main bearings and connecting rod bearings. Technical specifications: Electrical output: 2,745 kW Year of manufacture (YOM): 2016 Fuel: Natural gas Speed: 1,500 rpm Frequency: 50 Hz Alternator: Leroy-Somer Voltage: 6,300 V Scope of supply (included): - Jenbacher genset - Auxiliary control cabinets - DIA.NE XT4 - Gas ramp - Cooling system (high- and low-temperature pumps) - Thermal fluid recovery boiler - Silencer - Protection switchgear - Transformer 6.3 kV / 15 kV, 3,500 kVA (included) - Documentation Availability: Immediately

Condition: excellent (used), Year of construction: 2010, operating hours: 120 h, functionality: fully functional, power: 1,064 kW (1,446.64 HP), fuel type: gas, output frequency: 50 Hz, Jenbacher J320 GS CHP unit price includes dismantling and loading onto your trucks. Year: 2010 Power: 1064 KW Frequency: 50hz Running hours: 120k (overhaul at 100k) reports available. Currently running Full tech data sheet available. Set in very good condition. Serviced and maintained by engineers. Contact for more info and pictures. Chjdpfowd Nw Tex Ahmec

Condition: good (used), Year of construction: 1995, Engine: JGC312 with 551 kW (year 1995) - Turbocharger overhauled 4,000 hours ago Chsdpevcm Nfofx Ahmoc - Additional oil cooler – 3 years old - Cylinder head – new in 2017 - Charge air cooler overhauled 4,000 hours ago - Exhaust manifold – new in 2021 - Complete engine overhaul in 2017 Offer is made without guarantee of availability.

Condition: like new (used), Year of construction: 2022, functionality: fully functional, fuel: liquefied natural gas (LNG), - 1x CHP unit - As new - Control cabinet still in original packaging - Located in Genthin We are selling a CHP unit in as-new condition. It has never been used, and the control cabinet is still in its original packaging. It has never been used but has been regularly maintained and is fully functional. Chsdpfxszazrae Ahmjc The CHP unit is located in Genthin and can be inspected at any time.

Condition: used, Year of construction: 2020, KWe: 1222 Chedpfxsym Rnqo Ahmsc Working hours: 29000

Condition: excellent (used), Year of construction: 2008, operating hours: 84,000 h, functionality: fully functional, power: 526 kW (715.16 HP), type of cooling: air, input frequency: 50 Hz, Jenbacher J312GS Chedpfx Ajzwpnpehmec hours: 84,000 hours overhaul at 60,000 hours. Year: 2008 Rated power: 526KW Frequency: 50HZ Very well looked after unit was installed in a hospital and serviced and maintained regularly.

Condition: used, Year of construction: 2011, operating hours: 85,000 h, functionality: fully functional, fuel type: gas, output voltage: 400 V, output frequency: 50 Hz, Full trigeneration plant with York absorption chiller. Codpfxjy Ibldj Ahmohc Regularly maintained and covered by the supplier’s preventive and corrective maintenance contract. Major overhaul performed in 2021 at 61,000 operating hours. New Long Block (LB) supplied by INNIO on the occasion of the major overhaul, documentation available. • 87,670 plant hours; • 26,904 engine hours; The crankshaft has not been machined, while the engine block has been machined for the use of oversized liners. Overhauled alternator, report available. Price and further information available upon request.

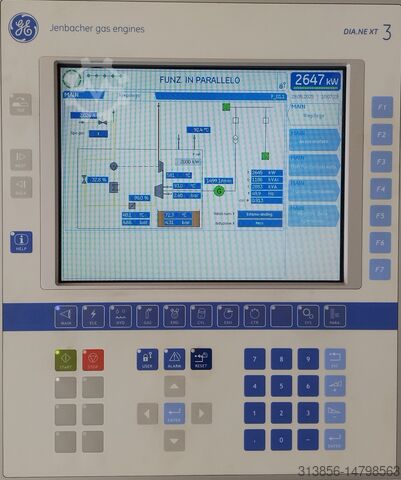

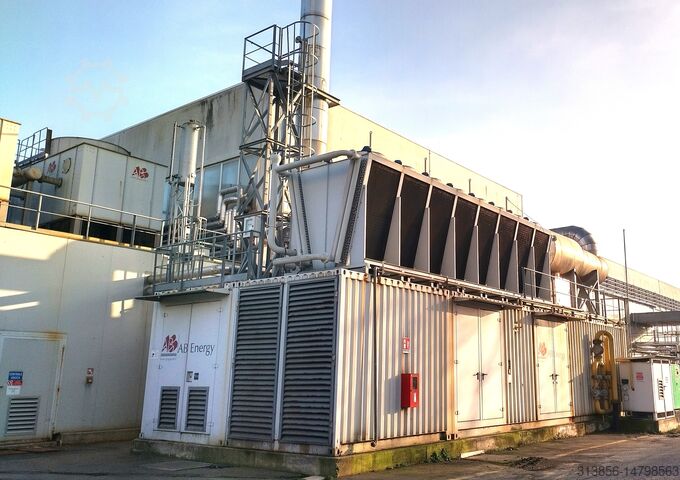

Condition: excellent (used), Year of construction: 2012, operating hours: 95,000 h, functionality: fully functional, machine/vehicle number: Vers. J18 (adattato F12), fuel type: gas, power: 2,651 kW (3,604.35 HP), output voltage: 6,300 V, output frequency: 50 Hz, nominal power: 2,714 kW (3,690.01 HP), Currently operational until June 2026. Longblock replacement performed during major overhaul (68,000 operating hours). Upon disassembly, a minor overhaul will be required. Regularly maintained and covered by the supplier’s preventive and corrective service contract. The system is complete with: - heat exchanger for steam production (Siat 1,168 kW); - SEA transformer, 6,300 --> 21,000 V. Dia.Ne version: XT 3. Chodsrdx Ddopfx Ahmec

Condition: excellent (used), functionality: fully functional, fuel type: gas, output frequency: 50 Hz, motor manufacturer: Jenbacher, JGS 620 / 624 GS-N.L units are available, including refurbished units, in both generating set configurations (non-containerized) and containerized versions, with NEW containers and NEW accessories and fittings. Csdpfx Asy Uk Dpohmohc Further customizations can be discussed.

Condition: used, mileage: 613 km, power: 5 kW (6.80 HP), first registration: 07/1989, fuel type: diesel, overall weight: 500 kg, color: blue, gearing type: mechanical, suspension: other, operating hours: 613 h, Year of manufacture: 1989. 13.5 kW, 613 operating hours, 2,800 rpm. Airflow rate: 2.1 m³/min. Fitted with a Deutz engine, highly soundproofed, complete with hoses and hammer set. Permissible total weight: 500 kg. FOR US, CONDITION AND A GOOD FEELING ARE DECISIVE; PRICE IS SECONDARY. For further questions, please contact Mr. Faller at the provided number. //EXCHANGE, TRADE-IN, OR COLLATERALIZATION OF YOUR VEHICLE, AS WELL AS FINANCING POSSIBLE! All information provided without guarantee. Further offers can be found on our homepage. The description and listed data do not constitute a guaranteed specification and are not legally binding. The only binding agreement is the purchase contract made at our dealership upon buying the vehicle. Subject to errors and prior sale! Chjdpsx Upngofx Ahmsc

Condition: reconditioned (used), functionality: fully functional, overall weight: 2,000 kg, shaft diameter: 175 mm, length (extended): 4,418 mm, motor model: J624GS-F, Crankshaft J624, overhauled and ready for installation. Features connecting rod journals at a nominal size of 175 mm and main bearing journals machined to 194.5 mm (compared to the standard 195 mm) to ensure uniform fits. Hard chrome plating has been applied to journals N4 and N5 to restore dimensions and ensure surface smoothness. The component has undergone thorough inspections to guarantee proper functionality during installation. Technical Specifications Type: KURBEL Chodpfoxu Ataex Ahmjc Engine: J624GS-F Length: 4,418 mm Main bearing diameter: machined to 194.5 mm (standard 195 mm) Connecting rod journal diameter: 175 mm
