Used Mecal Mc 304 Atlas for sale (7)

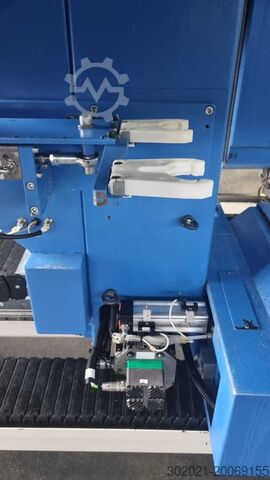

Condition: good (used), Year of construction: 2013, Profile machining center Axis travel X-axis: 7430 mm Y-axis: 1320 mm Z-axis: 500 mm A-axis: +/-90° Working areas X-axis: 7460 mm Y-axis: 650 mm Z-axis: 250 mm 8 clamping elements Automatic tool magazine with 8 places in a protected housing, for drilling, milling and thread cutting tools, Drarcb angle head and disc milling cutter, max. Ø 200 mm, + 2 places for 2 angle heads Tool holder ISO 30 In pendulum operation (2 zone machining) the working stroke per zone is limited to 3500 mm

Condition: good (used), Year of construction: 2007, Used MECAL brand work center mod. MC 302 GEOS 5, Technical description: 5-axis electrospindle - A = +/- 90°, 12 Kw with cooler 18-station automatic tool changer + blade diam. 400 protected and positioned on the portal that slides on the X axis C07Utzpkmc Working range - stroke: X = 7500 mm. ; Y = 1500 mm. ; Z = 620 mm. ; Milling operations with linear and circular interpolation of the X-Y-Z axes, Machining on 5 faces, Possibility of PENDULAR machining, No. 8 pneumatic clamps with automatic movement No. 2 pneumatic stops Tool cooling with control unit and minimal system Cnc, use and maintenance manual, CE,

Condition: good (used), Year of construction: 2014, Functionality: fully functional, machine/vehicle number: 9911832, travel distance X-axis: 10,600 mm, travel distance Y-axis: 1,570 mm, travel distance Z-axis: 740 mm, rapid traverse X-axis: 70 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 40 m/min, total height: 2,760 mm, total length: 11,900 mm, total width: 4,500 mm, overall weight: 10,500 kg, spindle motor power: 10 W, spindle nose: HSK F63, tool length: 150 mm, tool diameter: 20 mm, tool weight: 3,000 g, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, The MECAL MC302 GEOS-5 5-OSI machining center, manufactured in 2014 in Italy, is designed for milling, drilling, threading and cutting profiles made of aluminum alloys, plastics and steel. The machine, equipped with high-end components and innovative solutions, performs machining both on a single working field and inside 2 separate working zones, which translates into a significant increase in the speed and efficiency of the production process. Simultaneous machining on two work zones is possible through the use of a longitudinal work area with a sliding machining station and a chip conveyor. The MECAL machining center for aluminum profiles achieves high structural rigidity, thanks to a base made of quality steel tubes. During machining, the profile is held by special clamps with an independent power system, allowing positioning and automatic repositioning of each individual clamp in a very short time. All 5 axes (X,Y,Z,A,C), driven by motors with digital systems, move on automatically lubricated precision guides. The MECAL GEOS-5 machining center is offered with 3D software, providing a high level of programming flexibility, user-friendly operation and an intuitive graphical interface. Technical specifications of the MECAL MC302 GEOS-5 profile milling machine - number of axes : 5 (X,Y,Z,A,C) - feed rate in Y/Z axis : 1570/740 mm - spindle tilt in A axis : ± 120° - spindle rotation in C axis : ± 210° - accelerated feeds in X/Y/Z axis : 70/60/40 m/1 - 3D graphics software - tool storage capacity : 18 - maximum electro-spindle speed : 24000 rpm - power of electro-spindle : 12 kW - maximum blade diameter : 500 mm - maximum diameter of side and face milling cutter : 200 mm - central lubrication Cfcfxu9

Condition: excellent (used), Year of construction: 2002, operating hours: 1,250 h, Functionality: fully functional, machine/vehicle number: 9000951, travel distance X-axis: 3,500 mm, workpiece height (max.): 500 mm, number of spindles: 6, number of slots in tool magazine: 6, input voltage: 380 V, The machine has not been used for some time and for this reason we have decided to sell it. No problems during the last operation. Three milling axes De machine is alenige tijd niet meer gebruikt en om deze reden hebben wij besloten hem te verkopen. Geen probleem tijdens de laatste operatie. Drie-assig frezen The machine has not been used for some time and for this reason we have decided to sell it. No problem during last operation. Three axis milling. Cpqnonncyq Die Maschine würde Längere Zeit nicht benutzt und aus diesem Grund haben wir uns entschieden sie zu verkaufen. Bei der letzten Operation gab es kein Problem zu melden. Drei-Achsen-Fräsen

Condition: like new (used), Year of construction: 2018, SINGLE HEAD CUTTING MACHINE WITH Ø 600 MM RISING BLADE. Manual rotation of the work surface, up to 20°, both to the right and to the left. Quick positioning of the work surface on pre-selected angles (90°, 45°). Manual positioning with pneumatic locking on any intermediate cutting angle. DIGIT = with digital display for the angular positioning of the cutting surface. MQL = Tool lubrication with Minimum Quantity Lubrication system Cutting unit rotation capacity to the right.°20 Cutting unit rotation capacity to the left°20 Blade diameter mm600 Blade hole mm50 Tool rotation speed rpm2800 Motor power kW4 Machine length mm ± 920/1520 Machine width mm ± 1320 Machine height mm ± 1525/1800 max Cahjuutayu Machine weight kg ± 470

Condition: excellent (used), Year of construction: 2021, feed length X-axis: 4,225 mm, feed length Y-axis: 530 mm, feed length Z-axis: 410 mm, feed rate X-axis: 80 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 30 m/min, - designed for machining aluminum, light metal alloys, PVC - 4 numerically controlled axes: - possible machining from the top and sides with standard tools and from the front - the control allows linear and circular interpolation of the head movement in three axes as well as two ways of programming: ISO and using a transparent CAD/CAM tool program, - the head moves on a boom over a bed of about 5m. - machine weight: about 3300 kg - the base is a uniform steel structure, welded and normalized, with the surfaces under the guides machined in a single mount, - leveling of the machine is carried out by means of adjustable feet, - the shape of the base is designed to facilitate chip removal - the base is placed in a cabin with a cover completely isolating the work zone, - movement along the X, Y and Z axes is carried out on rail guides cooperating with rolling linear bearings, the machine has an automatic central lubrication system for these guides. - maximum head power 6 kW, S1 (at 6,000 rpm), torque 9.55Nm - adjustable speed up to 18,000rpm, ISO 30 CAN tool holder, X-axis working range of 4,225mm, drive by DC motor with high accuracy reducer and gear wheel - toothed bar transmission, - working range in Y-axis 530mm, drive by DC motor with precision screw - rolling nut unit, - Z-axis working range 410mm, drive by DC motor with precision screw - rolling nut assembly, - range of table angle change (A axis) ±125°, drive by DC motor with planetary gear and brake. - maximum speed of movement in the A axis - 3,600 °/min - Tool cooling by means of impulse cooling and lubrication system. - with standard chucks when machining from three sides, in one clamping it is possible to machining in the area of 4,013mm x 200mm x 177mm, - maximum cross-section of machined profile from three sides 200x200mm - with standard chucks when machining from three sides, in two fixtures it is possible machining in the area of 8,026mm x 200mm x 177mm (the machine treats such a cycle as one machining and informs the operator when the profile is moved), - machining in a larger area is possible, but requires prior checking and depends on the shape of the profile, the machining to be performed and the fixtures. Tool magazine: located in the center of the machine, 10 places - 4 pneumatic clamping chucks (additional chucks possible for an extra charge), - clamping width 230mm, - chucks placed on rail guides for easy sliding, - handle adjustment: - in TM MMI version each holder is equipped with its own drive (simultaneous repositioning). - PC computer of current standard, with keyboard, mouse, network card and 17" TFT monitor - Ability to program machining in ISO code and via graphical CAD/CAM interface B0S7Jzg3Dy

Condition: good (used), Year of construction: 2019, MOVING COLUMN MACHINING CENTER WITH 3-AXIS CNC VERTICAL SPINDLE + 1 PNEUMATIC. 3 CNC-controlled axes (X, Y, Z) + 1 pneumatic-controlled axis. Suitable for processing aluminum profiles for the window and door sector. The clamp beam (Axis) can be rotated, with pneumatic control, on three orthogonal positions (-90°, 0°, +90°). Crap93Lfoy The workpieces are fixed by 4 pneumatic clamps on the tilting beam, which can be positioned within a range of 180° (± 90°). The rotation is managed directly by the control cycle. Compressed air treatment unit (filter/reducer/lubricator) N. 1 air-cooled electrospindle, ISO 30, rpm 18000, kW 3.8 N. 2 Tool magazines (Left side 3 positions + Right side 5 positions) N. 4 workpiece locking clamps with automatic movement N. 2 pneumatically controlled reference stops Desktop PC, QWERTY keyboard, mouse 18.5” W TFT-LCD screen (16:9, 1366 x 768 pixels) Windows operating system 3D CAD CAM graphic software
