Used Mep Tiger 352 for sale (7)

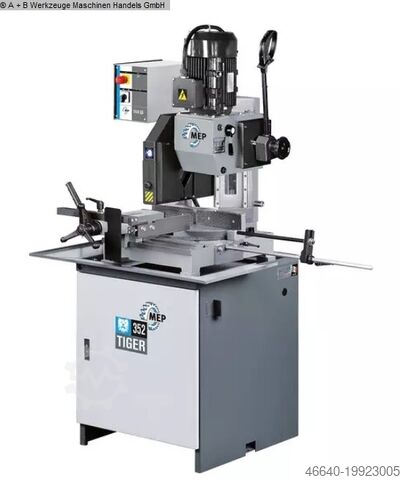

Condition: new, saw blade diameter 350 mm Nedpfx Afsfg Rlbjxolh capacity 90 degrees: round 115 mm capacity 90 degrees: square 95 mm 180 x 95 mm Working height 925 mm saw blade turning speeds 15+30+45+90 U/min total power requirement 1,8/2,5 kW weight of the machine ca. 0,41 t dimensions of the machine ca. 0,8 x 1,0 x 1,85 m Electro-pneumatic - semi-automatic vertical circular saw with micro Processor control for miter cuts from 60° left to 45° right. With Linear guide of the saw head. •new system with head sliding vertically on linear guides Upstream slide rails with recirculating balls. •Double gear set for high transmission performance •4 speeds 15/30/45/90 rpm •Vice opening 190 mm • Stroke of the saw head can be programmed directly from the control panel for adjustment to the cutting material •Pneumatic vertical vice •Saw blade HSS DMO 5 Æ 350x32x2.5 for solid and profile material •Vise with counter-clamping device for double workpiece clamping •Base with removable coolant tray •Chip clearing brush •Length stop for cuts of the same length •Material support arm, at the same time connection option for roller conveyor/ loading side •Turntable with additional central axis

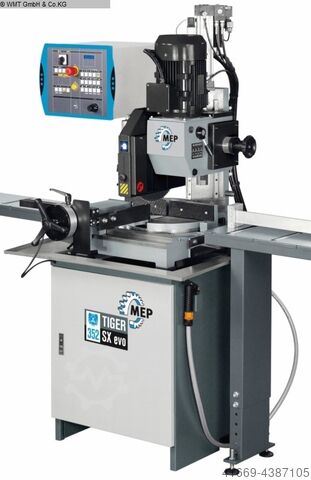

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, SEMI-AUTOMATIC CIRCULAR SAW MEP TIGER 352 SX EVO - Blade rotation at 4 speeds (15/30/45/90 rpm) - Rotating table mounted on central spindle and axial bearing Njdpfxoxdr Rts Afxolh - Cutting head feed on double linear guideway - Mechanical stops at -45°, 0°, +45°, and +60° with locking device at any angle - User interface with display

Condition: new, saw blade diameter 350 x 32 mm Nljdpfxoxabd Io Afxoh capacity degrees: round 1 mm capacity degrees: round 110 mm capacity 60 degrees: round .0 mm capacity degrees: square 95 x 95 mm capacity degrees: square 95 x 95 mm capacity 60 degrees: square x mm capacity degrees: flat 180 x 95 mm capacity degrees: flat 125 x 95 mm capacity 60 degrees: flat x mm

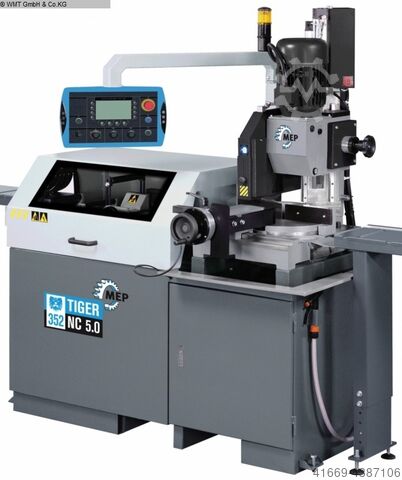

Condition: new, MEP TIGER 352 NC 5.0 [Fully automatic] Article number TI352NC motor power 3,0 kW belt opening 190 mm belt dimensions 350x32x2,5 weight 680 kg Speed 15 - 90 m/min. Cutting surface 0° 115 / 95 / 180x95 Cutting surface 45° right 110 / 95 / 125x95 Nsdpfxechhhdj Afxelh Cutting surface 45° left Cutting surface 60° right Cutting area 60° left Description Electro-pneumatic, vertical, linearly guided automatic saw for the use of HSS saw blades to make serial cuts from 60° left to 45° right on steel. The machine also works in semi-automatic cycle. CNC automatic machine with multiprocessor and two axes controlled by MEP control, latest generation, which allows to program 1000 different cutting programs, each with different cutting length and number of pieces, for the same material thickness. FEATURES: -New centralized control panel on articulated arm to allow operators to easily reach the emergency stop switch from any working position. -NEW: Fieldbus communication system (Modbus protocol) with double microprocessor and serial port. -Display with 20 characters x 4 lines for displaying the following technical parameters: + saw band speed + number of cuts programmed and executed + saw band thickness + feed length + cutting time + ammeter + display of over 100 diagnostic messages and warnings. -NEW: Display and recording of the alarm and error messages with the possibility of displaying the incidents that have occurred. -NEW:

Condition: new, saw blade diameter 350 mm capacity 90 degrees: round 115 mm capacity 90 degrees: square 95 mm 180 x 95 mm Working height 925 mm saw blade turning speeds 15 - 90 U/min total power requirement 3,0 kW weight of the machine ca. 0,68 t dimensions of the machine ca. 0,8 x 1,0 x 1,85 m Electro-pneumatic, vertical, linear-guided automatic saw for use of HSS saw blades to make series cuts from 60° left to 45° right steel. The machine also works in semi-automatic cycle. CNC machine with multiprocessor and two with MEP control, latest generation controlled axes that make it possible to achieve 1000 with the same material thickness different cutting programs, each with a different cutting length and number of pieces program. Njdpfx Aofg Rlcefxjlh

Condition: new, saw blade diameter 350 x 32 mm capacity degrees: round 1 mm capacity degrees: square 95 x 95 mm capacity degrees: flat 180 x 95 mm capacity degrees: round 110 mm capacity degrees: square 95 x 95 mm capacity degrees: flat 125 x 95 mm Nledpfxexaab Sj Afxeh capacity 60 degrees: round .0 mm capacity 60 degrees: square x mm capacity 60 degrees: flat x mm

Condition: new, saw blade diameter 350 mm capacity 90 degrees: round 115 mm capacity 90 degrees: square 95 mm 180 x 95 mm Working height 925 mm saw blade turning speeds 15+30+45+90 U/min total power requirement 1,8/2,5 kW weight of the machine ca. 0,38 t Nledpsfgpdlsfx Afxoh dimensions of the machine ca. 0,8 x 1,0 x 1,85 m Manual vertical circular saw for miter cuts from 60° left to 45° right.
