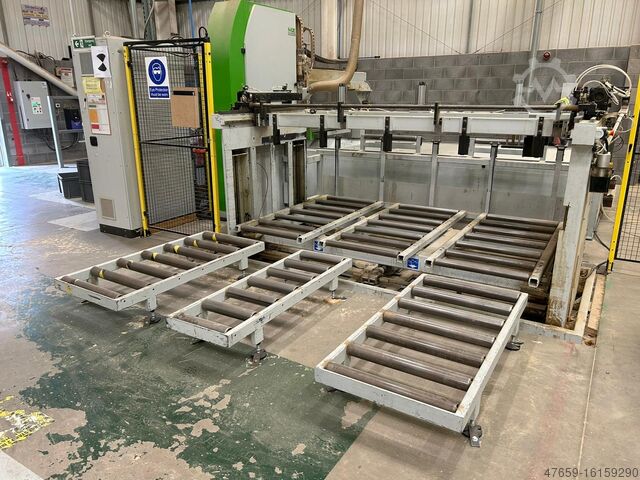

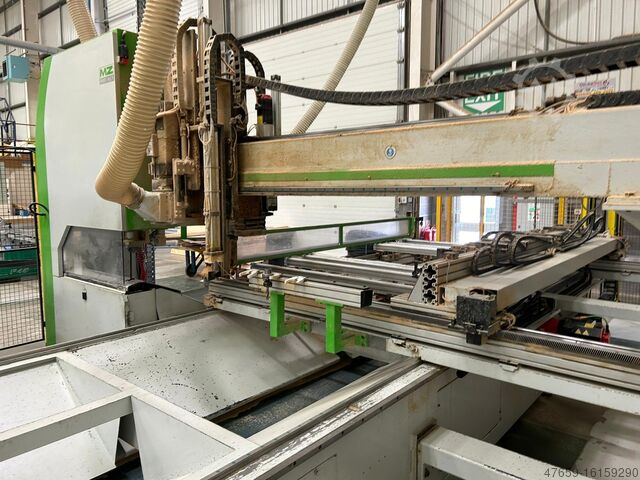

Used Mz Project Pluris for sale (1)

Condition: good (used), Year of construction: 2017, Multi-Sheet Machining For Maximum Output Automatic Loading System CNC Bandsawing, Routing & Drilling CNC Control Of The Bandsaw Movement +/- 90 Degrees The MZ Pluris is recognised as the machine of choice for all sofa and chair frame manufactures. The machine can work with OSB, Plywood, MDF, Chipboard (good quality), solid wood and also some composite materials. It has a number of key advantages over standard CNC nesting machines that include the possibility to stack multiple sheets high eg 5 x 12mm thick sheets, thanks to the use of the bandsaw sheet yield is much better, no vacuum is used so the machine is able to cut small shaped parts without difficulty and lastly cut parts are coming off on to the side discharge conveyor as the machine is still working, thus maximising machine output. Increased working capacity of 2550mm 1550mm Sheet size = 1220 x 2,440mm (8' x 4 ') and 1525 x 1525mm Standard equipment / features: CNC bandsaw specification - Maximum depth of curve 800mm - Minimum radius of cut 50mm - Maximum cutting height 100mm - Automatic angling of blade +/- 90 degrees - Blade size 5900 x 13mm - Automatic sawblade tensioning - Cast aluminium saw pulleys 900mm dia - Self braking motor 11kw CNC router specification: - Maximum working height / cutting depth 60mm - Electro spindle power S6 9KW - Variable rotation speed 7000 - 24000 rpm - HSK 63F tool holder Fence / grippers / supports: - Programmable pusher fence with 6 x pneumatic panel grippers - 8 x panel support arms General: - Automatic centralised lubrication system consisting of 3 x oil pumps - Internal conveyor belt for removal of dust / waste cuts - Free standing electrical control cabinet with PC and keyboard - Hand held remote control CNC vertical drilling unit: - Maximum drilling depth 70mm - 5 x independent drilling spindles in line. (Drills not included). - 1.7kw motor Plus package: - 5 position automatic tool changer - Automatic movement of clamps and support arms - set through the program Lifting table: - 4 screw - Capacity 2550 x 1525mm - Max load capacity 3000kg approx - Max panel pack height 700mm - PIT REQUIRED Psdpfx Ajtqfv Ijg Sjgu Year - 2017 CE Serial nr - 22/2017
