Used Mazak Cnc Lathe for sale (380)

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, Mazak QTC 200 MSY L WE ARE SELLING NICE CONDITION Mazak qtc 200 MSY 1. *Capacity*: - Maximum Swing: 695 mm - Maximum Machining Diameter: 380 mm - Maximum Bar Work Capacity: 65 mm 2. *Spindle*: - Main Spindle Chuck Size: 8 inches - Main Spindle Maximum Speed: 5000 rpm - Second Spindle Chuck Size: 6 inches Fpodpfox H A Hmjx Ag Tod - Second Spindle Maximum Speed: 6000 rpm 3. *Turret*: - Number of Tools: 12 - Maximum Speed: 5000 rpm 4. *Axes Travel*: - X Axis: 234 mm - Y Axis: 100 mm - Z Axis: 625 mm - W Axis: 585 mm 5. *Control System*: - Mazatrol SmoothC CNC

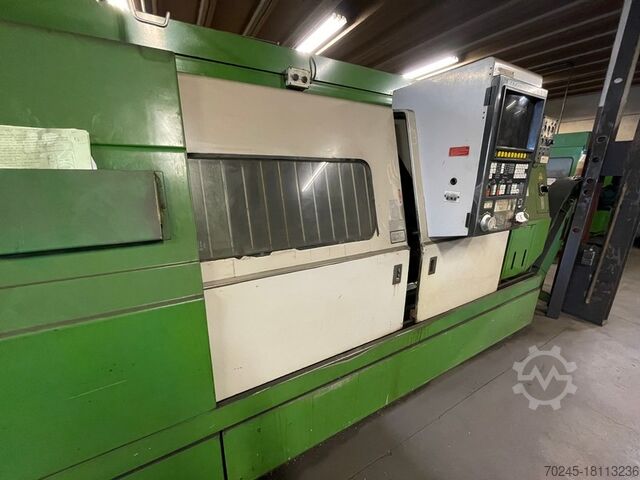

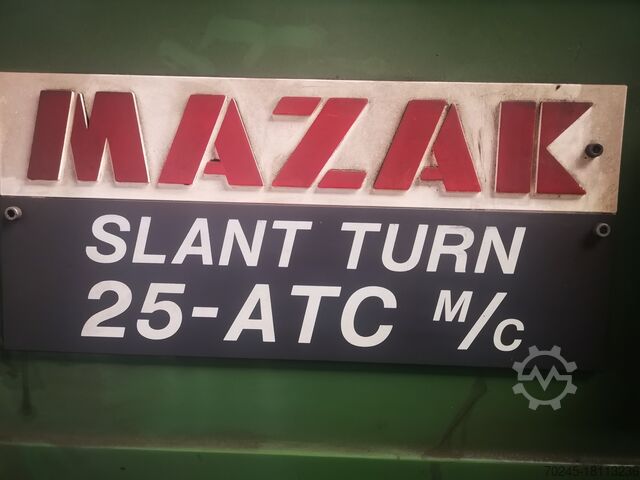

Condition: excellent (used), Year of construction: 1985, functionality: limited functionality, Description Technical information Swing over bed 420 mm Distance centre tot centre 1000 mm Max longitudinal travel Z-axis 1028 mm Max cross travel X-axis 335 mm Spindle coneA2-6 Dia of spindle bore 56 mm Power on the spindle20/25 hp Number of speeds16 - 4000 rpm CommandMazatrol Cam T3 Total power needed18,5 kW - 32,9 kVa Length 3734 mm Width 1893 mm Height 2401 mm Weight 4400 kg Toolchanger yes Number of tools 16x - rotating yes milling tools Fpodpfx Asvk E Aysg Tsd C-axis Robo flex automatic loading system tooling included Measuring arm included MAZATROL CAM T-3 CNC Accessories Tailstock, Evoquator, Tool Attachments, Presetting Machine weight 4700 kg Axis C Yes

Condition: good (used), Mazak Integrex E-410H Multi-Tasking Lathe Mazatrol 640M Pro Control, Fpsdevgzuwepfx Ag Tsd 610mm Turning Dia Serial No. 164385 (2003)

Condition: excellent (used), Year of construction: 2018, operating hours: 2,472 h, functionality: fully functional, travel distance X-axis: 470 mm, travel distance Z-axis: 876 mm, spindle motor power: 30,000 W, spindle speed (max.): 1,250 rpm, rapid traverse X-axis: 24 m/min, rapid traverse Y-axis: 24 m/min, turning diameter: 1,000 mm, total length: 2,375 mm, total height: 3,659 mm, total width: 4,558 mm, type of input current: three-phase, torque: 3,655 Nm, input voltage: 400 V, overall weight: 13,000 kg, Equipment: cooling unit, CNC Vertical Lathe MAZAK Mega Turn 900 TECHNICAL CHARACTERISTICS: Year of manufacturing: 2018 Fodeym Surspfx Ag Tepd CNC control: MAZATROL SmoothG Max. turning diameter: 920 [mm] Max. cutting diameter: 1000 [mm] Stroke X axis: 470 [mm] Stroke Z axis: 876 [mm] Rapid traverse rate X axis: 24000 [mm/min] Rapid traverse rate Y axis: 24000 [mm/min] Spindle nose: A2-15 Max. spindle speed: 1250 [rpm] Spindle power: 30 [kW] Spindle torque: 3655 [Nm] Max. distance from spindle face to turret face: 1030 [mm] Max. workpiece weight: 3000 [Kg] Min. distance from spindle face to turret face: 154 [mm] Number of tool stations: 12 Turret indexing time: 0.4 [s/pos] Lubrication tank capacity: 516 [l] Total power required: 58.9 [kVA] Rated current: 109 [A] Supply voltage: 400 [V] Working hours: 2472 [h] Number of cutting hours: 2297 [h] Dimensions: 2375 × 4558 × 3659 [mm] Weight: 13000 [Kg] INCLUDED EQUIPMENT: x1 Ø800 mm chuck, KITAGAWA type NV-32C1515 x1 set of hard jaws x2 sets of soft jaws x10 tool holders (chair type) x24 KENNAMETAL type KM50 tool holders x1 retractable tool probe arm x1 double pedal unit for chuck clamping x1 coolant tank x1 chip conveyor x1 LOSMA type Galileo GP500 mist extractor x1 set of 4 lifting brackets x1 set of axis locking brackets (for machine transport) x1 MAZAK toolbox containing various service wrenches Various programming manuals Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machines similar to Biglia, Index, Tsugami, Miyano, Star, and DMG Mori Tornos lathes, but also milling machines, grinding machines, and CNC.

Condition: used, Year of construction: 2003, Max. turning dia. 320 mm Max. turning length 450 mm Fpodeyhzfgopfx Ag Tod Spindle speed 5000 rpm Spindle speed on live tools 4500 rpm X/Z - 240/495 mm Y-axis +/- 50 mm No. of stations in turret 2 x 12 pcs Control: Mazatrol PC-Fusion 640 T Equipped with: Gantry loader w/feeder

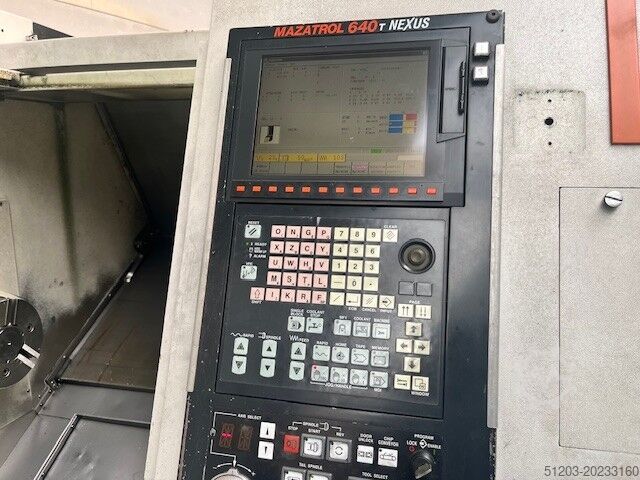

Condition: used, Year of construction: 2006, Turning length 1500 mm Max. turning dia. 420 mm Spindle bore 105 mm Spindle speeds 3300 rpm Spindle speeds on live tools 3000 rpm Turret w/12 stations Hydraulic tail stock Control: Mazatrol 640 T Nexus Fsdpfxjx Nfwgo Ag Tepd Equipped with: Magazine bar feeder FMB SL 80 3 pcs. live tools Various tool holders

Condition: used, Year of construction: 2002, Max. diameter 430 mm Max. length 600 mm Max. spindle speeds 4000 rpm Max. spindle speed on live tools 4000 rpm X/Z travel - 310/605 mm Fpodpfxexfcbfo Ag Tod 2 x 12 station turrets Control: Mazatrol PC Fusion 640 T Equipped with: Various toolholders

Condition: used, Year of construction: 2003, Turning length 1000 mm Spindle bore 65 mm Max. turning dia. 300 mm Spindle speeds 4000 rpm Spindle speeds on live tools 4000 rpm Fpedpfx Agsx N A I Ns Tod Turret w/12 stations Control: Mazatrol 640 T Nexus Equipped with: 3 pcs. live tools Various tool holders

Condition: excellent (used), Year of construction: 2022, For sale I offer a Mazak QT-COMPACT 300MSY L CNC lathe from 2022. The machine is in perfect technical and visual condition, used occasionally, fully functional, ready to work immediately. Specification: - Year of production: 2022 - Model: Mazak QT-COMPACT 300MSY L - Control: MAZATROL SmoothG Fodpfx Asv T Tiyeg Topd - Y axis and main and counter spindle - Spindle passage: 80 mm - Bar passage: 65 mm - Tool turret with Y axis (12 positions) - Max. turning diameter: 380 mm - Max. turning length: 600 mm - Cooling through the spindle (CTS) - Bar feeder - Well-maintained, used in industrial conditions, regularly serviced. Possibility of issuing a VAT invoice. The machine can be viewed on site by appointment. We help with loading and organizing transport. If you have any questions, please contact us by phone or via OLX message.

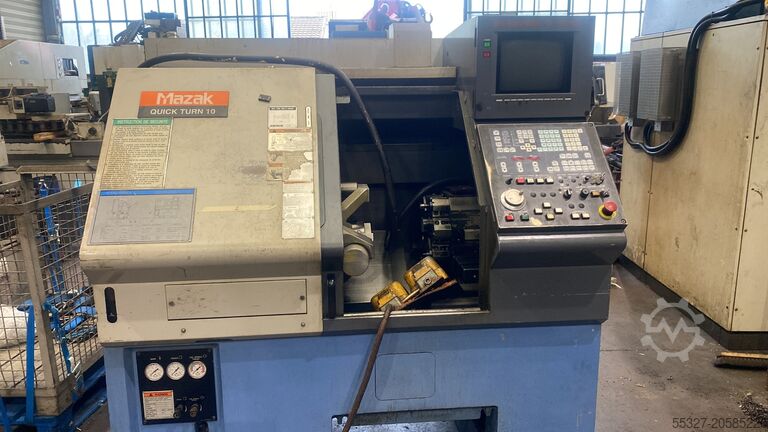

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, Mazak QT10 + LNS Bar Loader Technical Data: Working Area: - Max. swing diameter: 300 mm - Over cross slide: 190 mm - Max. turning diameter: 110 mm - Max. turning length: 256 mm Main Spindle: - Speed range: 60 – 6,000 rpm - Main drive power: 7.5 kW - Constant torque: 96 Nm - Bar work up to max. diameter: 40 mm Turret: - Number of tool stations: 8 Axes Travel: - Turret travel: - X-axis: 100 mm - Z-axis: 290 mm Fpodpfx Ageym Tx Eo Ted Traverse Speed: - Rapid traverse: - X-axis: 30.5 m/min - Z-axis: 33 m/min - Feed range: 0 – 5,000 mm/min Machine Data: - Total connected load: 23 kVA - Machine weight: approx. 2,700 kg - Machine dimensions (L x W x H): approx. 2.00 x 1.35 x 1.92 m STANDARD ACCESSORIES: - Tool presetting device (MAZAK Tool Eye System) - Fully enclosed work area with coolant and chip protection - Double foot switch for chuck open/close - Chuck status feedback (open/closed) - Work area lighting - Documentation SPECIAL ACCESSORIES: - Automatic chuck open/close M06/M07 - Indicator lamp for machining status - Various tool holders

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 150602, turning length: 1,190 mm, turning diameter: 320 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 230 mm, travel distance Z-axis: 440 mm, TECHNICAL DETAILS Travel X-axis: 230 mm Fodpfx Aoypdw Deg Topd Travel Z-axis: 440 mm Turning diameter: max. 320 mm Turning length: max. 1,190 mm Bar capacity diameter: max. 51 mm Swing diameter: max. 320 mm Spindle nose: A2-6 Draw tube thread: M60 x 2 Main spindle speed: 35–5,000 rpm Driven tool speed: 4,500 rpm Rapid traverse speed: 30.5/33 m/min Turret stations: 24 Tool holder / Turret type: VDI MACHINE DETAILS Electrical and Safety Voltage: 400 V Protection class: 1 Connected load: 77.4 kW Footprint & Weight Footprint: 6.5 m² Machine weight: 7,900 kg EQUIPMENT Portal loader GL 100 F

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, empty load weight: 8,400 kg, Lathe with gantry loading! Fjdpfsypc Ibex Ag Topd MACHINE DETAILS Weight: 8,400 kg

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, turning length: 538 mm, turning diameter: 350 mm, travel distance X-axis: 190 mm, travel distance Z-axis: 535 mm, controller model: Mazatrol PC Fusion 640T, Mazak Super Quick Turn with IEMCA TAL/AUTO 65/32 Bar Feeder! The machine operated in single-shift operation with 80% utilization. TECHNICAL DETAILS Turning length: 538 mm Max. turning diameter: 350 mm Max. turning diameter from bar feeder: 70 mm Max. swing diameter: 525 mm X-axis travel: 190 mm Z-axis travel: 535 mm Spindle speed range: 35–5,000 rpm Number of tool stations: 12 Bar Feeder Max. bar length: 3,200 mm Min. bar length: 400 mm Max. bar diameter: 32 mm Min. bar diameter: 5 mm Bar feeder weight: 850 kg MACHINE DETAILS Control unit: Mazatrol PC Fusion 640T Voltage: 400/230 V 50 Hz Control voltage: 230 V / 24 V Dimensions & Weight Dimensions (L x W x H): approx. 4,000 / 5,700 x 1,800 x 2,000 mm Fjdpjytcmxefx Ag Topd Total weight: approx. 5,000 kg EQUIPMENT Chip conveyor KSF 60/S4 bar chuck IEMCA TAL/AUTO 65/32 bar feeder

Condition: used, Year of construction: 2020, turning diameter 380 mm turning length 511 mm control Mazatrol SmoothG turning diameter over slide 276 mm Fedstugggopfx Ag Tspd max. swing diameter over bed 675 mm Standard machining diameter 276 mm bar material dia. 65 mm x-axis 234 mm rapid traverse X-axis 30 m/min z-axis 625 mm rapid traverse Z-axis 33 m/min turning speeds 35 - 5000 U/min spindle nose A2-6 spindle bore 76 mm Motor output (40%ED) 26 KW 22 KW Max. Torque 465 Nm turning speeds 6000 U/min Main drive power 11 KW Max. Torque 90 Nm Milling spindle speeds ( driven tools) 35-6000 1/min torque on milling spindle max: 47 Nm power capacity - milling spindle 5,5 (40% ED) kW Milling spindle power 3,7 kW Numbers of tools 12 (angetrieben) Tool cross section (outside) 25 qmm Boring bar- Ø 40 mm Drill- Ø 20 mm Mill- Ø 20 mm Tap- Ø M20x2,5 Switching time one turret station ca. 0,20 sec coolant tank 180 l connected load 46,2 kW weight of the machine ca. 5,9 t dimensions of the machine ca. 2,7 x 1,9 x 1,9 m incl. the following accessories: - Signal light (3-colour LED), rectangular - High-performance coolant system (1.1 kW) Flow rate max. 17.6 l/min, pressure (at pump) 5 bar. - Additional coolant nozzle main spindle - Preparation for oil mist extraction electrical/mechanical flange 98mm - Preparation for bar feed - Robot interface (Advance/Profibus) - Chip conveyor with low ejection height - Overload monitoring system - Drilling cycle with torque-dependent chip breaking - Preliminary use of a hollow clamping cylinder on counter spindle - Hollow clamping device incl. draw tube + cylinder - Clamping chuck Hainbuch Spanntop Nova Axfix mini size 52 - Chuck Hainbuch Spanntop Nova Axfix special mini size 52 - 2 x collets - Changing device for collet chuck STANDARD ACCESSORIES Automatic on/off and warm-up function Air blowing device on the chuck on the counter spindle Use of linear systems with guide carriage USB connection (1 connection) Set of manuals in electronic form on CD C-axis main spindle Input accuracy 0.0001° Spindle positioning counter spindle without C-axis Input accuracy 0.001° Tool turret with 12 stations VDI, Operator door with locking switch Double foot switch for both main and counter spindle Hydraulic pressure interlock Fully enclosed work area Work area lighting Safety precautions in accordance with global standards High-performance coolant system (520W) Flow rate max. 11.5 l/min. Complete coolant system Automatic opening/closing of the chuck jaws Automatic tool eye Absolute positioning system Preparation for chip conveyor (lateral) Synchronisation of main and counter spindle Synchronised tapping with milling spindle Relocation Detector Mazatrol SmoothG control 19" LCD colour screen (touch screen) User macro (600 variables) EIA/ISO input function Optional stop (optional stop) Tool path check in the background Thread cutting function (G33) Polar coordinate input (EIA) Drawing data direct input function Interface for LAN SD memory card I/F - Second-hand machine without warranty - All dimensions, weights and performance specifications are non-binding

Condition: used, turning diameter max. 360 mm turning length 505 mm control Mazatrol SmoothC max. swing diameter over bed 660 mm swing diameter over slide guides max 255 mm bar material dia. max. 80 mm turning speed range - spindle 35 - 4000 U/min max. torque on the spindle 358 Nm x-axis 225 mm rapid traverse X-axis 30 m/min z-axis 605 mm rapid traverse Z-axis 33 m/min spindle nose A2-8'' spindle bore 91 mm spindle hollow 80 mm Milling spindle speeds ( driven tools) 5000 1/min torque on milling spindle max: 47 Nm power capacity - milling spindle 5,5 (40%ED) kW tailstock quill taper MT 5 Travel- tailstock 565 mm Axial pressure max 5000 Nm Tool turret 1 Numbers of tools 12 (angetrieben) turning tool - shaft cross cut 25 x 25 mm tool taper BMT Required air-pressure 5 / 160 bar / l/min voltage 400 V coolant tank 180 l engine output 18,5 (30min Betrieb) kW Rated power (100% continuous operation) 15 kW weight of the machine ca. 6 t Fsdpfx Agsv Dxw Re Topd dimensions of the machine ca. 3,6 x 2 x 1,8 m Machine incl. the following special accessories: Chip conveyor on the right side Productivity package C - special according to storage machine This package includes: High-performance coolant system (1.1 kW) Flow rate max. 17.6 l/min Preparation for chip conveyor (lateral) Automatic tool eye STANDARD ACCESSORIES Transformer for the European market Use of linear systems with guide carriage SD MEMORY I/F(1P) + USB MEMORY I/F(1P) 1 x USB memory interface (1 slot) Spindle bore 91 mm Set of manuals in electronic form on CD Mazak standard colour CE marking, metric, 50 Hz C-axis input accuracy 0.0001° NC controlled tailstock Tailstock pressure adjustment Tailstock with fixed quill MK5 SAFETY DEVICES Operator door with interlock switch Double foot switch Hydraulic pressure lock Fully enclosed work area Work area lighting Safety precautions according to global standard COOLANT SUPPLY Grundfos coolant pump type MTA (0.25kW / 7.6L/min) Complete coolant system Automatic switch-off via circuit breaker triggering MESSSYSTEM Absolute positioning system NUMERICAL CONTROL Synchronous tapping with milling spindle Relocation Detector Mazatrol SmoothC 10.4’ colour screen User macro (600 variables) EIA/ISO input function Tool path check in the background Thread cutting function (G33) Polar coordinate input (EIA) Drawing data direct input function Interface for LAN Various tool holders - All dimensions, weights and performance data are non-binding - Used machine without warranty -

Condition: used, Year of construction: 2022, turning diameter 276 mm turning length 500 mm control Mazatrol Smooth G max. swing diameter over bed 695 mm Distance spindle end - turret 710 mm bar material dia. max. 65 mm turning speed range - spindle 35 - 5000 U/min max. torque on the spindle 465 Nm x-axis 234 mm rapid traverse X-axis 30 m/min y-axis 100 mm rapid traverse Y-axis 21 m/min z-axis 625 mm rapid traverse Z-axis 33 m/min spindle nose A2-6 spindle passage 76 mm Milling spindle speeds ( driven tools) 5000 1/min torque on milling spindle max: 47 Nm power capacity - milling spindle 5,5 (40% ED) kW Fodpfxjynbd So Ag Tspd tailstock quill taper MT 5 Travel- tailstock 550 mm Tool turret 1 Numbers of tools 12 (angetrieben) tool taper VDI 30 min rated capacity 42,6 kVA Required air-pressure 0,5 / 330 MPa / l/min distance spindle /table 710 mm total power requirement 37 kW weight of the machine ca. 5,7 t dimensions of the machine ca. 2,8 x 2 x 1,9 m With the following special accessories: - Mayfran chip conveyor, side ejector, hinged belt conveyor - Engraving function ACCESSORIES / MACHINE OPTIONS Automatic on/off switch and warm-up function A warm-up is necessary to avoid problems such as abnormal wear of the sliding surfaces and sluggish movement. A sufficient warm-up provides the machine with the heat resistance it needs to machine workpieces with consistent, high precision. Transformer for the European market 8" chuck for main spindle with enlarged passage USB connection (1 connection) Mazak standard colour Main spindle motor AC 26 kW Tool turret with 12 stations VDI, also for driven tools in every position. For maximum performance, only the cutting tool is driven. Programmable tailstock (MK5) Tailstock quill (MK5) Y-axis control SAFETY DEVICES Operator door with lock switch Double foot switch Opening and closing of the chuck by means of a separate switch. Hydraulic pressure lock Fully enclosed work area Work area lighting COOLANT SUPPLY High-performance coolant system (520W) Flow rate max. 11.5 l/min. Complete coolant system CHUCK, ETC. Automatic opening/closing of chuck jaws 8" power chuck with enlarged passage (main spindle) Kitagawa BB208 MEASURING SYSTEM Automatic Tool Eye NUMERICAL CONTROL Synchronous tapping with milling spindle Relocation Detector Mazatrol SmoothG control 19" LCD colour screen (touch screen) User macro (shared variables: 600 pairs) Mazak tapping/drilling cycle Tornado in EIA/ISO. (Only possible on machines with Y-axis. EIA/ISO package EIA/ISO input function EIA/ISO additional functions - Helical interpolation - 3D tool correction - Workpiece coordinate rotation - Geometric function - Scaling - External data input/output Thread cutting function (G33) Reverse time feed G93 G37 Tool length measurement Polar coordinate input (EIA) Optional stop (optional stop) Additional workpiece coordinate systems 300 pieces User macro (600 variables) Mazak thread tapping/drilling cycle Tornado in EIA/ISO. EIA/ISO drilling cycles (arc, grid, circle, circular arc, line) Machining on inclined surfaces EIA/ISO input function Tool path check in the background Thread cutting function (G33) Polar coordinate input (EIA) Interface for LAN SD memory card I/F Smooth standard software for lathes (milling) MAZACC 2D software Workpiece shape compensation Rapid traverse paths Rounding function - Seamless co...

Condition: used, turning diameter 340 mm turning length 575 mm control Mazatrol SmoothEZ max. swing diameter over bed 695 mm Standard machining diameter 235 mm bar material dia. max. 65 mm x-axis 215 mm rapid traverse X-axis 30 m/min y-axis 100 mm rapid traverse Y-axis 10 m/min z-axis 605 mm rapid traverse Z-axis 30 m/min turning speeds 35 - 5000 U/min spindle nose A2-6 spindle bore 76 mm Motor output (40%ED) 15 KW 11 KW Max. Torque 167 Nm turning speeds 35 - 6000 U/min spindle nose A2-5 Motor output (40%ED) ca. 7,5 KW Power (continuous operation) 5,5 KW Max. Torque 53 Nm Milling spindle speeds ( driven tools) 20 - 4500 1/min torque on milling spindle max: 47 Nm power capacity - milling spindle 5,5 (40% ED) kW Milling spindle power 3,7 kW Numbers of tools 12 (angetrieben) Tool cross section (outside) 25 qmm Boring bar- Ø 40 mm Drill- Ø 20 mm Mill- Ø 20 mm Tap- Ø M20 coolant tank 225 l Chuck diameter main spindle 8 '' Chuck diameter counter spindle 6 '' w-axis 585 mm rapid travel W 30 m/min c-axis 555 weight of the machine ca. 4,9 t dimensions of the machine ca. 2,8 x 2 x 1,8 m Special accessories: - Chip conveyor, hinged belt, side ejector - Production package, this package includes Preparation for bar feed Automatic parts catcher (Ø:80mm x L:120mm x 2.5 kg) 15 bar high-pressure coolant system Preparation for chip conveyor (lateral) Signal light (3-colour LED), rectangular C-axis counter spindle 0.0001° Automatic tool eye 8" power chuck Kitag. BR08 & Cyl. SR1566C (HD1) GENERAL MACHINE OPTIONS Air blowing device on the chuck (counter spindle) Transformer for the European market Linear roller guides SD MEMORY I/F(1P) + USB MEMORY I/F(1P) 1 x USB - Memory Interface (1 slot) CE marking CE marking, metric, 50 Hz Counter spindle positioning 0.0001 degrees without C-axis Tool turret with 12 stations Y-axis control ADDITIONAL PROCESS SOFTWARE Smooth restart function / restart mode Set of manuals in electronic form on CD Main spindle motor AC 15 kW (20 hp) 2nd spindle motor AC 7.5kW (20 hp) Main spindle motor AC 7.5kW MAIN SPINDLE C-axis main spindle Input accuracy (contour/index) 0.0001° Mazak standard colour (F white(fine)/S black) Automatic switch-off via circuit breaker trip Double foot switch Hydraulic pressure interlock Fpjdjwngklspfx Ag Tsd RFID door interlock Safety foot switch with locking mechanism Safety measures according to worldwide standard Work area lighting Complete coolant system Automatic opening/closing of chuck jaws (main and counter spindle) Feedback of the chuck status (main and counter spindle) Feedback of the chuck status via sensors. 8" power chuck 6" power chuck (counter spindle) Absolute positioning system Synchronous tapping with milling spindle Relocation Detector NC control Mazatrol SmoothEz 15" colour Lcd (touch screen) User macro (common variables: 600 pairs) EIA/ISO package EIA/ISO - input function EIA/ISO - additional functions Bolt line interpolation 3D tool compensation Workpiece coordinate rotation Geometric function Scaling External data input/output Tapping function (G33) Reverse feed rate G93 G37 Tool length measurement Polar coordinate input (EIA) Optional stop Additional workpiece coordinate systems 300 pieces User macro (600 variables) Mazak tapping/drilling cycle EIA/ISO - input function Scaling External data input/output Thr...

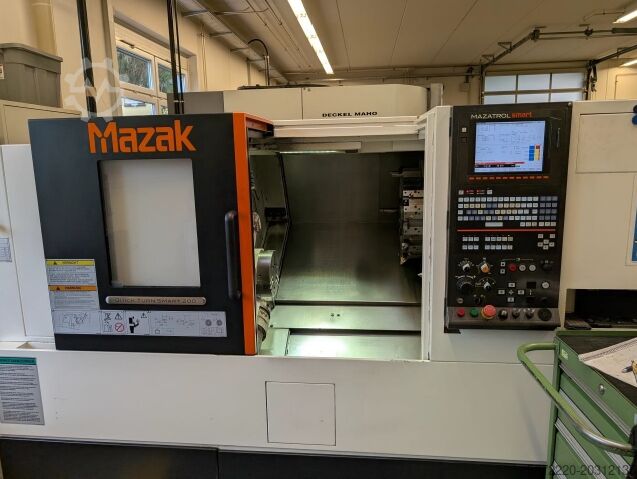

Condition: used, Year of construction: 2012, turning diameter 203 mm turning length 300 mm control Mazatrol Smart Distance spindle end - turret 99-434 mm max. turning diameter 280 mm bar material dia. 51 mm travel -x axis 200 mm travel -z axis 340 mm spindle turning speed range 35 - 6000 U/min rapid traverse X-axis 33 m/min rapid traverse Z-axis 36 m/min spindle bore 61 mm Tool turret 12 -fach turning tool - shaft cross cut 20 Boring bar- Ø 32 mm workpiece weight 150 kg spindle nose A2-5 taper in tailstock-quill MK4 Travel- tailstock 350 mm total power requirement 16,3 kW weight of the machine ca. 3,5 t dimensions of the machine ca. 1,9 x 1,6 x 1,8 m Special accessories: Autom Tool Eye Spindle orientation Signal light Additional coolant nozzles above the chuck Automatic switch-off Interface for bar feed Automatic parts catcher Ø 51 x L:100 x 2.5 kg Workpiece conveyor for automatic parts catcher with workpiece tray Chip conveyor, side ejection Fedpfeynbd Ejx Ag Tspd Includes: Automatic short bar loading magazine LNS QUICK LOAD SERVO 80_S2 Diameter range: 6 - 80 mm round and hexagonal material Bar lengths: 350 - 1600 mm, however max. headstock length /UVV Weight max. 67 kg / bar Burr-free bars or bar sections Depth 600 mm for holding bars Input voltages from 200 – 460 volts / operating voltage 24 V DC, LNS control programmed on SIEMENS STEP 7 PLC, flexible control panel with large screen, user guidance via symbols for easy operation and adjustment. Device cover with 2 viewing windows made of Plexiglas.

Condition: used, Year of construction: 1999, Turning length 1575 mm X 450 mm Y +/- 90 mm Z 1575 mm Max. swing 510 mm Max. turning diameter 400 mm Spindle bore 76 mm Spindle speeds 3000 rpm on main spindle Spindle speeds 6000 rpm on mill spindle Tool changer w/ 40 stations Hydraulic tailstock Control: Mazatrol Pc Fusion 640 MT Fjdpfx Aouimaxsg Topd Equipped with: Hydraulic 3-jaw chuck Chip conveyor App. 20 holders for turning

Condition: excellent (used), Year of construction: 2017, Mazatrol Smooth C Max. turning diameter 340 mm Fpsdpjytcitefx Ag Ted Main spindle max. speed: 5,000 rpm max. bar capacity: 65 mm Turret 12 tool stations max. speed: 4,500 rpm Additional options Programmable tailstock, MK-4 3-jaw Kitagawa chuck, diameter 210 mm Parts catcher Interface for bar feeder Tool holder package Chip conveyor

Condition: good (used), Year of construction: 2013, Swing over bed 660mm, maximum machining diameter 350mm, Fpsdpfx Ageyna Nge Tjd maximum machining length 540mm, bar capacity 65mm, spindle speed 5,000rpm, 12 station turret, Mazatrol Smart control, swarf conveyor, & 3 jaw chuck.

Condition: used, 1 unit CNC lathe MAZAK QUICK TURN 8NSP Max. turning diameter: 160mm, max. swing over bed: 300mm, spindle speed: 4,500 rpm, with various accessories and 2x material cabinets, as per photos and inspection, self-dismantling required Fpsdpfx Aeyr H Rxsg Tsd Dimensions (L/W/H): 120x45x77cm Condition: used Storage location: production hall / right Payment method: advance payment by bank transfer Shipping: pickup only – shipping is not available for this item!

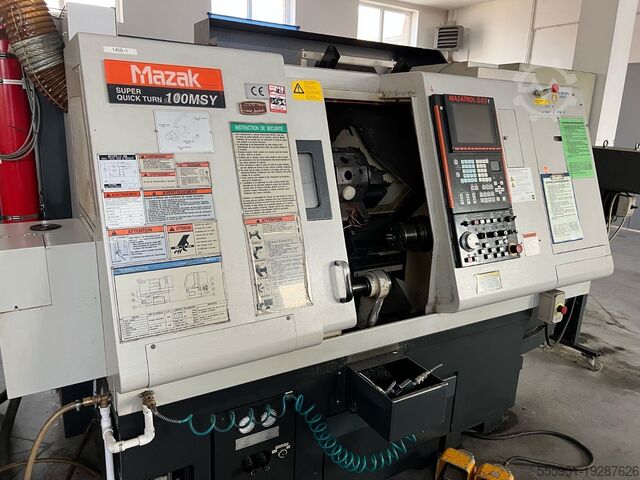

Condition: excellent (used), Year of construction: 2018, MAZAK QUICK TURN 100MSY Max. turning diameter: 280 mm Max. milling speed: 5,000 rpm Max. spindle speed: 5,000 rpm Max. bar diameter: 42 mm The machine is equipped with: - Mazatrol SmoothG CNC control - KITAGAWA 3-jaw chuck for main spindle, diameter 169 mm - KITAGAWA 3-jaw chuck for secondary spindle, diameter 135 mm - Tool Eye - C-axis - C-axis on sub-spindle with 0.0001° resolution - Y-axis - Automatic parts catcher - Signal light (3-color LED) - Reinforced coolant pump - Chip conveyor Fsdsygi A Hspfx Ag Tepd - Standard MAZAK tool package

Condition: excellent (used), Year of construction: 2020, operating hours: 916 h, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 550 mm, travel distance Z-axis: 530 mm, rapid traverse X-axis: 42 m/min, rapid traverse Y-axis: 42 m/min, rapid traverse Z-axis: 42 m/min, nominal power (apparent): 47 kVA, workpiece weight (max.): 500 kg, total height: 3,039 mm, total length: 2,350 mm, total width: 2,962 mm, overall weight: 10,000 kg, spindle speed (max.): 12,000 rpm, spindle motor power: 11,000 W, spindle nose: BT40, number of slots in tool magazine: 60, tool length: 300 mm, tool diameter: 130 mm, tool weight: 8,000 g, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, CNC Machining Center Mazak Variaxis C-600 TECHNICAL CHARACTERISTICS: Year of manufacturing: 2020 Number of running hours: 916 [h] Number of simultaneous axes: 5 Stroke X axis: 650 [mm] Stroke Y axis: 550 [mm] Stroke Z axis: 530 [mm] Feed rate on X, Y and Z axes: 42000 [mm/min] Min. distance spindle nose / table: 50 [mm] Max. distance spindle nose / table: 580 [mm] Table dimensions: Ø600 x 500 [mm] Max. load on table: 500 [Kg] Stroke C axis : table revolution: 360 [°] B axis swivelling stroke: -30 [°] / +120 [°] Spindle type: BT40 Max. spindle speed: 12000 [rpm] Spindle power: 11 [kW] Tool changer magazin number of stations: 60 Max. tool length: 300 [mm] Max. weight of single tool: 8 [Kg] Max. tool diameter: 80 - 130 [mm] Total power required: 46.7 [kVA] Supply voltage: 400 [V] Machine dimensions: 2350 x 2962 x 3039 [mm] Layout dimensions: 5010 x 2470 [mm] Weight: 10000 [Kg] EQUIPMENT INCLUDED: x1 RENISHAW part probe type RMP600 x1 RENISHAW tool probe type PRIMO LTS x1 RENISHAW calibration sphere x1 electronic handwheel x1 chip conveyor x1 high-pressure pump 15 [bar] Fpjdpfx Agjyrcnms Ted Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine similar to Mikron, Hermle, DMG Mori, Mazak, Hedelius, AXA, Chiron, Matec, Reiden, Lagun, Haas, Alzmetall, as well as milling machines, drill and tap machines, and CNC grinding machines.

Condition: used, Year of construction: 1995, turning diameter 510 mm turning length 1000 mm control Mazatrol type Mazatrol T plus turning speeds 35-3500 U/min spindle passage 88 mm Tool changer 20 Pos. Spindle capacity 35 KW centre distance 1029 mm x-travel 450 mm z-travel 1029 mm weight of the machine ca. 7,5 t - Spindle nose: A2-8 - Axis C - Maximum feed: X = 12 m/min - Y = 10 m/min - Z = 18 m/min The tech. Data are manufacturer or operator information and therefore non- Fsdpfxjyqu Hxj Ag Tspd binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team
