Used Sepro Robot for sale (19)

Condition: as good as new (ex-display), Year of construction: 2020, overall weight: 543 kg, load capacity: 10 kg, controller model: VISUAL2, control cabinet width: 350 mm, control cabinet height: 635 mm, input voltage: 400 V, X stroke: 2500mm Y stroke: 700 mm Bpkeugivca Z stroke: 1200 mm Wrist rotation: 90 Euromap 12

Year of construction: 2018, Condition: like new (used), Serial nr. R006336-03 Payload: 10 kg Axes servo: X: 2000 mm Y: 700 mm Z: 1400 mm R1 = 0-90 degrees (pneumatic) Possible to connect to any machine via Euromap 67 Was connected 350 ton Demag machine. Complete robot datasheet attached. 223Azni3O

Condition: ready for operation (used), Year of construction: 2002, Functionality: fully functional, machine/vehicle number: 2002-01 N°8948, travel distance X-axis: 1,000 mm, travel distance Y-axis: 375 mm, travel distance Z-axis: 800 mm, overall weight: 160 kg, Equipment: documentation/manual, Sepro PIP 3010 AZ functional robot from 2002 With documentation Hpcowjc2C

Condition: good (used), Year of construction: 2023, robot handling device Sepro S5-25 DI Visual 3 x=700 mm y vert.(telesc.) =1400mm Z=3500 mm (R1 + R2 ) R1 Up9Zsbq9Bx year: 2023 price: 27.500 Euro contact: Mr. Rainer Eckerle

Condition: excellent (used), Year of construction: 2018, Functionality: fully functional, overall weight: 700 kg, load capacity: 15 kg, controller model: visual2, control cabinet width: 430 mm, control cabinet height: 1,470 mm, Robot Excellent condition - Euromap 12 Beam stroke X : 2500 mm Demoulding stroke Y : 900mm Gxc0Dmq Vertical stroke Z : 1800 mm

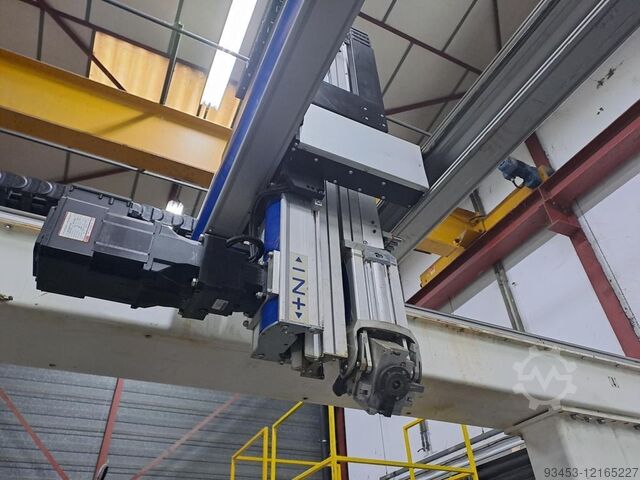

Condition: good (used), Sepro robot Type: SR 4030 S3 Year: 08-2006 Ge7Upvqk2L

Year of construction: 2018, Condition: like new (used), Robot model: S5-35 Serial Number: R005334-02 Model of the electronic control system: Visual2 Production: 15/03/2018 Robot weight: 741 kg Rated load: 15kg External dimensions, Y track and extendable Z arm: 4910 x 1950 x 2250 Working pressure in the pneumatic system: 6bar +- 10% Maximum allowable pressure in the pneumatic system: 7bar Nominal compressed air consumption: 180l/min Maximum instantaneous compressed air consumption: 620l/min Control cabinet weight: 36kg Od9Colfja Cabinet external dimensions: 400 x 360 x 636 mm Working voltage: 3 x 400v / 3 x 480v +- 10%, three-phase without neutral Maximum power consumption: depends on the robot cycle Display: 10.4'' touch screen Internal program memory: 4GB on micro SD card System memory: 512MB DDR and 512MB FLASH X axis horizontal movement Stroke: 3500mm Drive: Servo controlled, brushless Instantaneous linear speed: 3.5 m/s Stop Control: Numerical Linear PTP Display screen resolution: 0.1 mm Positioning accuracy DLx(*): +-0.5mm Setting repeatability ry(*): +-0.1mm Y axis horizontal movement Stroke: 700mm Drive: Servo controlled, brushless Instantaneous linear speed: 3 m/s Stop Control: Numerical Linear PTP Display screen resolution: 0.1 mm Positioning accuracy DLy(*): +- 0.5mm Setting repeatability ry(*): +-0.1mm Vertical Z movement Stroke: 1400mm Drive: Servo controlled, brushless Instantaneous linear speed: 4 m/s Stop Control: Numerical Linear PTP Display screen resolution: 0.1 mm Positioning accuracy DLx(*): +- 0.5mm Setting repeatability ry(*): +-0.1mm Gripper joint rotation Standard Pneumatic Rotation R1: 0-90° Pneumatic rotation R2 mounted on R1: 0-180° or 0-90° Immediate stop on R2 : 0 - 180° and 0 - 90° Drive: Servo controlled, brushless Control system: - Bistable pressure: 2 -Digital Vacum Digital Pressure Control: 2

Year of construction: 2008, Condition: good (used), Load 10 kg X 1500 mm, Y 650 mm, Z 1200 mm weight of robot 305 kg, 2Jxpq9N 2490x1505x2125 mm weight of box 110 kg 600x400x1200 mm suitable for injection molding machines: 150-350 tons

Year of construction: 2005, Condition: good (used), robot handling device Sepro SR 4010 S3 DB x=400 mm y vert. =1000mm Z=1600 mm (+C) R1 year: 2005 price: 6.900 Euro contact: Mr. Rainer Eckerle Dlsd7P

Year of construction: 2015, Condition: excellent (used), Robot Model: S5-35 HL S4 AXIAL Serial Number: P23185 Model of the electronic control system: Visual2 Production: 26/10/2015 Robot weight: 800 kg Rated load: 2 x 6 kg External dimensions, Y track and extendable Z arm: 5040 x 1950 x 2730 Working pressure in the pneumatic system: 6bar +- 10% Maximum allowable pressure in the pneumatic system: 7bar Nominal compressed air consumption: 180l/min Maximum instantaneous compressed air consumption: 550l/min Control cabinet weight: 100kg External dimensions of the cabinet: 430 x 500 x 1470 mm Working voltage: 3 x 400v / 3 x 480v +- 10%, three-phase without neutral Maximum power consumption: depends on the robot cycle Display: 10.4'' touch screen Internal program memory: 4Go on micro SD card System memory: 512MB DDR and 512MB FLASH X axis horizontal movement Stroke: 4000mm Drive: Servo controlled, brushless Instantaneous linear speed: 3.5 m/s Stop Control: Numerical Linear PTP Display screen resolution: 0.1 mm Positioning accuracy DLx(*): +-0.5mm Setting repeatability ry(*): +-0.1mm Ehjl8Yn Y axis horizontal movement Stroke: 900mm Drive: Servo controlled, brushless Instantaneous linear speed: 3 m/s Stop Control: Numerical Linear PTP Display screen resolution: 0.1 mm Positioning accuracy DLy(*): +- 0.5mm Setting repeatability ry(*): +-0.1mm Vertical Z movement Stroke: 1400mm Drive: Servo controlled, brushless Instantaneous linear speed: 3.5 m/s Stop Control: Numerical Linear PTP Display screen resolution: 0.1 mm Positioning accuracy DLx(*): +- 0.5mm Setting repeatability ry(*): +-0.1mm Gripper joint rotation Standard Pneumatic Rotation R1: 0-90° Pneumatic rotation R2 mounted on R1: 0-180° or 0-90° R3 rotation Rotation angle: N/A° Drive: Servo controlled, brushless Instantaneous angular velocity: N/A °/s Pneumatic equipment Removal from the workbench side: fixation and movable use of manual configuration Control system: - Bistable pressure: 2 -Analogue Vacum: 2

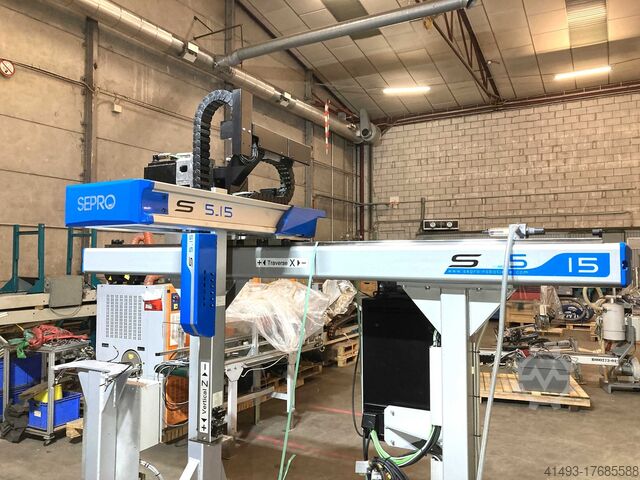

Condition: good (used), Year of construction: 2015, robot handling device Sepro S5-15 S3 SPE x=500 mm y vert=700mm Z=2000mm (without R1 90°) year 2015 Stock: 1 · Bsip0Ybpmcu price: €14,500.00 contact: Mr. Rainer Eckerle

Year of construction: 2015, Condition: excellent (used), Robot Model: S5-35 HL S4 AXIAL Serial Number: P23184 Model of the electronic control system: Visual2 Production: 29/09/2015 Robot weight: 936 kg Rated load: 2 x 6 kg External dimensions, Y track and extendable Z arm: 5540 x 1950 x 2730 Working pressure in the pneumatic system: 6bar +- 10% Maximum allowable pressure in the pneumatic system: 7bar Nominal compressed air consumption: 180l/min Maximum instantaneous compressed air consumption: 550l/min Control cabinet weight: 100kg External dimensions of the cabinet: 430 x 1950 x 2730 mm Working voltage: 3 x 400v / 3 x 480v +- 10%, three-phase without neutral Maximum power consumption: depends on the robot cycle Display: 10.4'' touch screen Internal program memory: 4Go on micro SD card System memory: 512MB DDR and 512MB FLASH X axis horizontal movement Stroke: 4500mm Drive: Servo controlled, brushless Instantaneous linear speed: 3.5 m/s Stop Control: Numerical Linear PTP Display screen resolution: 0.1 mm Positioning accuracy DLx(*): +-0.5mm Setting repeatability ry(*): +-0.1mm Y axis horizontal movement Stroke: 900mm Drive: Servo controlled, brushless Instantaneous linear speed: 3 m/s Stop Control: Numerical Linear PTP Display screen resolution: 0.1 mm Positioning accuracy DLy(*): +- 0.5mm Setting repeatability ry(*): +-0.1mm Cyapz79T8X Vertical Z movement Stroke: 1400mm Drive: Servo controlled, brushless Instantaneous linear speed: 3.5 m/s Stop Control: Numerical Linear PTP Display screen resolution: 0.1 mm Positioning accuracy DLx(*): +- 0.5mm Setting repeatability ry(*): +-0.1mm Gripper joint rotation Standard Pneumatic Rotation R1: 0-90° Pneumatic rotation R2 mounted on R1: 0-180° or 0-90° R3 rotation Rotation angle: N/A° Drive: Servo controlled, brushless Instantaneous angular velocity: N/A °/s Pneumatic equipment Removal from the workbench side: fixation and movable use of manual configuration Control system: - Bistable pressure: 2 -Analogue Vacum: 2

Condition: good (used), Year of construction: 2016, Sepro Success 11 x=500 mm y vert=1400mm Z=2100 mm 90° R1 + R2 Bsir0Ctkwx3 year 2016 Stock: 1 · price: €15,500.00 contact: Mr. Rainer Eckerle

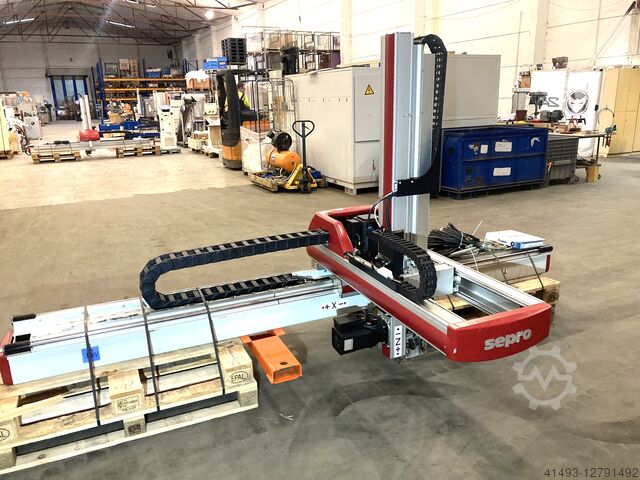

Year of construction: 2005, Condition: good (used), robot handling device Sepro SR 4020 S3 DB x=600 mm y vert. =1100mm Z=2500 mm (+C) R1 year: 2005 Bpzhwd8Z price: 8.950 Euro contact: Mr. Rainer Eckerle

Year of construction: 2005, Condition: good (used), robot handling device Sepro SR 4020 S3 DB x=600 mm y vert. =1100mm Z=2500 mm (+C) R1 year: 2005 price: 8.950 Euro contact: Mr. Rainer Eckerle Issacwe

Year of construction: 2009, Condition: good (used), Handling device Sepro SR Access 22 S3 DB Touch 2 x = 650 mm y vert. = 1400mm Z = 1500 mm (+ C + A) R1, R2, year: 2009, Price: 12.900 Euro, Contact: Mr. Rainer Eckerle Bfp9Xacfyc

Year of construction: 2008, Condition: good (used), robot handling device Sepro SR 4020 S3 DB x=600 mm y vert. =1100mm Z=2750 mm (+C + A) R1,R2 year: 2008 price: 13.500 Euro Epiy2Ky28 contact: Mr. Rainer Eckerle

Year of construction: 1999, Condition: good (used), robot handling device Sepro 3021 BZ S 900 II x=550 mm y vert. =1000mm Z=2250 mm +C +A(R1, R2) , year: 1999, price: 6.200 Euro, contact: Mr. Rainer Eckerle Bek3Jkxllx

Condition: used, Year of construction: 2005, Handling unit Sepro SR Access x=1500 mm y =350mm Z=1000 mm (+C + A) Year of construction: 2005 R1=0-90 R2=0-180 resp. 0-90 4 x vacuum 3 x pressure Ctyufpqc All data without guarantee! Errors, changes and prior sale excepted!
