Used Comau Robot for sale (13)

Condition: new, Year of construction: 2024, functionality: fully functional, 1 x Industrial Robot COMAU N-220-2.7 NEW, unused robot • Maximum joint payload: 220 kg • Maximum horizontal reach: 2,670 mm • Including base frame, 300 mm high • Repeatability: 0.05 mm 1 x Rotary Table TR 3000/MT NEW, unused rotary table • Payload: 3,000 kg Predpfxjxx Tkko Agqed • Maximum rotation speed: 50°/sec • Repeatability at 500 mm: 0.1 mm • Table height: 780 mm • Diameter: 750 mm 1 x Control cabinet with complete controller, NEW

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, COMAU C3G Plus industrial robot - 6-axis operation - 285 kg payload Prsdpoxw Nwdefx Agqjd The machine is operational and in good technical condition – equipped with a vacuum gripper for flat components.

Condition: ready for operation (used), Year of construction: 2004, This COMAU C4G NH4 – 200 robot arm was manufactured in 2004. It is part of a set of 4 refurbished industrial robots, fully serviced and in excellent working condition. These units have been mechanically and electronically overhauled, ensuring reliable performance. Ideal for automation, assembly, or handling applications. Contact us for more information about this machine. Pedpfx Aoxq Humsgqord Application Types Robotics

Condition: new, Year of construction: 2024, operating hours: 37 h, functionality: fully functional, machine/vehicle number: 2411975-2236754, overall weight: 655 kg, load capacity: 40 kg, arm reach: 2,503 mm, pivoting range: 340 °, controller manufacturer: C5G, controller model: C5G Plus, teach pendant manufacturer: TP5, teach pendant model: C5G Control Unit, control cabinet width: 800 mm, control cabinet height: 1,100 mm, input voltage: 480 V, input current: 12 A, type of input current: DC, repeat accuracy: 0.06 mm, Equipment: documentation/manual, 6-axis industrial robot, 40 kg wrist payload, 2.503 m reach, ±0.06 mm repeatability. Supplied with Comau C5G Plus (Rel.3.0) control unit and TP5 teach pendant. Foundry protection (IP65/IP67 options) and hollow wrist/forearm dressing. Mains 400–480 VAC, 50/60 Hz. Psdpfxoxtm H Us Agqjrd

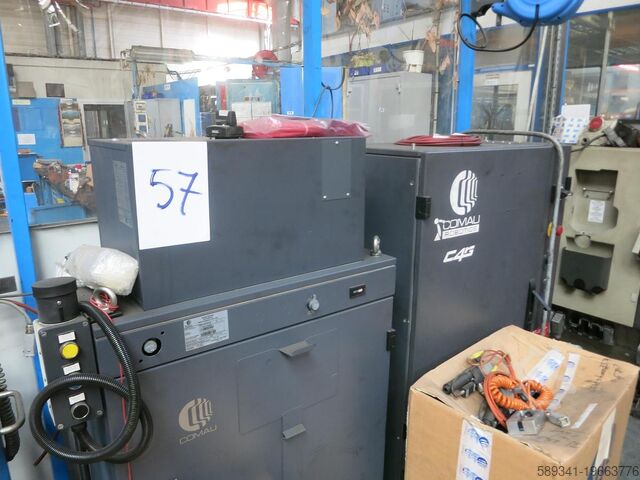

Condition: used, COMAU C4G RCC3 / C5G ACC3 Robot Controller Manufacturer: COMAU S.p.A. Type: Industrial robotic control unit – generation C4G RCC3 / C5G ACC3 Industrial Applications: - Robotic welding (MIG/MAG, spot) - Automated assembly - Material handling - Palletizing operations - Robotic machining - Multi-robot cells and flexible production lines Main Technical Specifications: - Modular architecture using RCC3 (C4G) and ACC3 (C5G) units - Compatible with COMAU SMART, NJ, and NS robot series - Controls up to 13 axes simultaneously Prjdpfxsw Ec Saj Agqjd - Intelligent cooling, energy-efficient design - Input voltage: 400–500 V AC three-phase - Integrated safety (RobotSAFE): zone management, speed limitation, emergency stop - Operator interface via touchscreen panel or Teach Pendant - PC-based industrial controller (dual-core CPU) in C5G - Remote access, online diagnostics, automation API compatibility Machine Usage This control system operates COMAU industrial robots in fully automated production environments. It provides high-precision trajectory control, multi-axis movement coordination, advanced programming tools, and seamless integration into robotic cells for welding, machining, or automated handling. Features / Differentiators - The C4G RCC3 is a durable, earlier-generation controller designed for legacy robot lines, featuring PDL2 programming. - The C5G ACC3 includes enhanced processing, modern PC architecture, real-time diagnostics, and advanced built-in safety systems. - ACC3 is optimized for modern, scalable industrial automation systems with multi-robot compatibility and fast deployment in digital manufacturing workflows.

Condition: new, Year of construction: 2018, functionality: fully functional, machine/vehicle number: 2404605 + 2404606, A double package of two new robots will be auctioned! The robot will be delivered free of charge. TECHNICAL DETAILS Number of axes: 6 Max. joint payload: 220 kg Additional forearm load: 50 kg Horizontal reach: 1033 - 2701 mm Motion ranges Axis 1 stroke: ± 180° Axis 2 stroke: +95° / -75° Axis 3 stroke: -10° / -246° Axis 4 stroke: ± 2700° Axis 5 stroke: ± 125° Axis 6 stroke: ± 2700° Precision Repeatability: 0.08 mm Prjdewbqlmjpfx Agqod Mechanics and design Tool coupling flange: ISO 9409 – 1 – A 160 Robot weight: 1220 kg Protection class: IP65 / IP67 Control unit: C5G-ACC3-E, CR17930685 Teach Pendant: GTP5S1 TP5 Teach Pendant, Cable Length: 10 m, CR17431986 System Software: Comau Controller System Software, CR17926000 System Documentation: DVD with Documentation, CR17930160 Control Software: "C5G Open" Software, CR17926221 Communication & Interfaces Ethernet I/P Master Module: CR10143983 EtherNet/IP Adapter [Slave]: CR10144083 PNMI Profinet Multibus Interface: CR17130964 Powerlink Card for APC: C5G-PCA C5G-PFG-BCO Bus Module: Coupler Bus Module, CR10146383 Cables & Connections Standard Power Cable: C5G - 24 VDC, CR17240260 Powerlink Ethernet cable (1.5 m): CR17231863 Multibus cable (40 m): CR18567666 Cable set for large robot (40 m): CR18945885 Multibus & Air connection kit (axis 6 to gripper): 16689580 Mechanical Equipment Adjustable mechanical end stop axis 1: CR82342400 Mounting accessories (screws, pins): CR82342700 Distribution panel cover: CR82352200 Safety & Options Allen Bradley Ethernet IP Safe Module: CR17131681 Handling connection kit NJ4 Ethernet/IP: CR18970380

Condition: excellent (used), Year of manufacture: 2018 Axes: 6 Weight: 125 kg Control: COMAU C5G ACC1-E Welding device! Remote: TPS Will Best remote control Model: Comau Robotics C5G ACC1-E Serial number: 2224410 Part number: CR17931581 Application: Positioning system integrated with resistance welding system Installed system: TPS Will Best – UF40 DC resistance welding remote control system Podpfx Agsww Ut Hoqerd Enclosure: Free-standing aluminium-glass enclosure, dimensions 4000 x 4000 mm

Condition: new, Year of construction: 2023, operating hours: 37 h, functionality: fully functional, machine/vehicle number: 2411941, overall weight: 680 kg, load capacity: 16 kg, arm reach: 3,000 mm, pivoting range: 340 °, controller manufacturer: Comau, controller model: C5G, teach pendant manufacturer: TP5, teach pendant model: C5G Control Unit, type of input current: DC, repeat accuracy: 0.1 mm, Equipment: documentation/manual, Comau NJ 16-3.1 (SMART-5) — 6-axis industrial robot arm, 16 kg wrist payload, 3.108 m reach, 0.10 mm repeatability. Supplied with Comau C5G control unit and TP5 teach pendant. Input power 400–480 VAC, 50/60 Hz. Excellent condition; ideal for handling, assembly, palletizing and finishing. Pjdpfxjxtm Eko Agqjrd

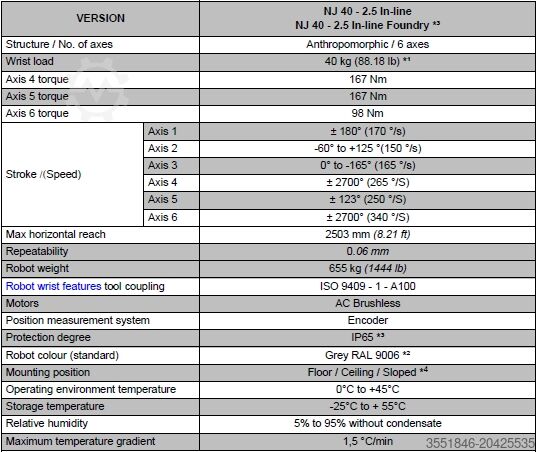

Condition: as good as new (ex-display), Type: Smart-5-NJ40-2.5 Year of manufacture: 2021 Axles: 6 axles Maximum load: 40 kg Maximum reach: 2503 mm Pedpfjuxq Etjx Agqsrd

Condition: as good as new (ex-display), Type: NJ 110-3.0 Psdpfx Ageuxq Nxeqord Year of manufacture: 2022 Axles: 6 axles Maximum load: 110 kg Maximum reach: 2980 mm

Condition: excellent (used), Year of construction: 2018, Quantity: 3 units Year of manufacture: 2018 Axes: 6 Max reach: 2700 mm Rated load: 220 kg Max load: 220 kg Positioning accuracy: ±0.06 mm Robot weight: 1,280 kg Control unit: C5G ACC3 E Pedpfx Agjwxvy Dsqerd Pendant: TP5

Condition: new, Comau Smart 5 NJ 4 220-2.7 robot Axes: 6 Year of production: 2018 Maximum load: 220 kg Working radius: 2738 mm Repeat accuracy: 0.15 mm Psdotyvl Uspfx Agqord

Condition: used, Year of construction: 2000, machine/vehicle number: 6126, Comau CNC Crankshaft Turn Broaching Machine max crankshaft dimensions, ca.: dia 250 x 800 mm, Twin-Station Crankshaft Turn Broaching Machine for Main and Pin Bearings, internal part transfer, two twin-cutting-head stations, one CNC SIEMENS SINUMERIK 840D per station with X1/X2 and Z1/Z2 Axes and C1/C2/C3/C4 rotating spindle Axes for each station, LxWxH, ca. 8x3x3m, weight, ca. 30to Prjdpfxsxxx E Ho Agqod
